Quad Core CPU / IP65 sealing
|
|
1D&2D barcode scanning & NFC reader
|
|

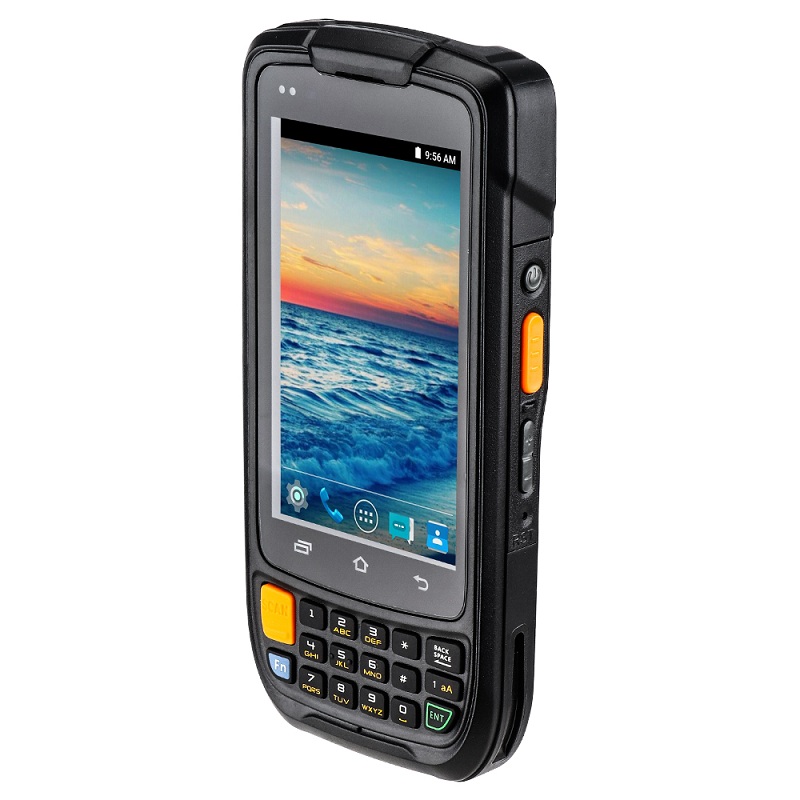

Crystal clear 4” display / 3800mAh battery / Quad core CPU
|
|
l The most rugged design and reliability
|
|
Can affords multiple drop (impact) test up to 5ft./1.5m, IP65 sealing complete protection against dust and splashing liquid, upgraded shock absorption for internal main circuit board and all electronics.
|
|
l Innovative scanning barcode technology
|
|
Integrated imager provides perfect bar code scanning performance which is superior to other scan engines in the market. It delivers high speed, accurate 1D and 2D barcode reading in any orientation, and decodes even low-quality symbols at various conditions.
|
|

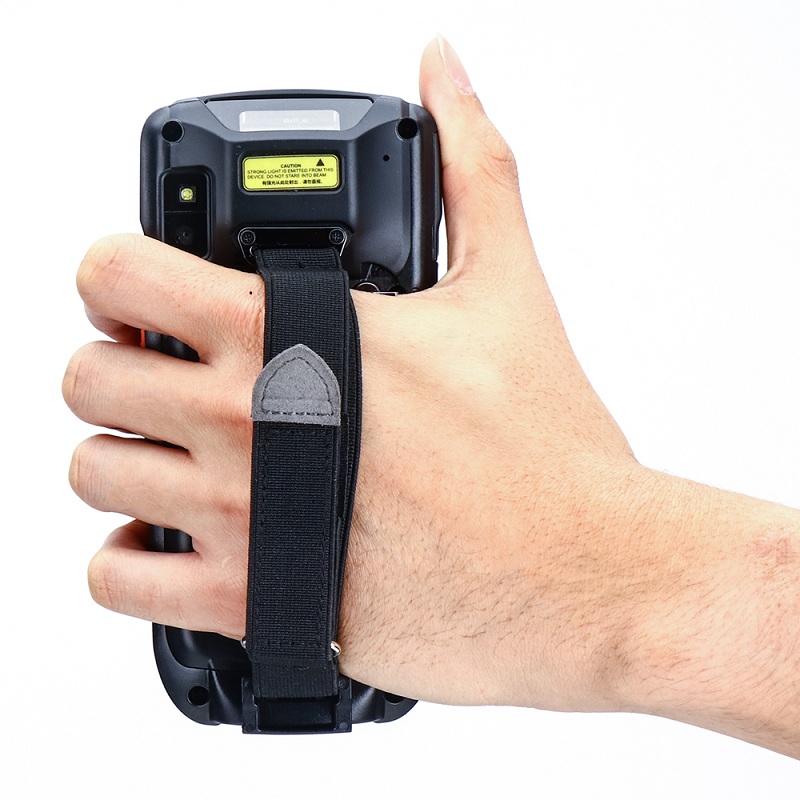

l Ergonomic and pocketable shape design
|
|
Human factor has been deliberate concerned regardless of hand size with overall device interaction is highly intuitive. It has integrated 3 scanning trigger keys which is facility to capture the barcode data when and where you need it.
|
|
Physical Characteristics
|
Dimentions
|
155 mm x 70 mm x 24 mm
|
|
Weight
|
310g( Battery included)
|
|

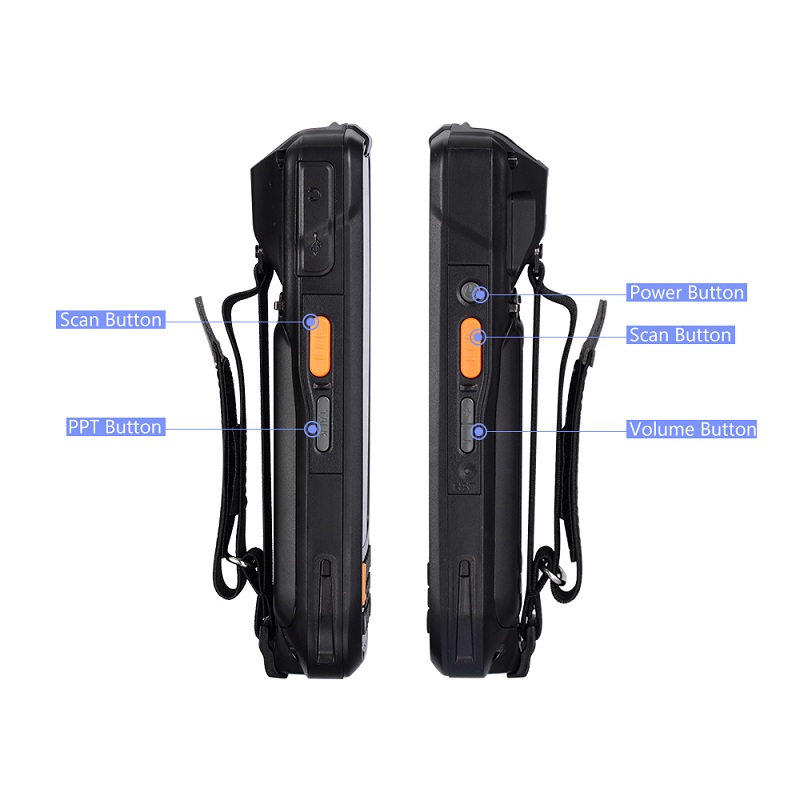

Keyboard
|
1. Number/Alphabetic keys (including SCAN, 1aA, Backspace, Enter and Fn), LED backlight
|
|
2. Side SCAN*2 and TALK keypad*1
|
|
3. The volume switch
|
|
4. ON / OFF Key
|
|
Input
|
Chinese/ English, and supports handwriting and soft keyboard
|
|
Performance Characteristics
|
O.S.
|
Android 5.1
|
|
|
CPU
|
Quad-Core 1.2GHz
|
|
|
Display
|
4.0 inch TFT-LCD WVGA(800*480) color touch screen
|
|
|
Panel
|
Capacitive touch screen, supports multi-touch
|
|
|
RAM
|
2GB
|
|
|
ROM
|
16GB
|
|
Barcode Scanner
|
2D CMOS
|
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
|
|
(Optional)
|
Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
|
|
Radio Communication
|
Wi-Fi
|
802.11 b/g/n wireless communication, supports seamless roaming
|
|
|
Bluetooth
|
Bluetooth 4.0
|
|
|
4G:
|
TDD-LTE (B38、B39、B40、B41) FDD-LTE (B1、B3)
|
|
|
3G
|
UMTS/HSDPA/HSPA/HSPA+ (850,900,2100 MHz) CDMA EV-DO Rev.A (800MHz)
|
|
|
2G
|
GSM/EDGE/GPRS (850,900,1800,1900MHz)
|
|
Options
|
Prompting mode
|
Green, red and blue LED, vibration, speaker
|
|
|
Camera
|
5.0 mega pixels with flash and automatic focus; Supports video recording
|
|
|
GPS
|
GPS,Supports A-GPS
|
|
|
NFC
|
Supports NFC
|
|
|
Sensor
|
Proximity sensor, light sensor and acceleration sensor
|
|
Power
|
Main Battery
|
Rechargeable 3.8 V 3800 mAh lithium battery pack（Operation time ≥8 hours）
|
|
User Environment
|
Operating Temperature
|
-10℃ ~ 50℃
|
|
|
Storage Temperature
|
-20℃ ~ 70℃
|
|
|
Humidity
|
5% ~ 95% (non condensing)
|
|
|
Sealing
|
IP65
|
|
|
Drop Durability
|
1.5m
|
|
Peripherals and Accessories
|
Expansion
|
Micro SD/TF *1(a maximum of 32 GB), SIM*1, SAM*1
|
|
|
Interfaces
|
Mini USB*1, POGO PIN*1, 3.5mm Audio Jack*1
|
|
Regulatory
|
Product Certification
|
FCC,3C,CE，IP65
|
|
|
Warranty
|
12 months (except the accessories)
|
