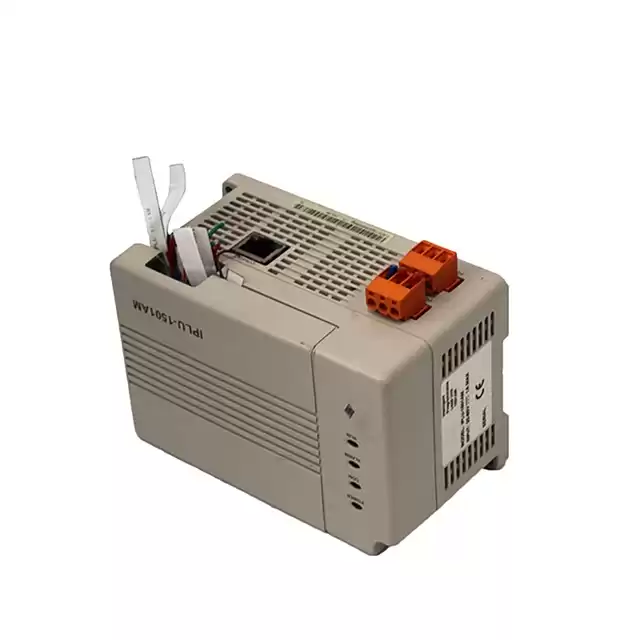

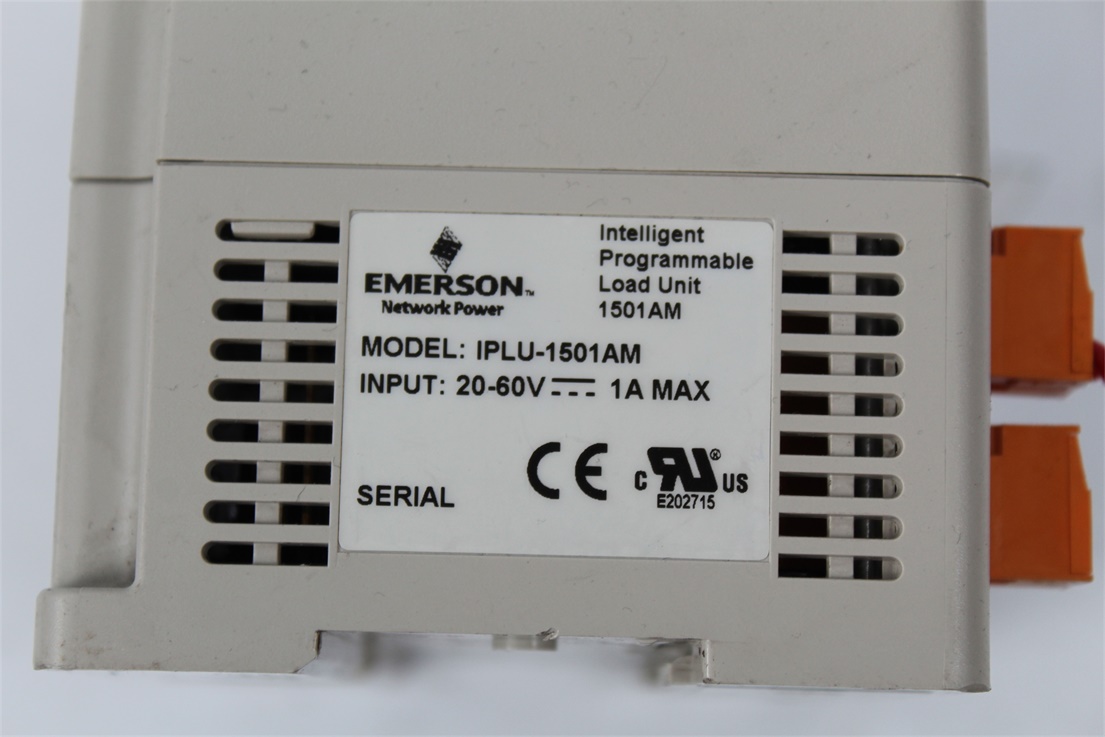

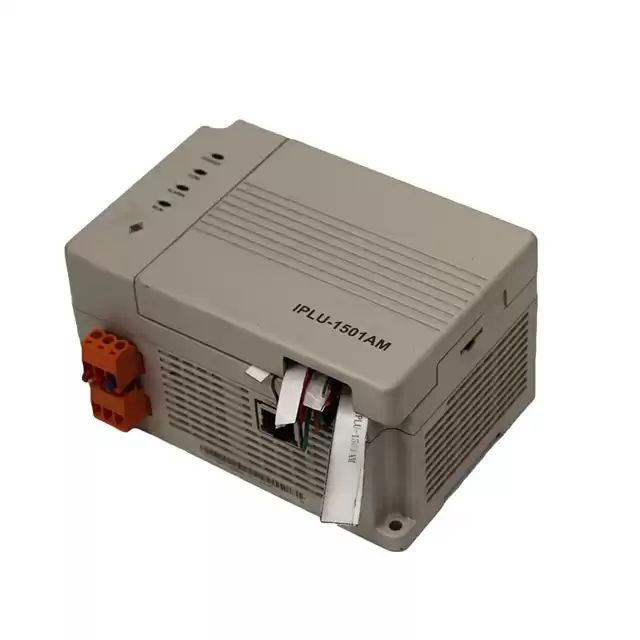

The supervision module for generic monitoring (IPLU-1501AM) provides detailed information and alarms regarding the condition and status of auxiliary equipment such as climate units or building alarms. Based on this information, site visits and maintenance related to the supplementary equipment can be optimized to save both time and money, especially for sites located remotely.

The IPLU-1501AM is an easy-to-install monitoring device designed mainly to measure analog inputs such as temperatures, fuel levels, humidity and voltages and to provide digital outputs (switch on/switch off).

The information and alarms for the auxiliary units on a specific site can be monitored or checked by means of a simple web browser or specific management software.

No additional software is needed and the web browser login to monitor the site is password protected.

Technical Specifications GENERAL Power Supply 20 VDC to 60 VDC Power Consumption 5 W Temperature Range, Operating -10 °C to +50 °C Humidity, Relative 5% to 95%, non-condensing EMC CISPR 22, Class A, CISPR22, ETSI EN 300 386, Class A Certifications Compliant with GB4943, EN60950 and UL60950; CE certified and UL certified MECHANICAL DATA Dimensions 135 x 90 x 75 mm (H x W x D) Standard Installation Methods DIN rail mountable ; Wall mounted Weight ≤ 1 kg
