CPU
|
On board INTEL® 1037U 1.8GHz Dual Cores CPU
|
|
2 Phase CPU Power Support
|
|
Chipset
|
INTEL® NM70 Mobile Chipset
|
|
I.O Chipset
|
ITE IT8785E
|
|
SSD
|
32 G or 64G
|
|
LCD
|
12" TFTLCD
|
|
VGA
|
INTEL® HD Graphics’ 4000
|
|
Memory
|
1*SO-DIMM slot
|
|
Support DDR3 1333/1066/800
|
|
Max. capacity of system memory up to 8GB
|
|
Expansion Slots
|
1 * MiniPCI-E connector
|
|
1* PCIex1 slot
|
|
Storage
|
1 * Serial ATA3 6Gb/s connector
|
|
1* Serial ATA2 3Gb/s connector
|
|
1 * M-SATA Connector
|
|
Audio
|
ALC887 Audio CODEC
|
|
HD Audio CODEC
|
|
Ethernet LAN
|
Realtek® RTL8111F Chip
|
|
PCI Express Gigabit LAN
|
|
LVDS
|
Onboard 24-bit Dual channel
|
|
USB
|
6* USB 2.0/1.1(4distribute in back panel, 2 distribute in mid-board)
|
|
Special Features
|
Support CPU Smart Fan
|
|
Support Watch dog Technology
|
|
Support GPIO Technology
|
|
Support VGA header
|
|
Support Power On board
|
|
Support Slim Fan design
|
|
Support Slim hard drive design
|
|
Thunder Protection Function
|
|
All Solid Capacitor design
|
|
All Power Pack MOSFET design
|
|
Outer I/O Interface
|
RJ-45 LAN Port x 1; PS/2 Keyboard Port x 1
|
|
VGA Port x 1; USB2.0 x 4
|
|
Serial Port x 1; Parallel Port x 1
|
|
DC Power Port x 1
|
|
BIOS
|
AMI 32MB DIP Flash ROM
|
|
Form Factor
|
Thin mini ITX Form Factor(170mm X 170mm)
|
|
Optional
|
Card Reader in 3 Tracks , VFD customer display , 12 " or 15 "Advertising moniter
|
|
Video Memory
|
Max Support 224MB Dynamic Video Memory
|
|
Brightness
|
250cd/m2
|
|
Resolution
|
1024x768(max)
|
|
Touch Screen
|
Top quality five line resistance touch screen
|
|
Customer Display
|
VFD customer display with 2 lines,40 digits
|
|
Printer
|
58mm thermal printer or 80mm thermal printer
|
|

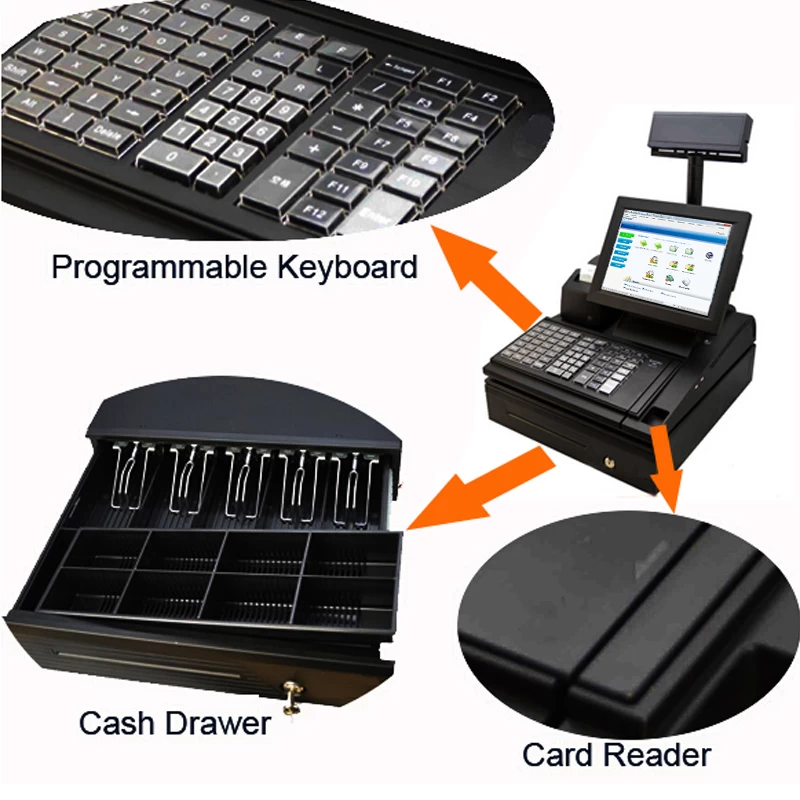

Keyboard
|
66 keys programmable keyboard with 3 tracks magnetic card reader
|
|
Cash drawer
|
Three positional cash drawer
|
|
Option
|
Fingerprint reader or WIFI support
|
|
Visible Angle
|
Horizontal: 140, Vertical: 130
|
|
Operation Temperature
|
0°C to 40°C
|
|
Storage Temperature
|
-20°C to 40°C
|
|
Power
|
DC 12V Outer Adapter Input
|
