Description

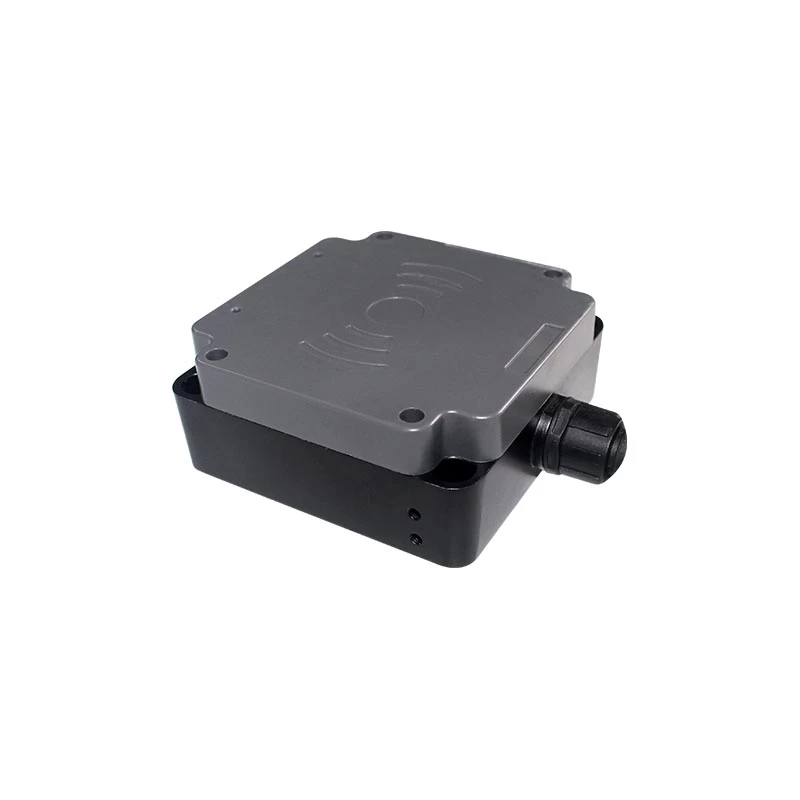

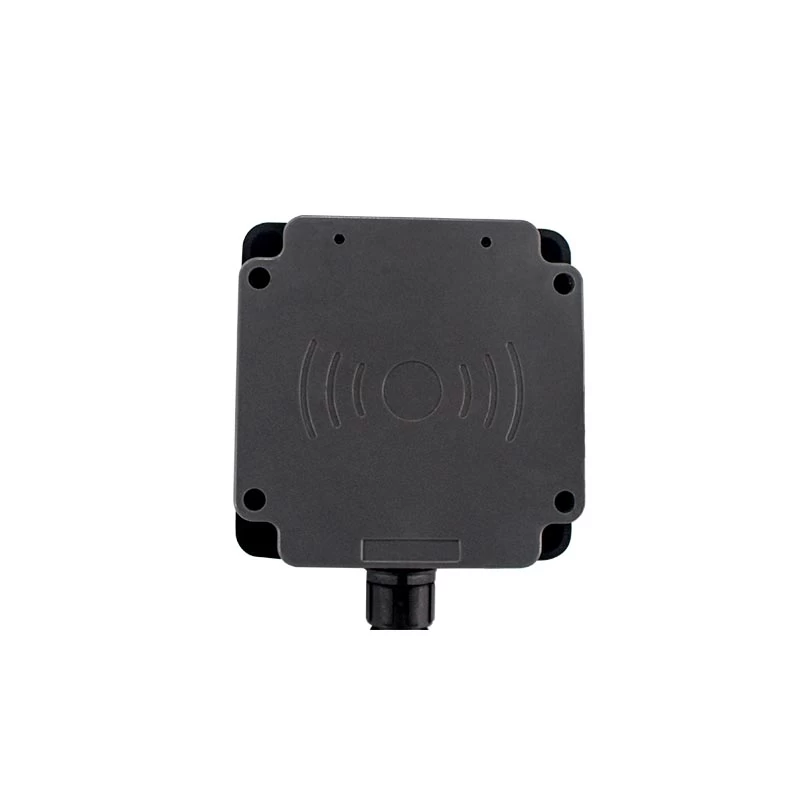

☆ The shape is industrial design, sturdy and durable, in line with the harsh industrial production line environment, the protection level reaches IP66.
☆ RF uses proprietary intellectual property research and development chips with high-performance label recognition algorithm
☆ Software intelligent monitoring of the working state, 24 hours X 365 days of operation does not crash.
☆ The bottom cover is designed to install iron pieces, which is convenient for industrial production line environment installation and reader installation.
☆ Small size and light weight, easy to integrate industrial production line equipment.
☆Support EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C RFID tag.
|
Technical Parameters
|
|
Frequency
|
902-928MHz or 865-868Mhz
|
|
Frequency modulation method
|
Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings
|
|
RF output
|
20-26dBm adjustable；50 ohm load
|
|
Built-in antenna
|
Dual feed 40x40 ceramic antenna
|
|
Antenna
|
3dBi
|
|
Communication port
|
RS232or RS485
|
|
Communication rate
|
Rate 9600～115200bps，
|
|
Reliable firmware upgrade
|
Scalable upgrade mechanism
|
|
SDK
|
C#,Java,Android
|
|
Working status display mode
|
LED indicator (blue, red), buzzer
|
|
Rewrite and Read
|
|
Read distance
|
0-3M
|
|
Write distance
|
0-30CM
|
|
Protocol
|
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
|
|
Maxreceiving sensitivity
|
-65 dBm
|
|
Performance
|
|
Size
|
95*95*40mm
|
|
Equipment power supply
|
Industrial grade wide voltage design, 9-36V DC
|
|
LED indicator
|
Blue: card reading indicator; red: power indicator
|
|
Weight
|
450g
|
|
Protection level
|
IP66
|
|

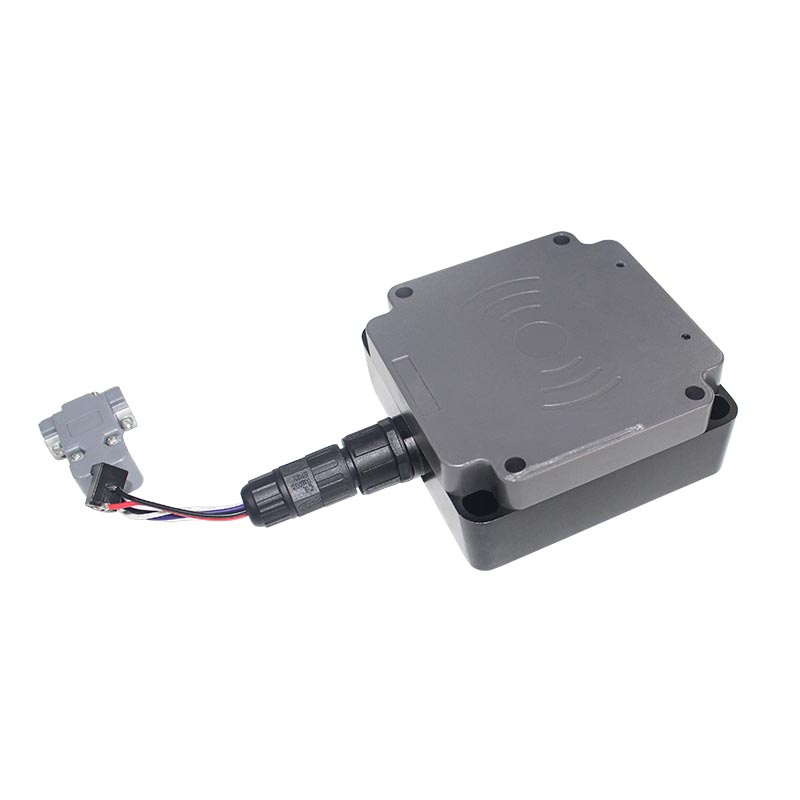

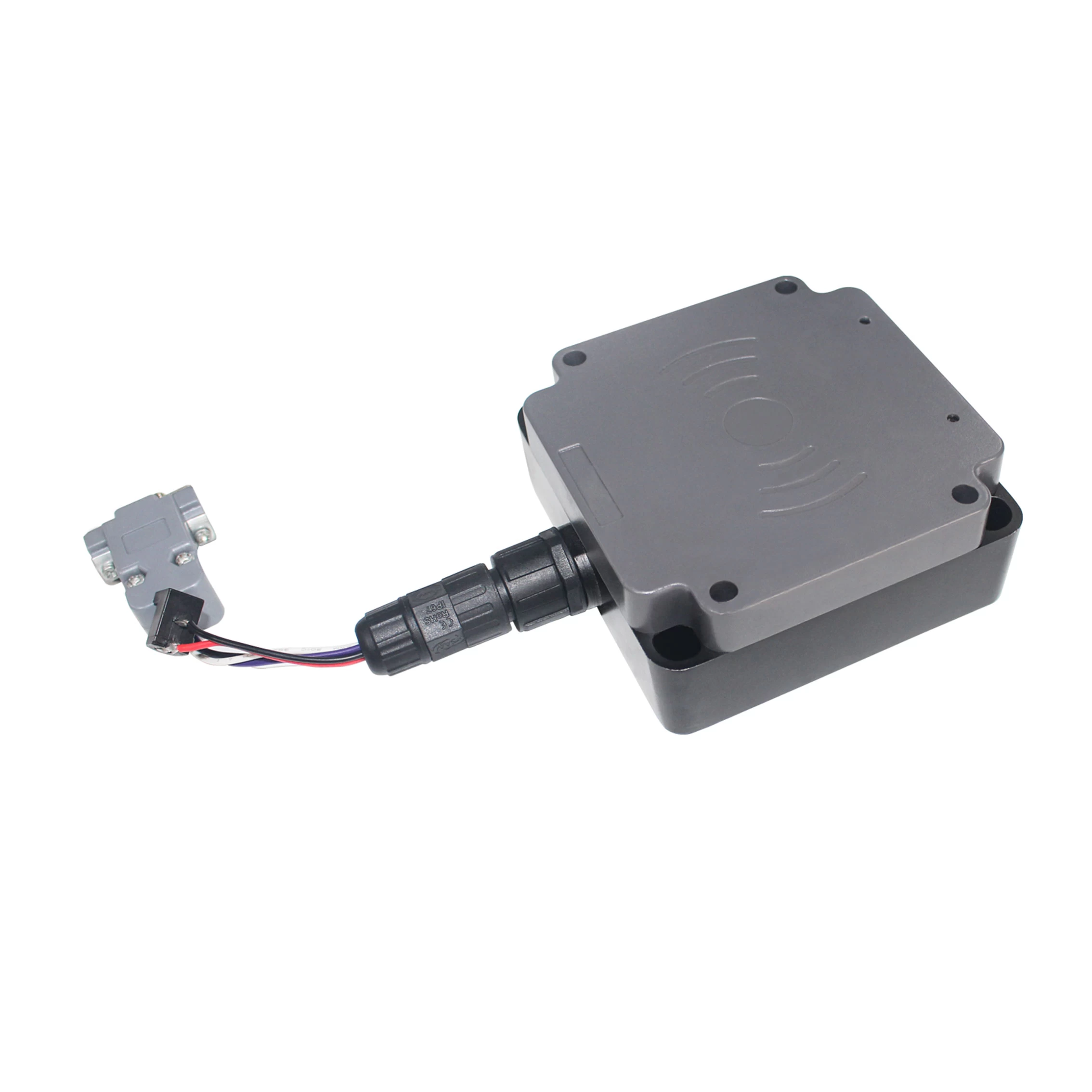

Connector form
|
Round waterproof M5 pin socket connector
|
|
Connector pin definition
|
1：GND； 2：TXD； 3：RXD；
4：DC； 5：GND
|
|
Operating temperature
|
-20ºC ～60ºC
|
|
storage temperature
|
-20 ºC～85 ºC
|
|
Working humidity
|
5%～95%RH, Non-condensing
|
