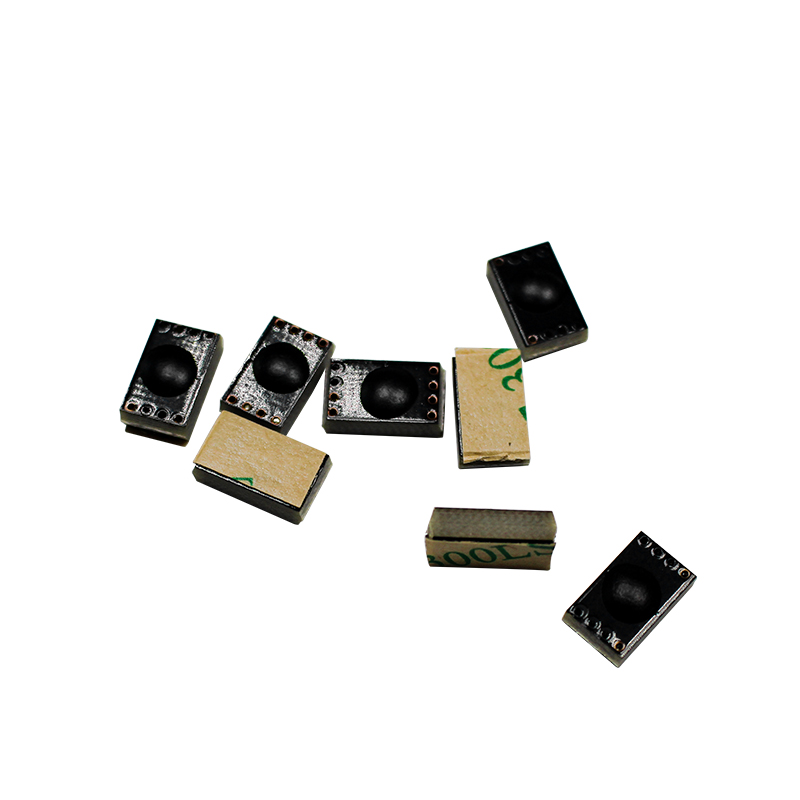

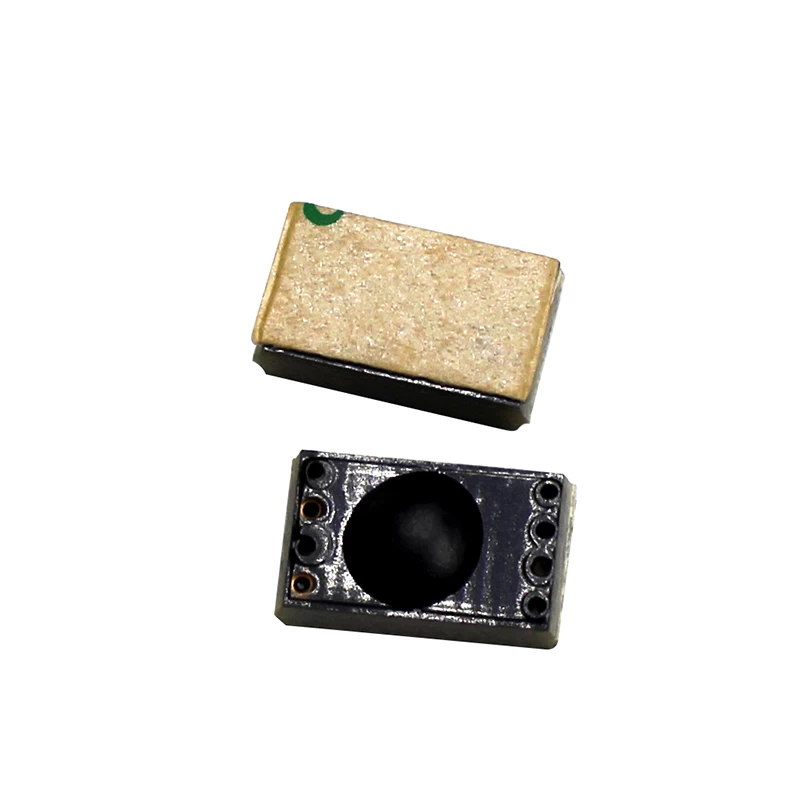

ISO18000 Gen2 UCODE 8 RFID On Metal PCB Tag 12*07MM

This product is widely used in indoor asset management, inspection management, and tool management. It is small in size, easy to install, and stable and reliable in product performance.




Advantage:

 Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Widely verified and used by well-known domestic and international customers


ISO

EPC Class1 Gen2; ISO18000-6C

frequency

902-928MHz

Chip

NXP UCODE 8

memory

EPC 128bits

writable

yes rewritable

memory lead time

fifty years

Warranty

1year

Material

FR4

Color

black

Size

18m*19*3mm

Temperature

-25C~ +85C

Storage temperature

-30 C~ +110 C

Save humidity

5%~95%

Adhesive

3M 300LSE

weight

~1g

package

500pcs/bag

Drop test

Hih 1Meter /200times

Alcohol test

95%Concentration alcohol test passed

Gasoline test

NO. 92 test passed

High and low temperature alternating test

-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test

RoHS

yes

IP degree

IP65

Fixed RFID reader on metal surface

about 1 Meter

Handheld reader on metal surface

about 60CM ( JT-901 RFID handheld reader)

Polarization direction

Linear Polarization

Text

100% tested it before we send out



Application:


Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
