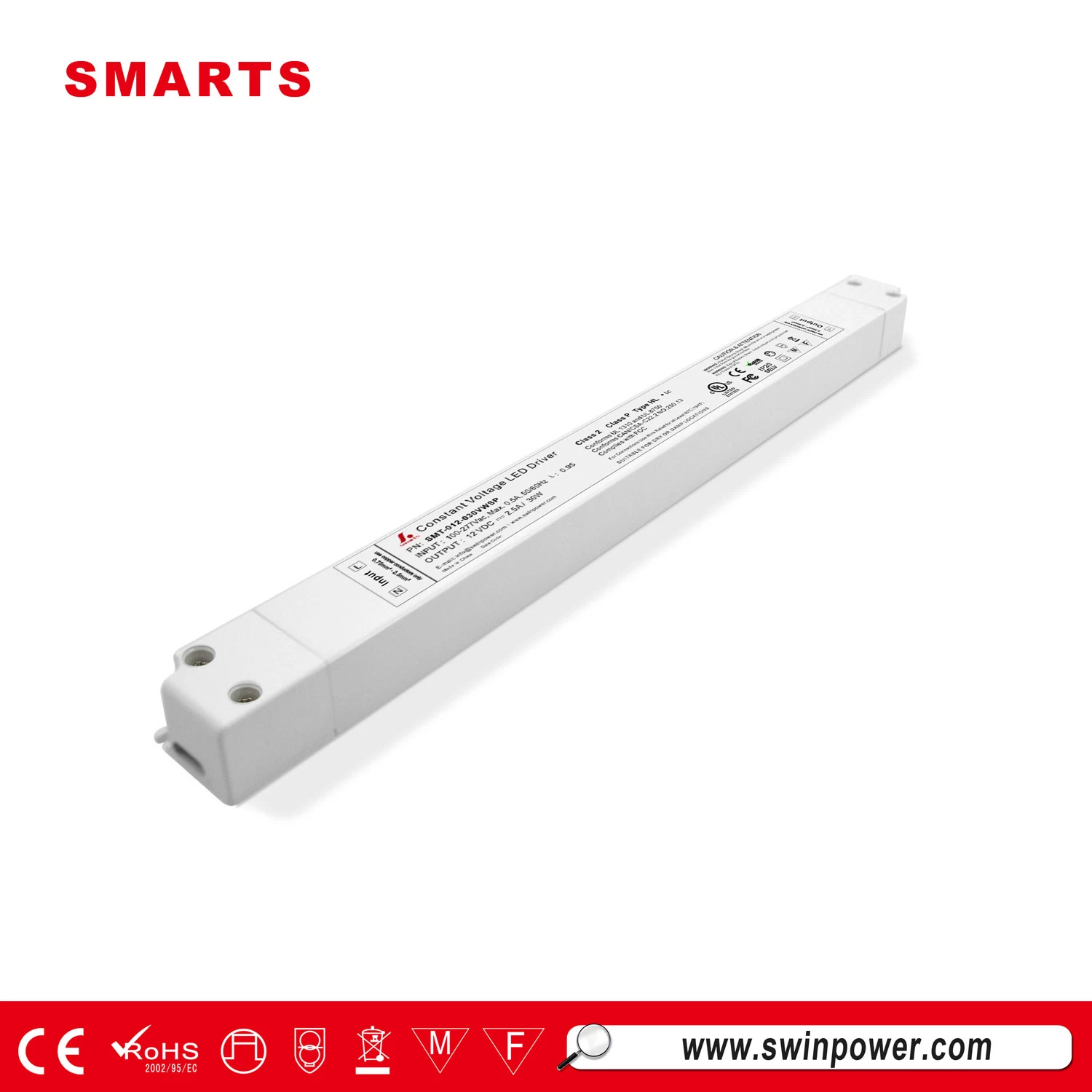

isolate power supply 261*30*19mm ul led driver 30w with plastic case

UL,Class 2, Class P, CE, ROHS certification, 261*30*19mm dimension, 7 years long time warranty led driver plastic case.


  • CertificationUL/cUL,FCC,RoHS approval
  • Size261*30*19mm
  • Dimming modenon-dimmable
  • Working Modecv
  • Output Current2.5A
  • Output Voltage12V
  • Input Voltage100-277vac

isolate power supply 261*30*19mm ul led driver 30w with plastic case


SMT-024-030VWSP isolate constant voltage led power supply, THD<15%@120VAC  <20%@230VAC  <20%@277VAC, Full Load EfficiencY 82%@120VAC ; 83%@230VAC; 84%@ 277VAC


Specification


model

SMT-012-030VWSP

SMT-024-030VWSP

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

2.5Amp

1.25Amp



Rated power

30W

30W



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

0.99@120VAC 0.97@230VAC 0.95@277VAC



THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC



Full Load EfficiencyTyp.

82%@120VAC ; 83%@230VAC; 84%@ 277VAC



AC CurrentTyp.

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC



Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.20Kg



Size

260*32*18mm (L*W*H)



packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

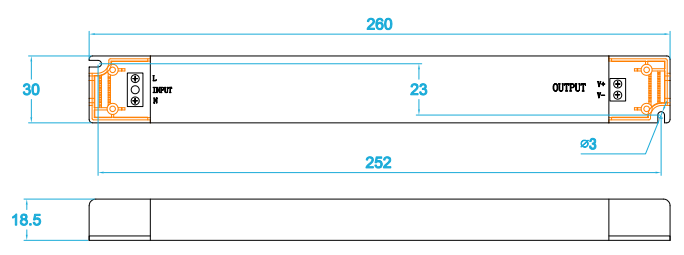

Mechanical Specification

led driver 30w

Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Output: Red isDIM+,Black isDIM-



What is the meaning of Class 2?

Class 2 LED power supplies meet the US power supply safety standards used to regulate low power sources. The UL Class 2 standard limits the output power to be less than 100W, output current to 5A, output voltage to 60Vdc and leakage current to be less than 0.75mA.
