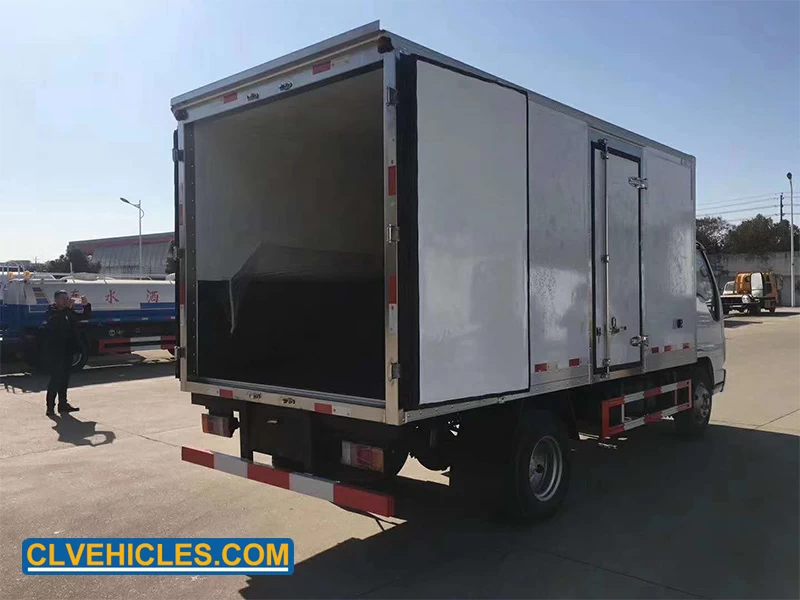

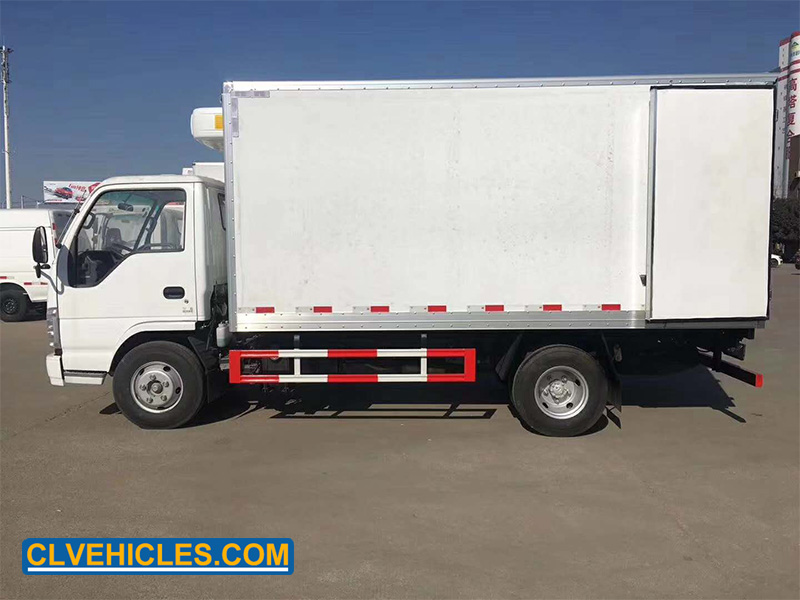

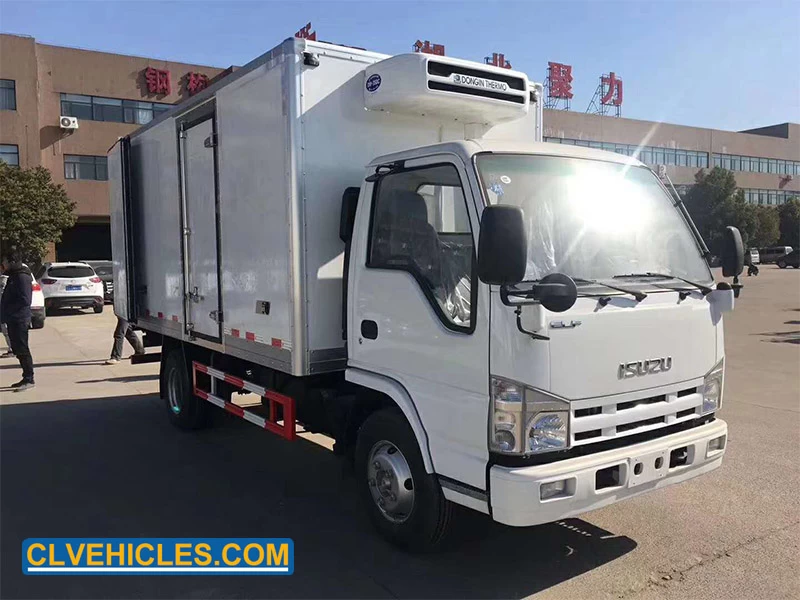

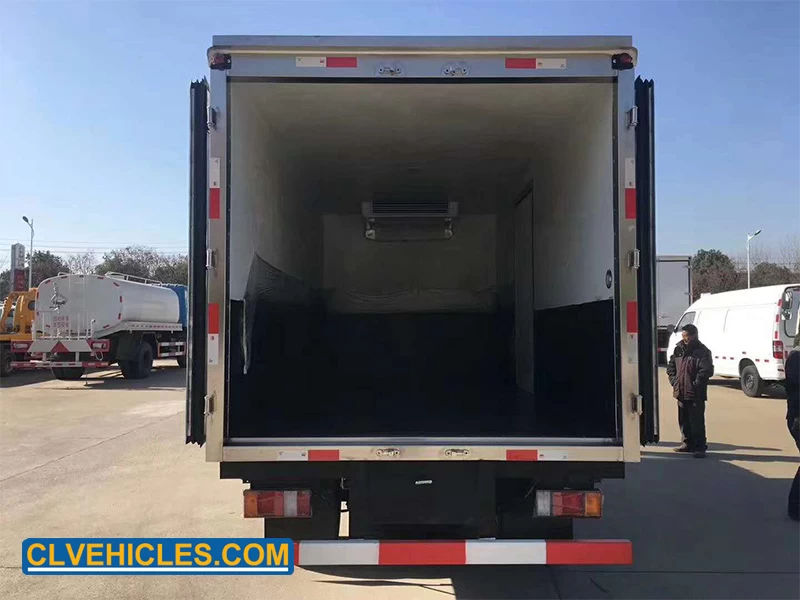

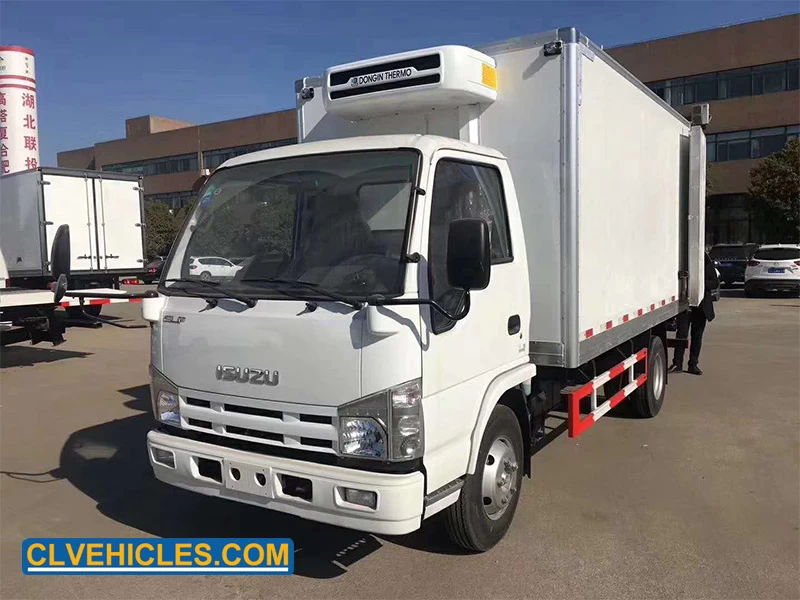

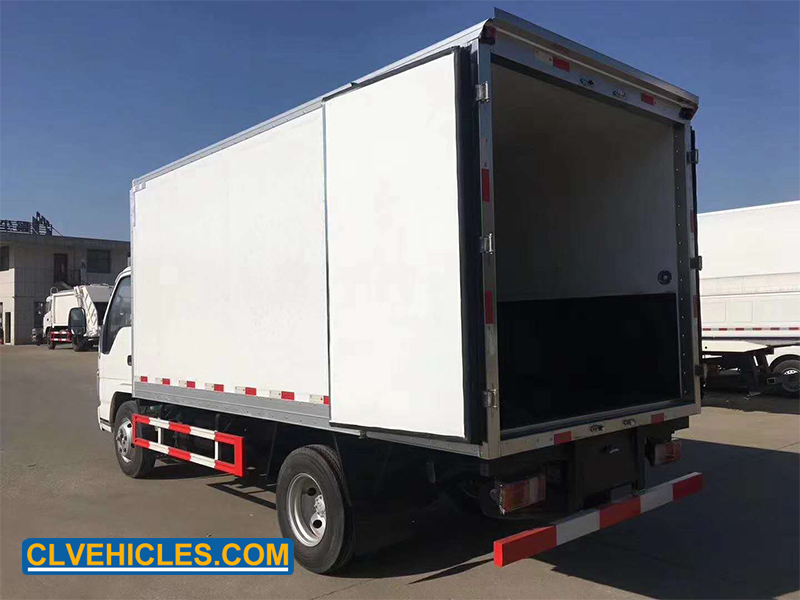

ISUZU 100P 4m Reefer Refrigerated Light Duty Refrigerator Box Truck


Inside of different types of truck body:Normal dry cargo,wet cargo,meat and fish transportation,Vegetable and fruits usage,mixed cargo logistic and medicine usage etc.



  • BrandCLVEHICLES.COM
  • Model No.CL5040XLC4
  • Minimum Order Quantity1 Unit
  • PriceUSD 22500
  • Payment TermsT/T, L/C, Western Union
  • Delivery Time25~35 days after we get the deposit
  • ShippingRo-Ro/Bulk cargo/Container shipment / SKD / CKD / etc


ISUZU 100P Cold Storage Fridge Freezer Van Truck


Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.According to the different chassis model, we have mini type,middle-sized,large-scale etc refrigerator trucks for your choice with different brands.


Quick Details



Length of Van box

4095mm

Van box material

Glass fiber reinforced plastics

Chassis brand

ISUZU

Horsepower

98hp

Refrigeration unit

THERMO KING RV-380

Temperature

-15℃


Applications


The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.

refrigerated truck

refrigerated truck

Competitive Advantages


1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.

2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;

4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.

5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

Product Details


 refrigerated truck


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.
