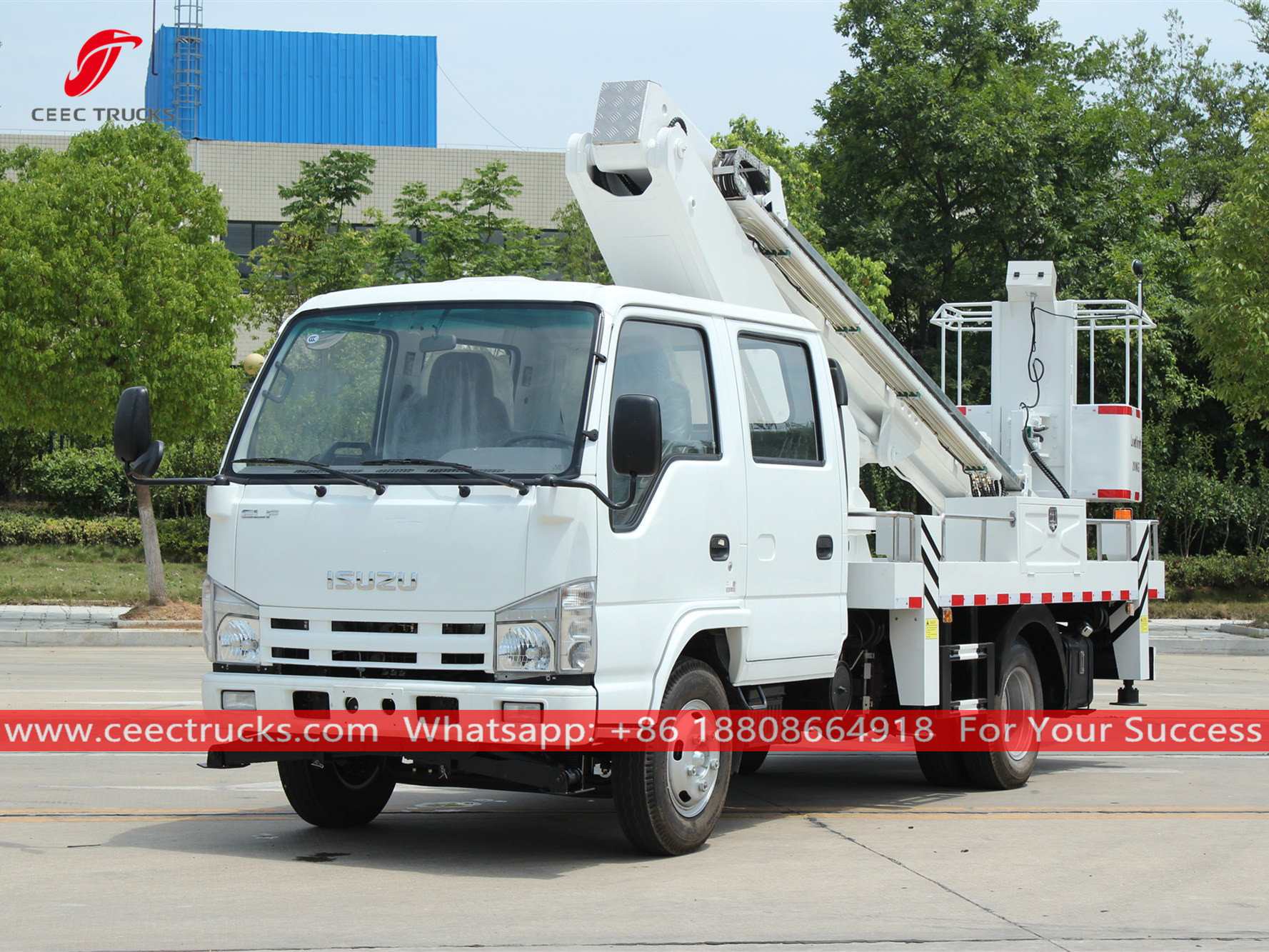

ISUZU 16m Aerial Platform Truck

16m bucket crane lifting truck, ISUZU 100P 4x2 chassis, 5-shift manual gearbox, ISUZU 98HP diesel engine, painting and logos depend on requirement. Customer language control box.





 Applications:



ISUZU 16m Telescopic Aerial Platform Truck (also called Bucket crane truck ISUZU, boom lift, ISUZU aerial work truck, Hydraulic Telescopic Aerial Platform Truck, ISUZU mobile man lift vehicle, Truck Mounted Aerial Platform) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.



 Specifications:



Telescopic Aerial Platform Truck ISUZU (16M)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

7720 x 2000 x 2980 mm

GVW / Kerb Weight

6,810 kg / 6,485 kg

Cab

Cab Capacity

2+3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98Ps (72 KW)

Displacement

2771 ml

Emission Standard

Euro 4

Chassis

Drive Type

4X2, left hand drive

Transmission

ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km

Wheelbase/No. of axle

3815 mm / 2

Tyre Specification

7.00-16 or 7.00R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Cage Rated Capacity

200 kg

Working Height

16 m

Beam

The beam is articulated & telescopic extension type, hydraulic actuated and controlled

Slewing

Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

Control

Control both on the ground and remote control in cage

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

Optional

Insulated cage; Wireless remote control system
