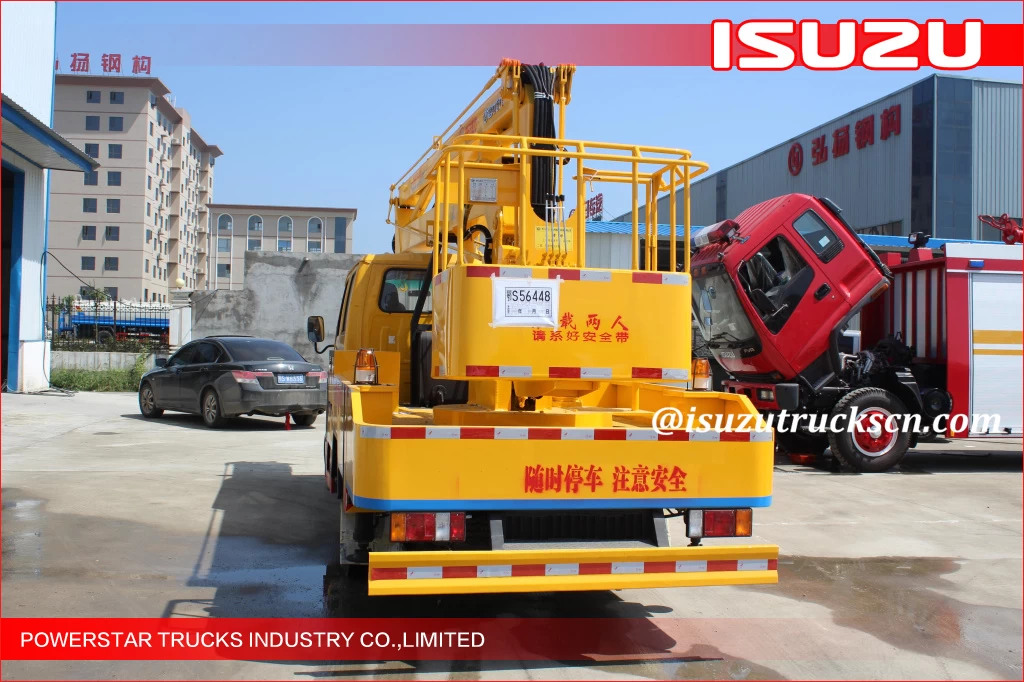

Isuzu 2 Ton Truck Mounted Aerial Lift
Truck Mounted Lift 9.7m, 2 Ton Truck Mounted Aerial Lift
- Name: ISUZU high altitude platform truck, truck mounted boom lift, truck mounted aerial lift, bucket truck lift
- Max Lifting Capacity: 2000kg
- Max Lifting Height: 9.7m
- Max Operating Height: 18.3m
- Max Operating Radius: 9.3m
- Rated Lood: 200kg
- Dimension: 8080x2000x3050(mm)
- Power of Engine: 96 kw
- Passengers: 2+3 persons
- Feature: three telescopic arms, rotary platform and the working basket
- Application: construction needs and building maintenance
Description:
ISUZU Truck Mounted Aerial Work Platforms ranging in height from 14 to 32 meter-with horizontal reaches up to 18 meters. These lifts are amongst the largest of their kind and are valuable tools for many high reach needs, such as construction needs and building maintenance. XCMG Truck Mounted lifts are rented and manned with two operators. They provide mobility for jobs that must move around to different locations and they provide stabilization for job locations with rugged and uneven work surfaces. Most of all, Truck Mounted Lifts save you time and money and provide you with a safe, reliable option for any project that it demands.
Applications:
Often referred to as “knuckle booms”, articulating boom lifts are used for reaching up and over machinery, equipment and other obstacles mounted on floors.
Specifications:
Max Operating Height
|
18.3m
|
Max Operating Radius
|
9.3m
|
Rated Lood
|
200kg
|
Slewing Angle
|
±360° continuing
|
Max Operating Radius Maximum Operating Height
|
3.4m
|
Max Operating Height Maximum Operating Radius
|
10.2m
|
Max Lifting Capacity
|
2000kg
|
Max Lifting Height
|
9.7m
|
Dimension in Driving(L*W*H)
|
8080x2000x3050(mm)
|
Chassis
|
NKR77 ISUZU
|
Engine
|
4KHI-TC
|
Power of Engine
|
96kw
|
Passengers
|
2+3 persons
|
