Applications:

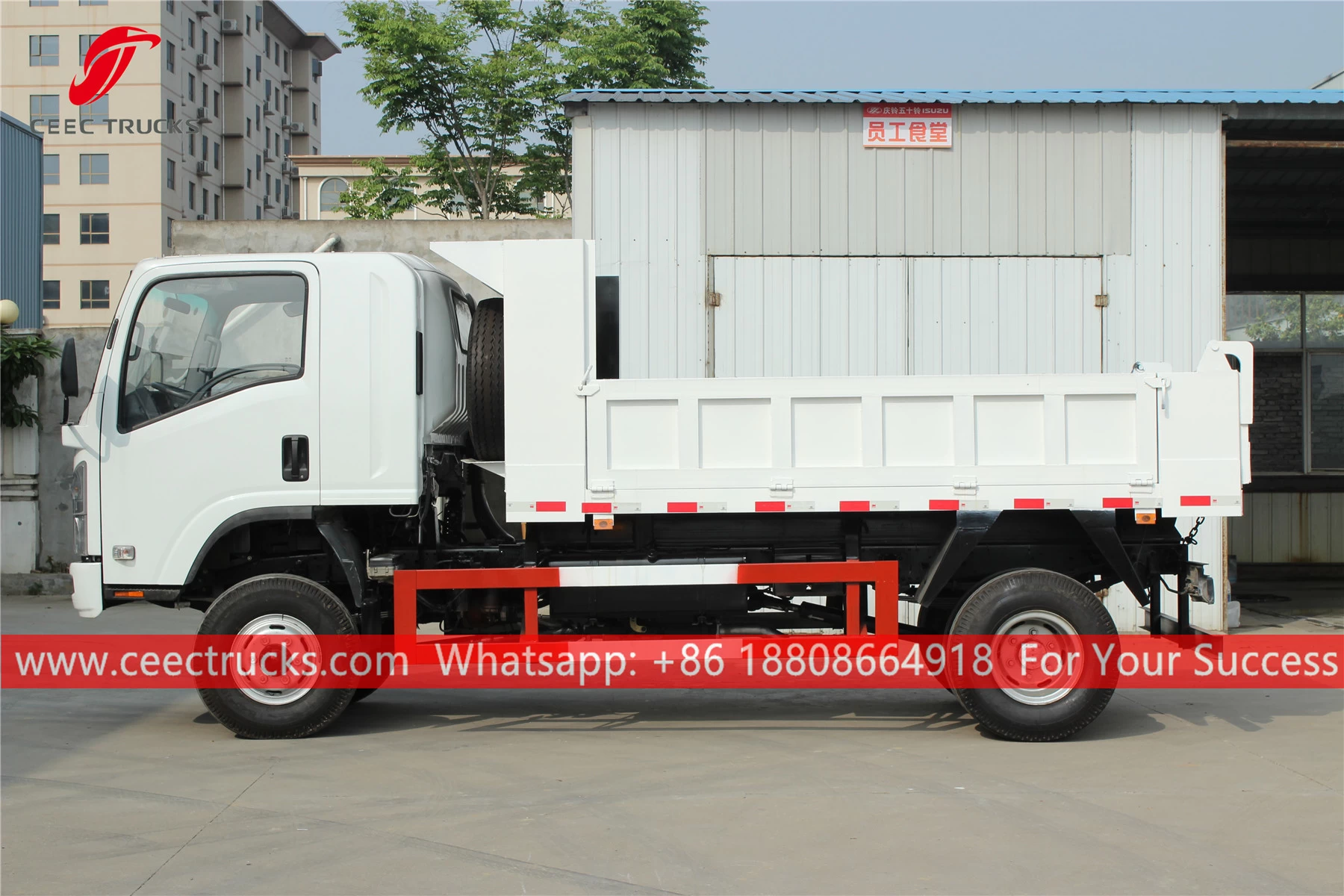

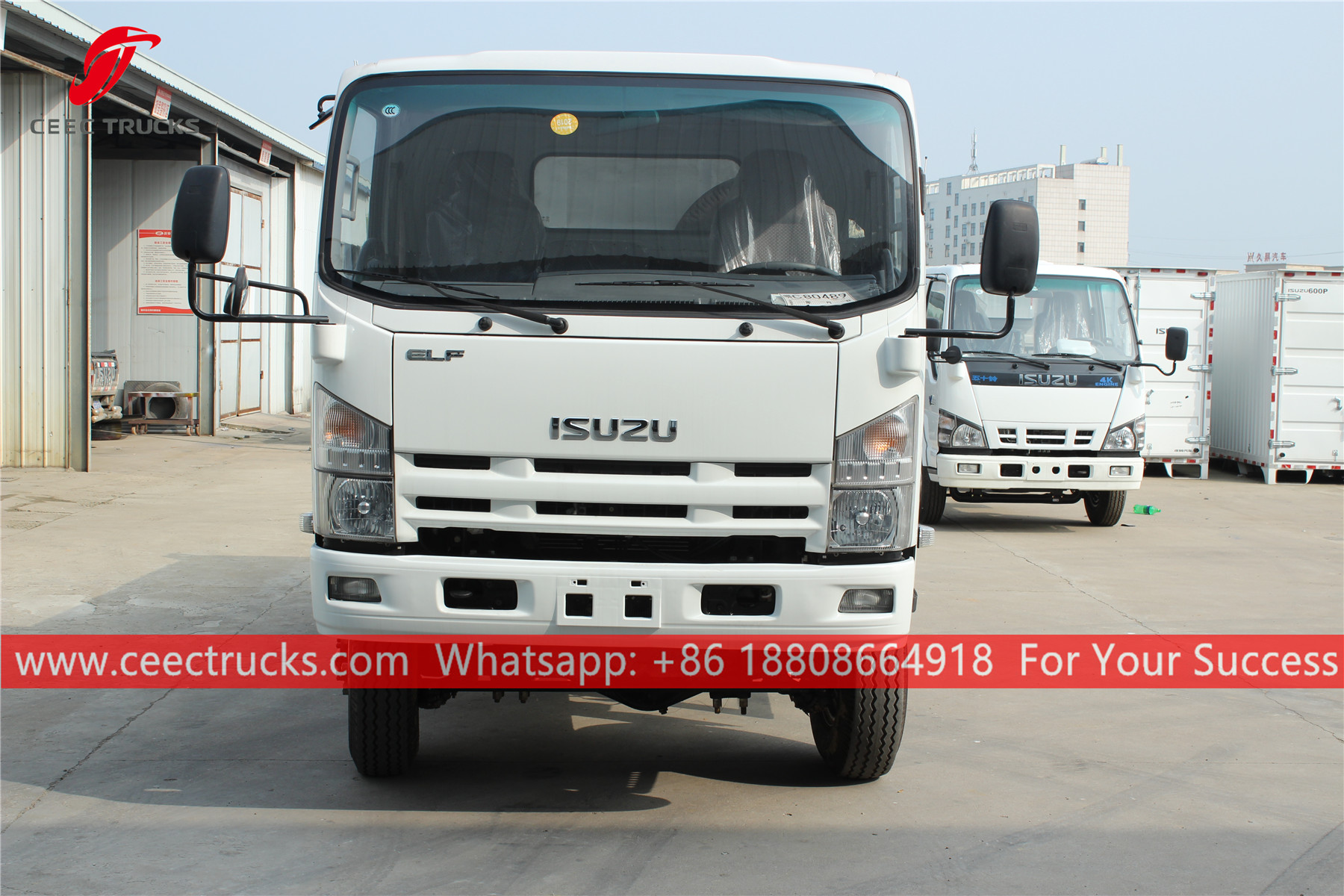

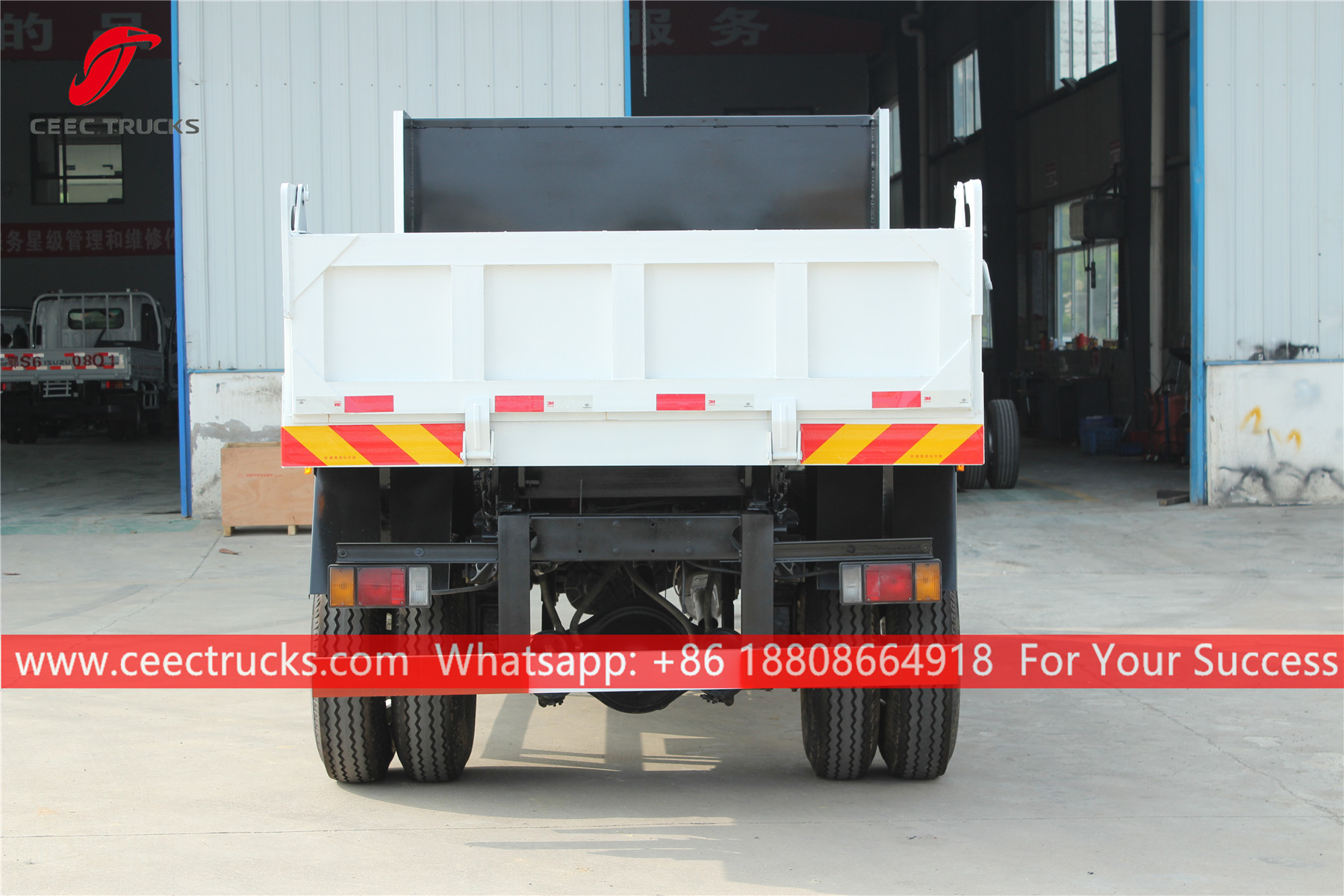

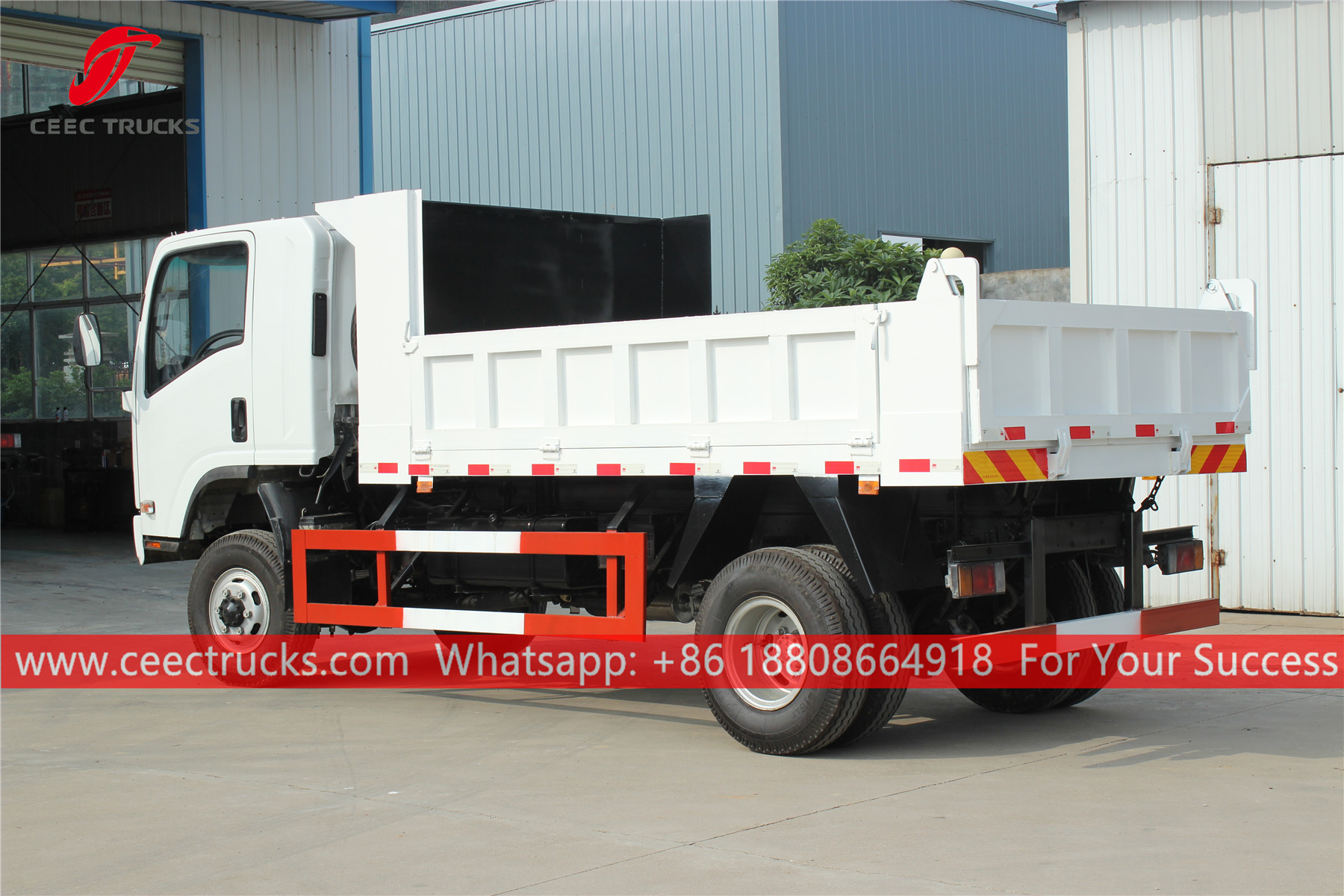

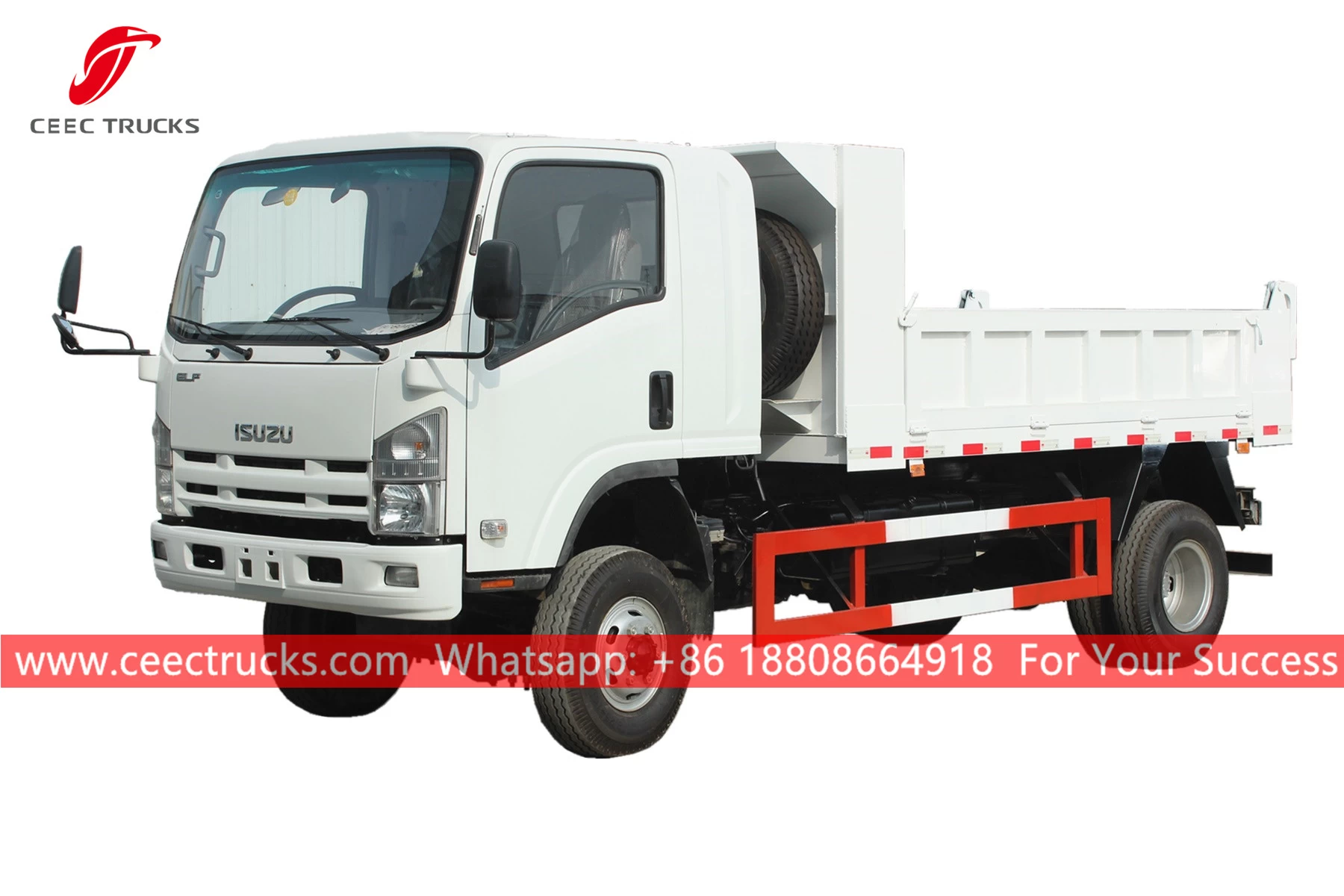

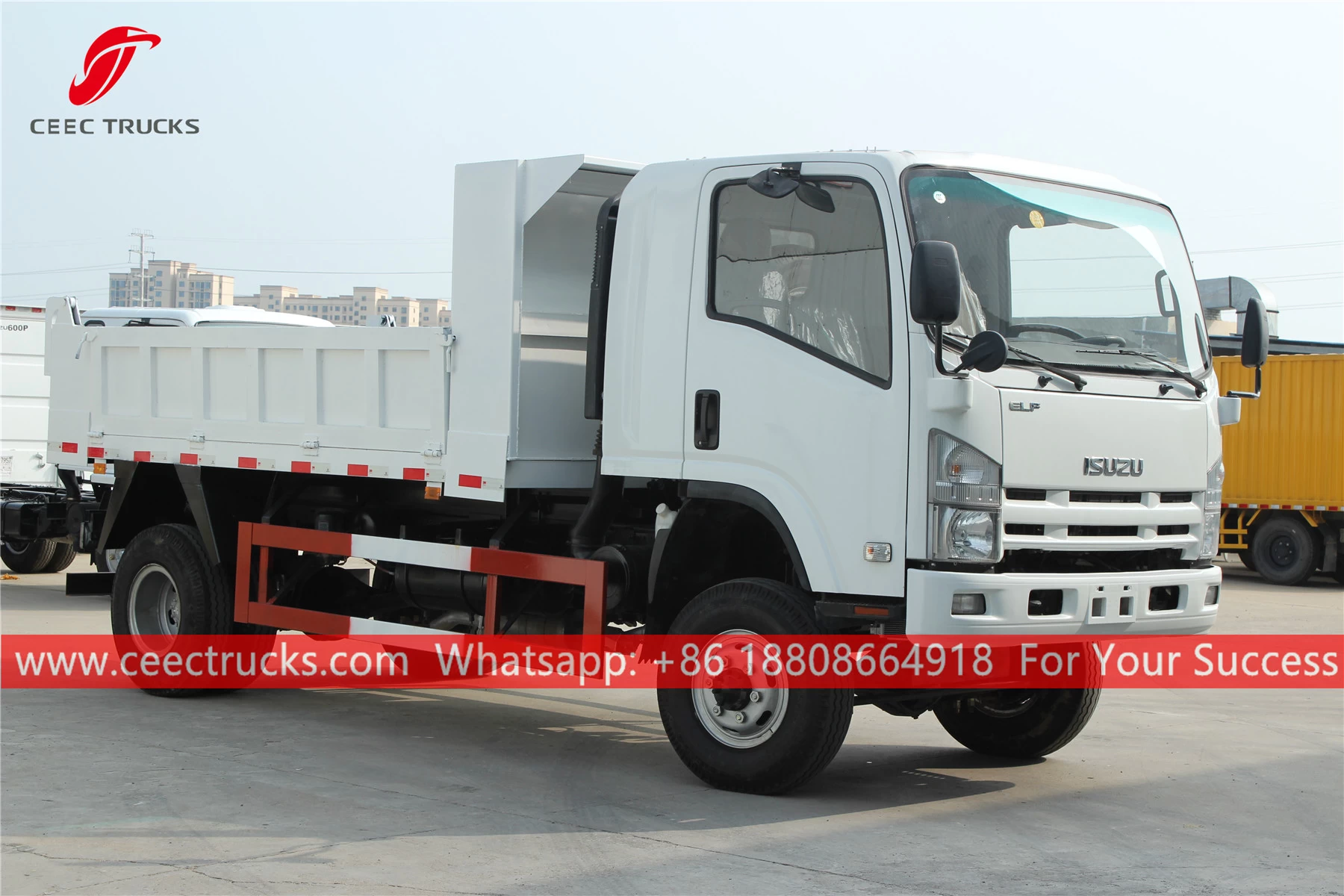

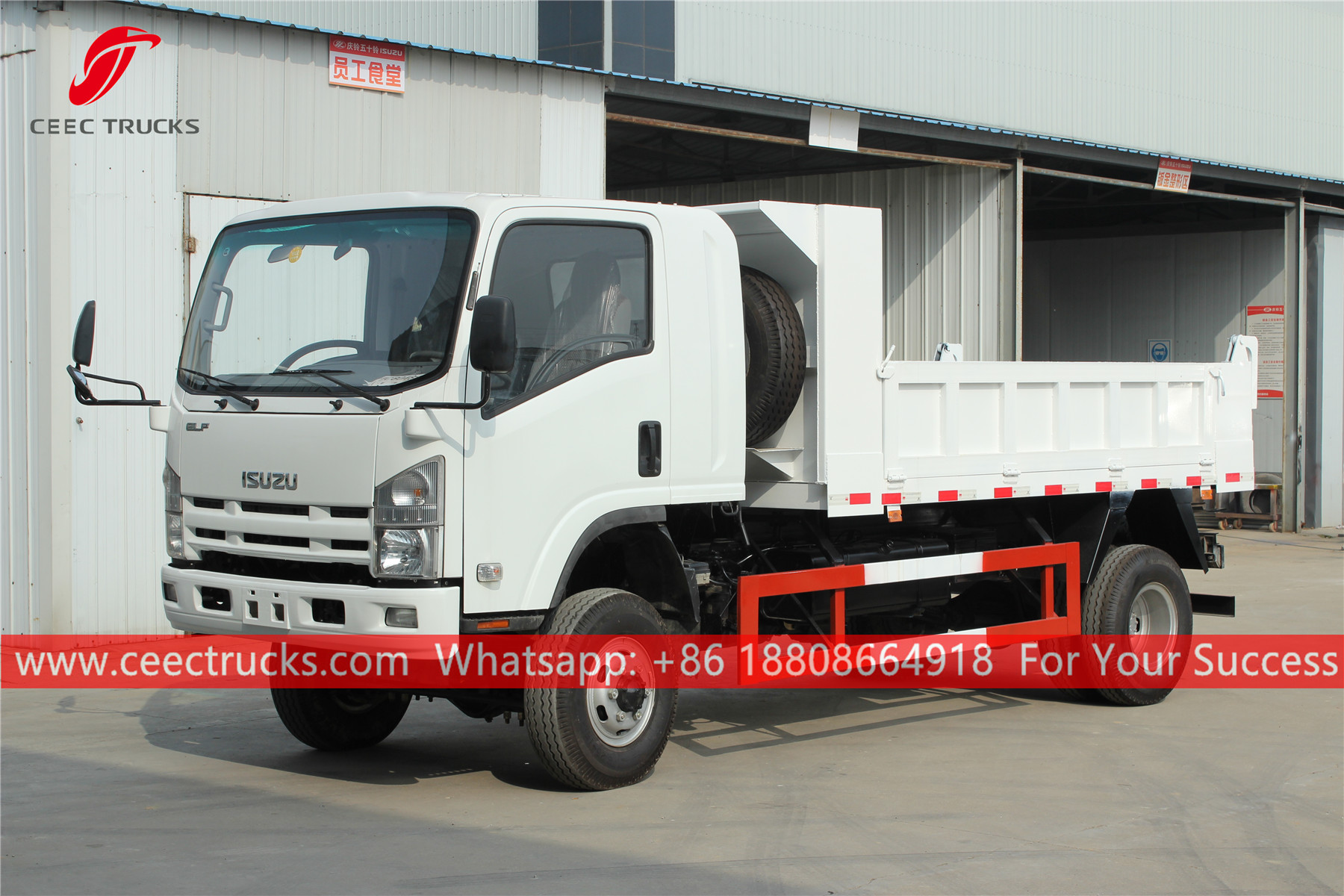

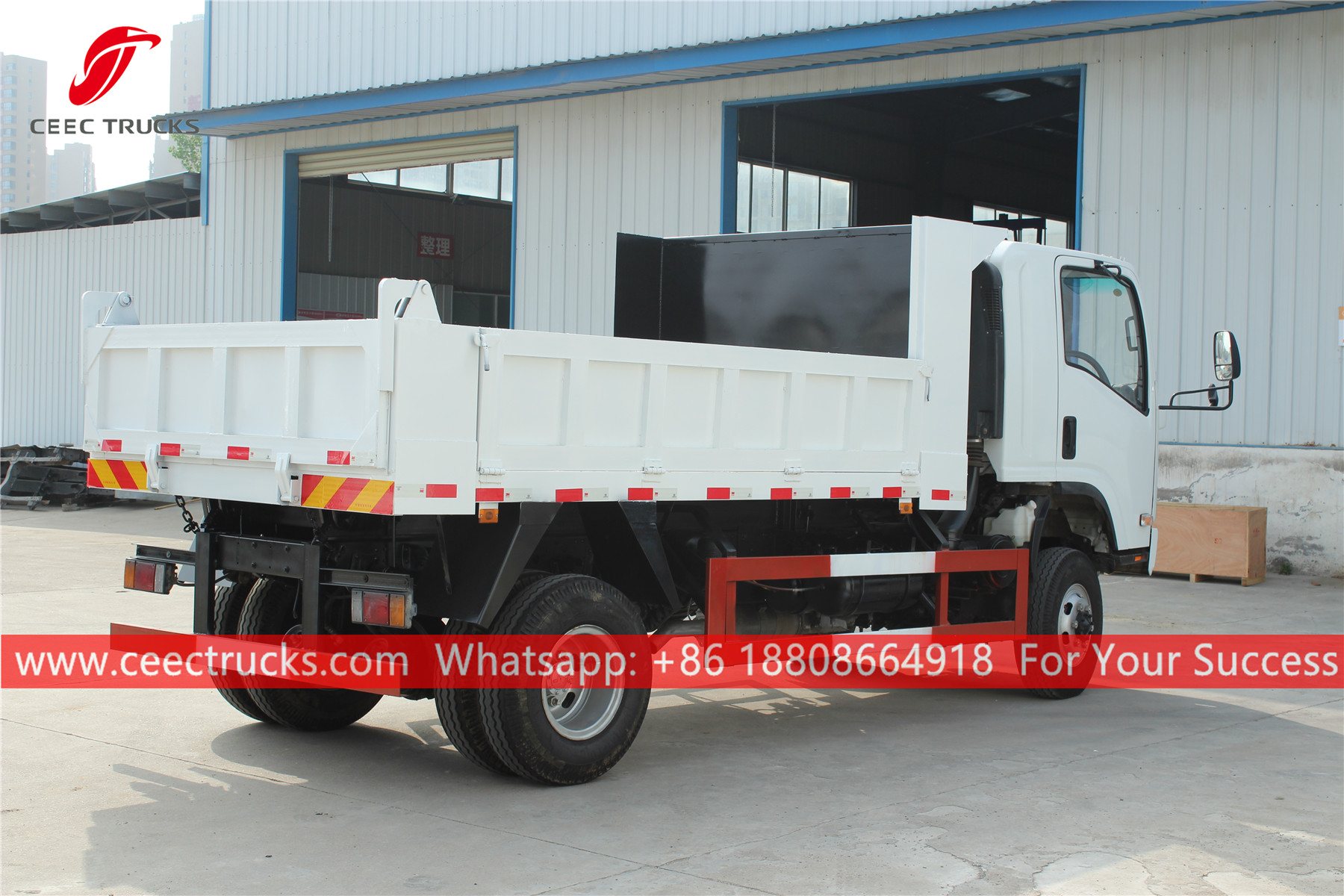

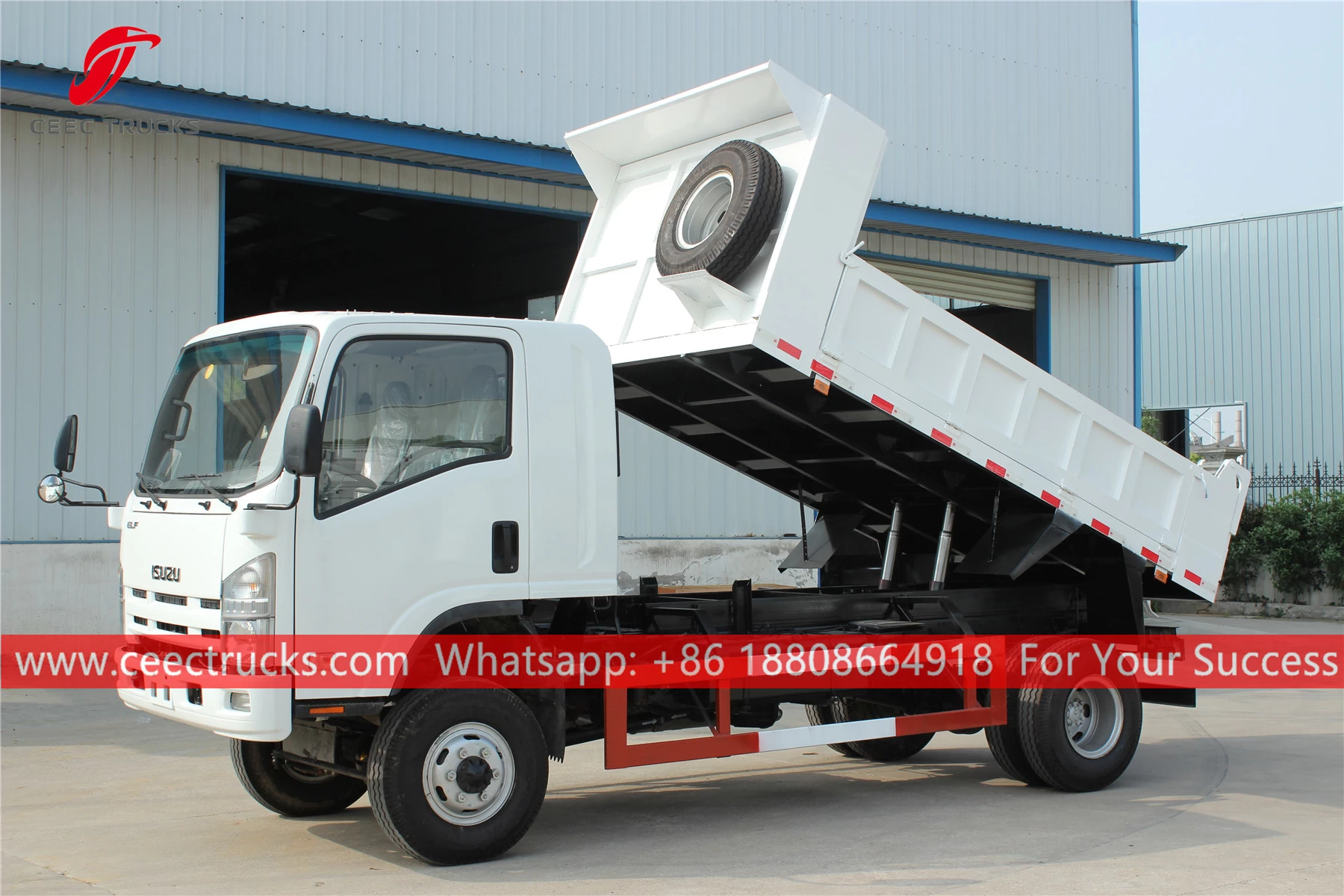

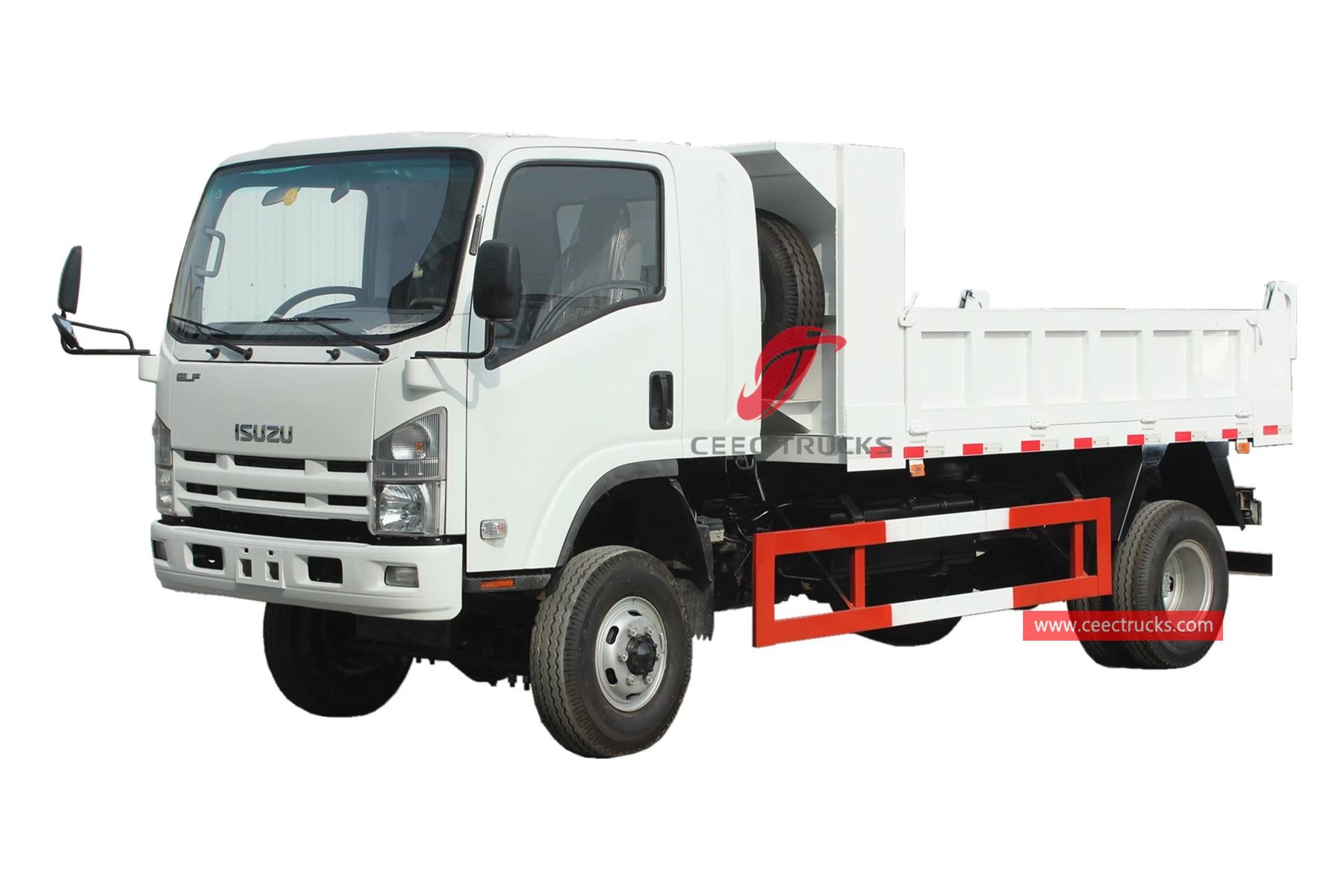

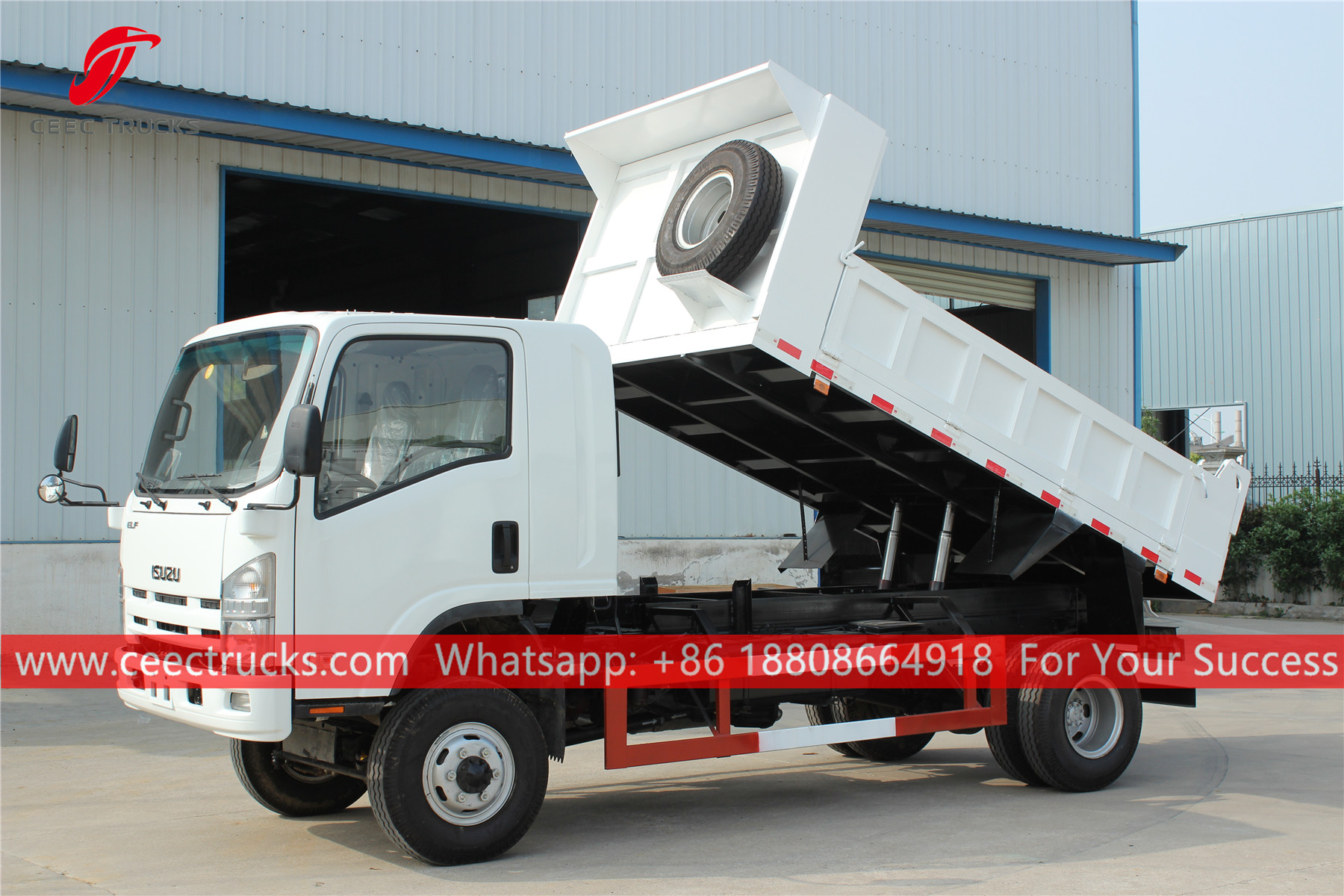

ISUZU 4X4 Dumper truck (also called ISUZU 4X4 tipper truck, ISUZU 4X4 dump truck, ISUZU all wheel drive dump truck, good quality dump truck ISUZU, 6 wheels Sand tipping truck, ISUZU off road dumper truck) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.
CEEC TRUCK dump
truck is manufactured with the cutting-edge technology and components
in the world such as WABCO double-cylinder air compressor, brake valve,
HYVA front or middle hydraulic system, etc.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
ISUZU Off-road Dump truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
7220 * 2500 * 3170 mm
|
|
GVW / Kerb Weight
|
16,000kg / 9,350kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
190 HP (140 KW)
|
|
Displacement
|
5193 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X4 (LHD)
|
|
Transmission
|
MLD 6 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
5200 mm / 2
|
|
Tire Specification
|
8.25R16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
10 Tons
|
|
Cargo body
|
4200*2200*800
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|
Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|
Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
According to wish
|
|
All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
