Applications:

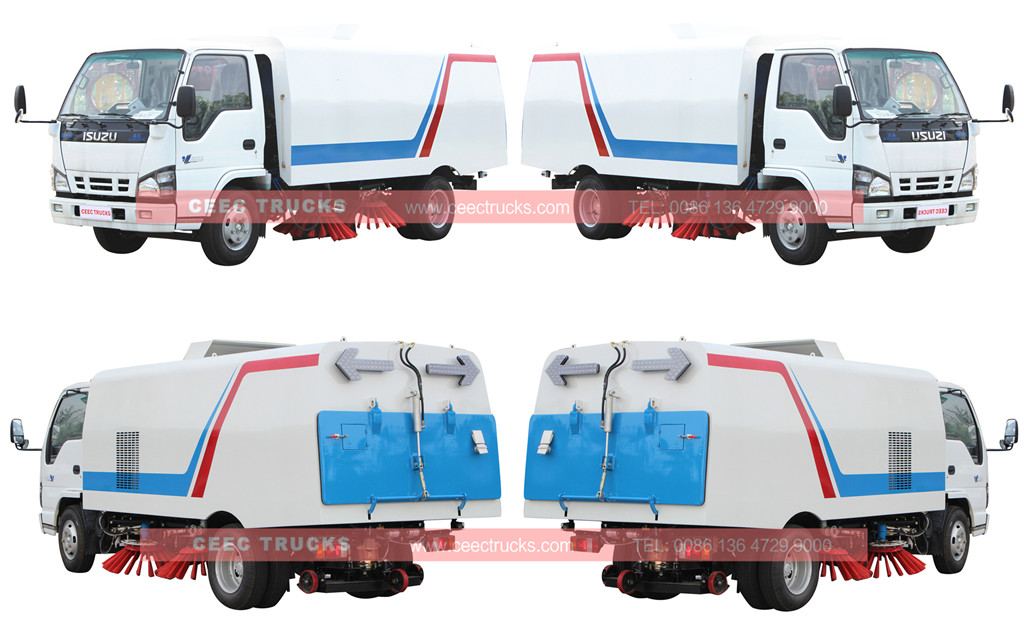

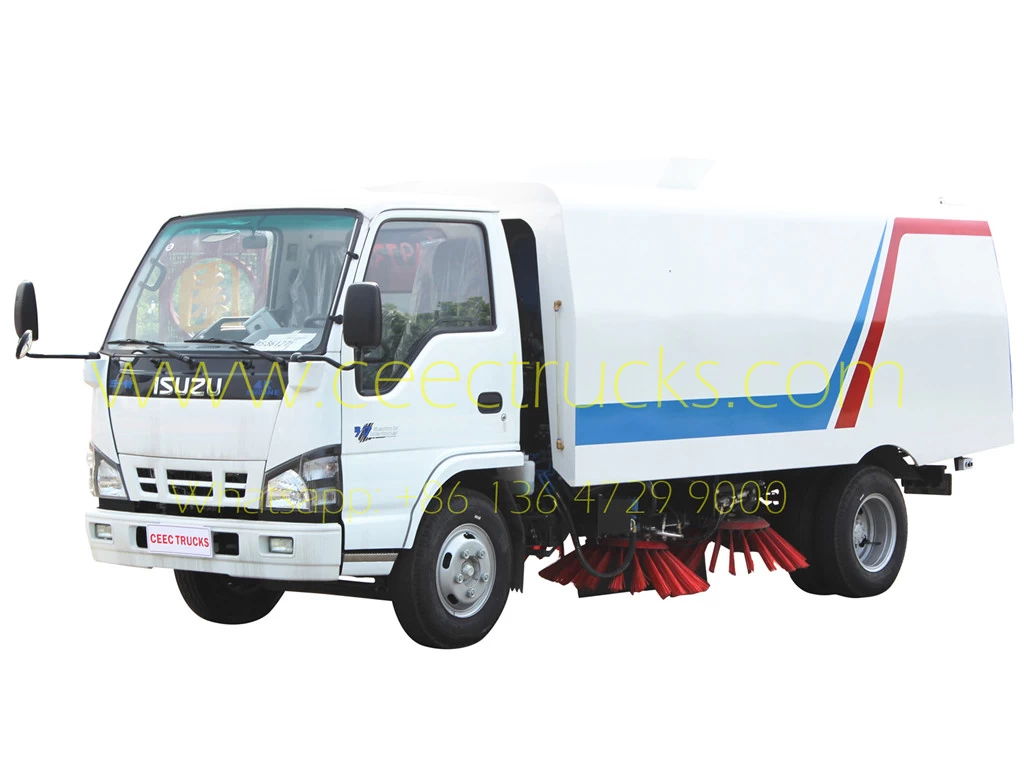

Road Sweeper 5cbm ISUZU (also called road sweeper truck, hydraulic street sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.
CEEC TRUCKS 5cbm road sweeper truck is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC auxiliary engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
| ISUZU road sweeper truck (5 cbm)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
ISUZU
|
| Overall Dimension
|
6000 * 2000 * 2600 mm
|
| GVW / Kerb Weight
|
7,300kg / 5,500kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
ISUZU
|
| Power
|
120 HP (88 KW)
|
| Displacement
|
2771 ml
|
| Emission Standard
|
Euro 4 or 5
|
| Chassis
|
Drive Type
|
4X2, (left hand drive)
|
| Transmission
|
MSB 5 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3360 mm / 2
|
| Tire Specification
|
7.00-16
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|

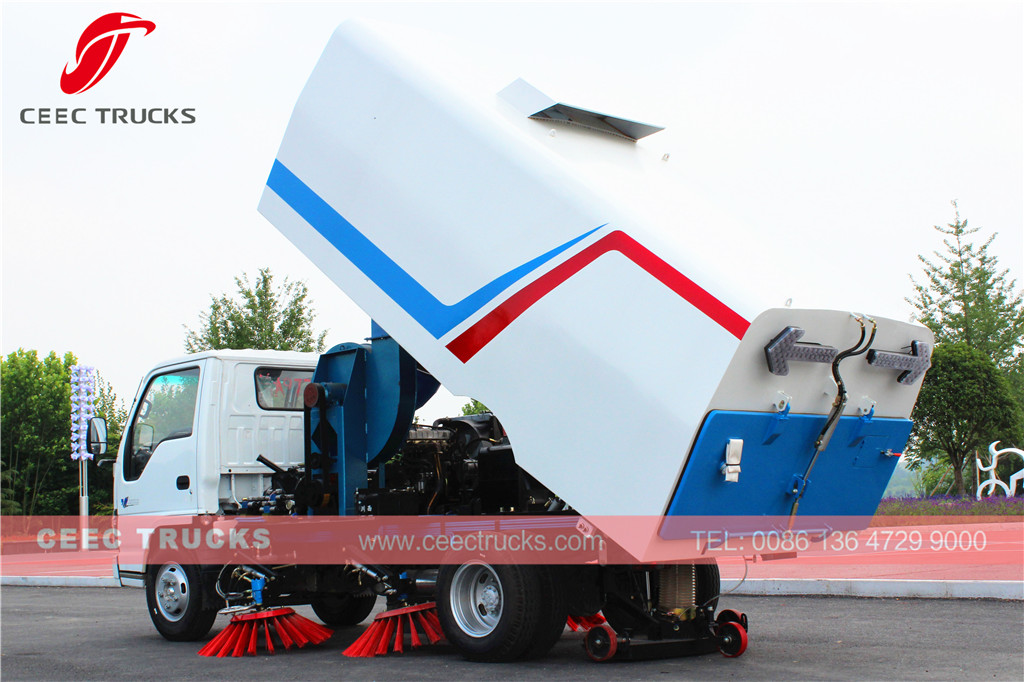

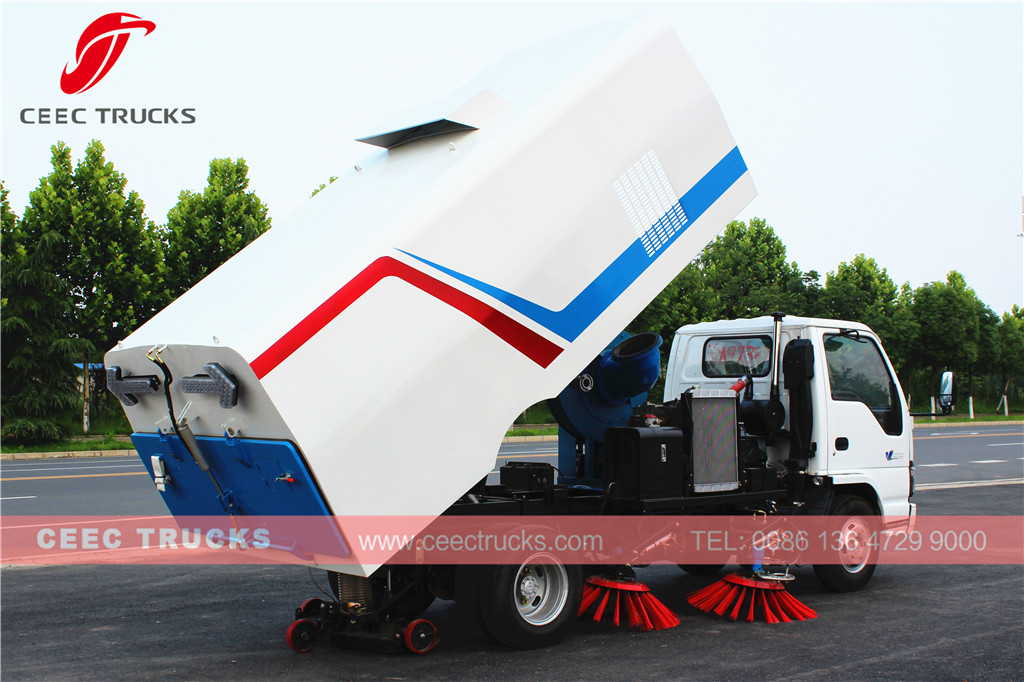

| Superstructure
|
Body capacity
|
4 cbm dust tank & 1 cbm water tank
|
| Tanker material
|
Stainless steel
|
| Sweeping capacity
|
42,000 cbm/h
|
| Sweeping speed
|
3-15 km/h
|
| Max. sweeping width
|
3200 mm
|

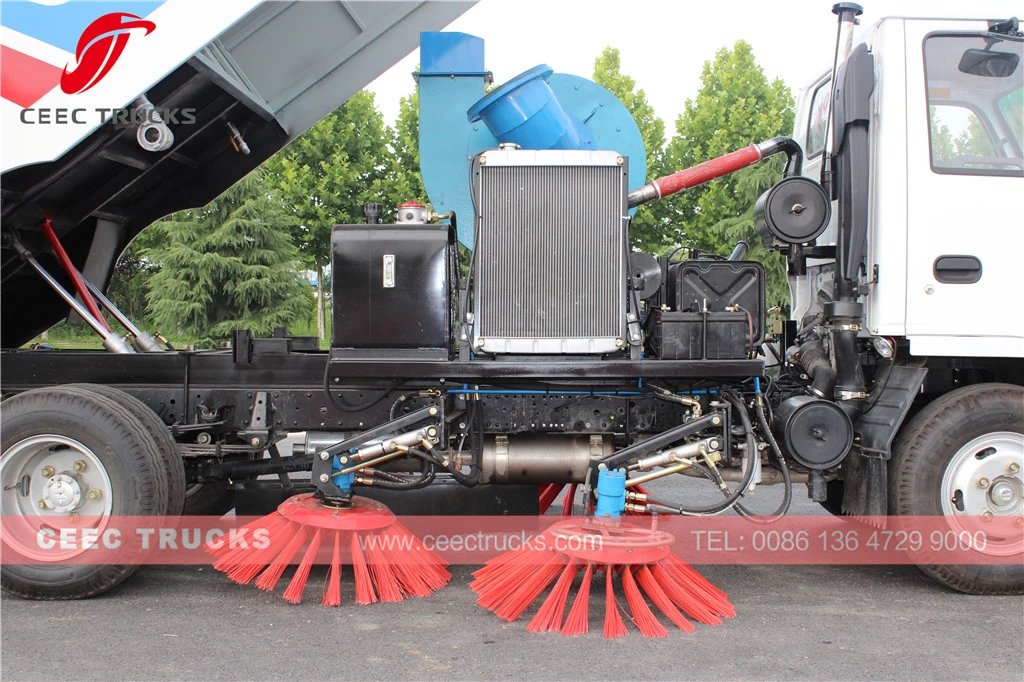

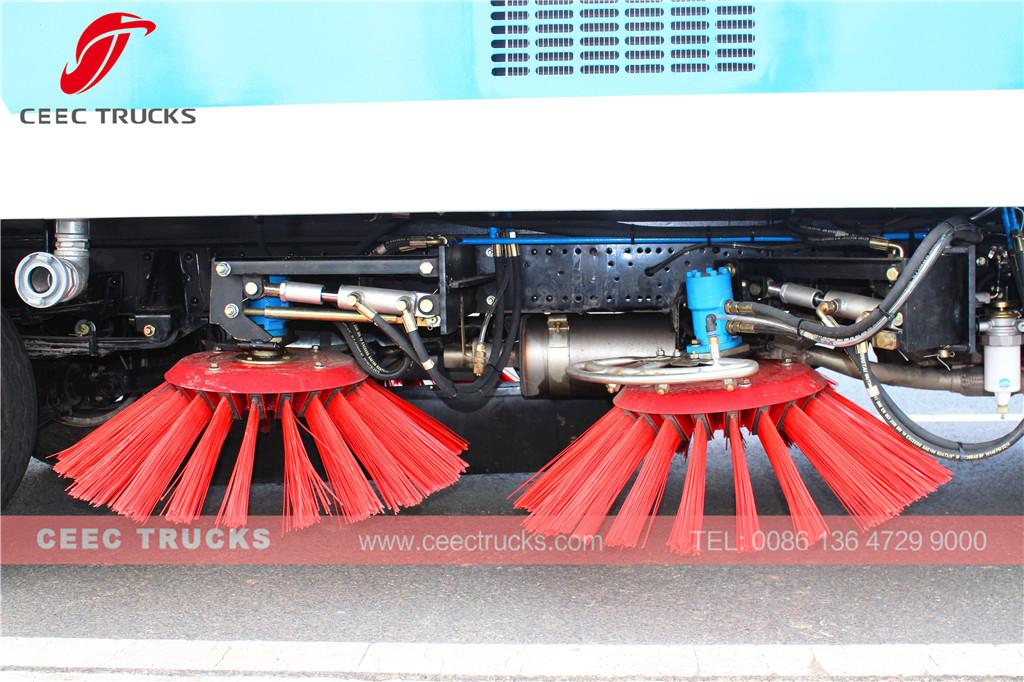

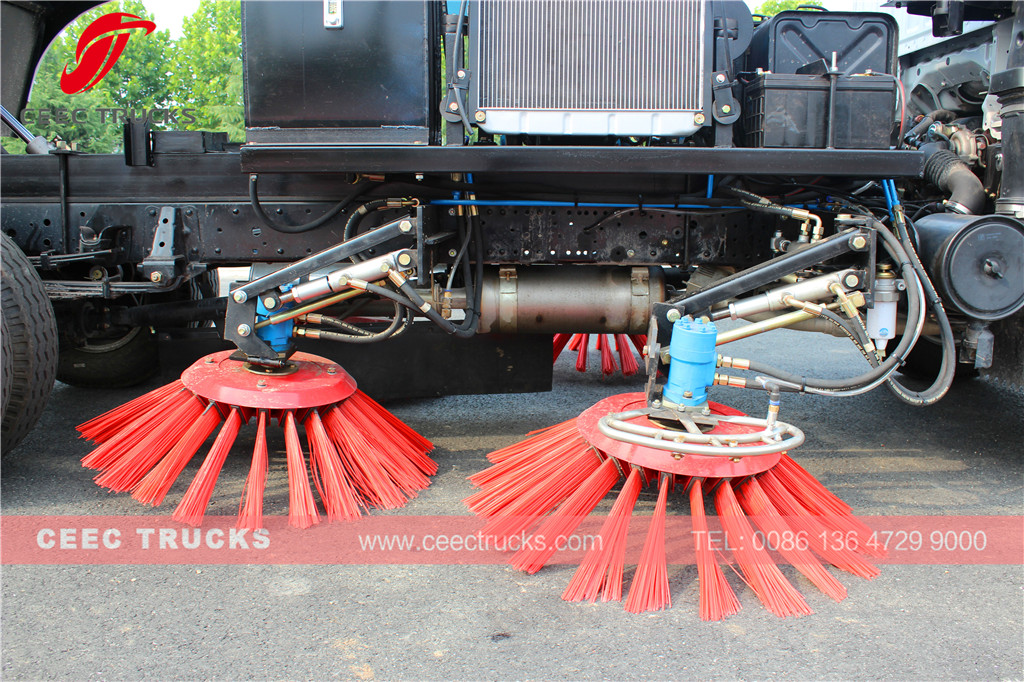

| Brooms
|
2 set at each side, at diameter 800 mm
|

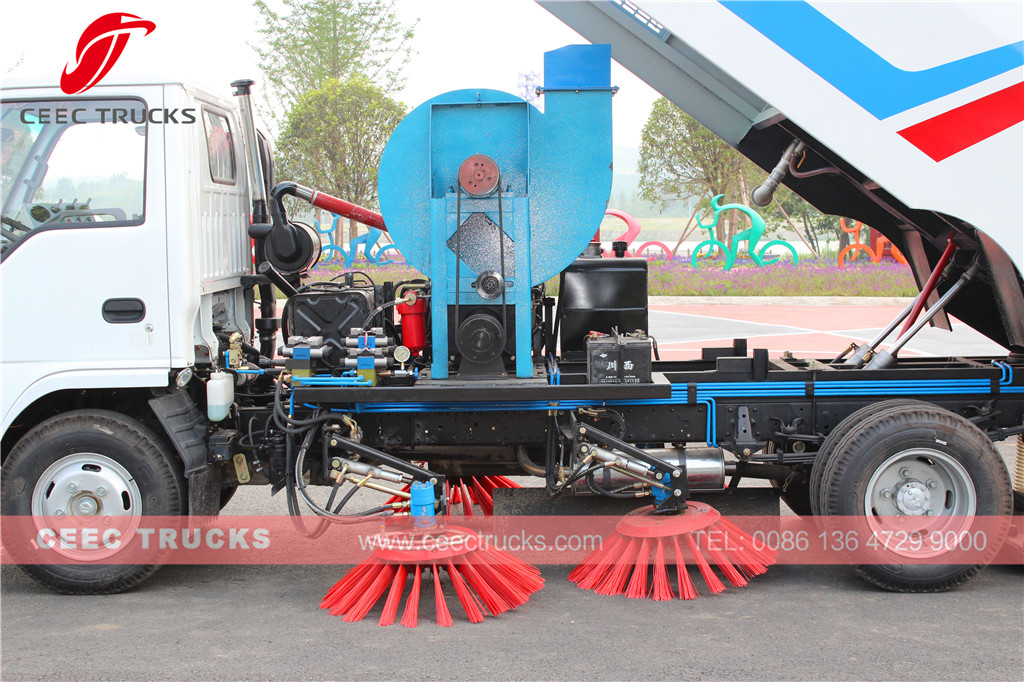

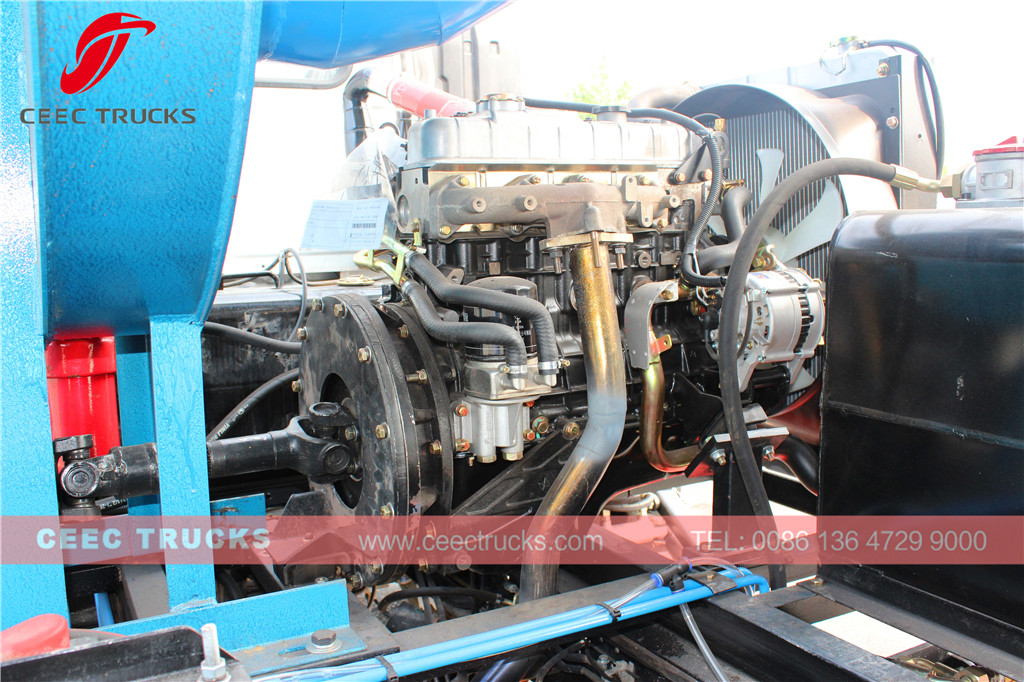

| Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|

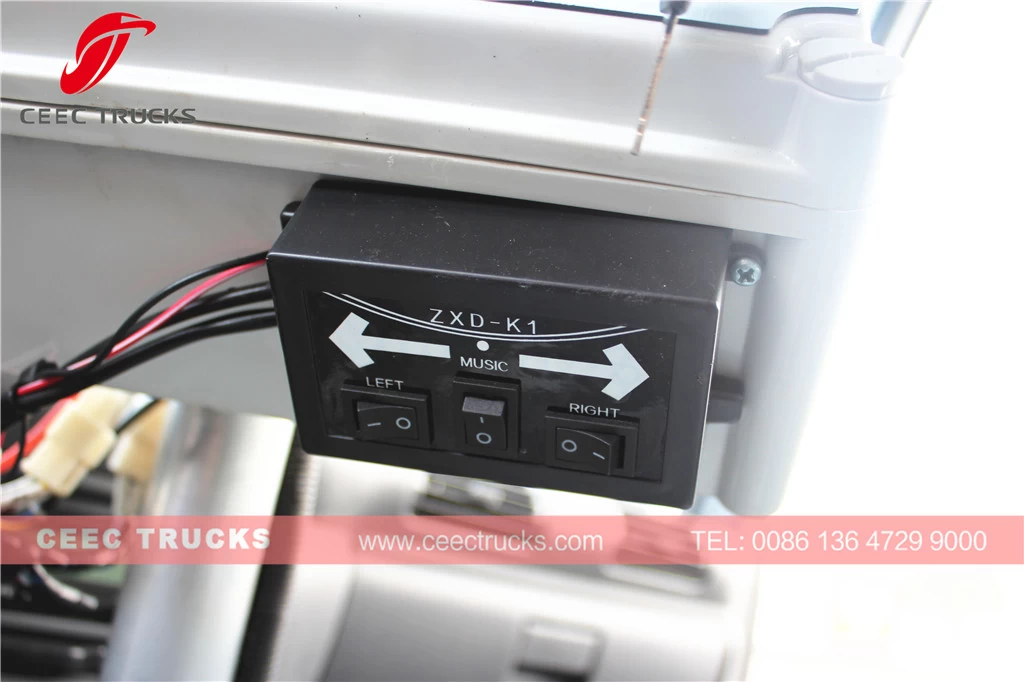

| All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
| Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.
** Air blower can be of stainless steel
|
