ISUZU 5 T Boom Crane Truck

ISUZU 5 T truck mounted crane use original isuzu 4*2 chassis, 4HK1-TCG40 engine with 190HP, MLD 6-shift manual gearbox, XCMG 5T telescopic boom truck crane for good performance. widely export myanmar, phillippine, etc.



Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks.



ISUZU 5 T Boom Crane Mounted Truck for Myanmar Yangon



isuzu 5 t truck mounted crane drawing

ISUZU 5 T boom crane mounted truck also named ISUZU telescopic 5 T truck mounted crane, XCMG truck crane supplier. which has 3 level telescpoic crane arms, I-shape hydraulic lifting legs for safety support. Our 2016 newly produced ISUZU 5 T truck mounted crane being widely export Kenya Mombasa, Congo Pointe Noire, and being used for heavy thing lifting and transportation.

5 T truck mounted crane_dimension

Advanced features for ISUZU 5000kg mounted crane cargo truck:

◆ Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime

◆ All Structural made of High Strength Steel

◆ Easy to mount and Minimum space required for Mounting

◆ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

◆ Optional Chassis 4x2, 6x4,8x4 and engine power

◆ Optional Crane brand: XCMG, UNIC, PALFINGER, HIAB

◆ Optional Crane type: Telescopic boom crane or knuckled boom crane

◆ Radio Remote Control Available as an Optional Fitment

◆ Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)

◆ ISUZU boom truck Crane capacity: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons

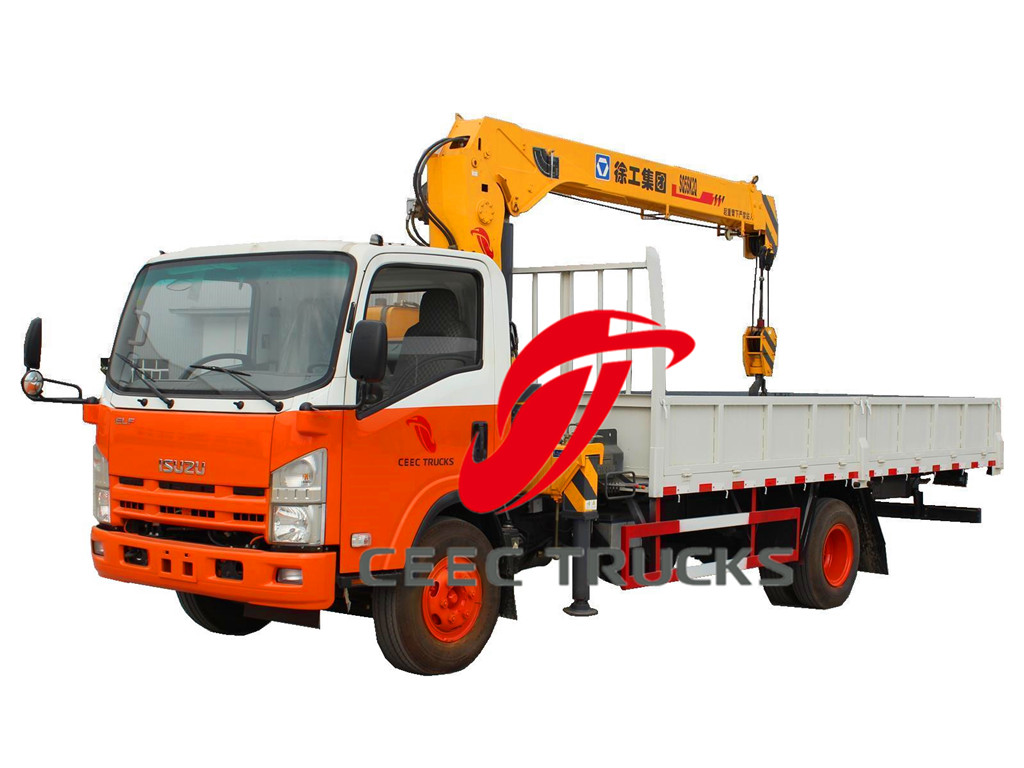

ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T XCMG truck mounted crane    ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T XCMG truck mounted crane    ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T XCMG truck mounted crane    ISUZU 5 T XCMG truck mounted crane



Similar Key Words: Straight Arm Isuzu 5T Truck Mounted Crane, ISUZU 5000kg Boom Truck Mounted Crane, 5t Crane ISUZU Truck Mounted Crane, 5t ISUZU crane mounted cargo truck, Myanmar isuzu truck mounted crane



ISUZU 5 T XCMG truck mounted crane



ISUZU 5 T truck mounted crane

Driving Type

4x2    (Left hand drive)

Wheelbase

3815 mm

Cab

Forward control over engine, all-steel-welded construction

Crane System

Max Lifting Capacity

5000 kg

Max Lifting Moment

6.8 T.M

Recommend Power

14 kw

Max Oil Flow of Hydraulic System

25 L/min

Max Pressure of Hydraulic System

20 MPA

Oil Tank Capacity

30 L

Rotation Angle

All Rotation

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (190 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h



ISUZU 5 T XCMG truck mounted crane testing
