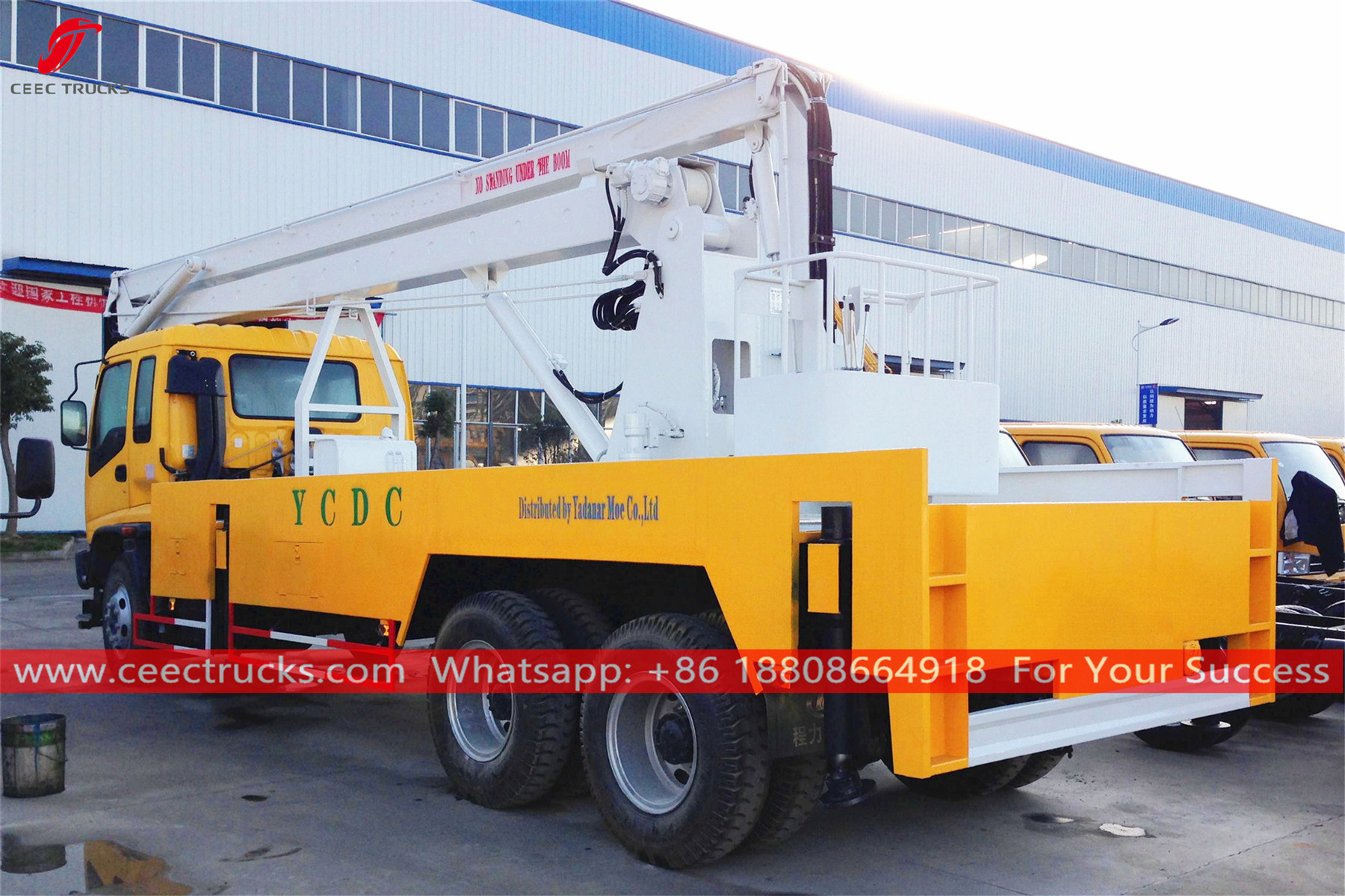

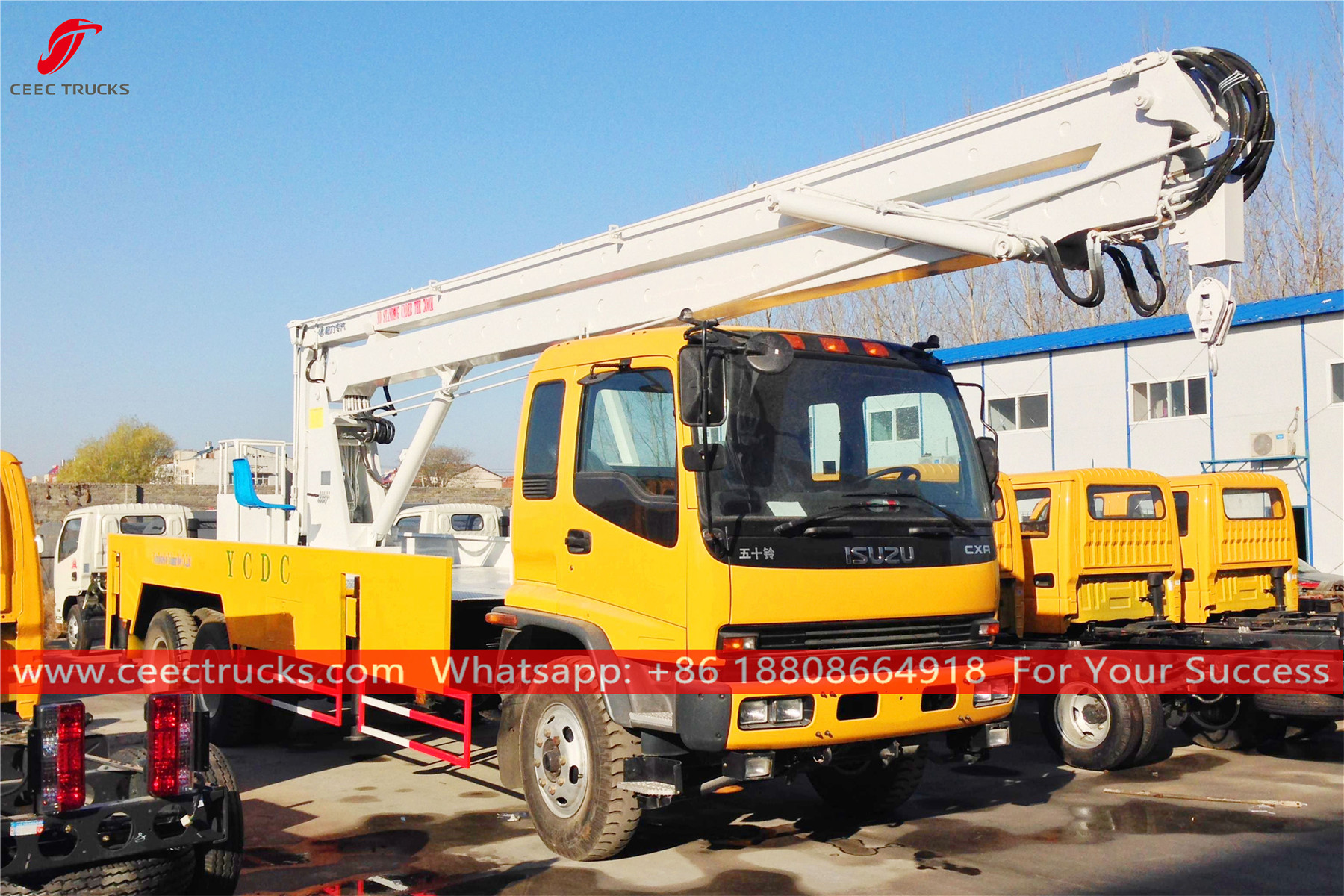

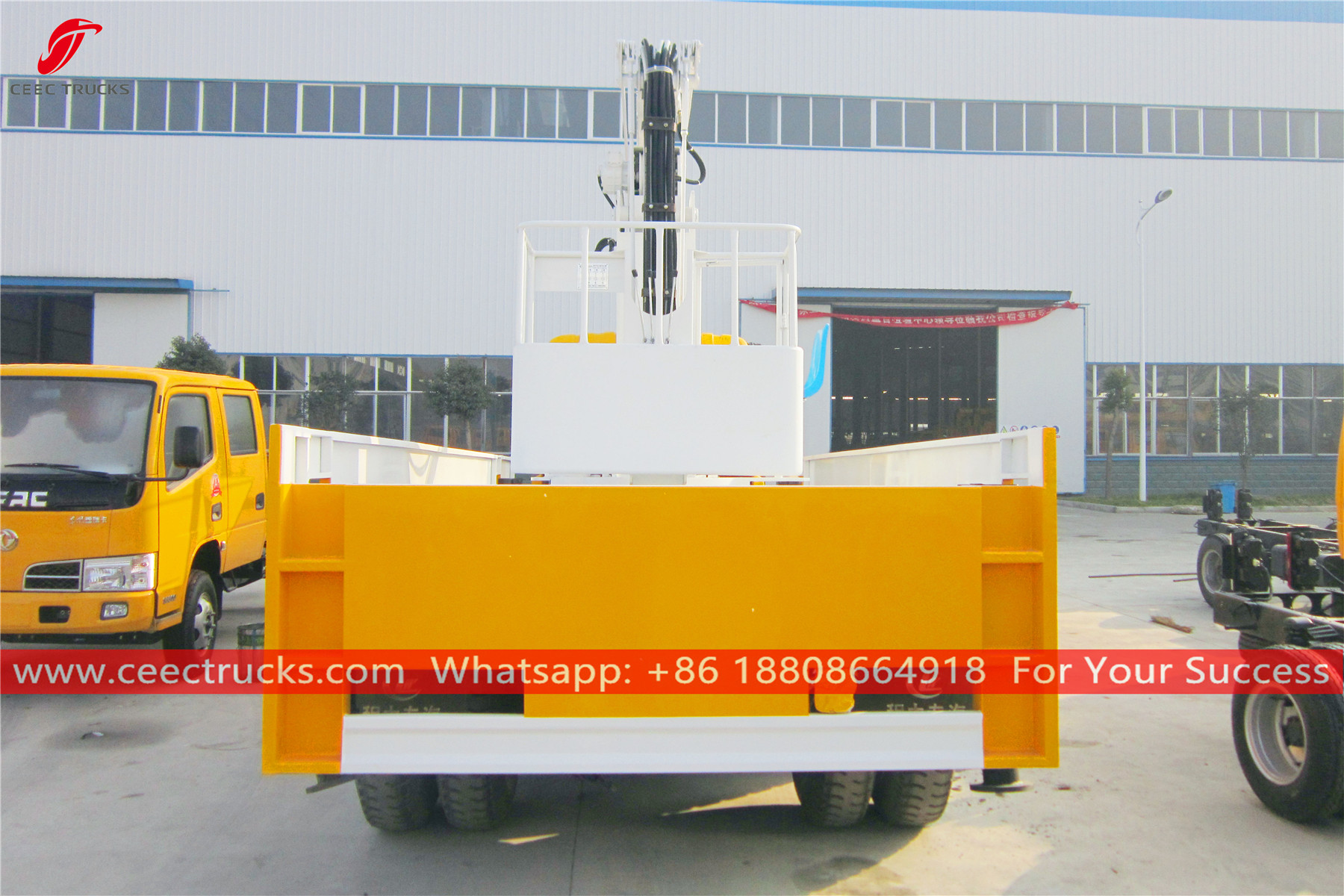

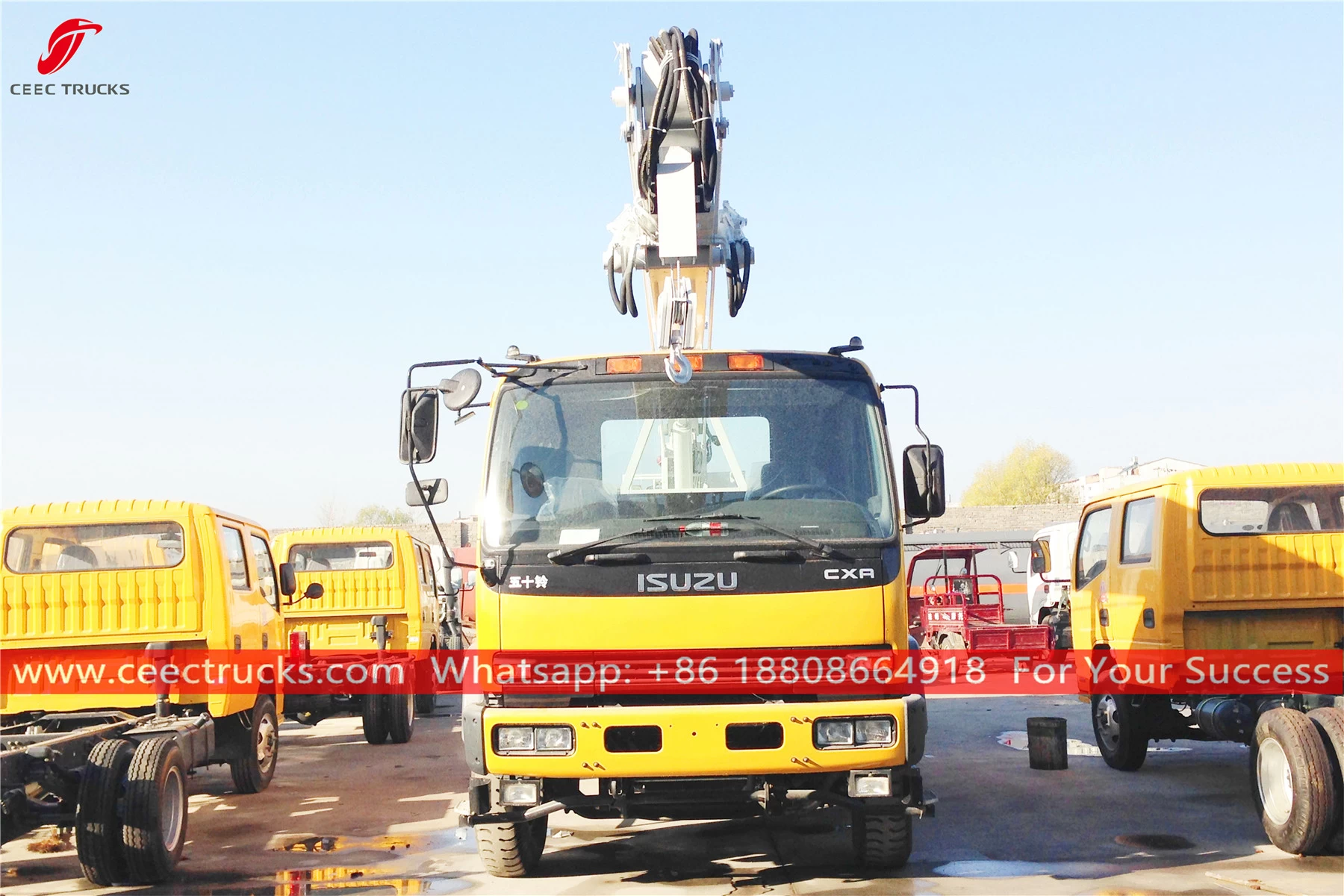

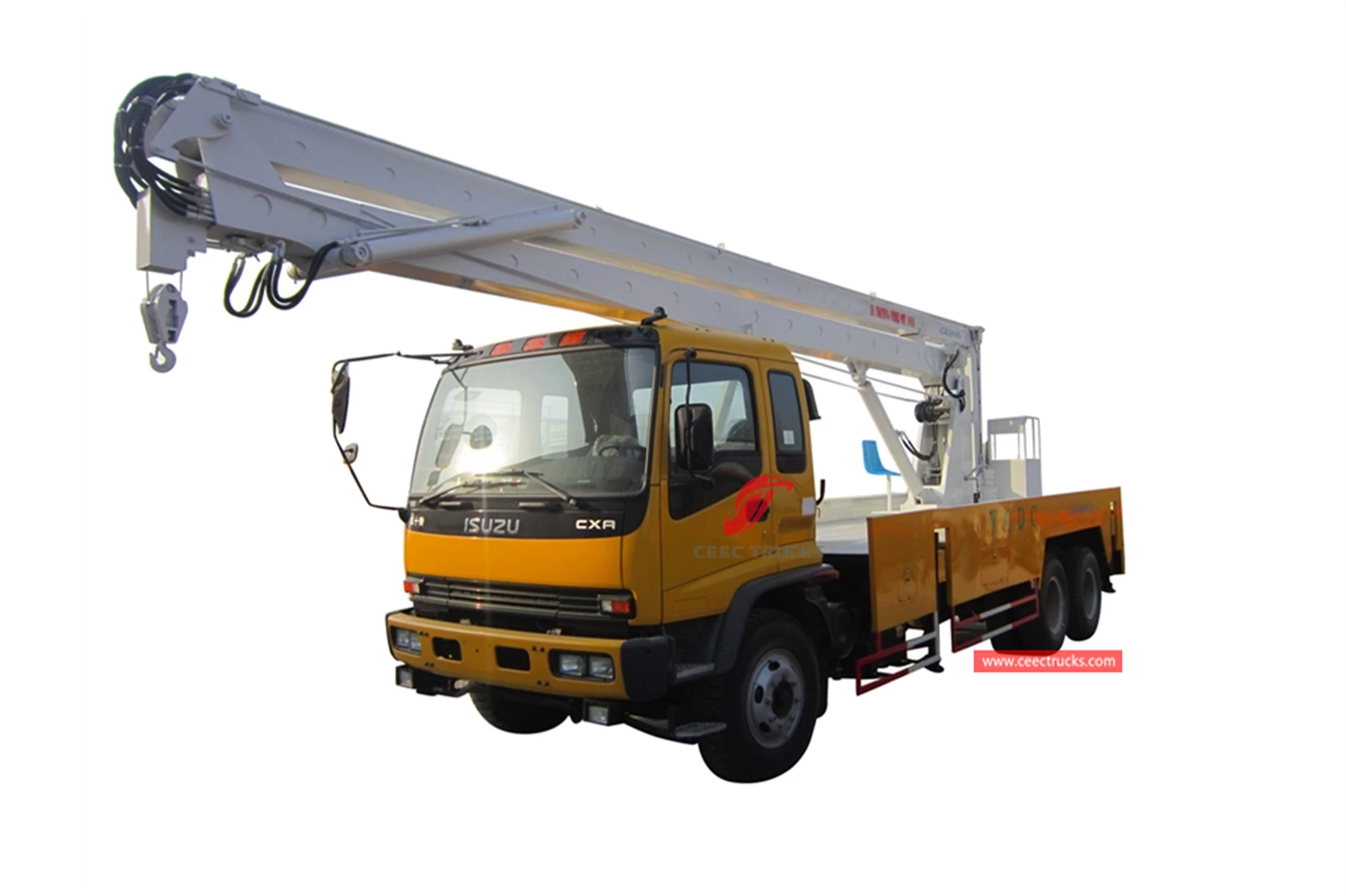

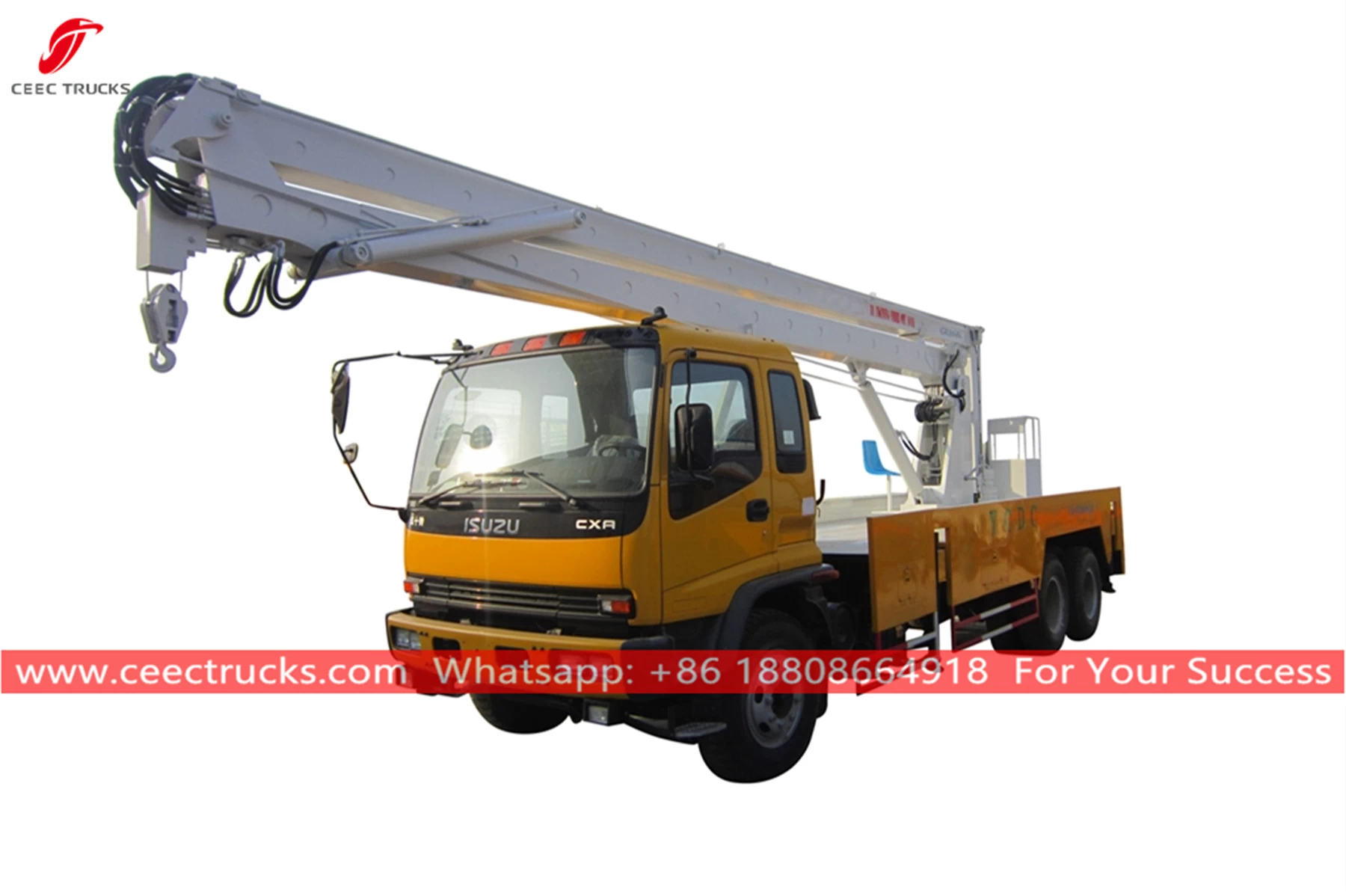

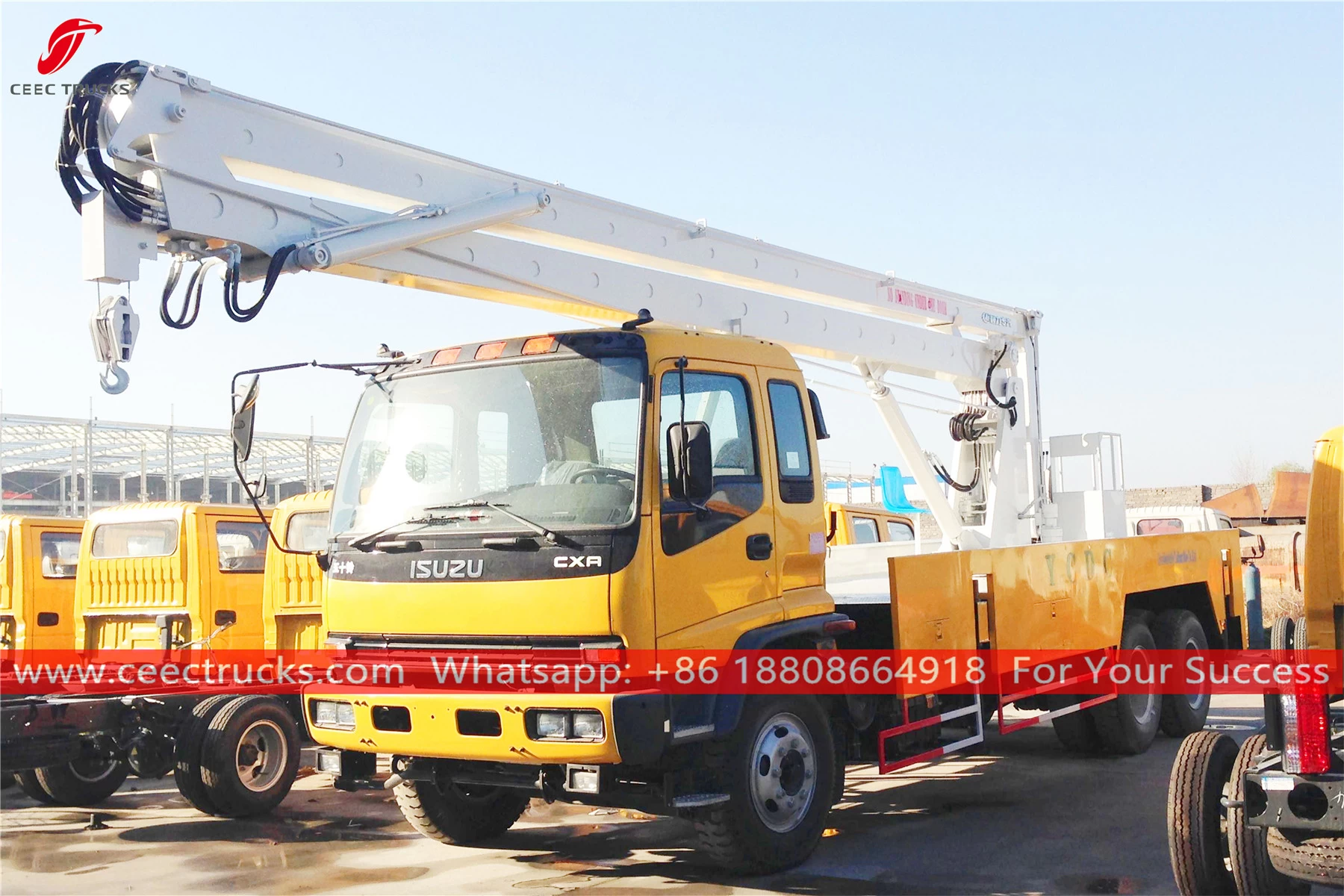

ISUZU 6x4 Overhead working platform Truck

22-24m bucket crane lifting truck, ISUZU FVZ 6x4 chassis,  FAST 8-shift manual gearbox, ISUZU 300HP diesel engine, painting and logos depend on requirement. Customer language control box.





 Applications:



ISUZU 22m Overhead Working Platform Truck (also called ISUZU Man lifting truck, ISUZU Aerial Platform Man Lift Truck, ISUZU Truck mounted aerial platform, ISUZU FVZ boom lifting bucket truck, ISUZU 6x4 High Platform Operation Vehicle, good quality arm lift bucket truck) is used  for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

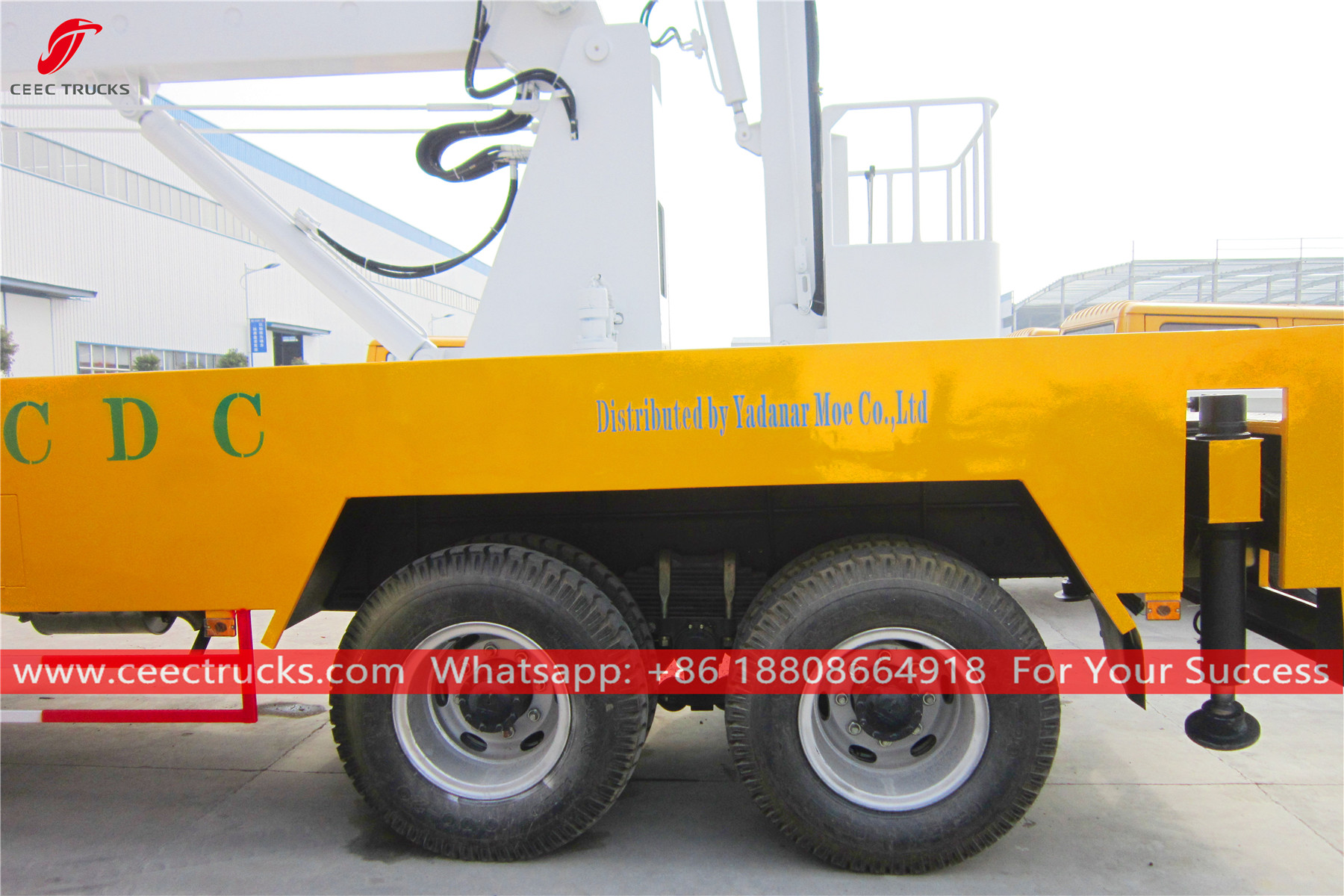

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.



 Specifications:



Aerial Platform Working Truck ISUZU (22M)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

9500 x 2500 x 3530 mm

GVW / Kerb Weight

25,000 kg / 9,700 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

280Ps (206KW)

Displacement

5200 ml

Emission Standard

Euro 4

Chassis

Drive Type

6X4, left hand drive

Transmission

FAST transmission, 8-forward gears & 1 reverse, no overhaul within 500,000km

Wheelbase/No. of axle

4000+1300 mm / 3

Tyre Specification

11.00-20

Tyre Number

10 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Cage Rated Capacity

200 kg

Working Height

  22m

Beam

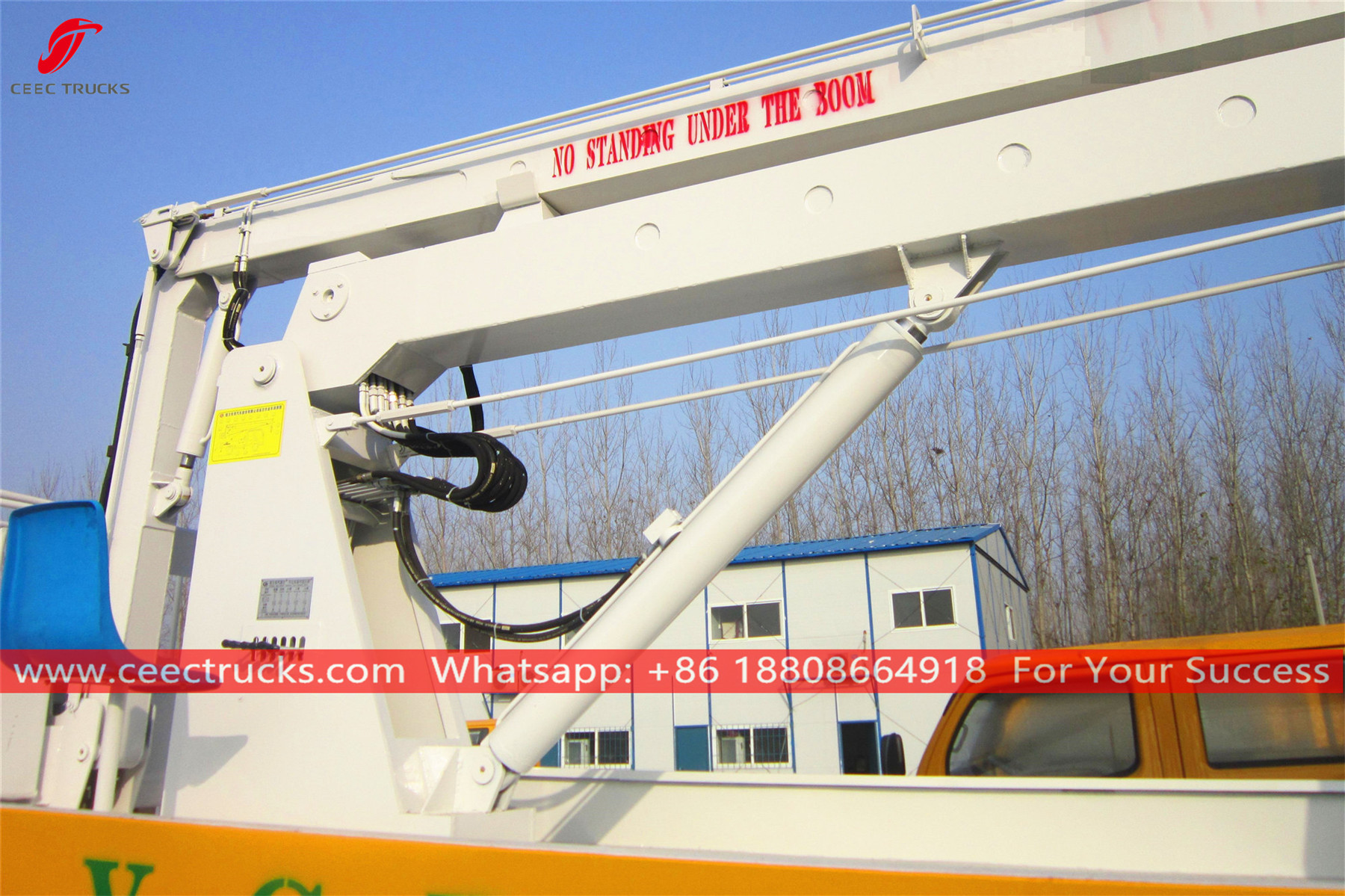

The beam is articulated & telescopic extension type, hydraulic actuated and controlled

Slewing

Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

Control

Control both on the ground and remote control in cage

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

Optional

Insulated cage; Wireless remote control system
