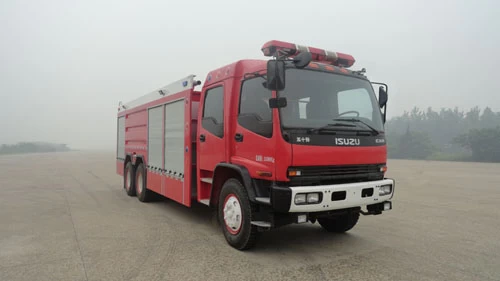

Isuzu Compressed Air Class A Foam Fire Vehicle
| Name |
Compressed Air Class A Foam Fire Vehicle |
| Model |
PT5160GXFAP50 |
| Chassis Model |
FVR34J2 |
| Engine Type and Power |
6HK1-TC,191kw |
| Max Speed(km/h) |
110 |
| Overall Size(mm) |
8135X2500X3200 |
| Number Of Seats |
7 |
| Gross Weight(kg) |
≤15590 |
Fire-extinguishing
Agents |
Water(kg) |
4350 |
| Class A Foam(kg) |
200 |
| Class B Foam(kg) |
800 |
| Fire Pump |
Type |
KSP1000 |
Pressure(MPa)
|
1.0 |
| Rate(L/s) |
65 |
| Fire Monitor |
Type |
PLKD48 |
| Rate(L/s) |
48 |
| Throw Range(m) |
≥60 |
| Flow of CAFS (L/s) |
Under pressure1.0 MPa, water is 7.6 L/s,air is 3.4m3/min |
