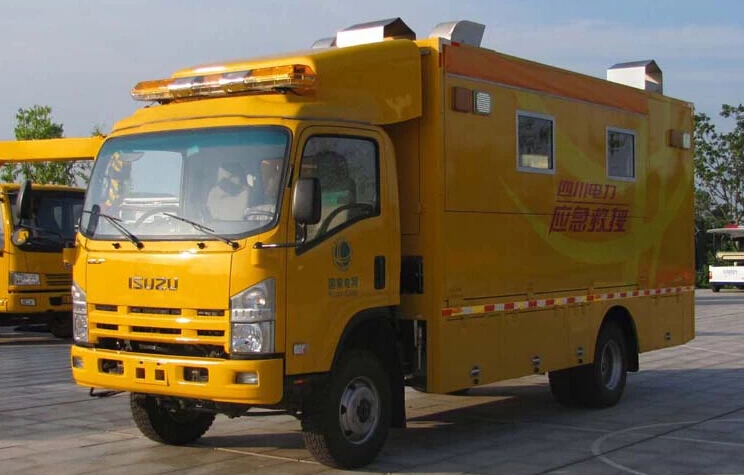

ISUZU emergency mobile kitchen
vehicle
Briefings:
High maneuverability, good off-road performance, quick
response
Stainless kitchen wears for steaming, boiling, and fried
Smoke extraction fans installed on inner ceiling to keep
fresh air, the raw foods material would be provided by Food Catering Vehicle.
Power supply can be from civil electricity.
Functions:
To steam, boil, fry etc, capacity of supplying meals for
100 persons per hour
Food process equipments installed, washing, cutting
uncooked food, distribution of cooked food
Cookers prepare food on the vehicle while it is immobile
Interior and exterior illumination lights are installed
Detail Specifications:
|
No.
|
Item
|
Description
|
Qty.
|
Remarks
|
|
1
|
Chassis
|
ISUZU ELF
|
1
|
With deflector shield
|
|
2
|

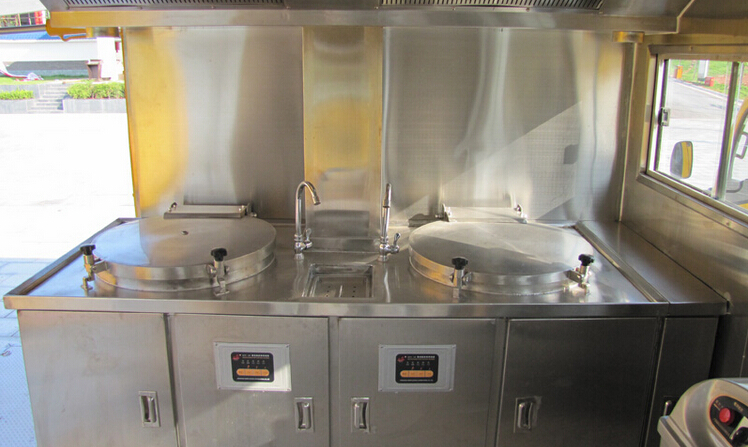

Cooking Stove
|
|
1
|
Including two stoves, stainless steel
|
|
3
|
Kitchen Ventilator
|
Smoke extraction
|
1
|
Two ventilation inlets, two fans
|
|
4
|
Steam Box (Fuel)
|
Stainless Steel
|
1
|
|
|
5
|
Water Pump
|
5900
|
1
|
|
|
6
|
Water System
|
|
1
|
Inlet pipe fittings (all stainless steel)
|
|
7
|
Fuel system of cooking wares
|
|
1
|
Including a 55L outer fuel tank, an electric fuel pump
and diesel filter, pipe fittings etc
|
|
8
|
Cabinet
|
|
1
|
For seasoning storage
|
|
9
|
Plug Socket
|
32A
|
1
|
For External Power Supply
|
|
10
|
Sink
|
|
1
|
Stainless Steel
|
|
11
|
Working Table
|
|
1
|
Stainless Steel
|
|
12
|
Garbage Bucket
|
|
1
|
Stainless Steel
|
|
13
|
Overhead Cabinet
|
|
1
|
Stainless Steel
|
|
14
|
Dough mixer
|
HS-20
|
1
|
Max. Capacity: 8Kg
|
|
15
|
Cable Winch
|
50m
|
1
|
|
|
16
|
Reverse Camera
|
DF111C8RI
|
1
|
|
|
17
|
Monitoring Screen
|
AC-703T
|
1
|
|
|
18
|
Safety Sunroof
|
700
|
1
|
|
|
19
|
Inner Illumination
|
Liang Di MX-LD-034
|
4
|
|
|
20
|
Inner Additional Illumination
|
DS/680 Roof Lamp
|
1
|
|
|
21
|
Field Illumination
|
Halogen 150w
|
4
|
|
|
22
|
Side Marker Lamp
|
|
4
|
|
|
23
|
Cross Board Hut
|
Stainless
|
1
|
Including switches, lines, etc
|
|
24
|
Centrifugal Fan
|
130FLJS
|
3
|
|
|
25
|
Lightning Resistant System
|
VAL-MS320/1+1
|
1
|
|
|
26
|
Rear Ladder
|
|
1
|
Stainless Steel
|
|
27
|
Side Ladder
|
|
1
|
Stainless Steel
|
|
28
|
Powder Fire Extinguisher
|
MF-Z-2
|
2
|
|
|
29
|
Heat Insulation
|
With Inner Decoration
|
1
|
Between Cabins
|
|
30
|
Luggage Compartment Lock
|
181C
|
10
|
|
|
31
|
Other Material
|
|
1
|
Such as wirings, electric kits, and components
|
|
32
|
Painting
|
|
1
|
As option
|

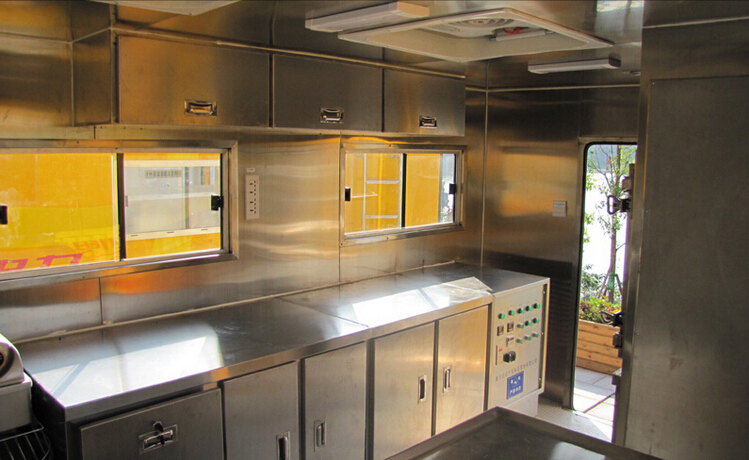

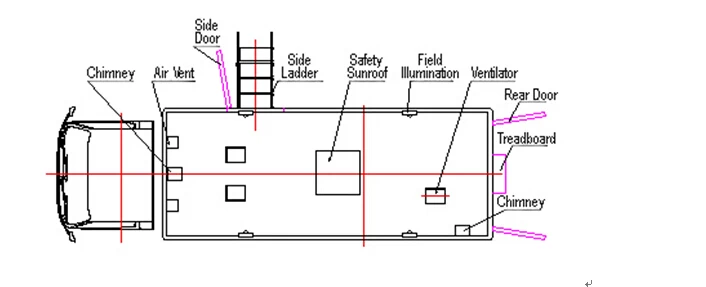

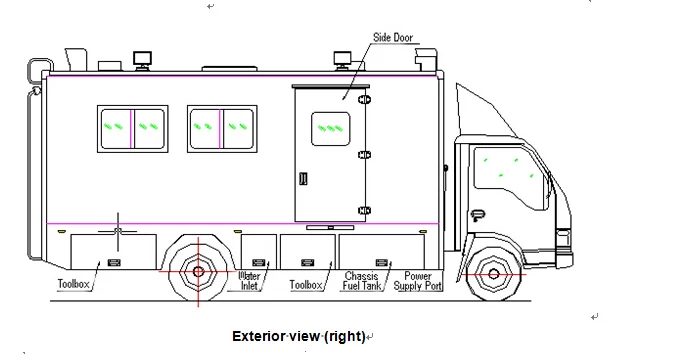

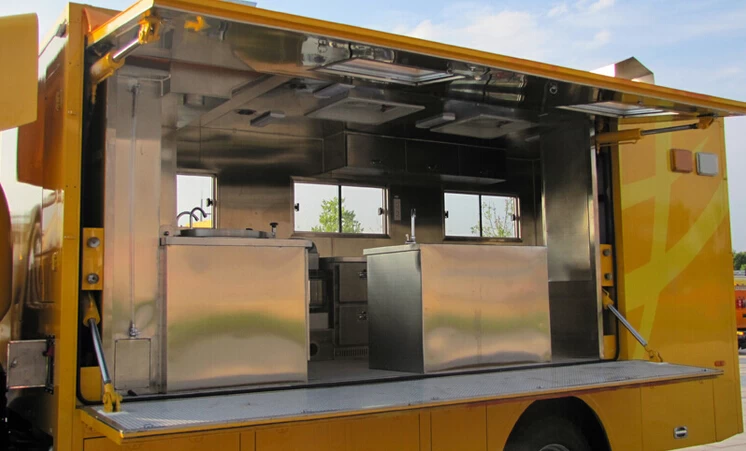

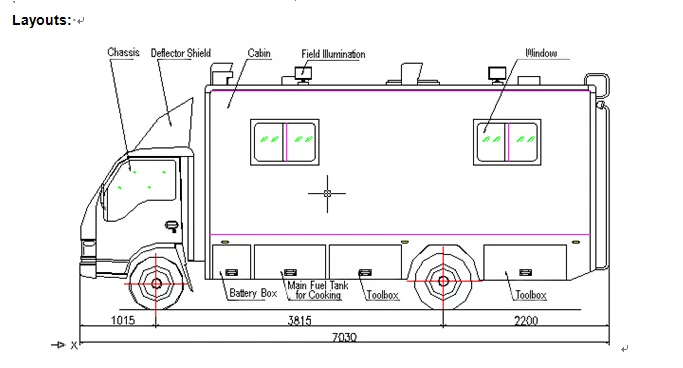

Details pictures as below:
