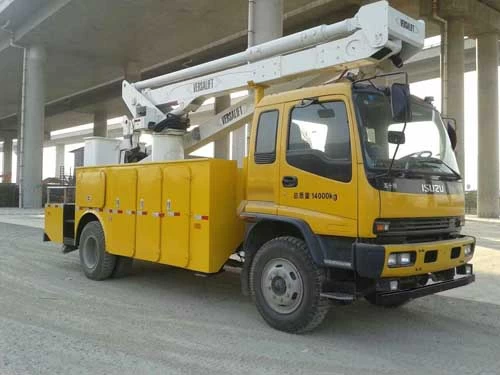

ISUZU FTR FVR Truck Mounted Articulated Boom Type Aerial Work Platform
ISUZU FTR / FVR 10-24m Aerial Working Boom Lift Truck
1. ISUZU
2. LHD
3.10M 12M 14M 20 M 24M
1. High quality chassis, 4X2 6*4 8*4drive type, LHD/RHD
2. ISUZU diesel 190hp 240hp engine
3. Boom: Articulated boom, Three sections.
4. Mounted a bucket at the end of boom, rated load weight 200kg.
5. Can operate this truck at the bucket or side of the first boom.
5. CCC ISO BV approved, accept customization service.
| Chassis |
Brand |
ISUZU |
| Chassis model |
FTR FVR
|
| Drive model |
4×2, LHD
|
| Tire |
9.00-20 |
| Brake |
Air brake |
| Engine |
Model |
4HK or 6HK
|
| Horse Power(hp) |
190 |
| Displacement(cc)/Power(kw) |
5900 |
| Emission |
Euro 3 |
Main Parameter |
Overall dimension (L*W*H/mm) |
9400*2498*3790 |
| Wheelbase(mm) |
5000 |
| Axles No. |
2 |
| Weight(kg) |
GVW |
10950 |
| Curb weight |
10755 |
| Leaf spring No. |
7/9+6 |
| Approaching/Departure Angle(°) |
24/12 |
| Front/Rear trace(mm) |
1880/1800 |
| Front/Rear suspension(mm) |
1430/2496 |
| Max speed(km/h) |
95 |
| Gear box |
6 forward, 1 reverse |
| Front/Rear Axle Load |
4320/6630 |
| Max. Working height |
20m |
| Rotation angle |
360° |
| Max. operation radius(outreach) |
6.3m |
| Bucket rated load/passengers |
200kg /2 |
| Lifting hook tonnage |
1000kg |
| Max lifting height |
6.5m |
| Hydraulic outriggers/legs |
4pcs |
| Paint |
High quality ,color as customer's request |
| Cab |
Double row, 4 doors, with A/C |
