Applications:

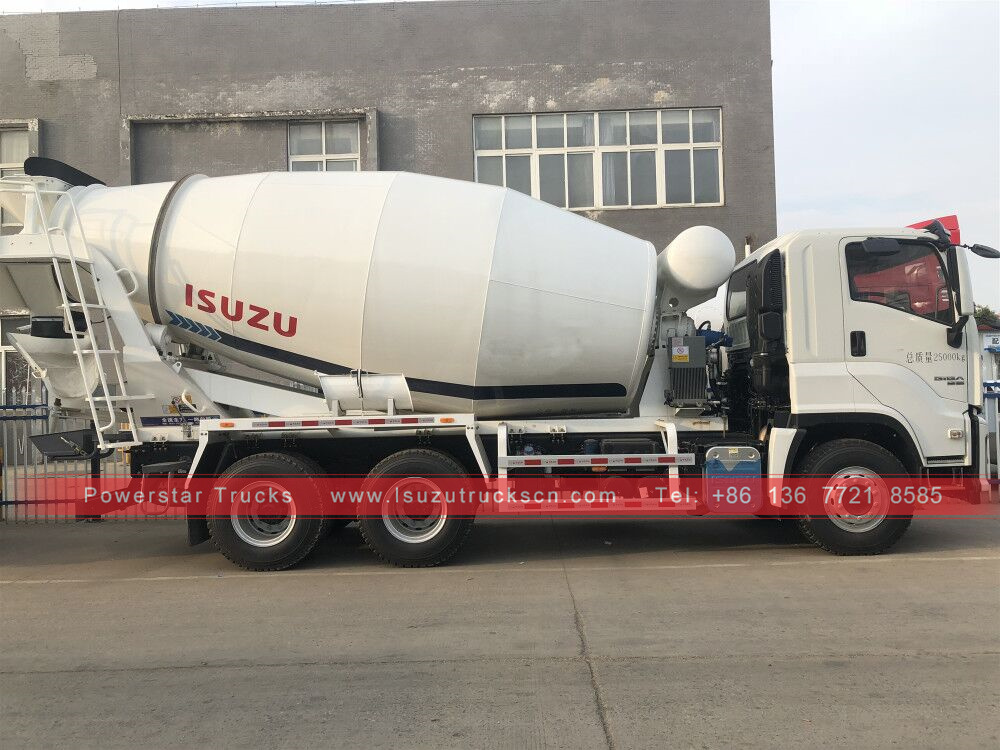

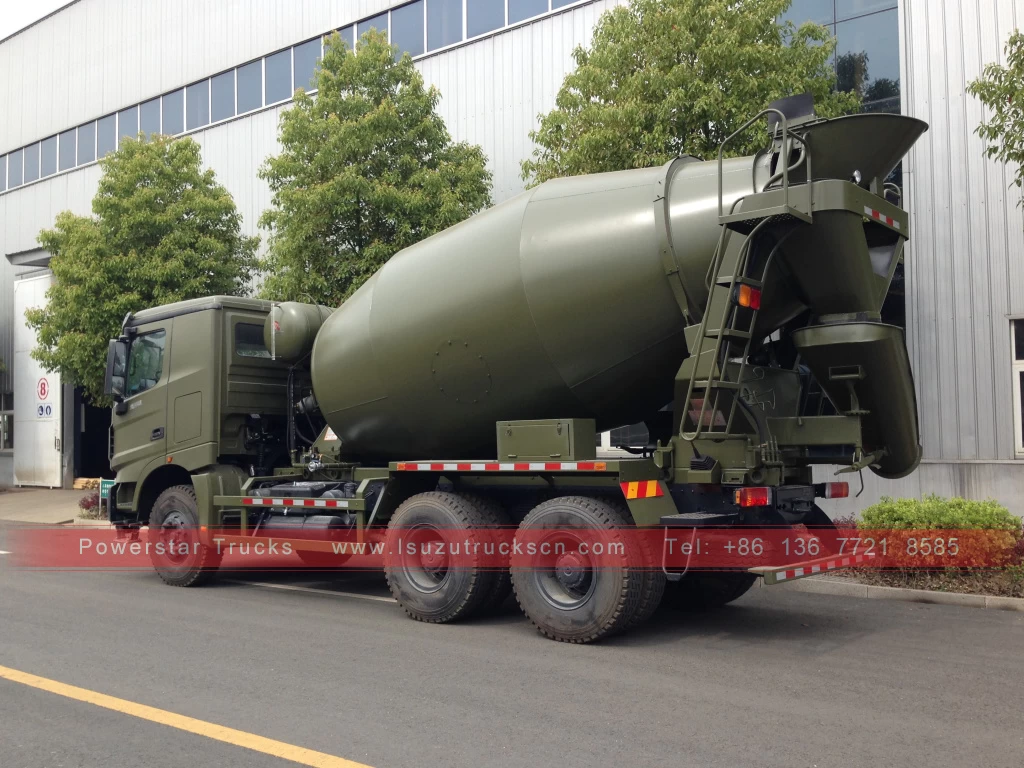

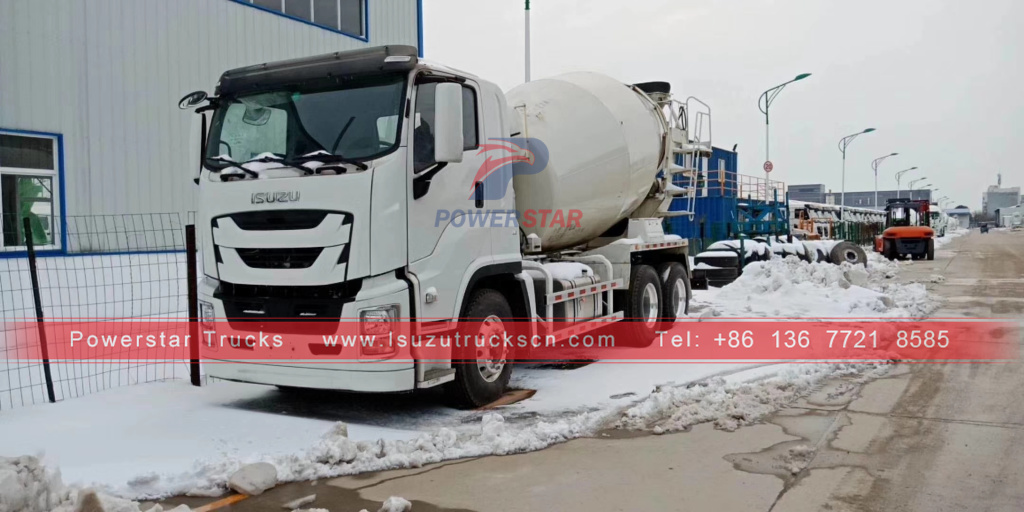

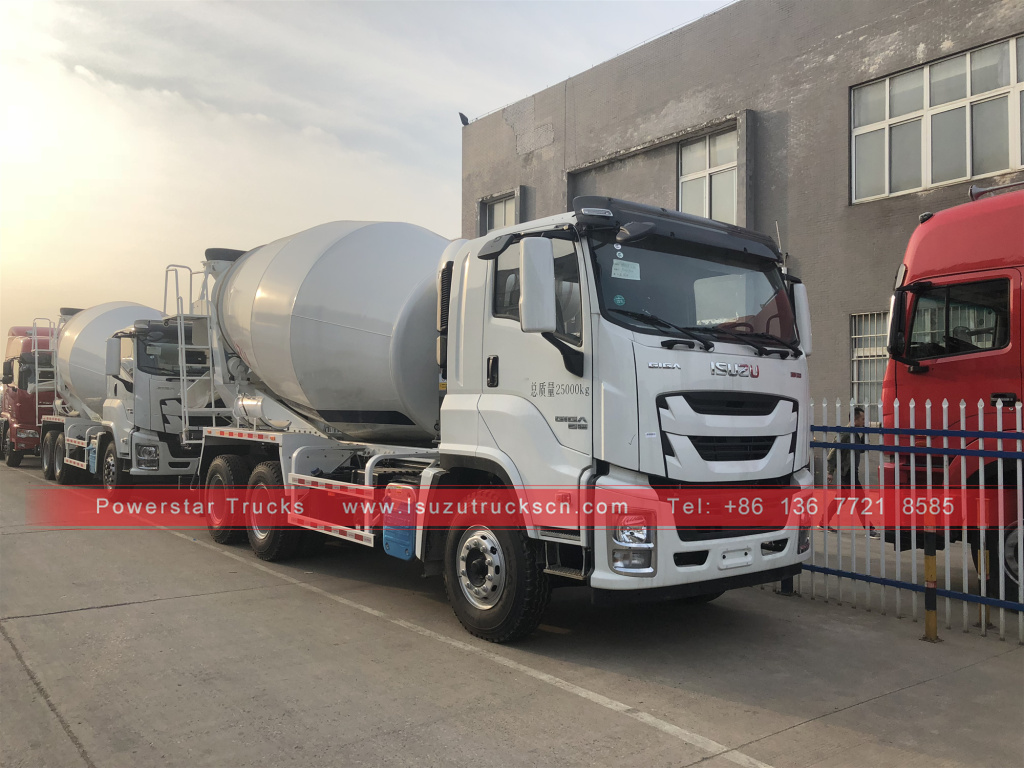

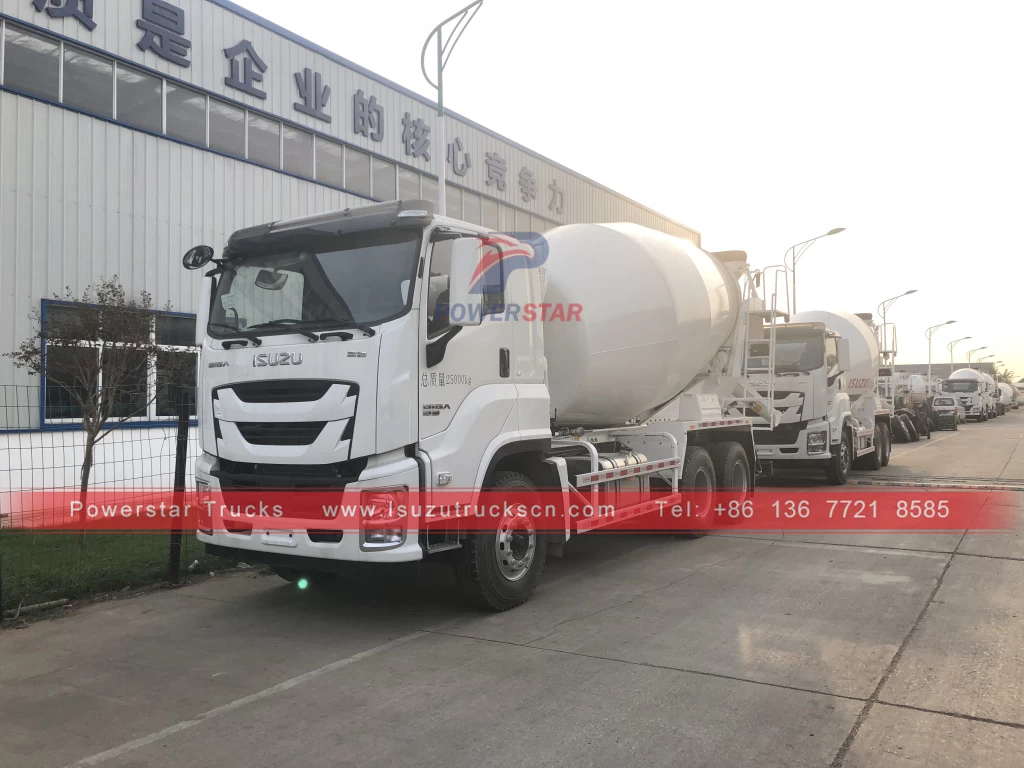

ISUZU GIGA 6X4 Concrete Mixer Truck (also
called 10cubic meters Isuzu cement mixer truck, GIGA self loading concrete Mixer, GIGA Concrete mixer drum truck, transit mixer vehicle) is
made to transport and mix concrete up to the construction site.The
concrete mixing transport truck maintains the material's liquid state
through agitation, or turning of the drum, until delivery.
They
can be charged with dry materials and water, with the mixing occurring
during transport. They can also be loaded from a "central mix" plant;
with this process the material has already been mixed prior to loading.
Powerstar Trucks provide cement mixer truck with drum capacity from 3m3 to 18m3.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6UZ1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Mixer drum capacity from 3cbm to 20cbm.
---- Easy operation and easy maintenance.
Specifications:
|
ISUZU GIGA Concrte Mixer Truck (8 cbm)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU GIGA
|
|
Overall Dimension
|
9800 * 2500 * 3600 mm
|
|
GVW / Kerb Weight
|
31,000kg / 11,450kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU 6UZ1-TCG51
|
|
Power
|
350 HP (258 KW)
|
|
Displacement
|
9839 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
6X4, (left hand drive)
|
|
Transmission
|
RT-11509C 9 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3640+1410 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|

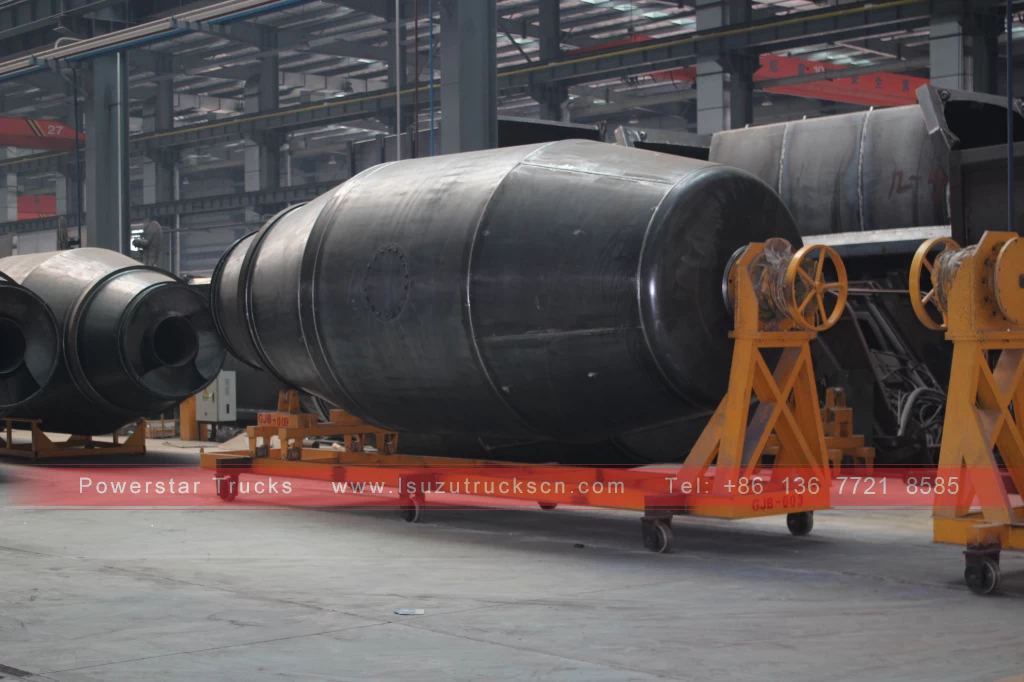

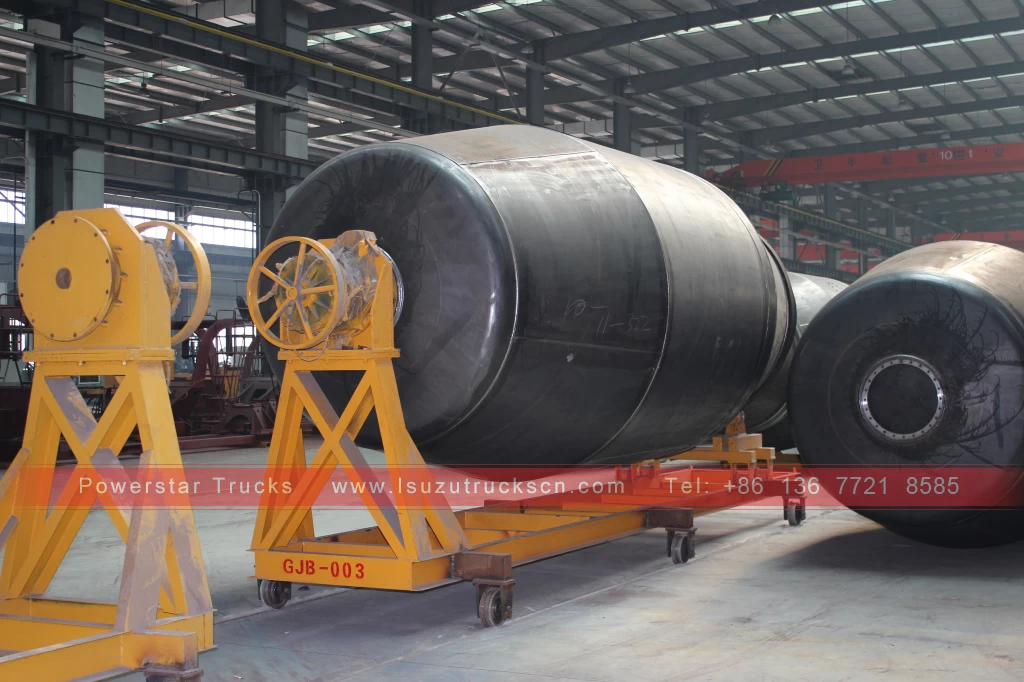

Mixer Tank Volume
|
8 cbm
|
|

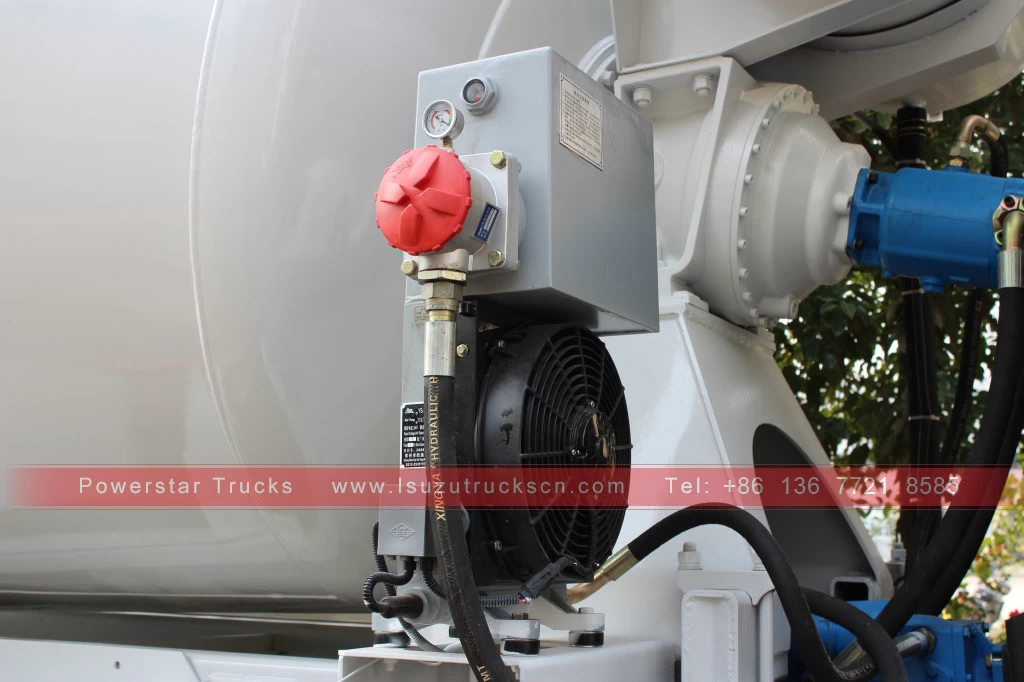

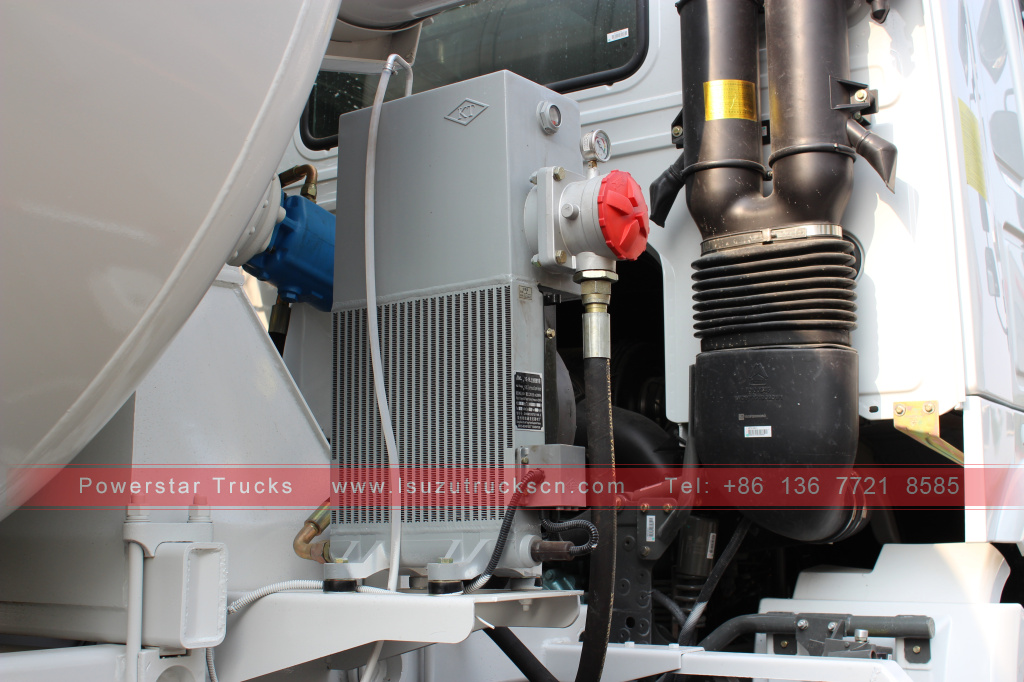

Hydraulic Pump
|
EATON 5423
|
|

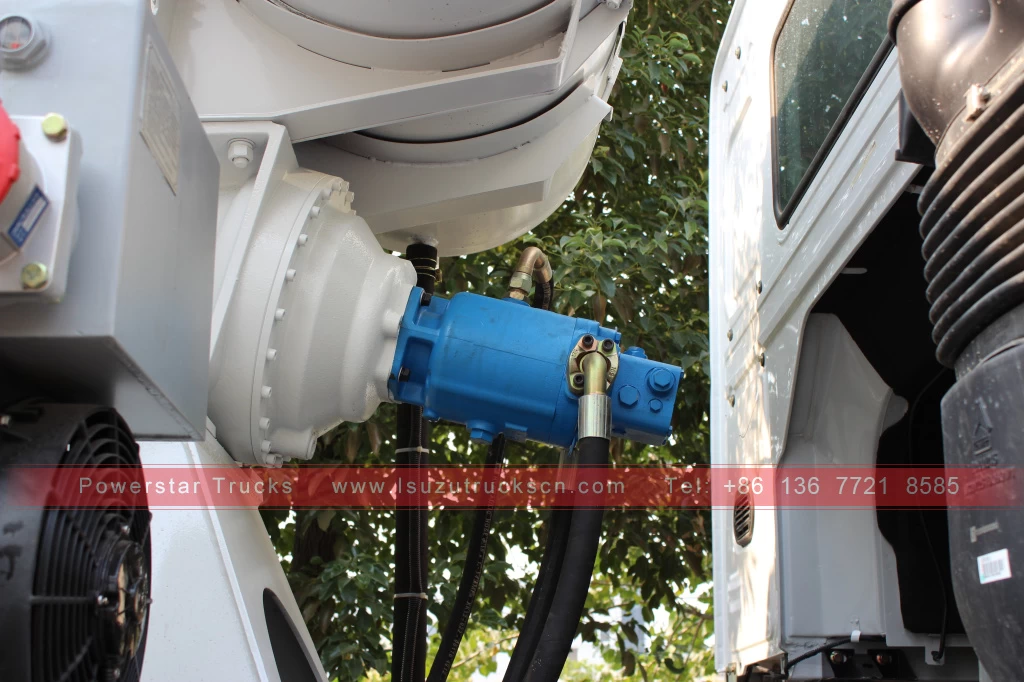

Hydraulic Motor
|
EATON 5433
|
|
Loading speed
|
≥ 1.2 m3/min
|
|
Dischargeing speed
|
≥ 3 m3/min
|
|
Rest rate
|
≤ 1 %
|
|
Water tank
|
450L
|
|
All standard accessories: All steel body with drop sides. Auto release removable trilgate.

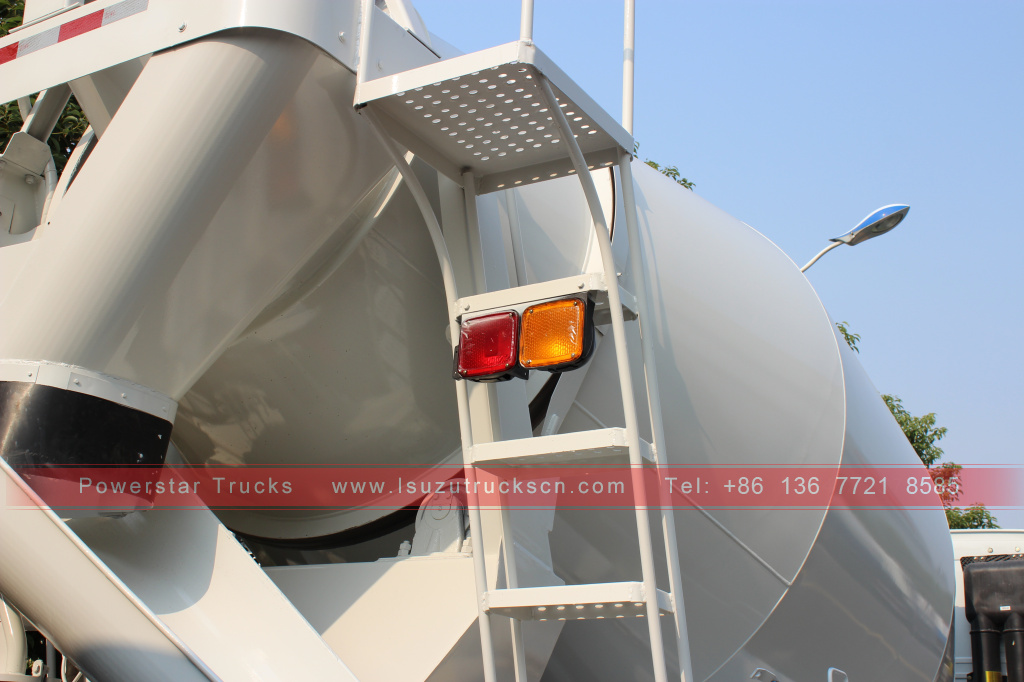

Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Water jetting system can be choose.
** Other hydraulic system brand can be choose.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
