Applications:

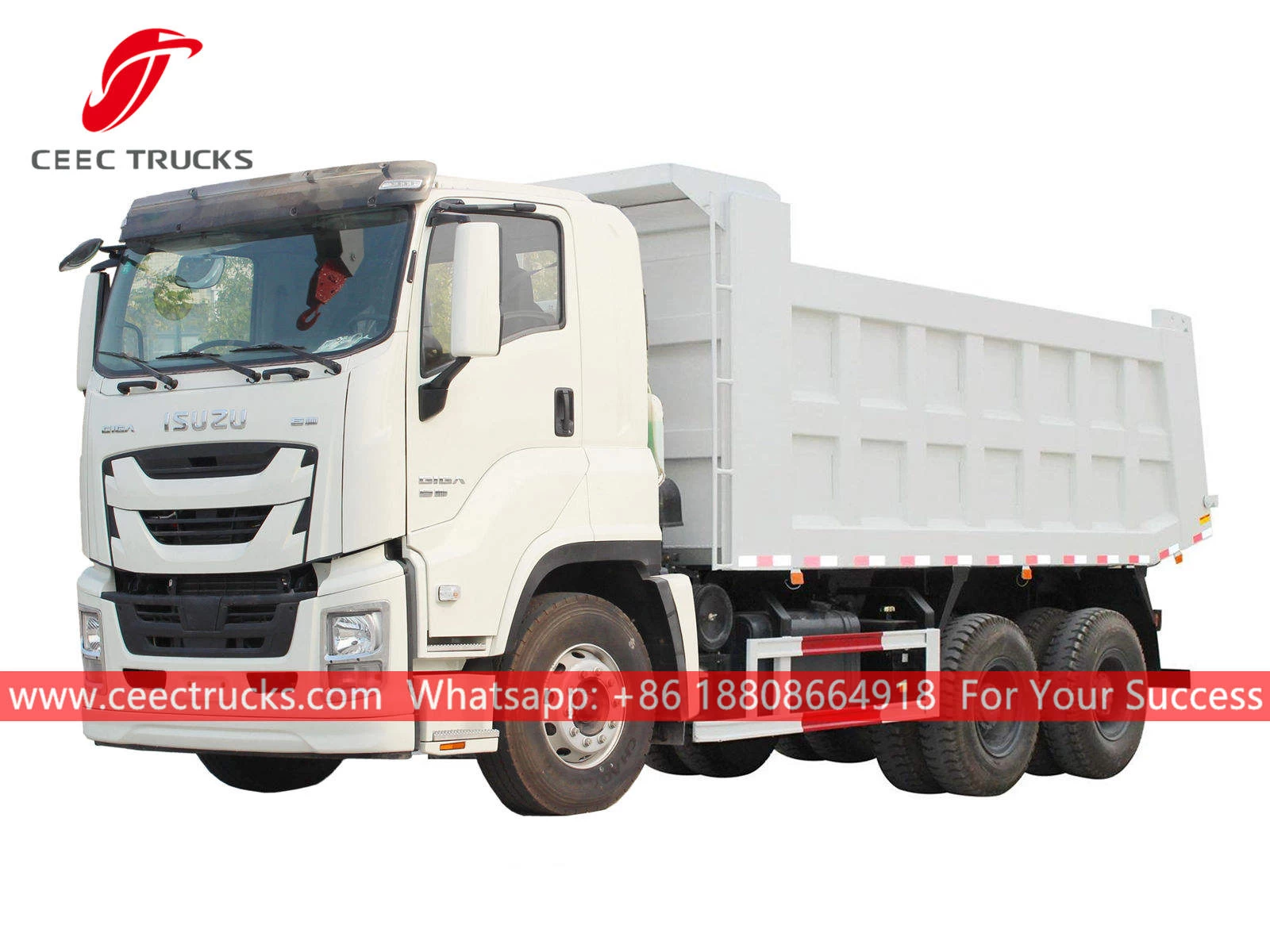

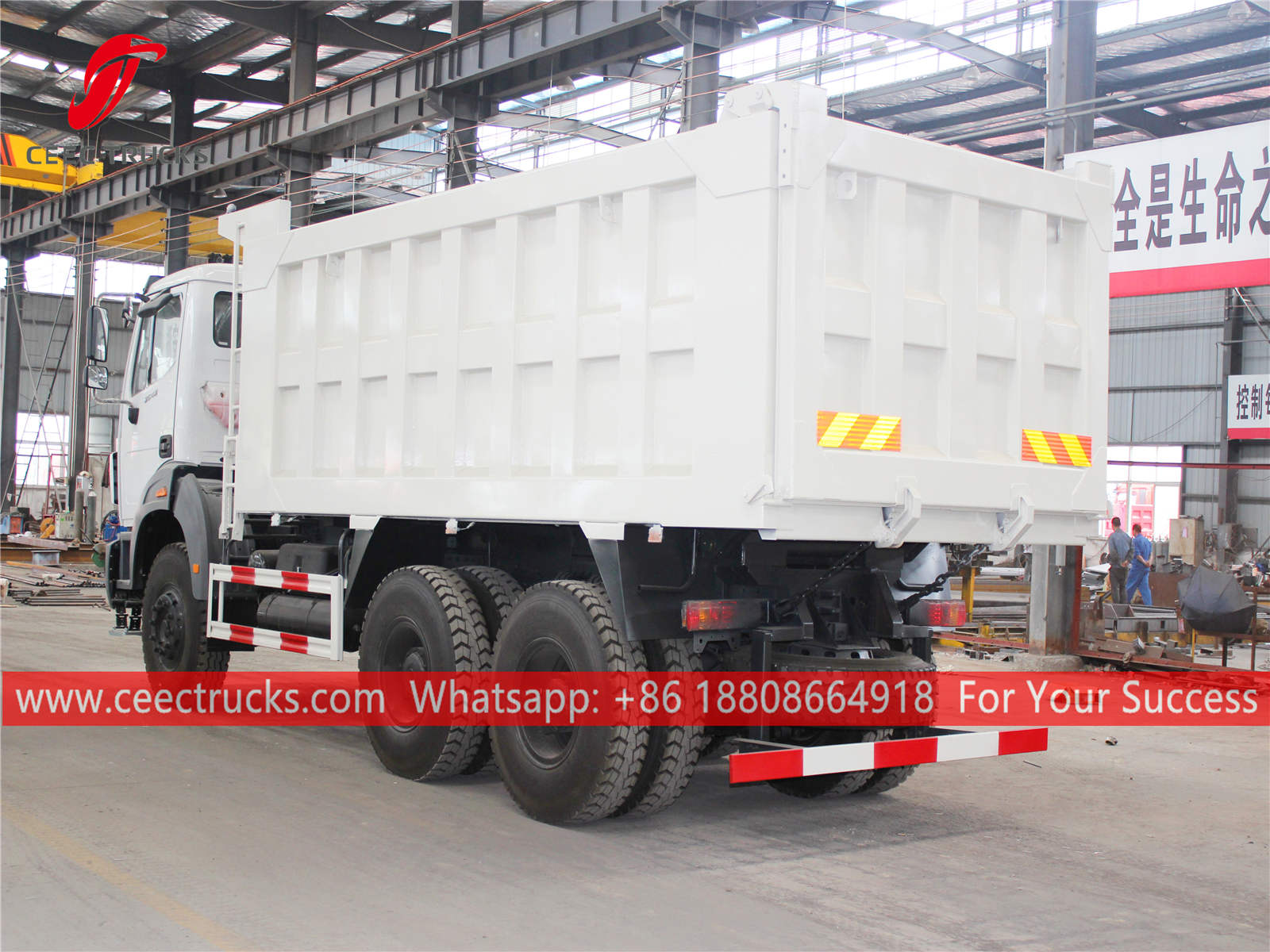

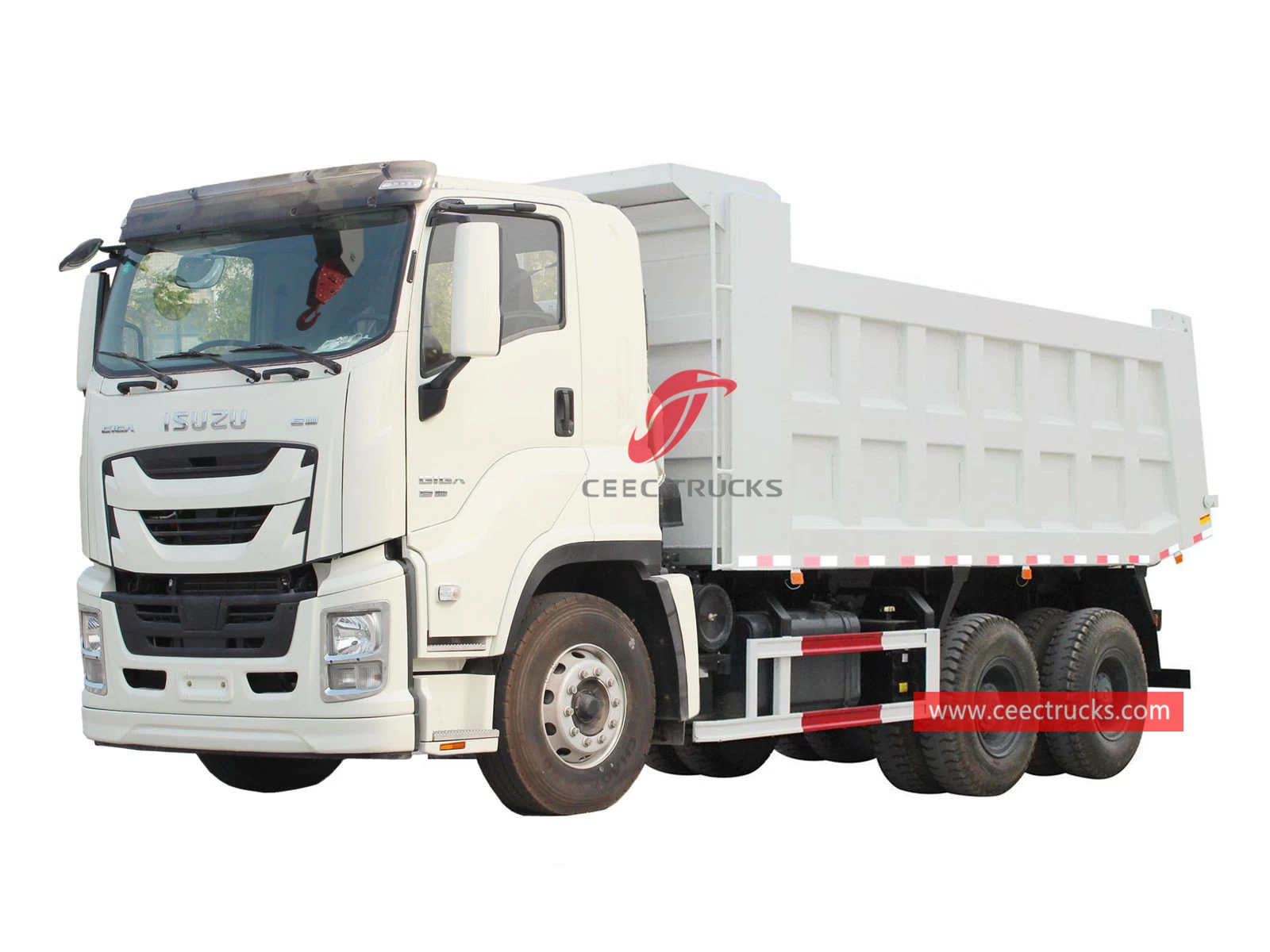

ISUZU GIGA Dumper truck (also called ISUZU heavy duty dump truck, ISUZU GIGA 6X4 dumper vehicle, ISUZU GIGA tipper lorry, hydrualic dump vehicle ISUZU, 10 wheels construction tipper truck, ISUZU GIGA dumping vehicles) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.
CEEC TRUCK dump
truck is manufactured with the cutting-edge technology and components
in the world such as WABCO double-cylinder air compressor, brake valve,
HYVA front or middle hydraulic system, etc.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
ISUZU GIGA Dump truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8500 * 2500 * 3500 mm
|
|
GVW / Kerb Weight
|
25,000kg / 12,200kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU diesel engine
|
|
Power
|
380 HP (280 KW)
|
|
Displacement
|
9839 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
6X4 (LHD)
|
|
Transmission
|
FAST 12 speed levers with 2
reverse
|
|
Wheelbase/No. of axle
|
3985+1375 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
25 Tons
|
|

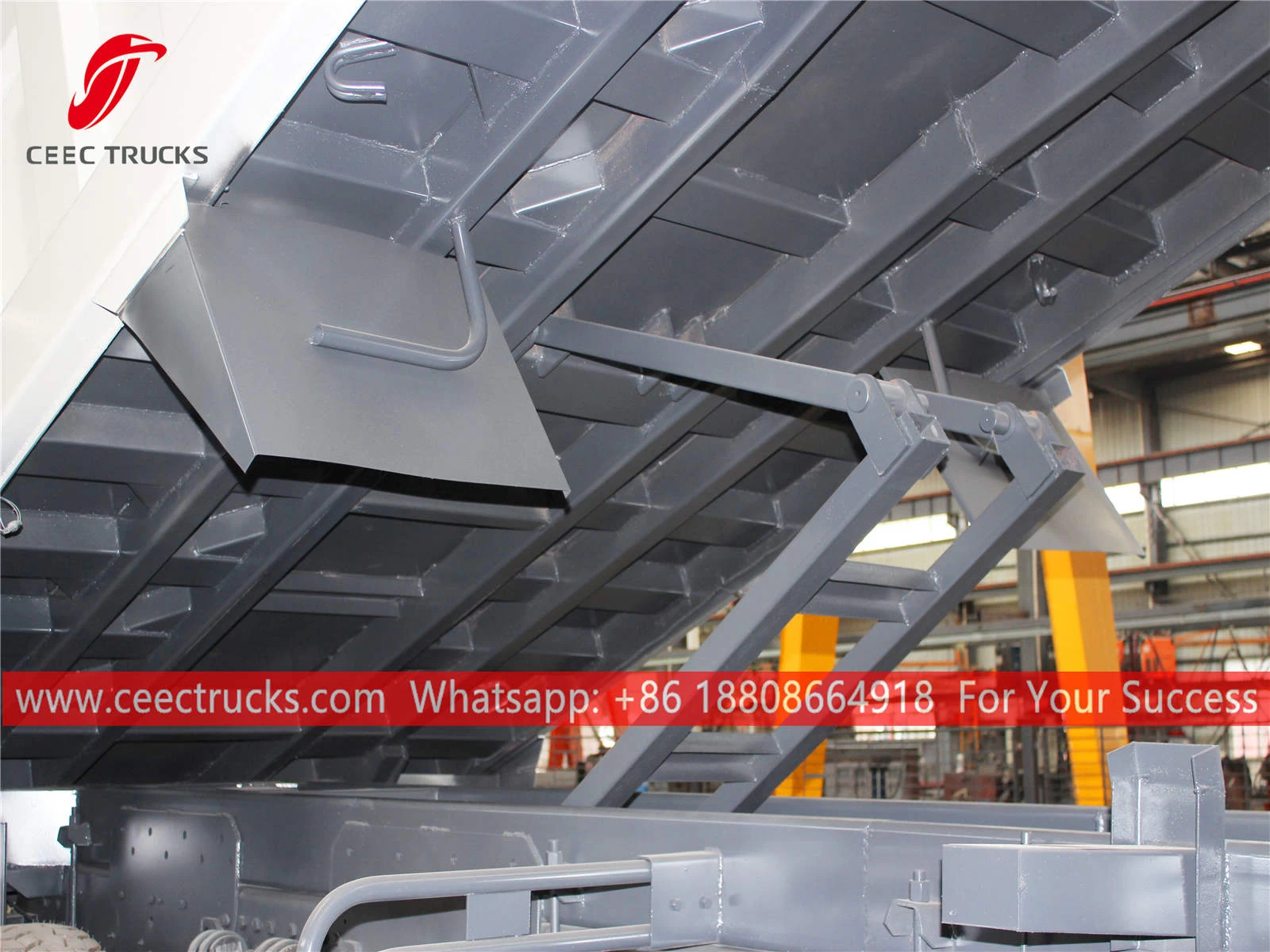

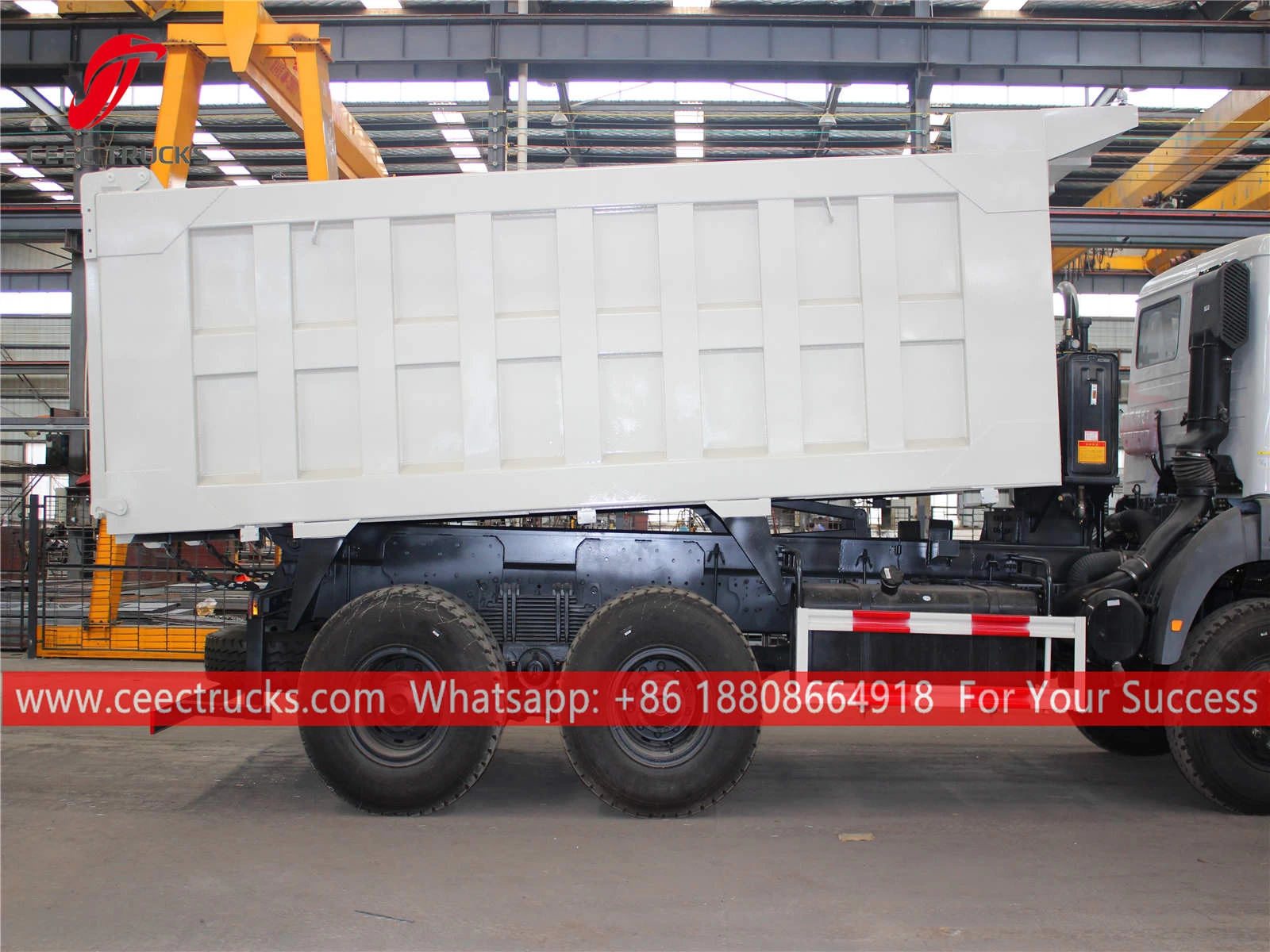

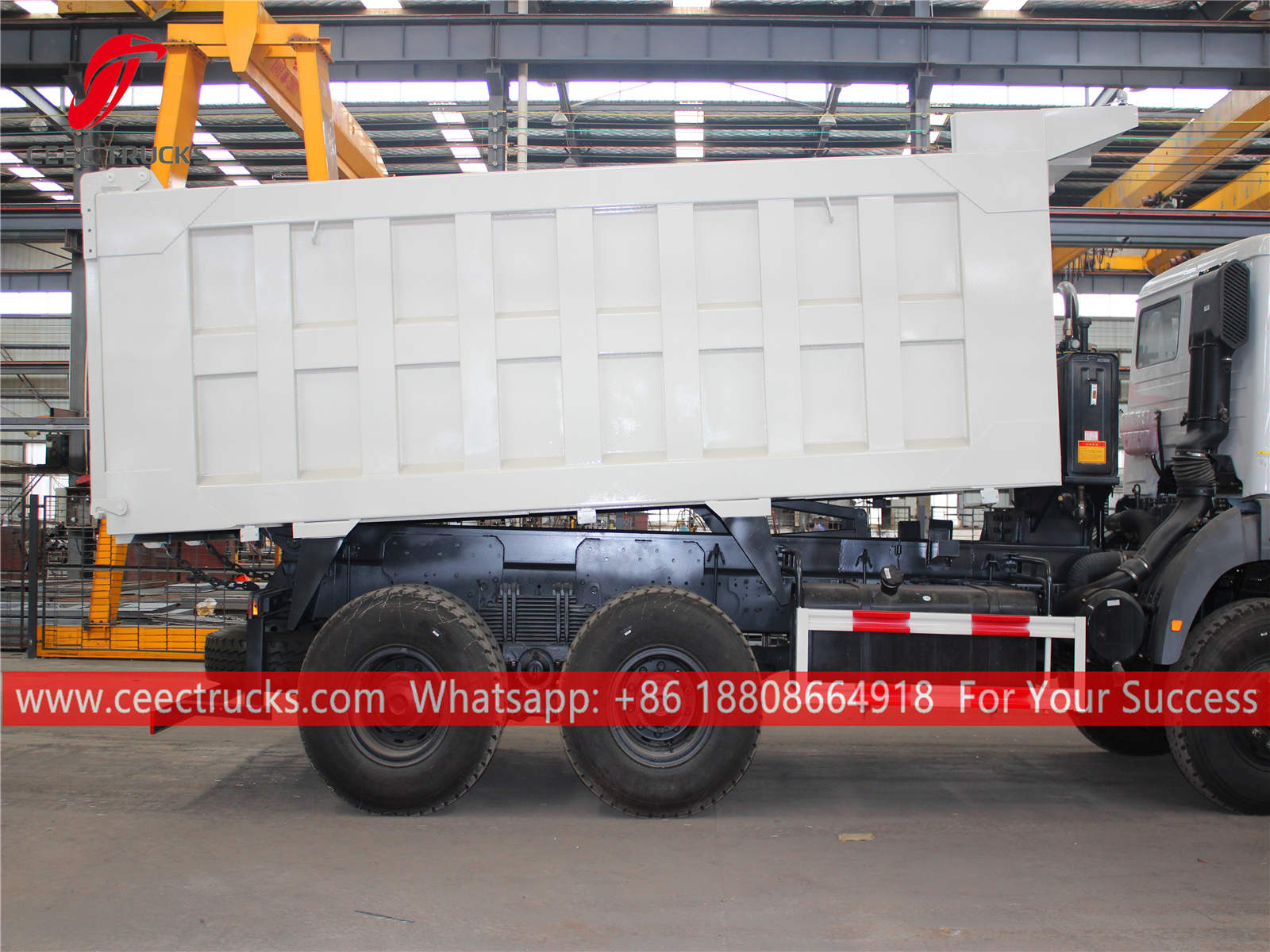

Cargo body
|
5600*2450*1200
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|

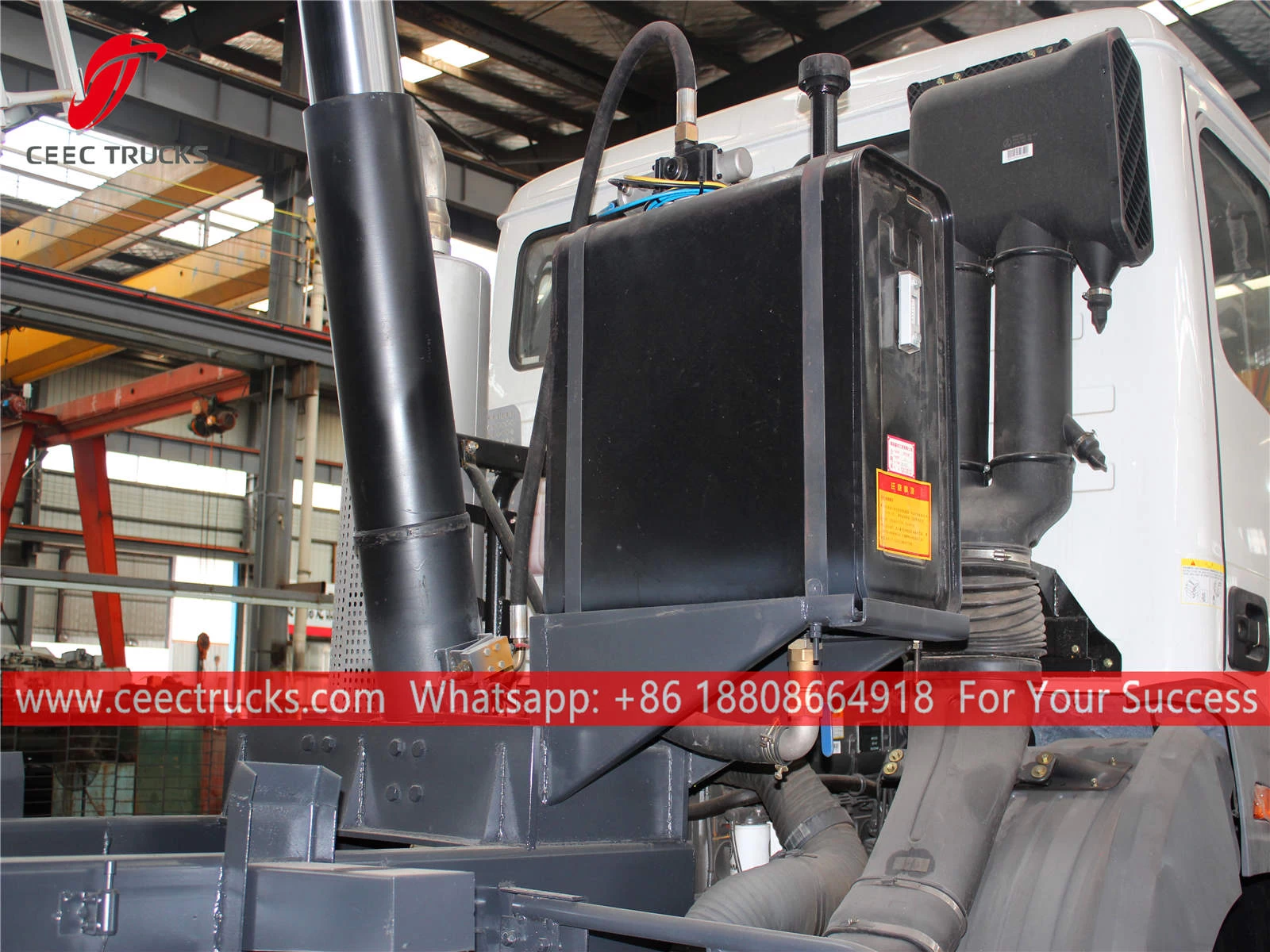

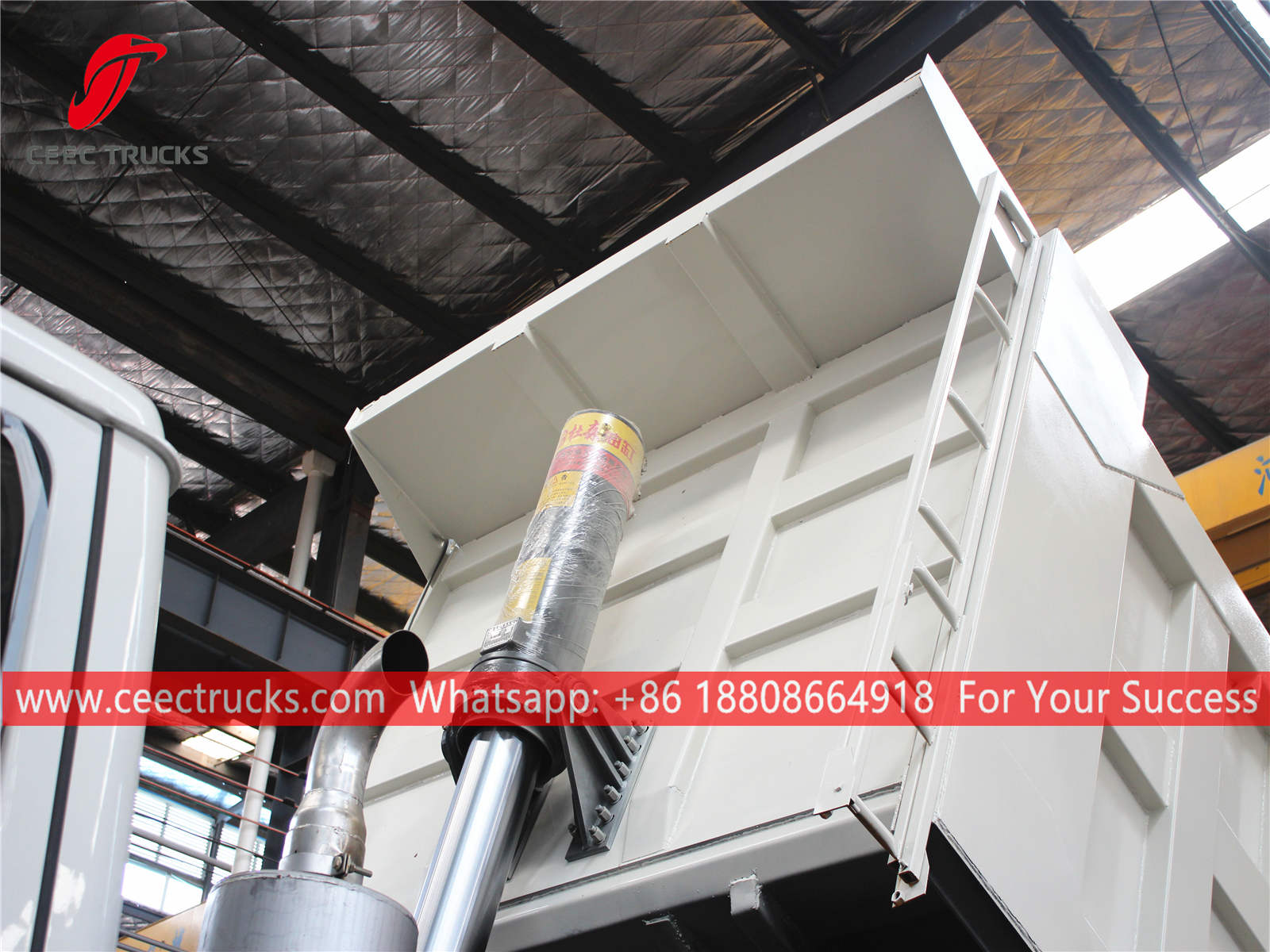

Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|

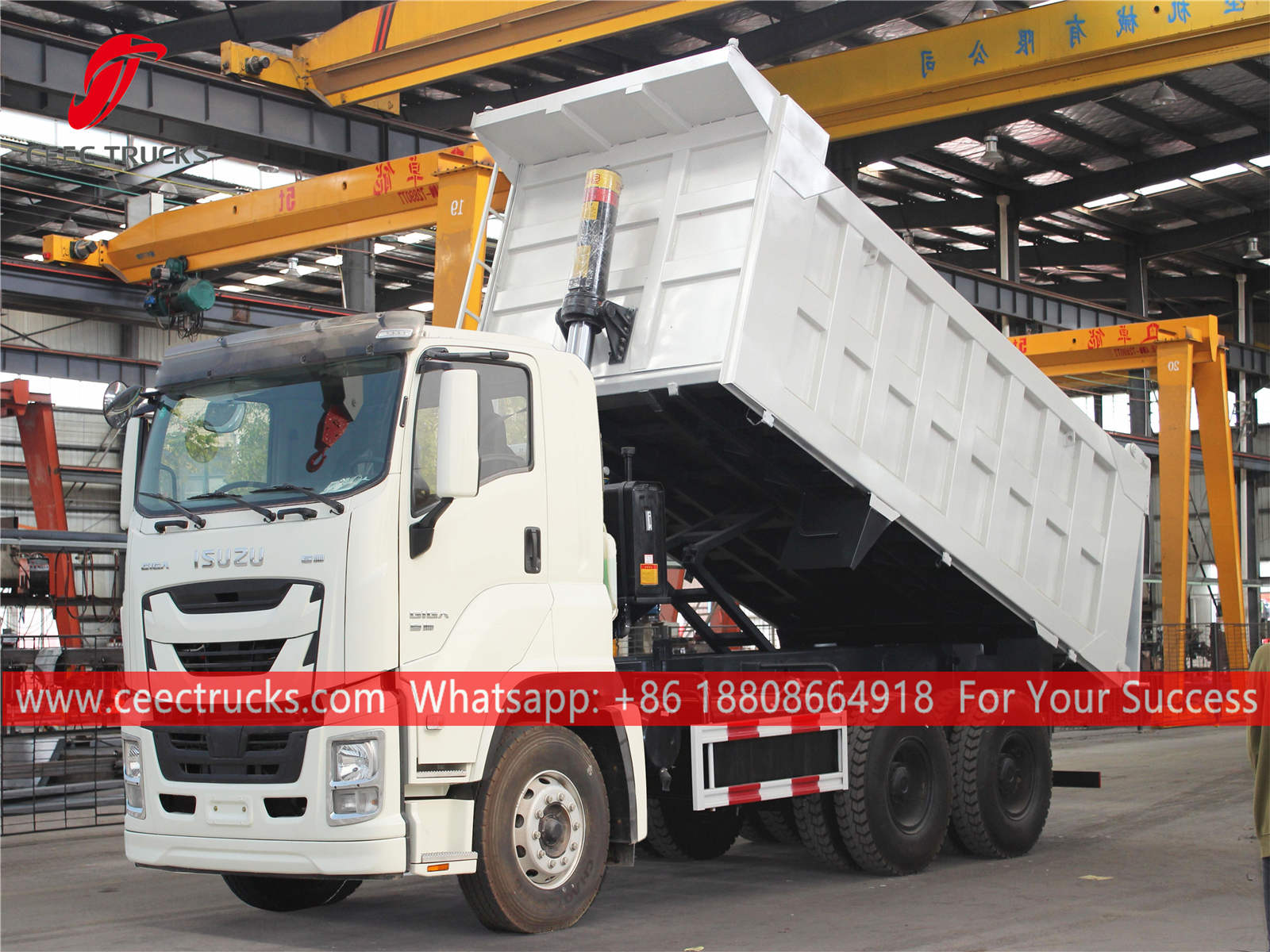

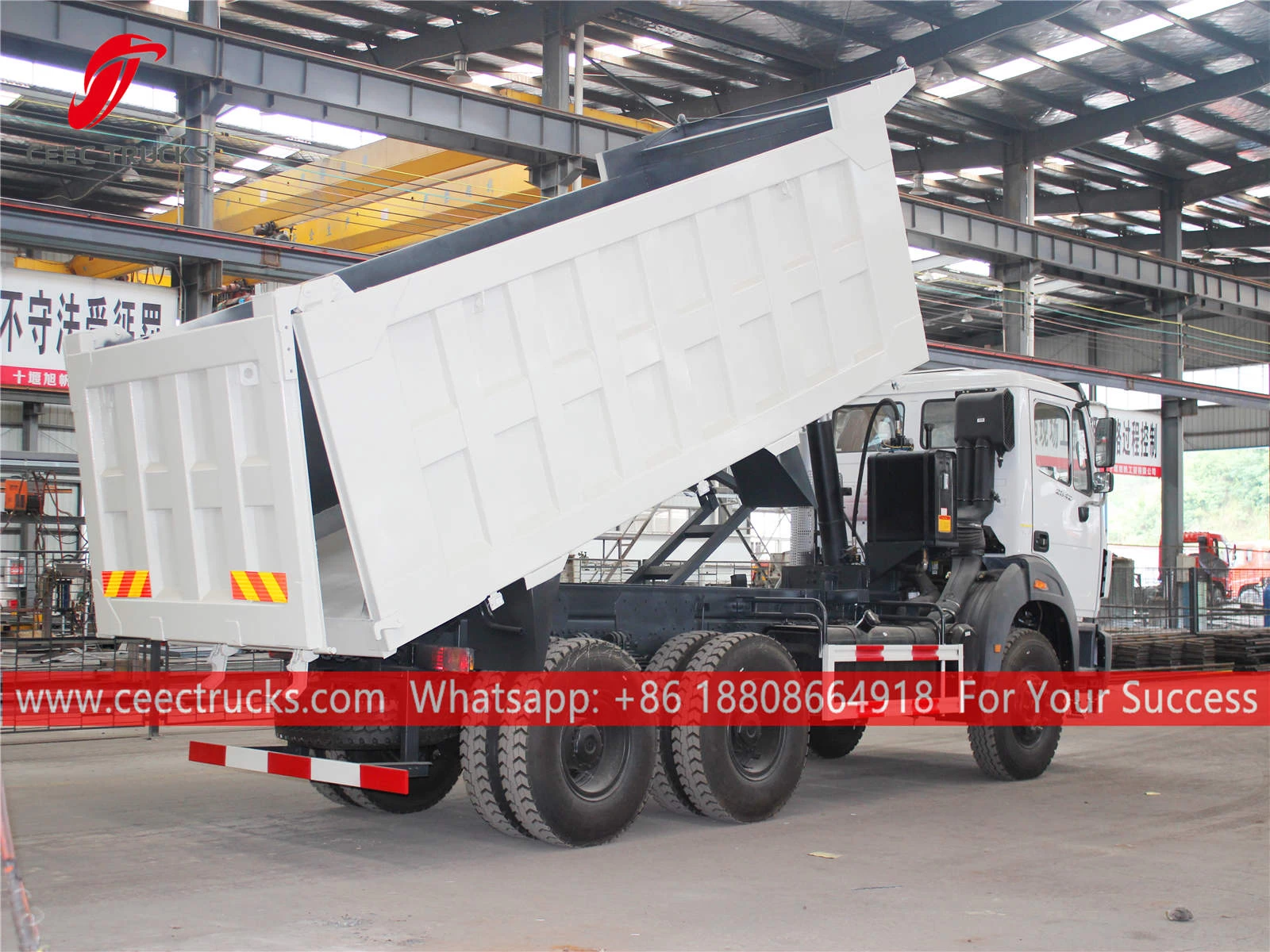

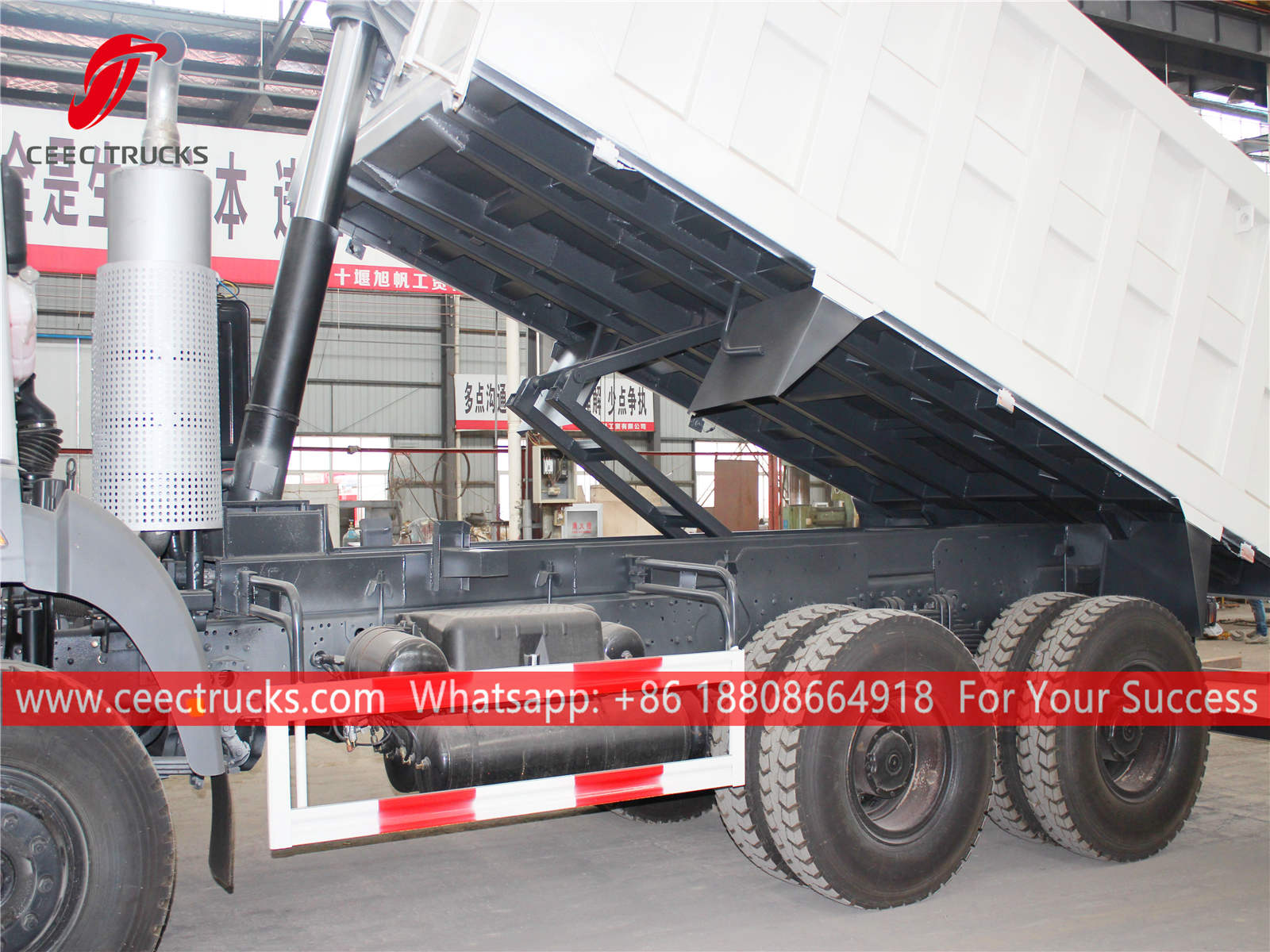

Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
According to wish
|
|
All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|

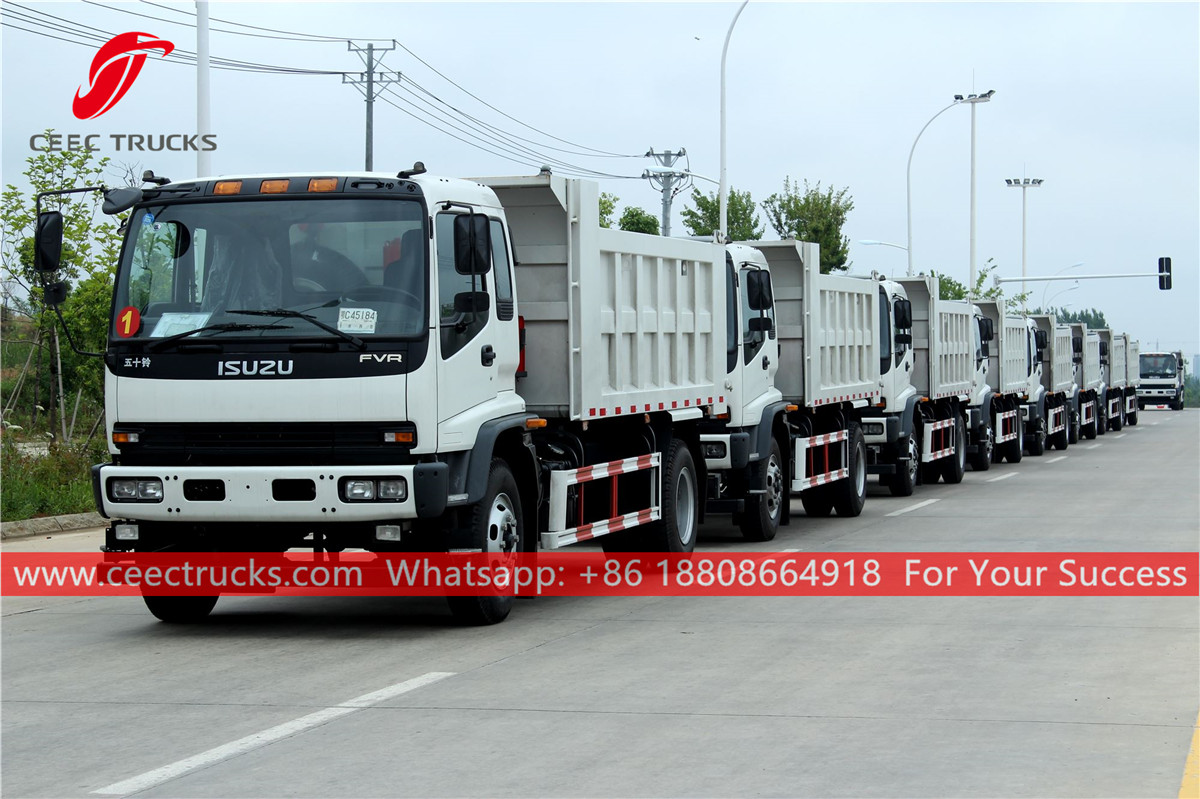

(10 units ISUZU 6*4 tipper trucks are ready for delivery to Philippines)
Key words: Heavy duty tipper truck, ISUZU dumper truck, HYVA Lifting Tipping Truck
