Applications:

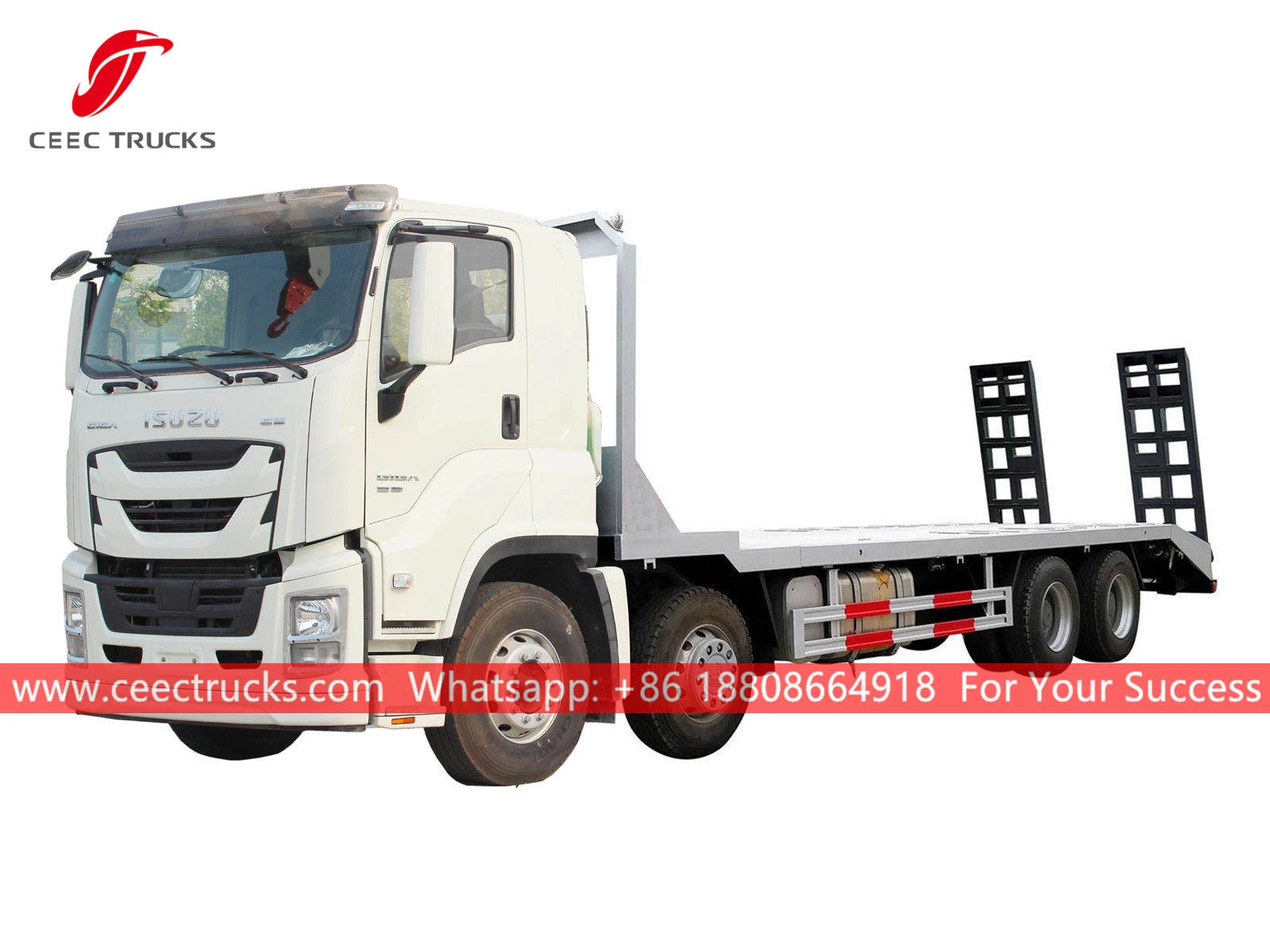

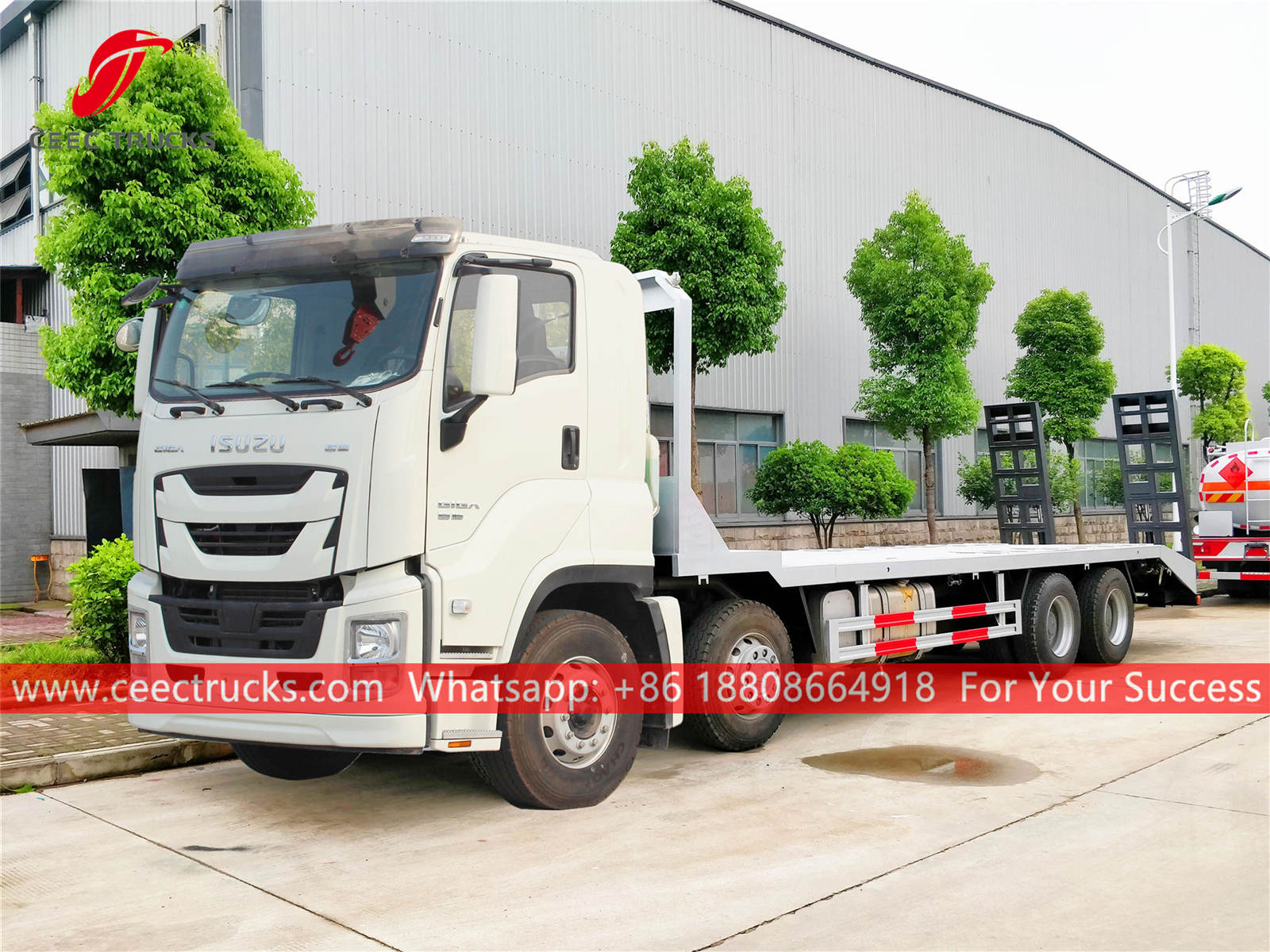

ISUZU GIGA Flatbed Transport Truck (also called Low
flatbed transportation truck, ISUZU GIGA flatbed lorry, ISUZU machinery delivery truck,
ISUZU GIGA excavator delivery truck, flatbed machinery transport vehicle, etc) is used for transporting machine that is non-removable or machinery
that can't be driven on road, such as excavator, loader, harvester,
machine equipment, etc. It's widely used in the construction,
agriculture field.

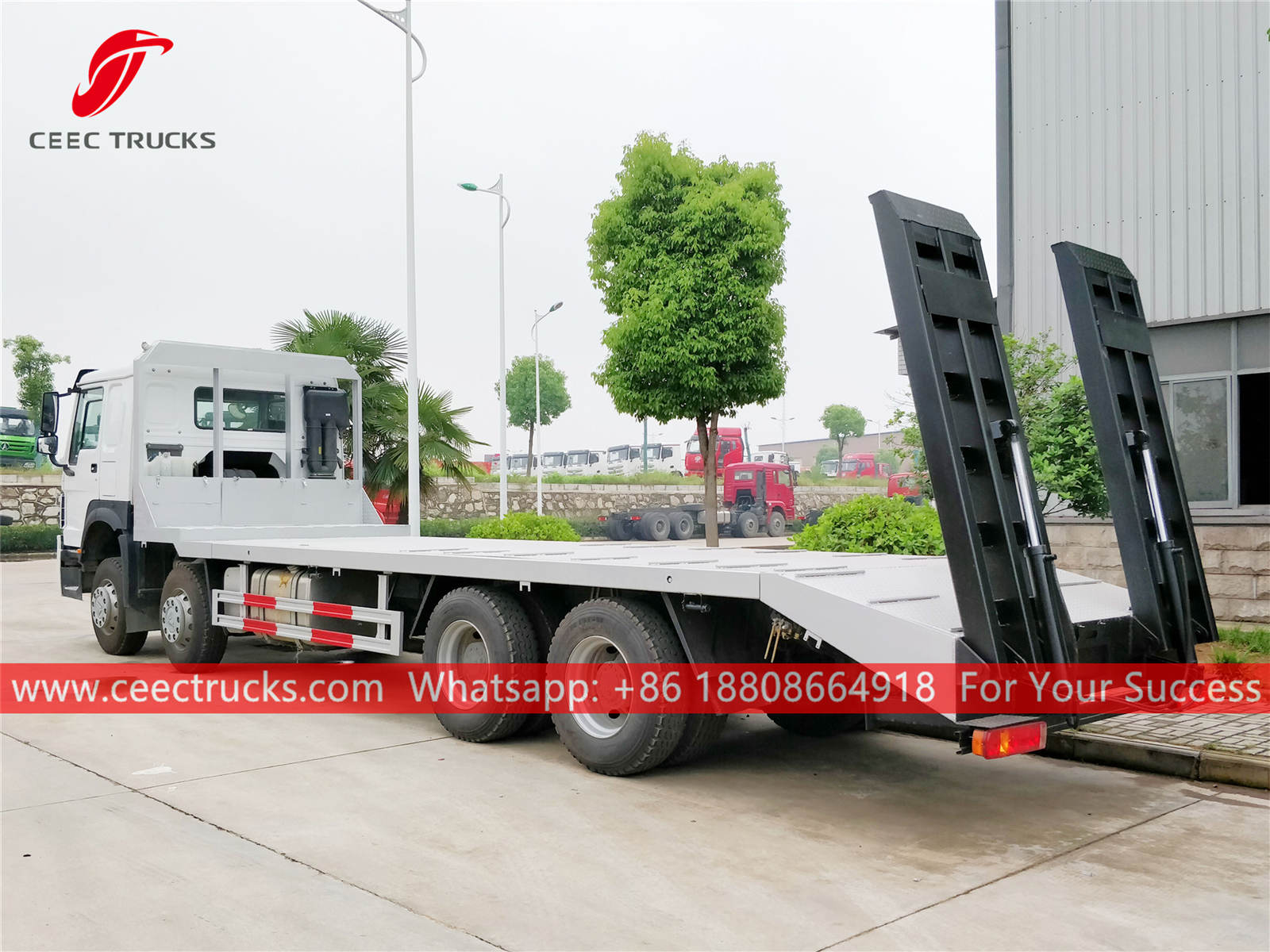

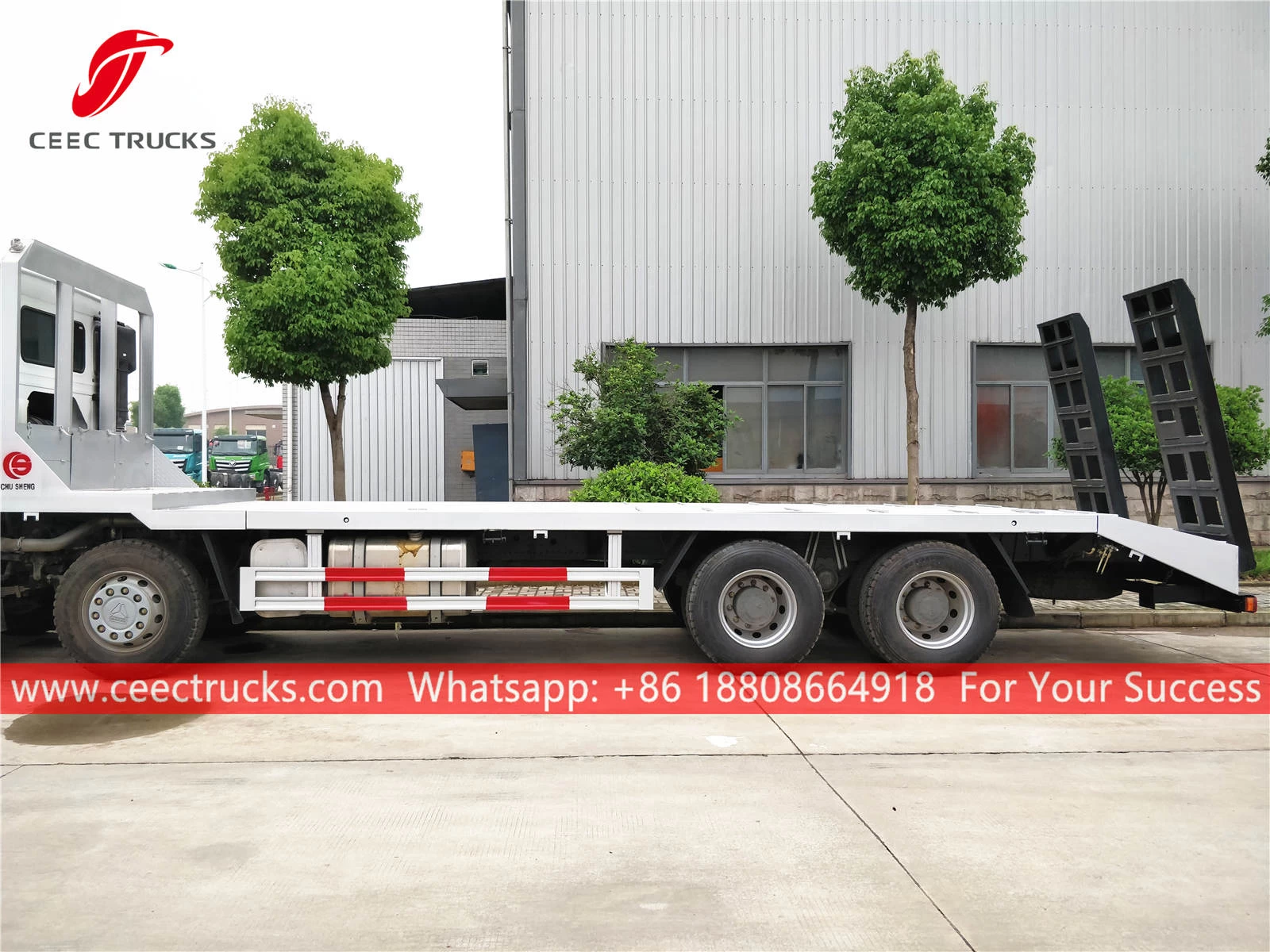

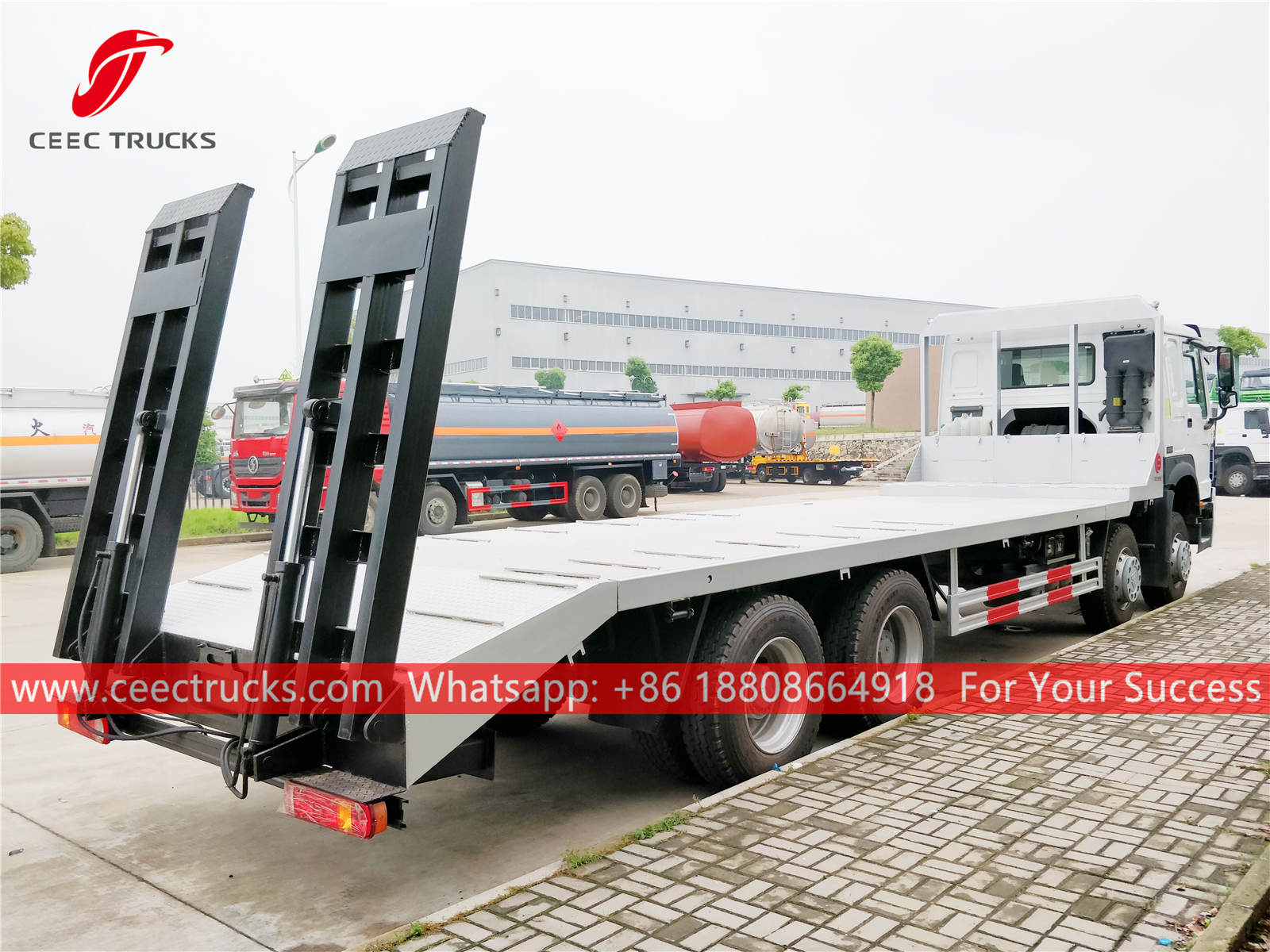

CEEC TRUCKS produced excavator carrier trucks are easy to load machinery, there is a

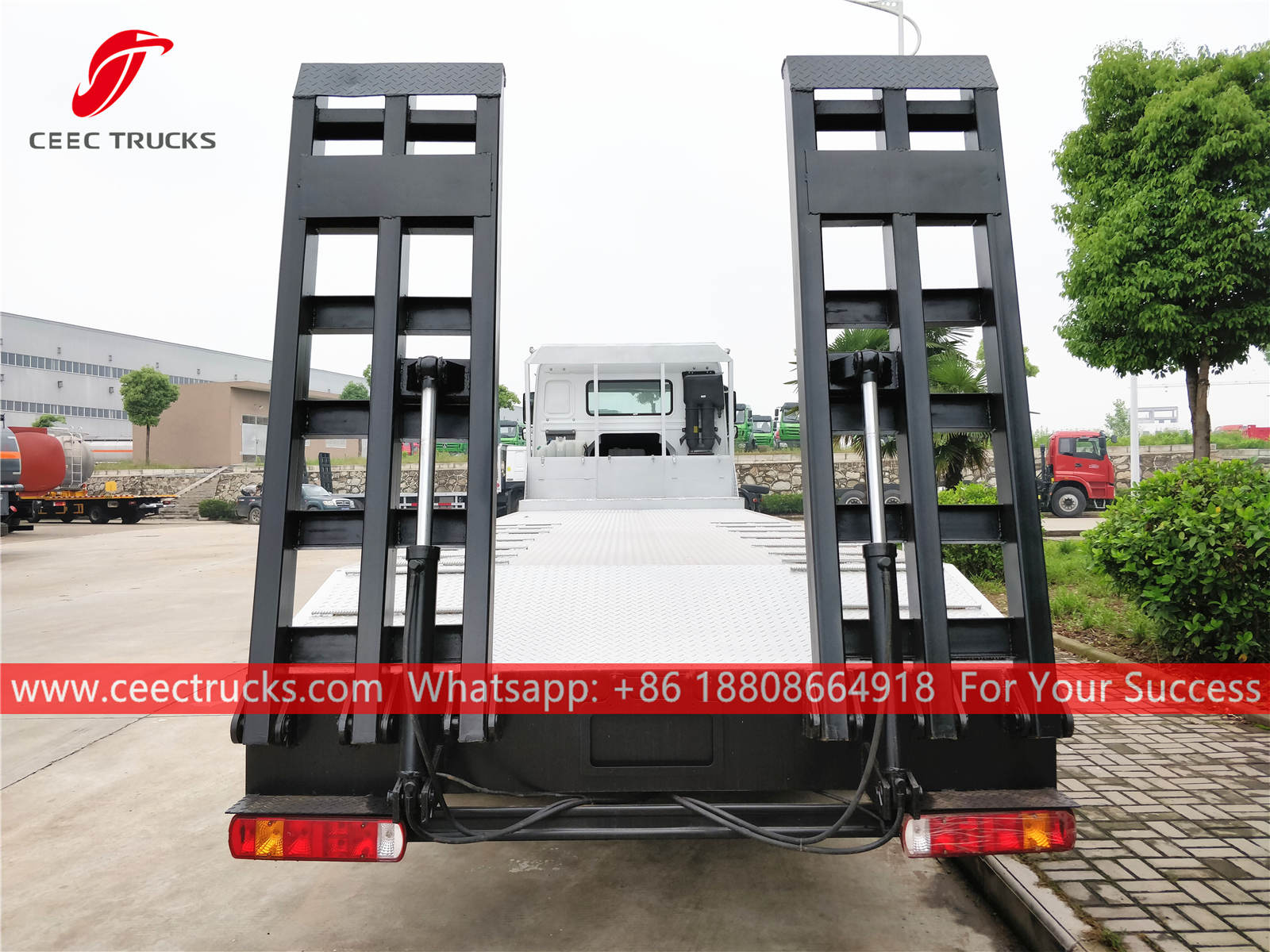

hydraulic ladder at rear of the platform. When loading machinery on,
turnover the ladder to ground to build a slope between platform and
ground. When finished loading, the ladder should be fold up and fastened
by manual.
As for the flat bed carrier trucks, driving type could be 4x2. 4x4, 6x4, 6x6, 8x4, etc.
Key Features:
---- ISUZU truck chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Famous screen for optional
---- Roof fire extinguisher system to guard safety.
---- Massive, durable, long service life.
Specifications:
|
ISUZU GIGA excavator transport truck
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
10600 * 2500 * 2950 mm
|
|
GVW / Kerb Weight
|
31,000kg / 11,400kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air
conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
380 HP (280 KW)
|
|
Displacement
|
9839 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
8X4 (left hand drive)
|
|
Transmission
|
Manual ZF 16 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
1850+4575+1370 mm / 4
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
12 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Flatbed Loading Capacity
|
≤25Tons
|
|
Flatbed Material
|
Strengthen checked plate,
anti slip
|
|
Flatbed Thickness
|
5 mm
|
|
All standard accessories: Basic
tool kit, English manual……
|
|
Optional
|
** Hydraulic ladders at rear
of the platform.
** Width extensible manual
or hydraulic.
** Front hydraulic lifting
system.
|
