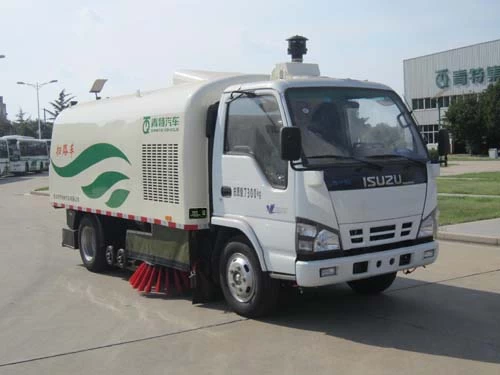

Isuzu high performance streest sweeping trucks
ISUZU 3.5m3 dust tank 0.8m3 water tank street sweeper
| Main technical parameters |
Name |
road sweeper |
Outline size(mm) |
5970x2000x2380 |
| Model |
PT5065TSL |
Gross weight(kg) |
7495 |
| Engine model |
4KH1
|
Loading weight(kg) |
1920 |
| Emission/ ( ml/Kw) |
2999ml/88kw, 120Hp |
Curb weight(kg) |
5380 |
| Engine type |
Diesel, 4 Cylinders, Direct line, Turbocharge and water cooling |
| Fuel type |
diesel |
Wheelbase(mm) |
3360 |
| Max speed(km/h) |
90 |
Tire model / number |
7.00-16 / 6 Units
|
| Operation control system |
Electrically hydraulic |
Transmission
|
5 speed |
| Traction system |
4x2 |
Electric System |
24v |
| Approaching angle(°) |
20 |
Front / rear track(mm) |
1586/1538 |
| Departure angle(°) |
15 |
Front/rear hang(mm) |
1115/1480 |
| Upstructure configuration |
Dust tank |
3500 L |
Waste water tank |
800 L |
| Material |
carbon steel, stainless steel, side thickness 3mm, bottom thickness 4mm |
| Max. cleaning width |
3000mm |
Max.cleaning Capacity |
60000 m2/h |
| Cleaning degree |
90% |
Max. cleaning speed |
20 km/h |
| Max. tipping angle |
45° |
Max. dumping height |
800mm |
| Max.Sunciton 0bject |
<=100mm (2g/cm3) |
Auxiliary engine |
493Q1 |
