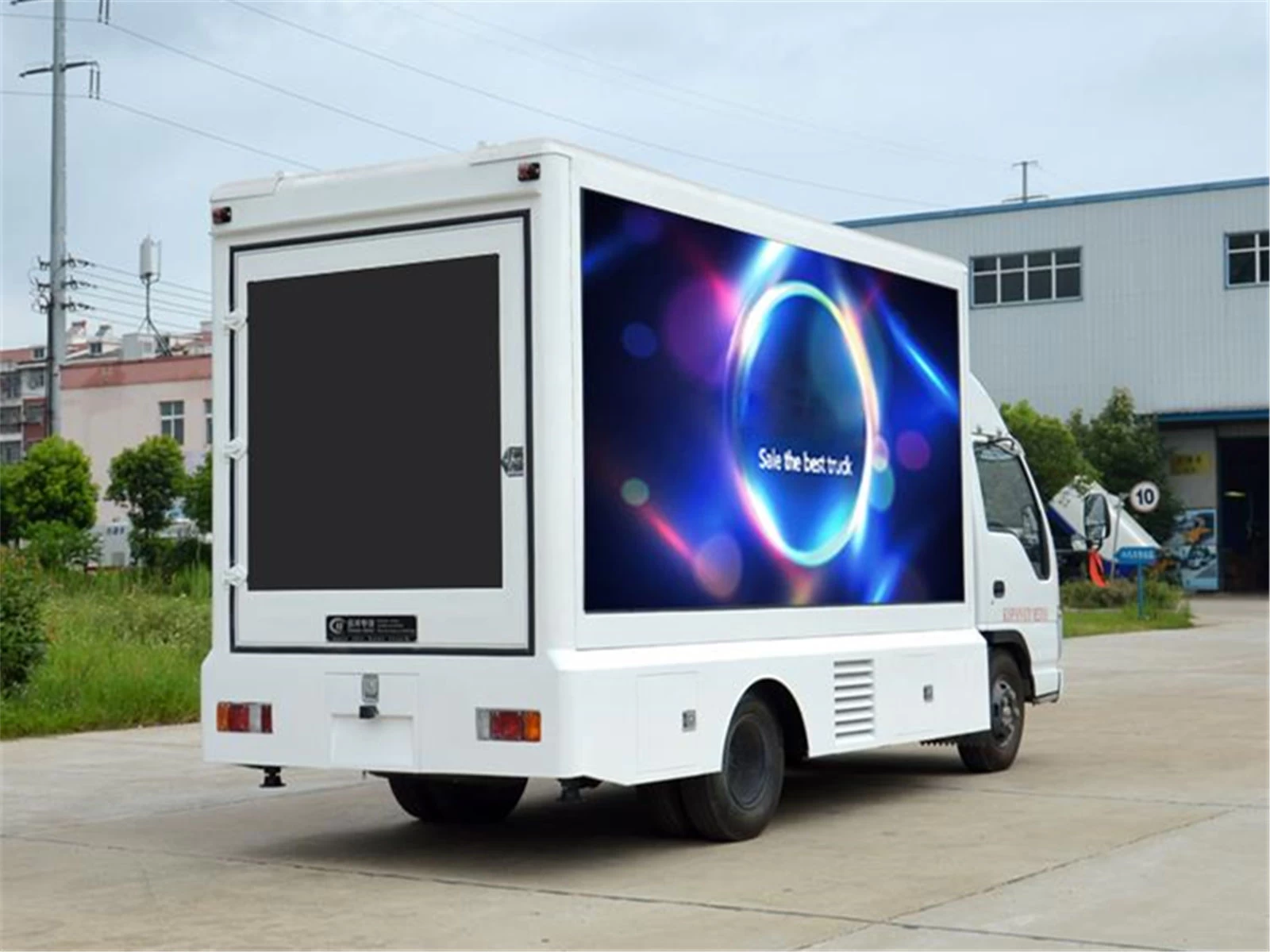

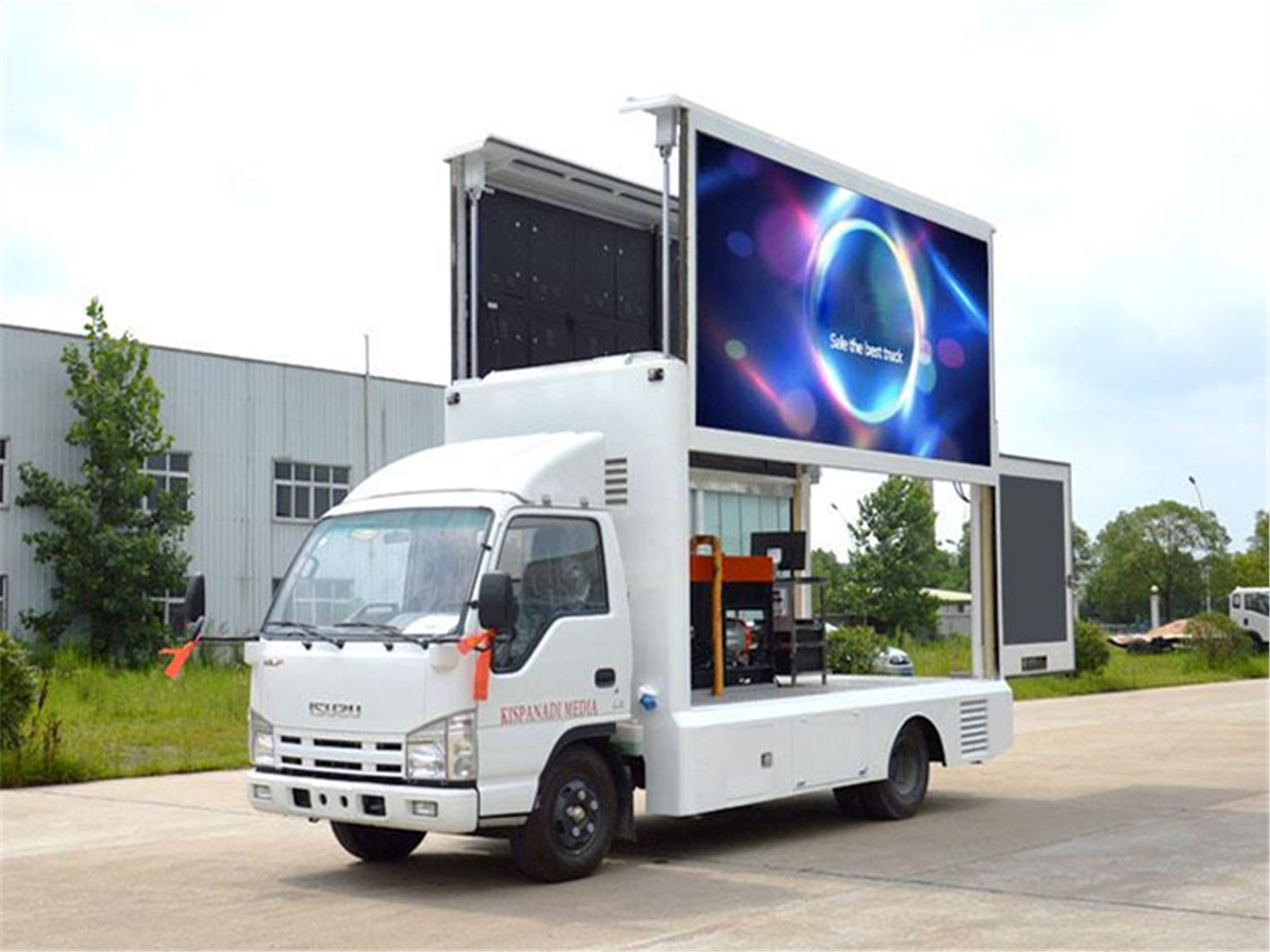

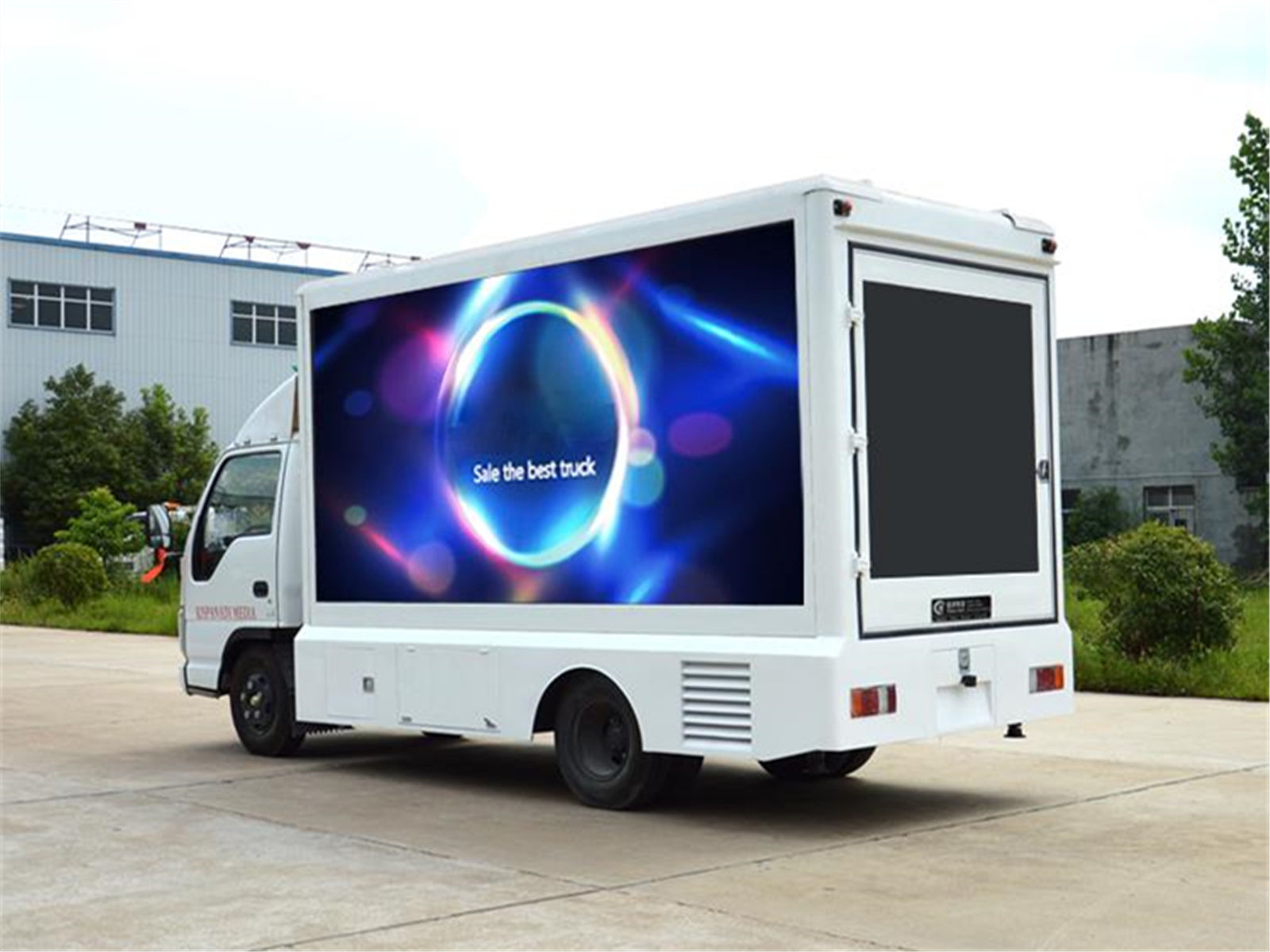

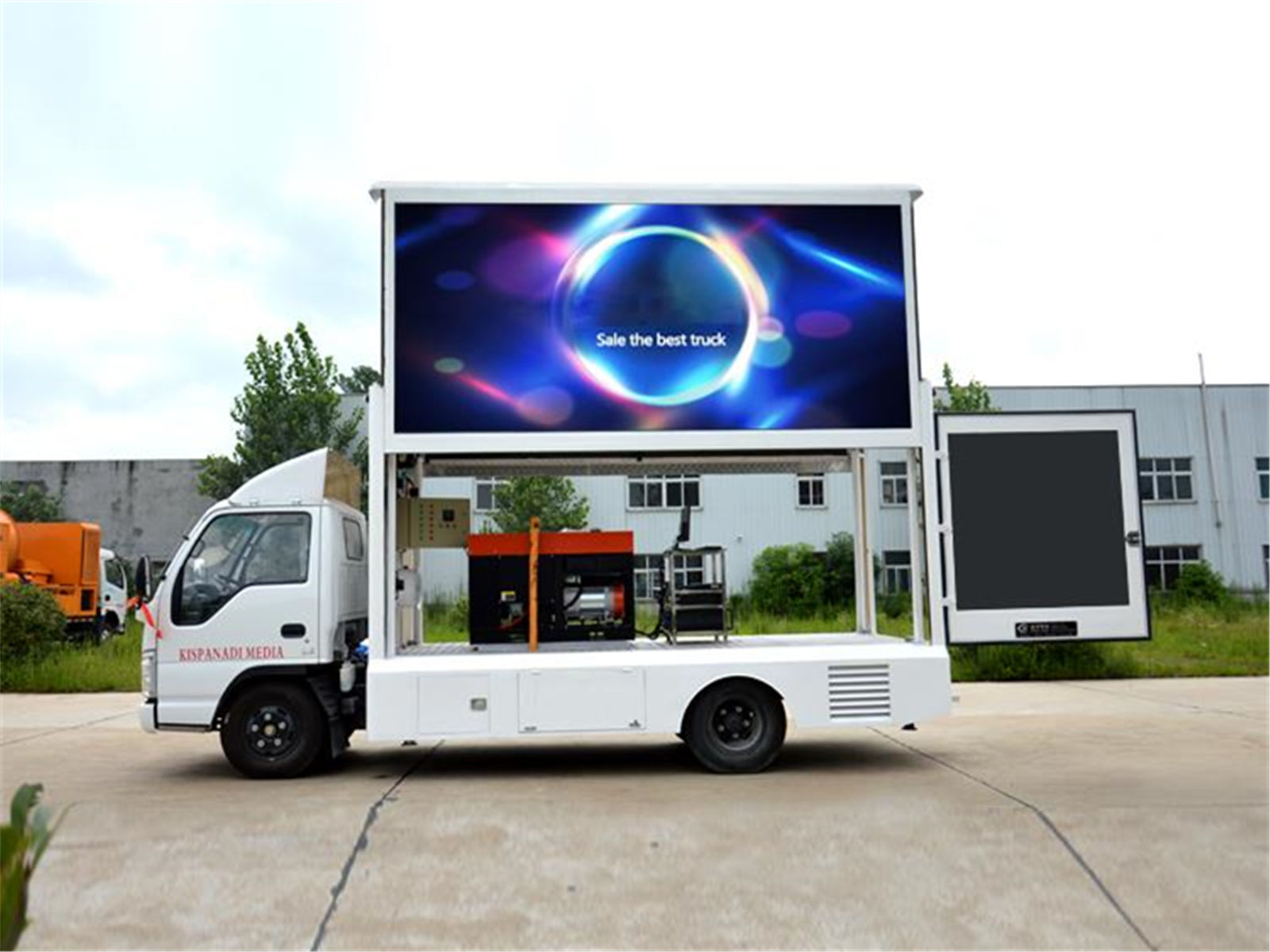

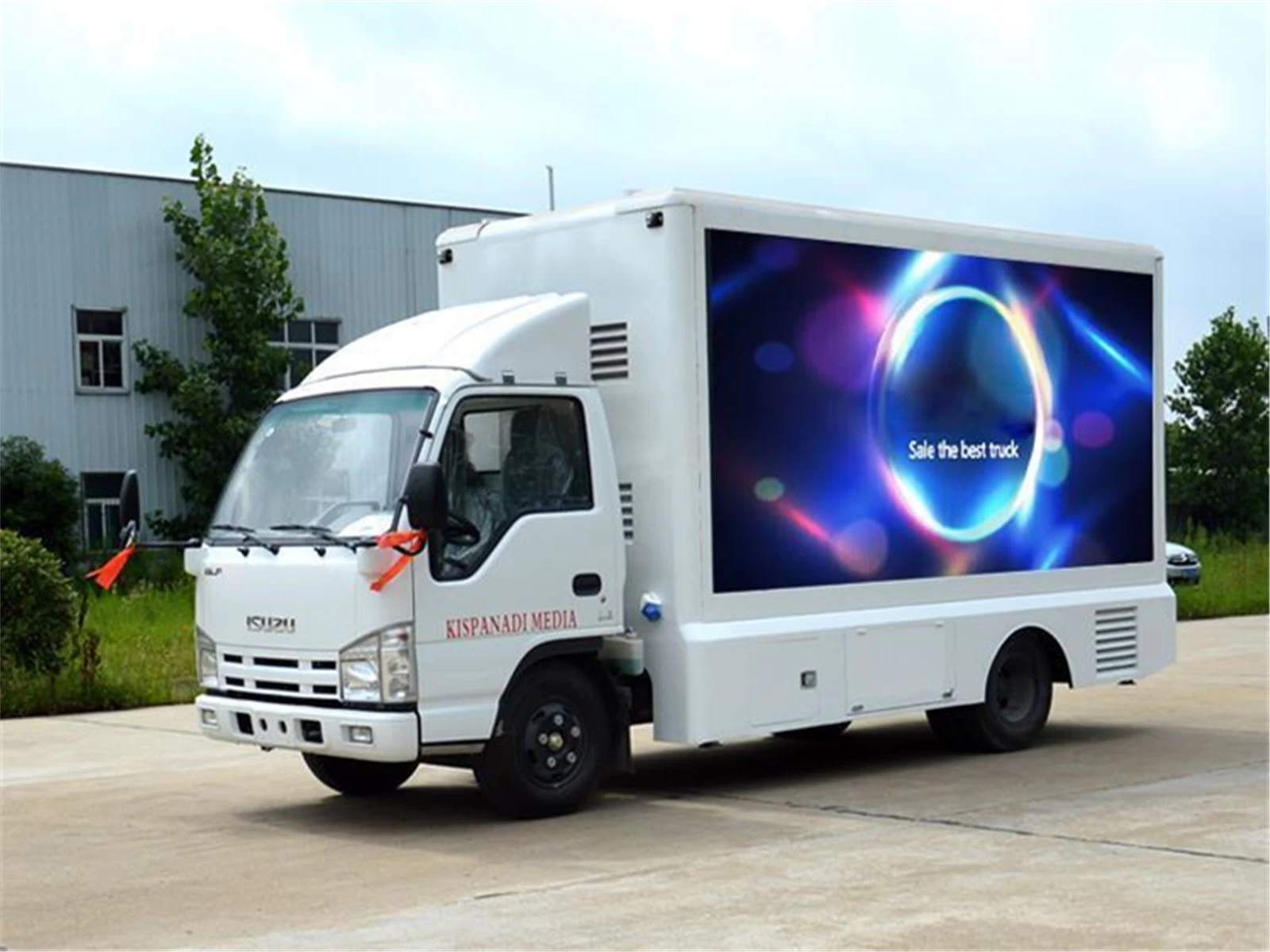

ISUZU 4x2 outdoor LED panel Advertising Display Truck
Function:
ISUZU Advertising LED Display Trucks (also called ISUZU LED billboard truck, ISUZU Full color LED screen truck, ISUZU Outdoor LED screen truck, LED Video wall screen truck etc.) is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on!
Powerstar ISUZU Brand Mobile LED panel truck can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect.
Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- LED Screen size can be optional.
---- Huge auxiliary equipment can be optional;
---- High-performance hydraulic multi-valve and cylinder employeed;
Specification:
Main
specifications:
Vehicles Parameters
|
Dimensions
|
Product Model:
|
PST5060XXC
|
Overall dimensions(mm)
|
6500 X 2020 X 3615
|
GVW(kg)
|
7000
|
Wheelbase/mm
|
3360/3815
|
Approach/Departure Angle/°
|
21/13
|
Front/Rear Overhang/mm
|
1110/2395
|
Cab
|
Cab Capacity
|
Single row, left steering wheel
|
Air Conditioner
|
Yes
|
Chassis
|
Chassis model
|
QL1070HARY
|
Brand
|
ISUZU brand with 100P series
|
Driven Mode
|
4x2, LHD
|
Emission standard
|
Euro IV
|
Front/ Rear track base(mm)
|
1680/1650
|
Tyre
|
7.00-15
|
Fuel Type
|
Diesel
|
Gear Box
|
MSB 5 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section
|
Taxi driver
|
MSB 5 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section
|
Max Speed/ km/h
|
110
|
Engine
|
Engine model
|
4JB1CN
|
Horsepower/HP
|
98
|
Displacement/ml
|
2777
|
Max Torque
|
510N.m
|
Speed at Max Torque
|
2600 rpm
|
Detail Mobile LED truck
|
LED screen size
(x length high) (mm)
|
5120 * 2240 (Left and right side)
|
Height Screen Lift (m)
|
1.5 (left and right side)
|
Pixel of LED screen pitch (mm)
|
P8/P6/P5/P4
|
Rear P6 Full-color LED Screen size (Width × Width) (mm)
|
1280 × 16000 (P6 Screen)
|
Generator - Kubota brand
|
16 Kw
|
Control System of LED Screen
|
LINSN
|
Comment
|
Equipped with Silent generator, wooden floor, light, fan fan, skylights, computer, stereo, amplifiers and other bodybuilding facilities, and 220V external power connector outside the body.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
