ISUZU Refrigeration Van Truck
Introduction
ISUZU Refrigeration Truck (also called Isuzu refrigerated trucks, Isuzu Freezer truck, Frozen food transport trucks) suitable used
for the transportation of frozen food (refrigerated vehicle ), dairy
products (milk transport vehicle), vegetables and fruits (fresh goods
transport vehicle), vaccine drugs.
Advantages
|
|
100% custom-made
|
|
|
3 cbm to 40 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
Main Parameters
|
Manufacturer
|
PowerStar Trucks Industry Co., Limited
|
|
Product Name
|
ISUZU 2 Ton Frozen Van Trucks
|
|
Vehicle Brand Series
|
ISUZU
|
|
Vehicle Model
|
PST5050LC
|
|
Production Time
|
25 days
|
|
Chassis parameters
|
Overall dimensions
|
mm
|
5100*2300*2860
|
|
Gross weight
|
kg
|
7,300
|
|
Kerb weight
|
3,560
|
|
Wheelbase
|
mm
|
3,320
|
|
Driving type
|
4*2
|
|
Chassis model
|
ISUZU mini ELF
|
|
Tire size
|
7.00-15PR
|
|
Number of Tires
|
6+1
|
|
Passengers in cab
|
3
|
|
Engine
|
Engine model
|
4KH1CN5LS
|
|
Type of fuel
|
Diesel
|
|
Power
|
98HP
|
|
Max speed
|
Km/h
|
95
|
|
Emission standard
|
EURO 4,5,6
|
|
Cooling performance
|

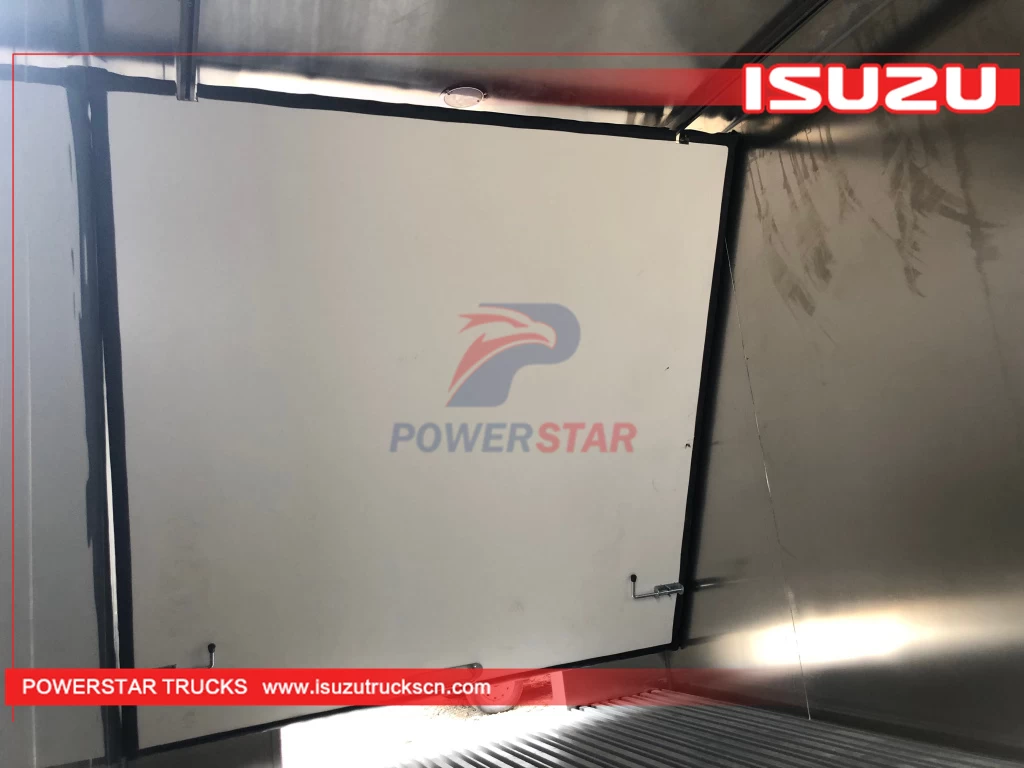

Cargo Body Size
|
3800*2300*1980 mm
|
|
Panel Material
|
FRP + PU Foam + FRP 105mm
|
|
Panel Structure
|
All Closed Sandwich
|
|

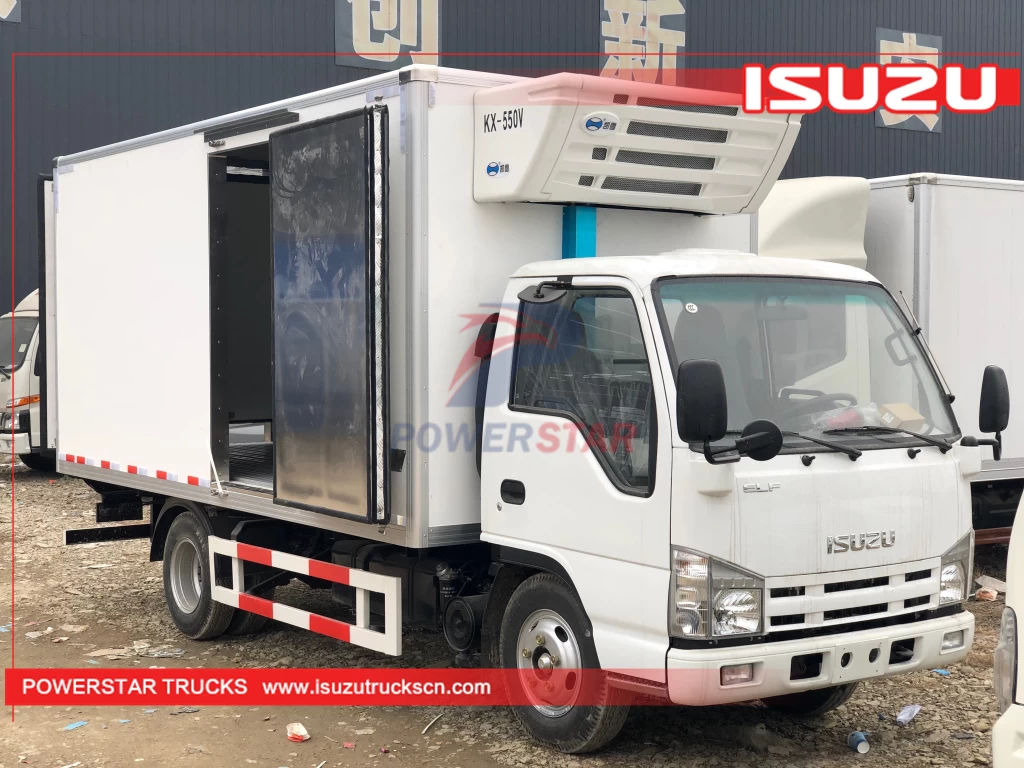

Side Door Type
|
On Right side wall
|
|
Single Opening
|
|

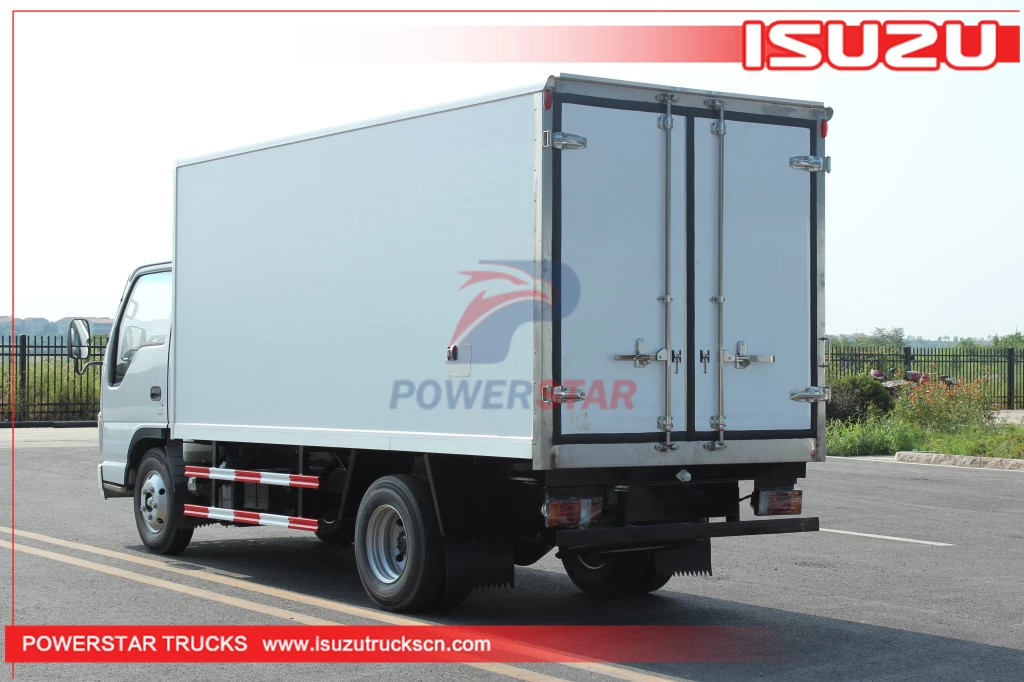

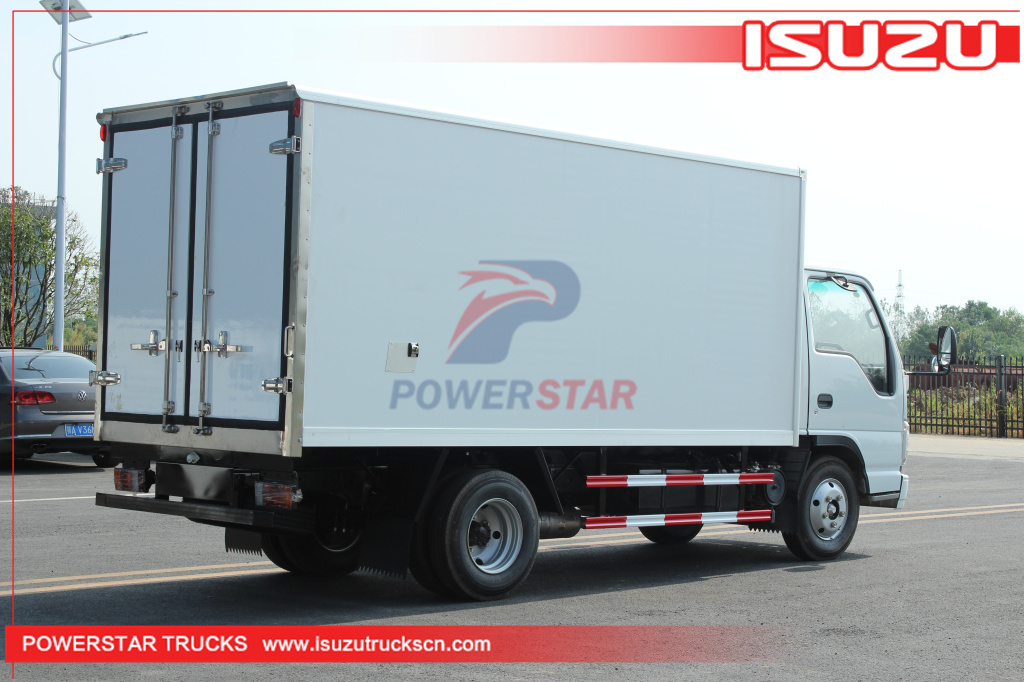

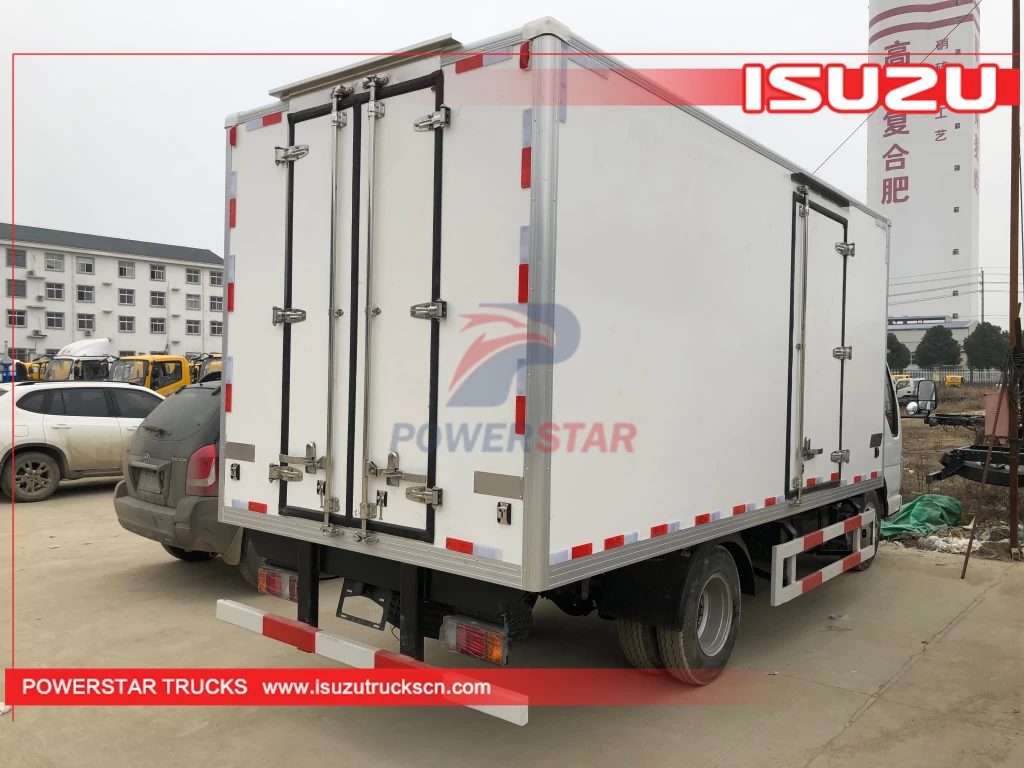

Rear Door Type
|
Full Size Double Opening Rear Door
|
|

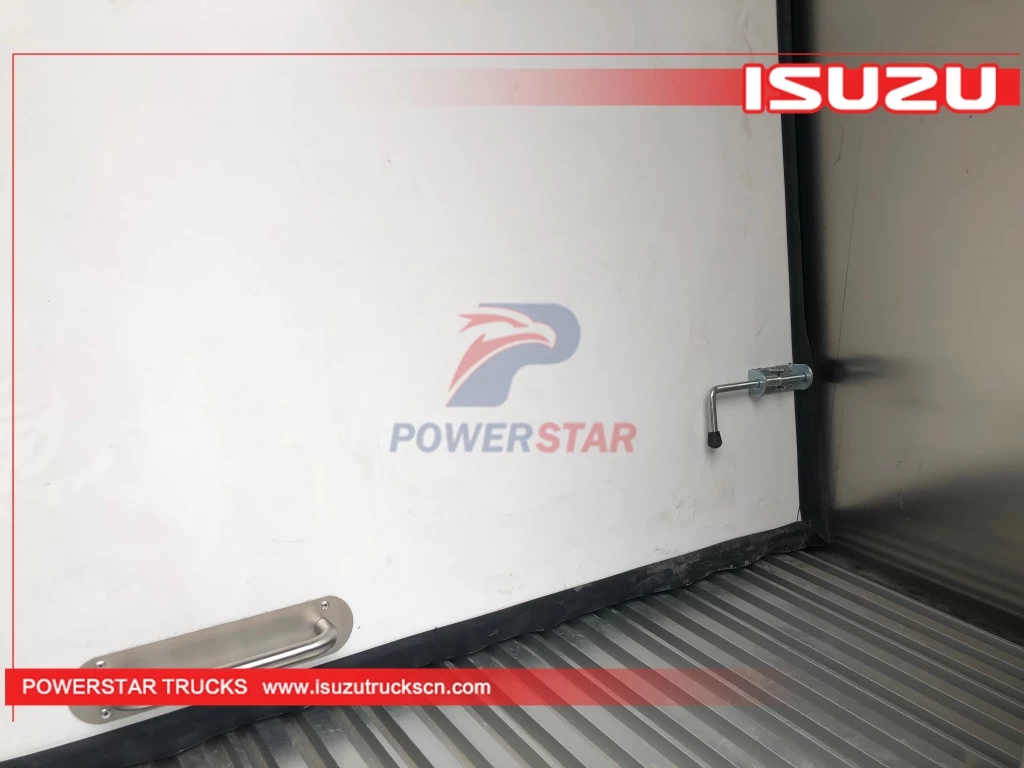

Flooring
|
Antiskid and abrasion resistant
|
|

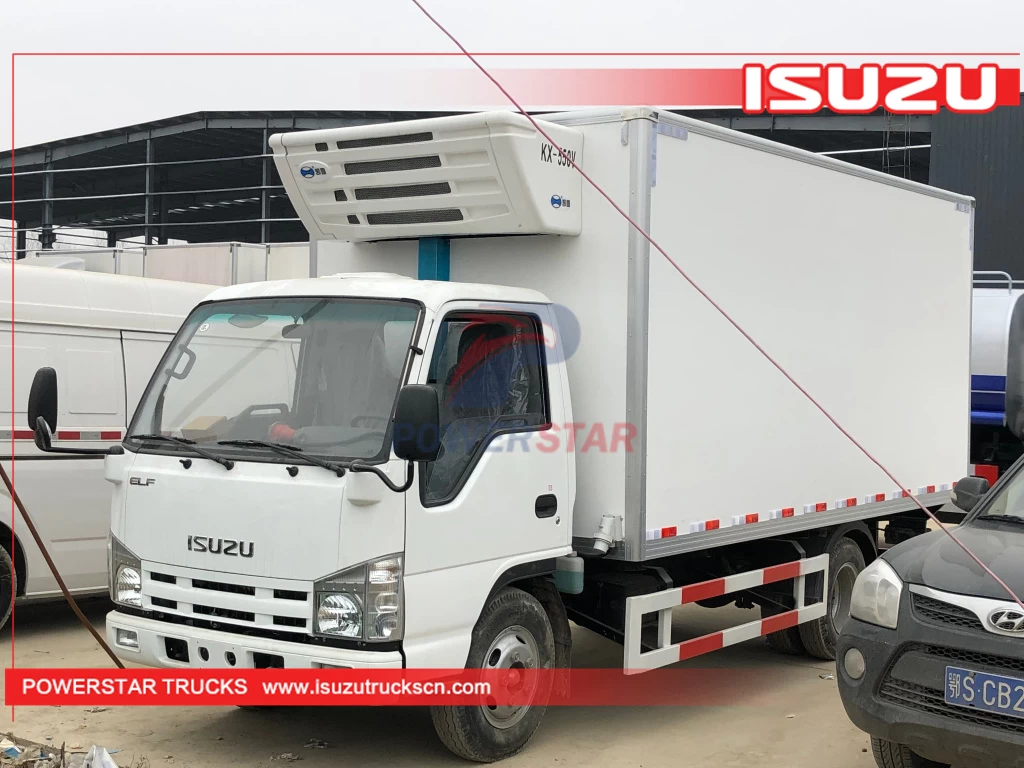

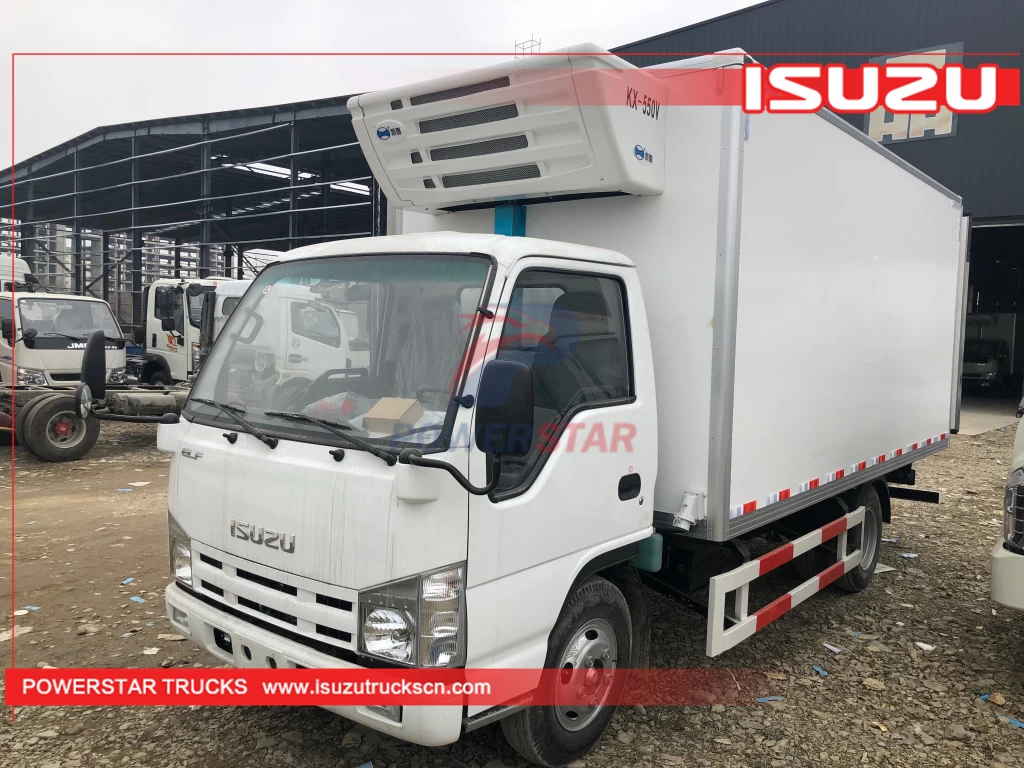

Refrigeration Unit
|
KAIXUE
|
|
Body Space Temp
|
-15 degree~ +20 degree
|
|
Marker Light
|
2 sets white on front,
2 sets Red on rear
|
|
Celling Light
|
2 sets of 12/24V LED
|
|
Control Panel
|
English
|
|
Painting
|
Two primers, and one final paint coating
|
|
Color & LOGO
|
According to wish
|
|
Factory standard
|
āUā shape
Sub Frame, Safety protection, Rotating Lamp,
Working Lamp, Hand holds, Mudguards and rubber flaps...
|
|
Documents
|
English
operation manual, Spare parts list, and all necessary export docs.
|
|
Optional equipment
|
1, Refrigeration brand: Carrier, Thermoking, DAIKIN (with any brand)
2, Rear
vision camera
3, Aluminium flooring, Hanging system
4, Optional Dual temperature, multi compartment
|

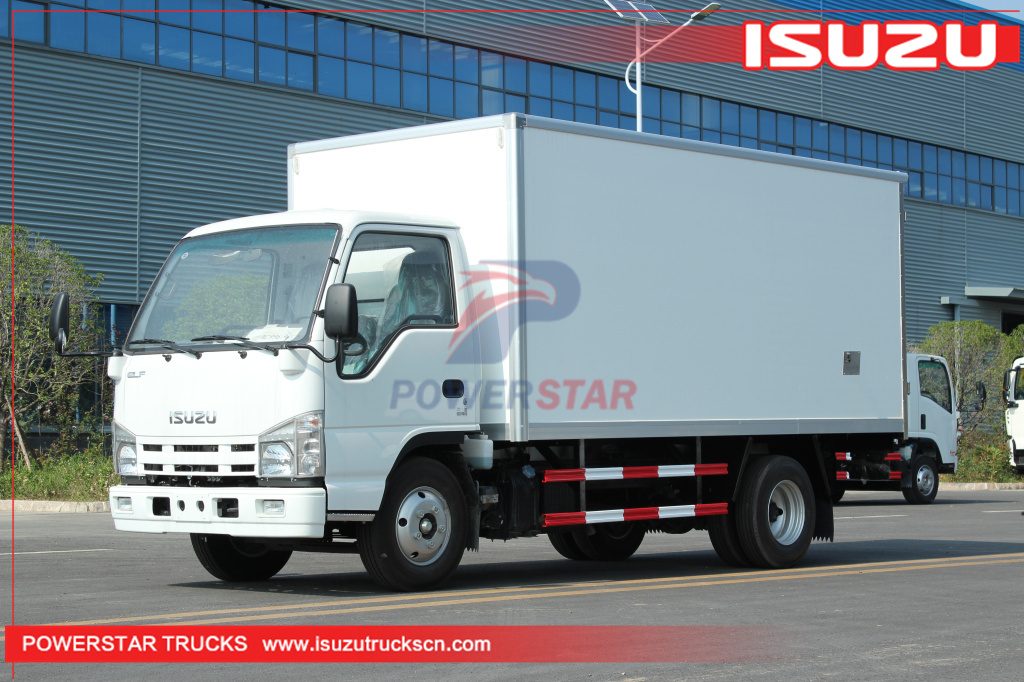

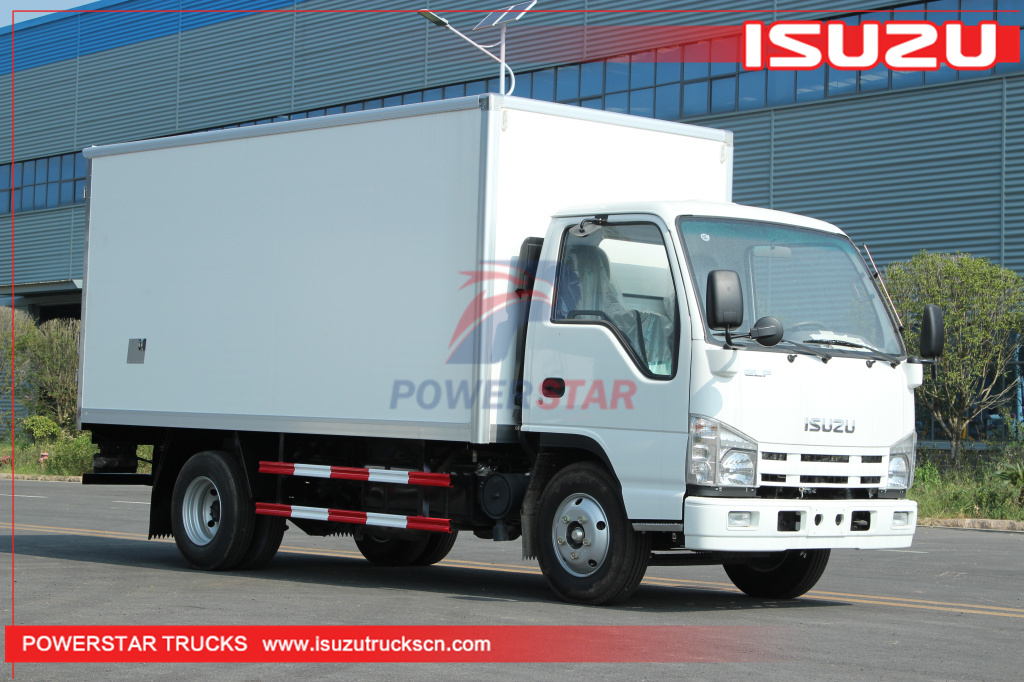

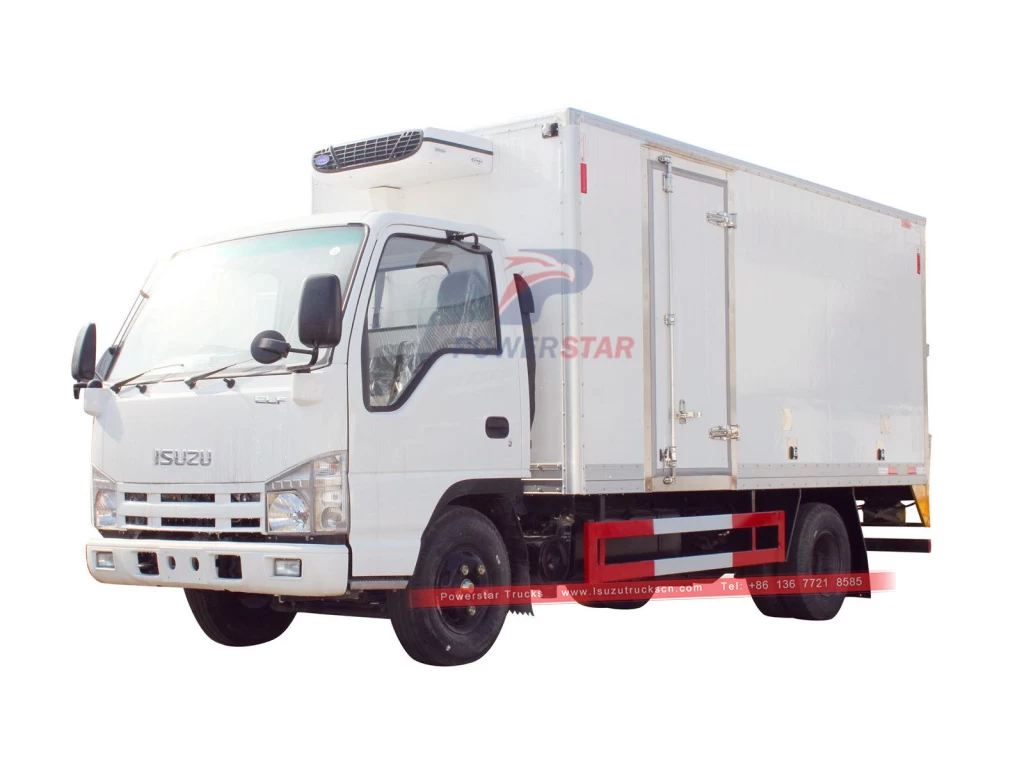

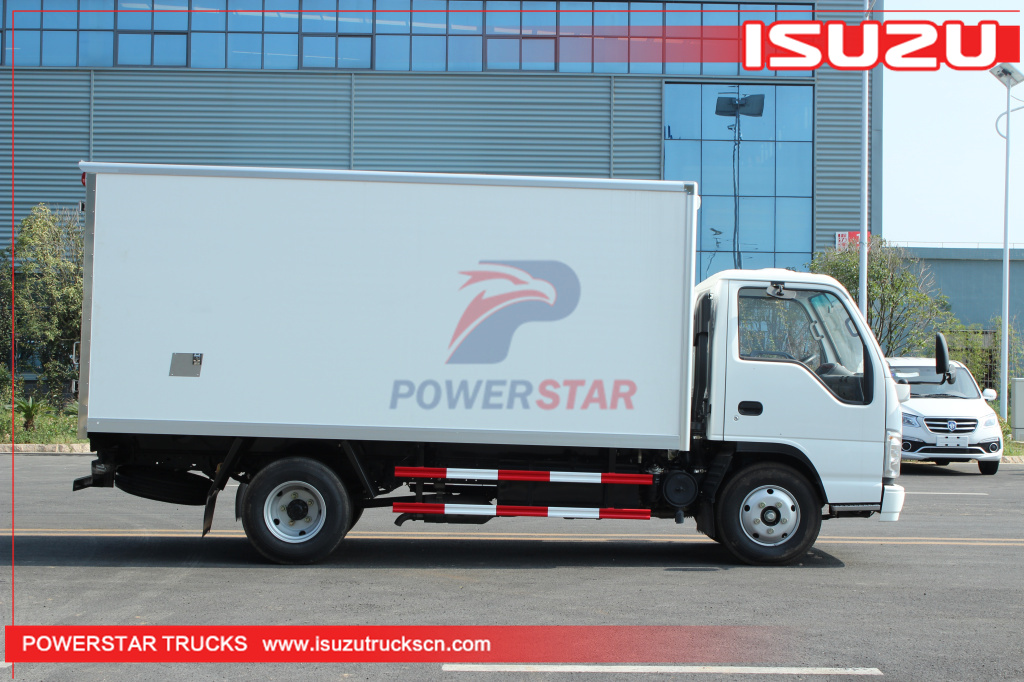

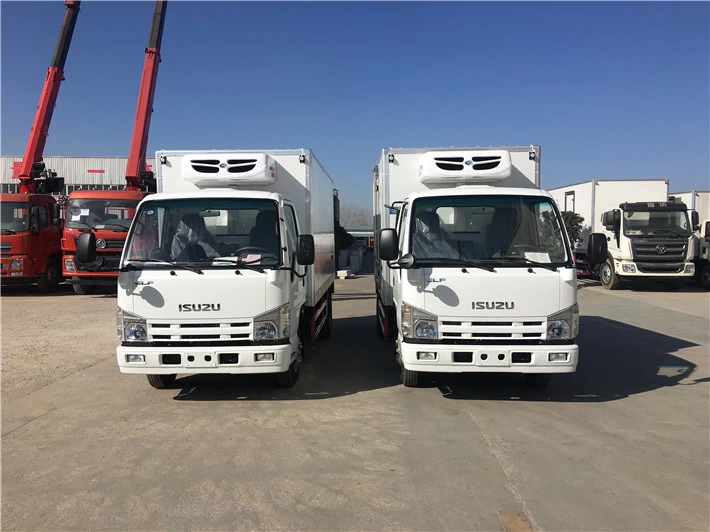

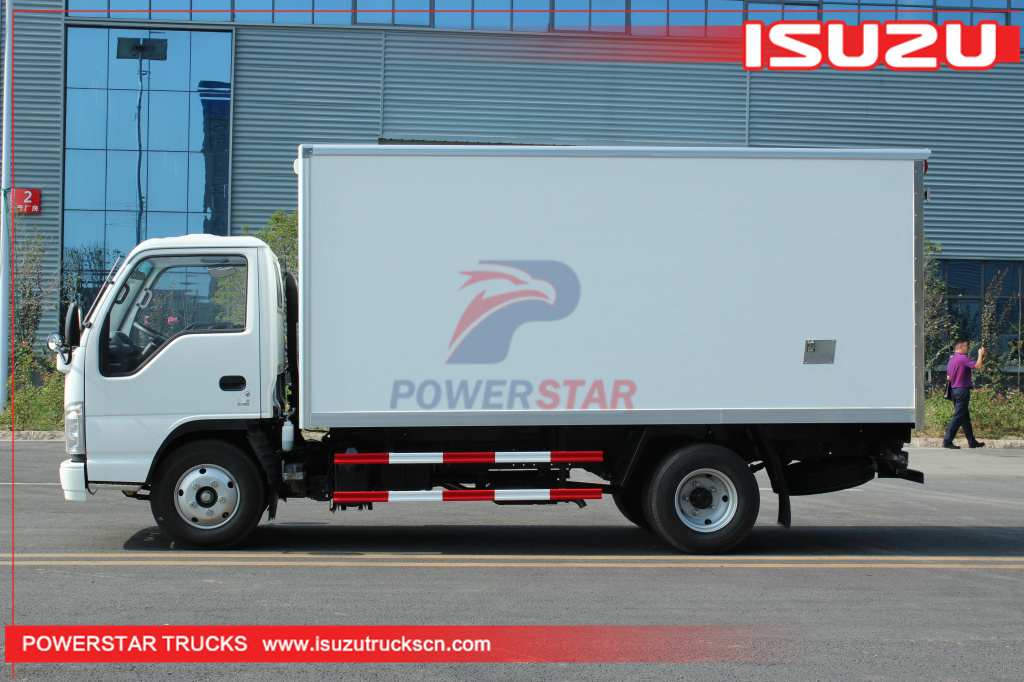

ISUZU 2 Ton Frozen Van Trucks
ISUZU 2 Ton Frozen Van Trucks
ISUZU 2 Ton Frozen Van Trucks
ISUZU 2 Ton Frozen Van Trucks
Key words: Frozen van trucks, Seafood trucks, Cooling food transport trucks Isuzu
