Light weight and portable Beautiful shape
Low cost and High-quality thermal printing
Cash drawer drive supported
Easy paper-roll installation, Easy maintenance and Rational structure
Character can enlarge print, Bold print, adjust character the line spacing printed
Support of different densities bitmap and download of grapohics printing
Low cost and High-quality thermal printing
Low power consumption, low operating costs(no ribbons, ink cartrigdes)
Compatible ESC/POS print commands set, each print characters and font is optional(Adjust DIP switch)

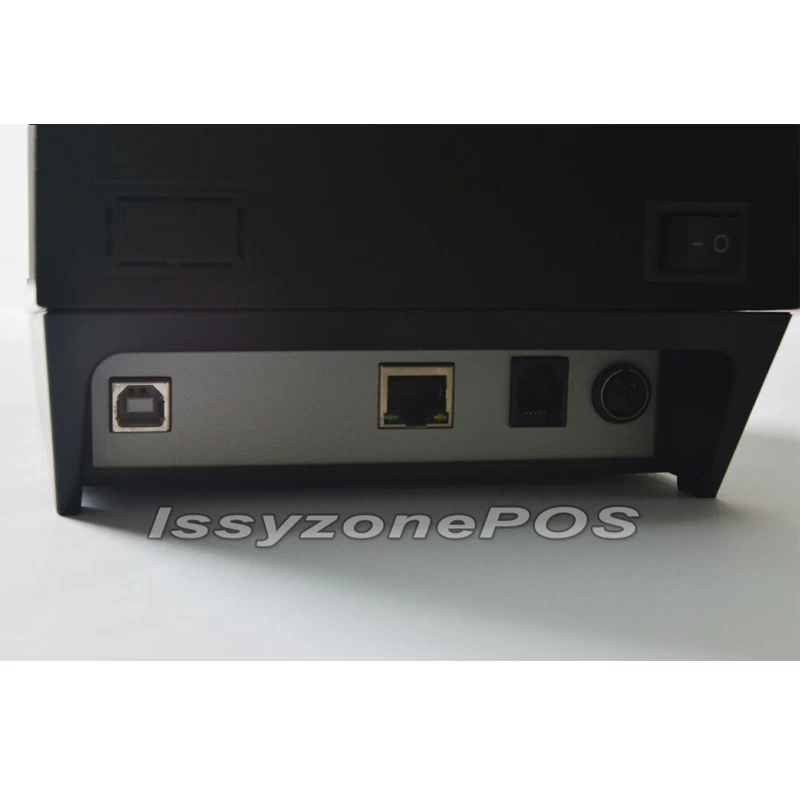

Interface type:Parallel/serial port/USB/LAN
|
Parameter Detail
|
|
Printing Method:
|
Thermal line printing
|
|
Character size:
|
512 dots/line
|
|
Font A:
|
12*24dots, 1.5(W)*3.0(H)mm
|
|
Font B:
|
9*17dots, 1.1(W)*2.1(H)mm
|
|
Simplified/Traditional:
|
24*24dots,3.0(W)*3.0(H)mm
|
|
Print parameters:
|
support to download the Logo trademark
|
|
Printing Chinese character:
|
Chinese: simplified Chinese 24x24 point. support 18030 font library,
|
|
support Taiwan and HK traditional(complex font)
|
|
ANK:
|
ANK characters
|
|
Extended character table:
|
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/
|
|
Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/OEM858
|
|
IranII/Latvian/Arabic/PT1511251/OEM747/WPC1257/Vietnam/OEM864
|
|
/Hebrew/WPC1255/Thai
|
|
Barcode Types:
|
UPC-A/UPC-E/JAN13(EAN13)/ JAN8(EAN8)CODABAR/ITF/ CODE39
|
|
/CODE93/CODE128
|
|
Print Speed:
|
300mm/second
|
|
Interface:
|
Parallel/Serial port/USB port/ Ethernet
|
|
Emulation:
|
ESC/POS command
|
|
Print width:
|
79.5±0.5mm( print width 72mm)
|
|
Print Diameter:
|
83mm
|
|
Print thickness:
|
0.06-0.08mm
|
|
Power:
|
DC24V/2.5A
|
|
Cutter:
|
Full or Partial cut
|
|
Reliability print:
|
100km
|
|
Weight:
|
2.2kg
|
|
Temperature:
|
0-45℃
|
