Printing
|
|
Product Name
|

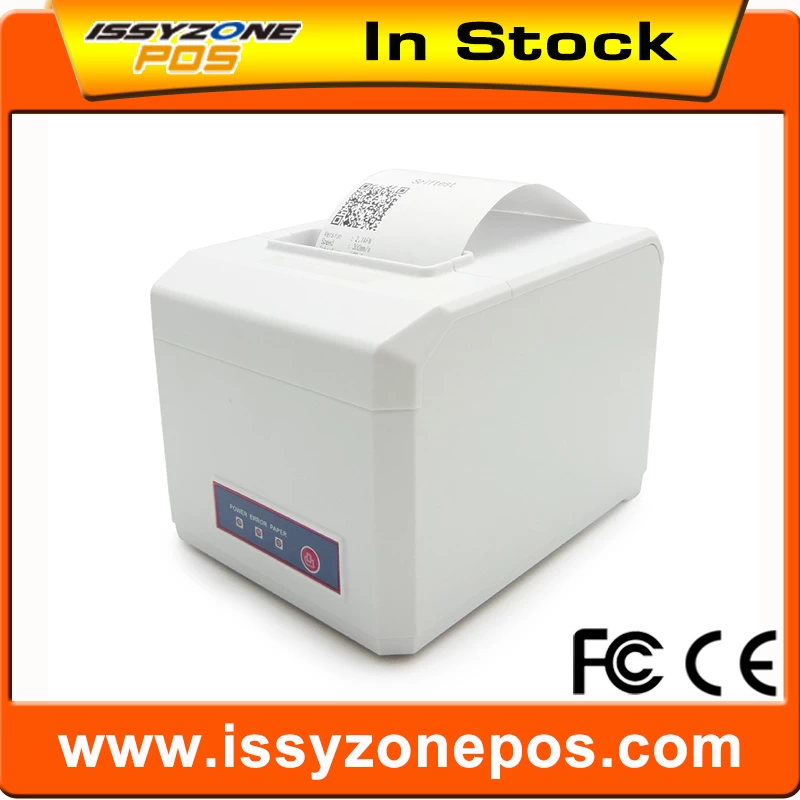

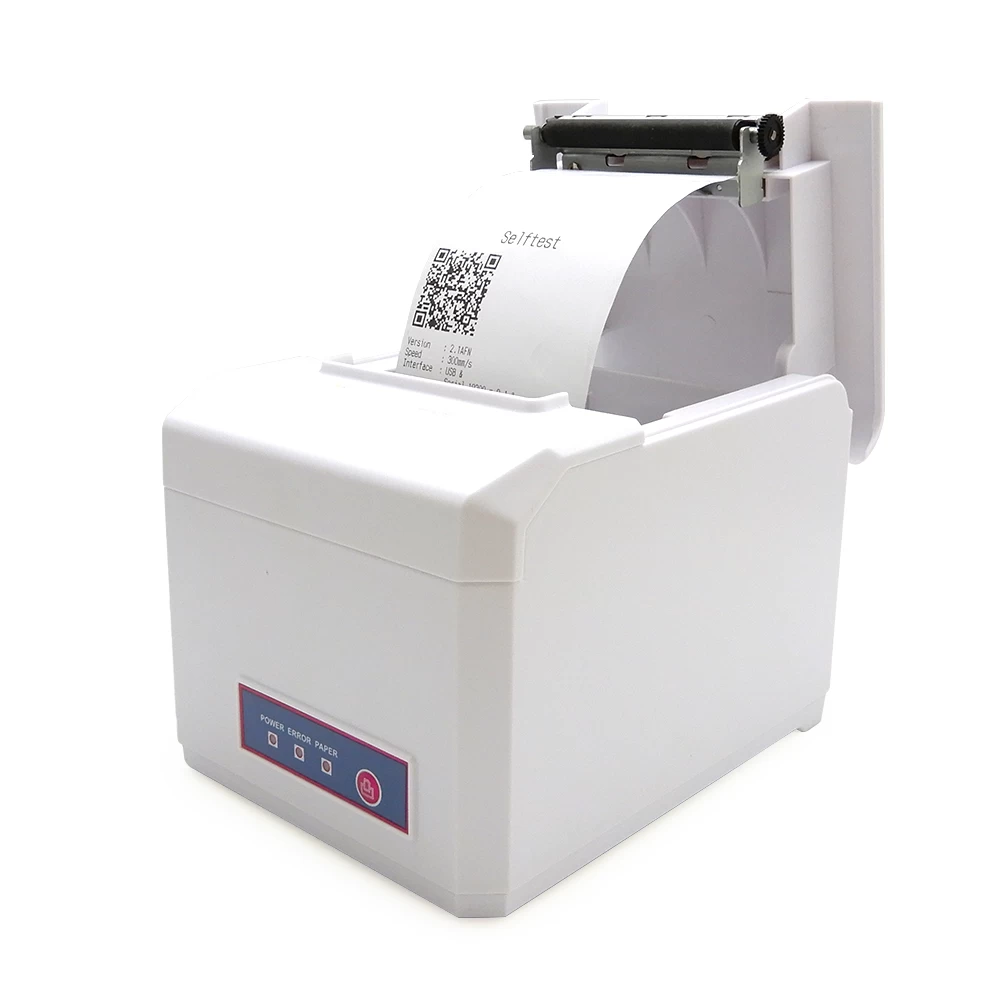

80mm Thermal Receipt Printer
|
|
Printing method
|
Direct thermal
|
|
Print width
|
76mm
|
|
Column capacity
|
576 dots/line 512 dots/line
|
|
Printing speed
|
300mm/s
|
|

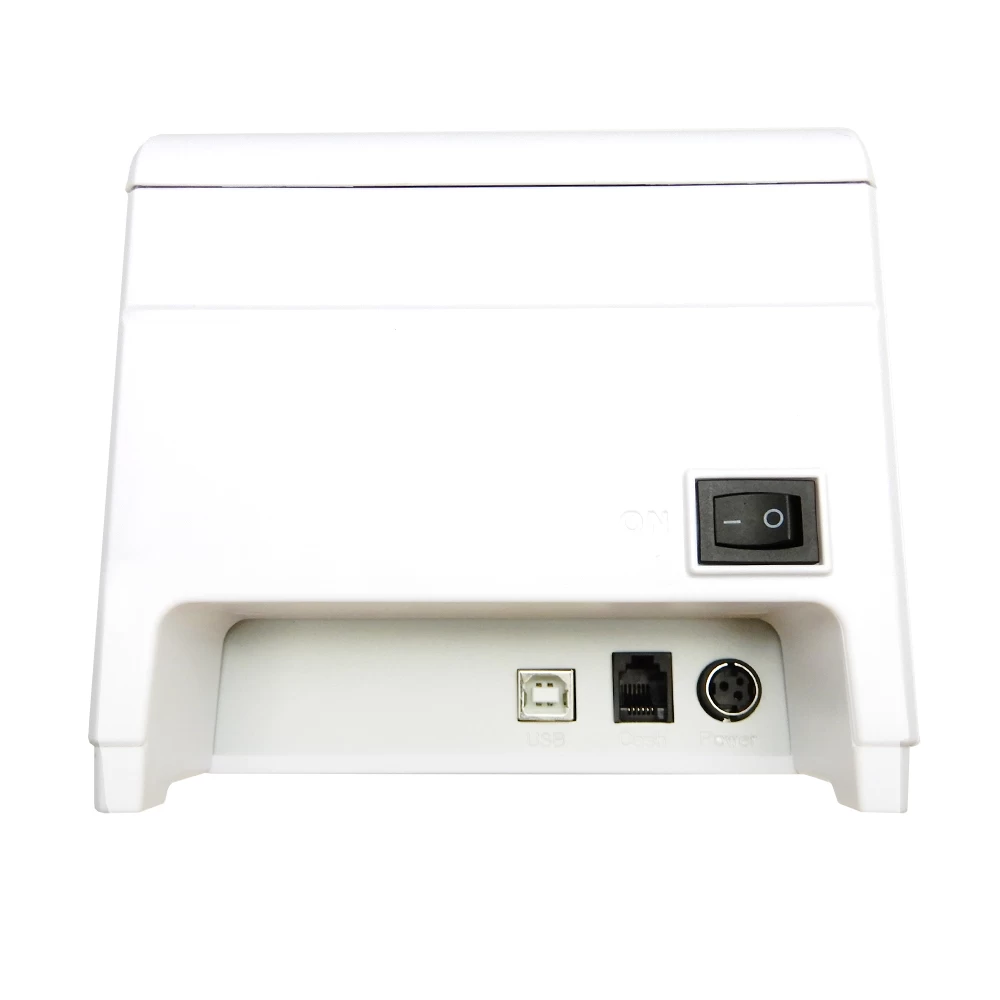

Interface
|
Serial+USB+Lan
|
|
Printing paper
|
79.5±0.5mm×φ83mm
|
|
Line spacing
|
3.75mm (Adjustable by commands)
|
|
Column number
|
80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese,traditional Chinese - 21 columns or 24 columns
|
|
Character size
|
ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
|
|
Cutter
|
|
Auto cutter
|
Full or partial ( Optional)
|
|
Barcode Character
|
|
Extension
|
PC347（Standard Europe）、Katakana
|
|
character
|
PC850（Multilingual）、PC860（Portuguese）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
|
|
Barcode types
|
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/
CODE39/ITF/CODABAR/CODE93/CODE128
|
|
2D code
|
QR Code
|
|
Buffer
|
|
Input buffer
|
2048k bytes
|
|
NV Flash
|
256k bytes
|
|
Power
|
|
Power adaptor
|
Input：AC 110V/220V, 50～60Hz
|
|
Cash drawer output
|
DC 25V/1A
|
|
Power source
|
Output：DC 24V/2.5A
|
|
Physical characteristics
|
|
Weight
|
1.26KG
|
|
Dimensions
|
190×145×143mm ( L×W×H)
|
|
Environmental Requirements
|
|
Work environment
|
Temperature (0～45) humidity(10～80%)
|
|
Storage environment
|
Temperature(-10～60℃) humidity(10～80%)
|
|
Reliability
|
|
Cutter life
|
1million cuts
|
|
Printer head life
|
100KM
|
