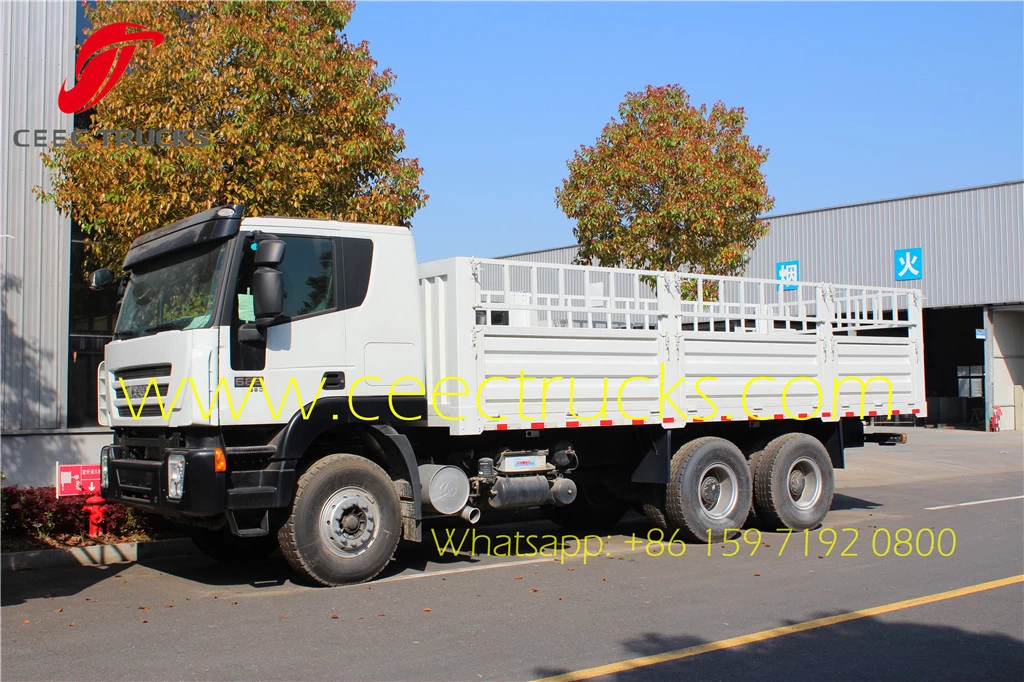

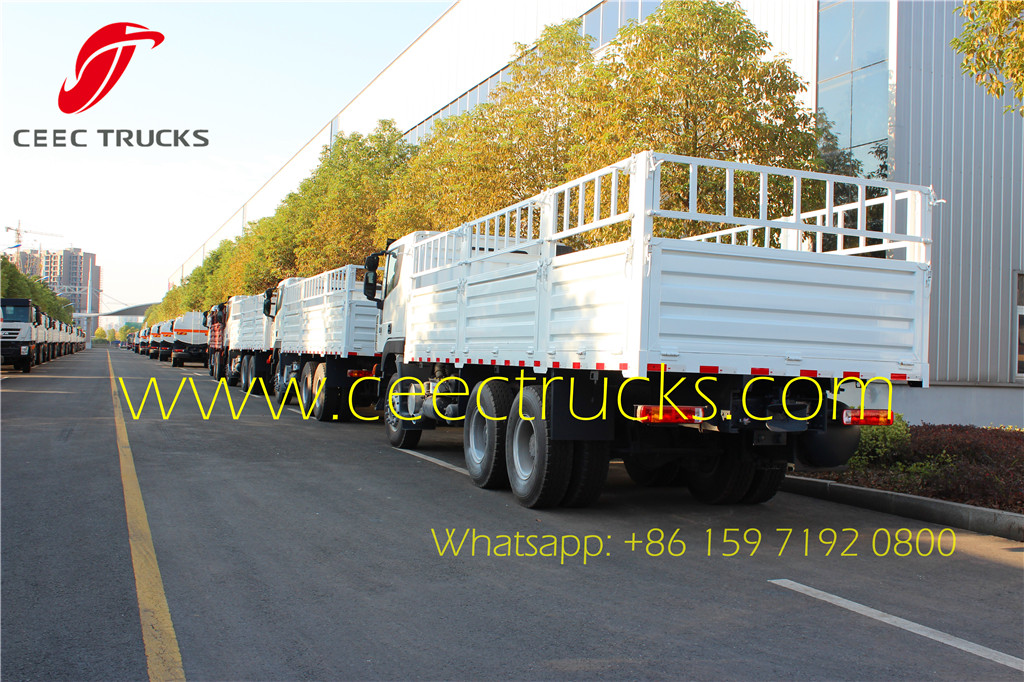

IVECO 10 Wheel Cargo Vehicle

IVECO 6*4 cargo truck use original iveco chassis, Crusor C9 type 340 HP engine, high quality carbon steel Q345 material cargo box, super strength. export kenya mombasa

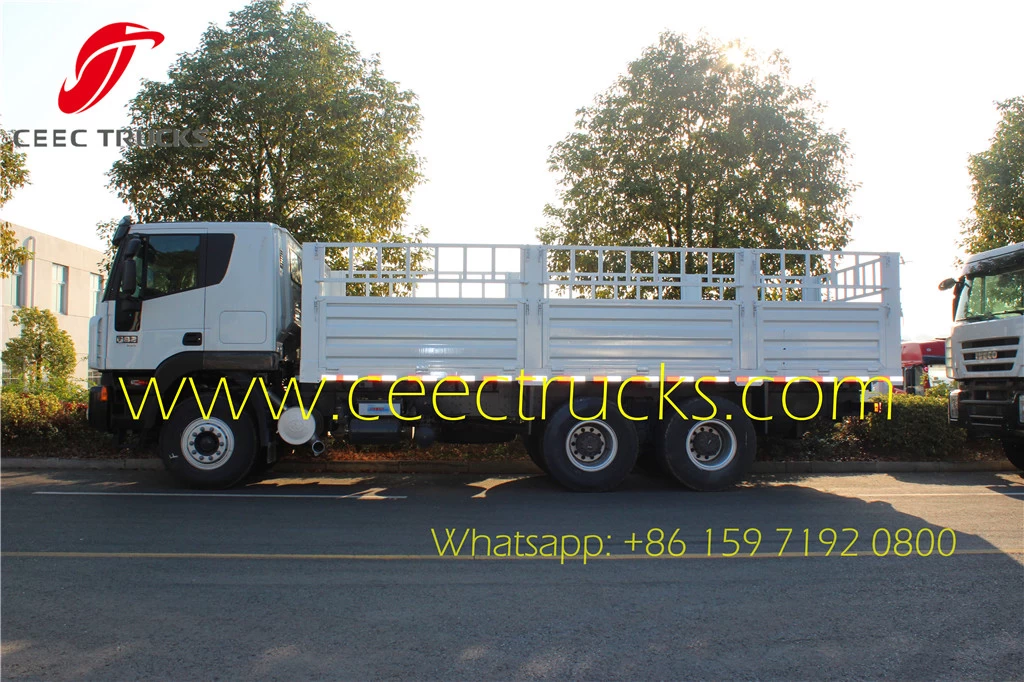

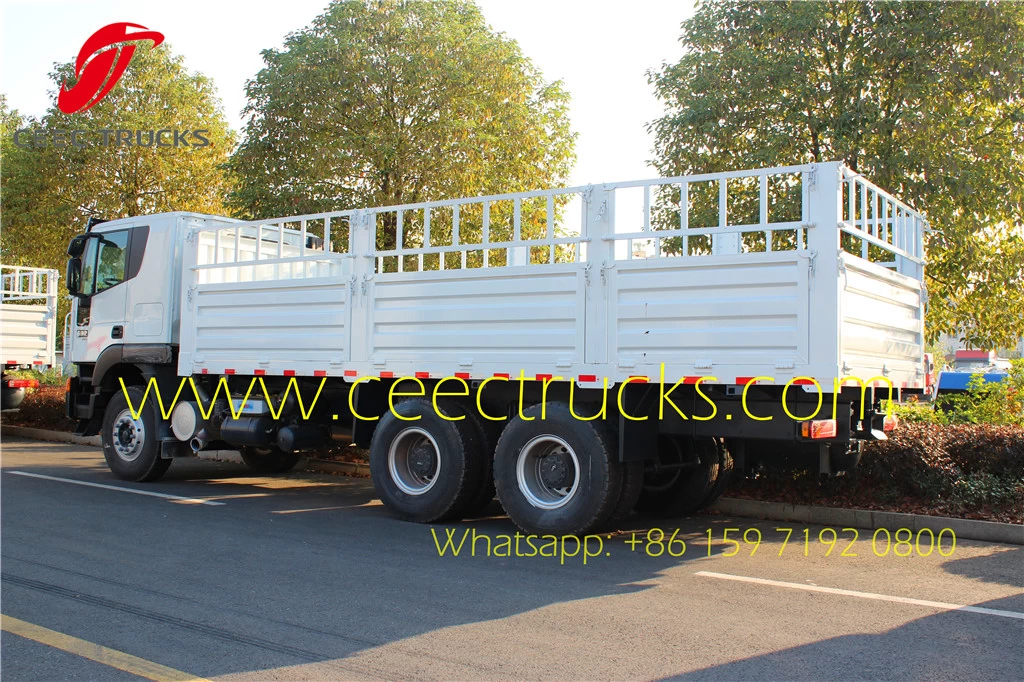

IVECO 6*4 Cargo Truck export Kenya

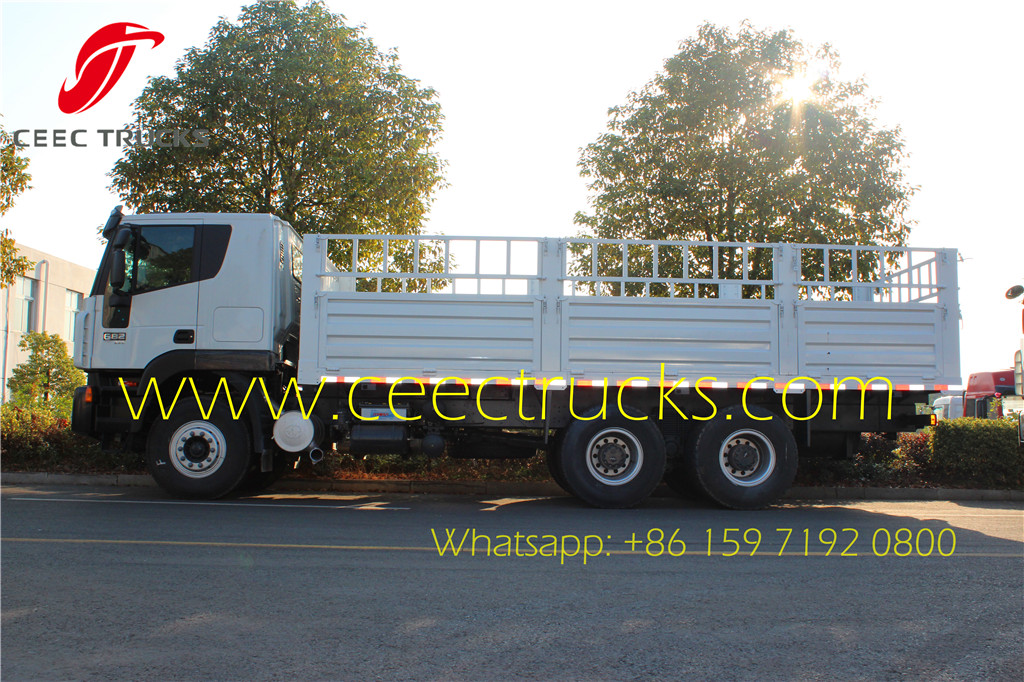

IVECO cargo truck supplier

IVECO cargo truck supplier, best Italy IVECO 6*4 truck chassis, 2016 best design shape cargo box mainly used for bulk goods transportation in Kenya Mombasa, Congo Pointe Noire. also we can provide 4*4 offroad cargo body truck, 6*6 military carriers can be used service for UN project all over the world.

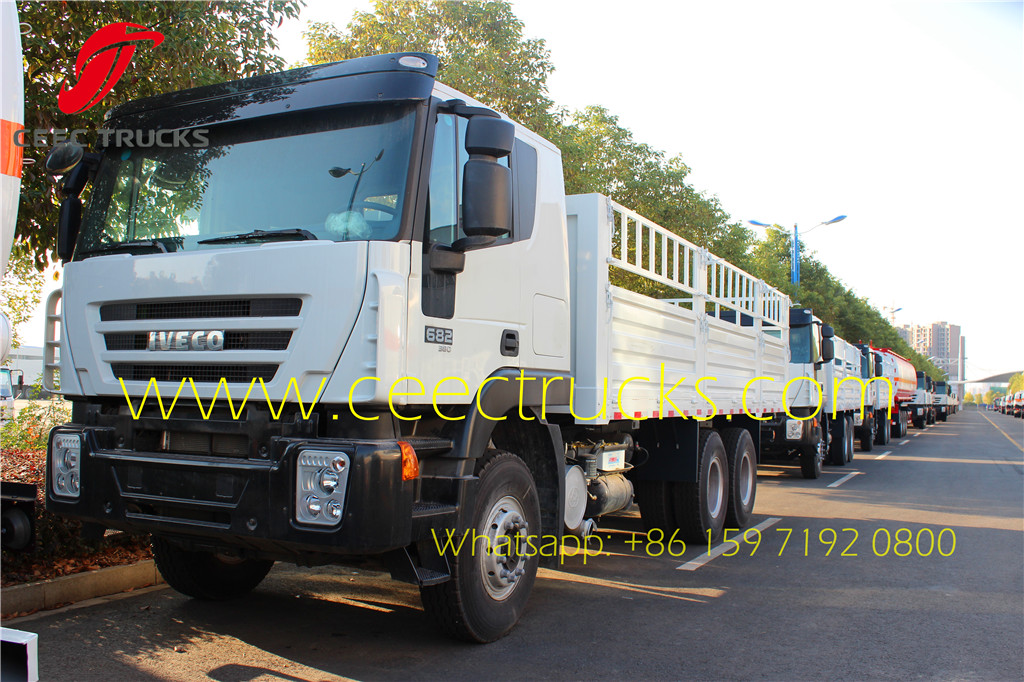

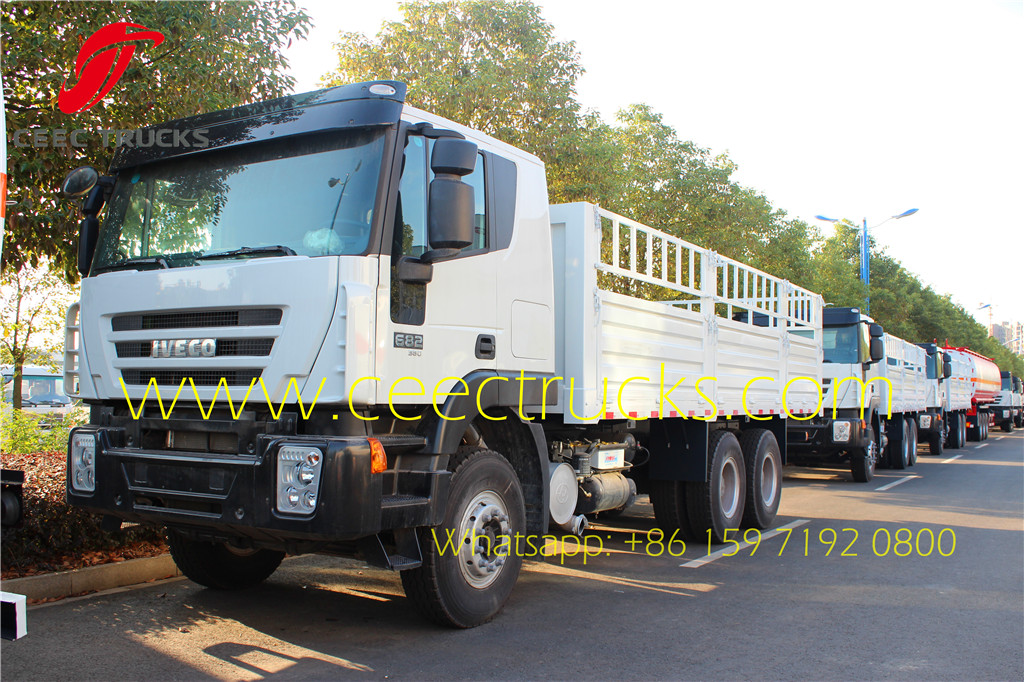

IVECO cargo truck Chassis



IVECO 6*4 series Cargo Truck features:

1. IVECO crusor engine, EURO-II/EURO-III turbine turbocharged diesel engines, power ranging from 266hp to 420hp.

2. IVECO series transmission,strengthened drive axle, WABCO brake system and ZF8098 traversing mechanism .

3. The cab of IVECO series military vehicle is four -point suspended and installed the domestic originally created horizontal stabilizer for cab as well as strong protector frame to prevent front striking.

4. The truck can work under the temperature -41 ℃ day and night,elevation up to 5000m high

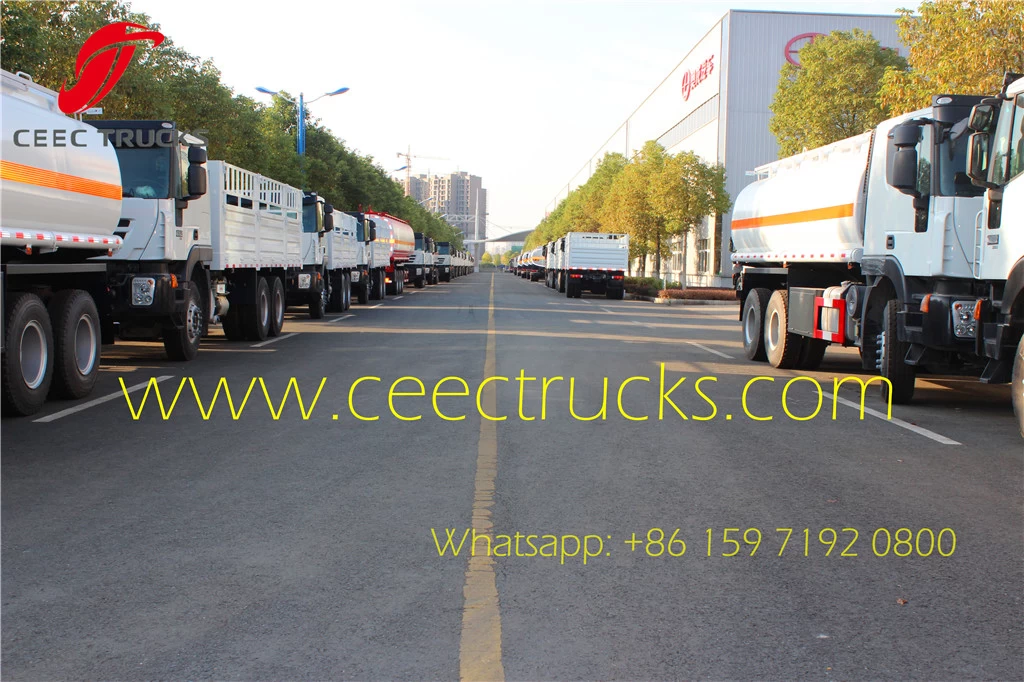

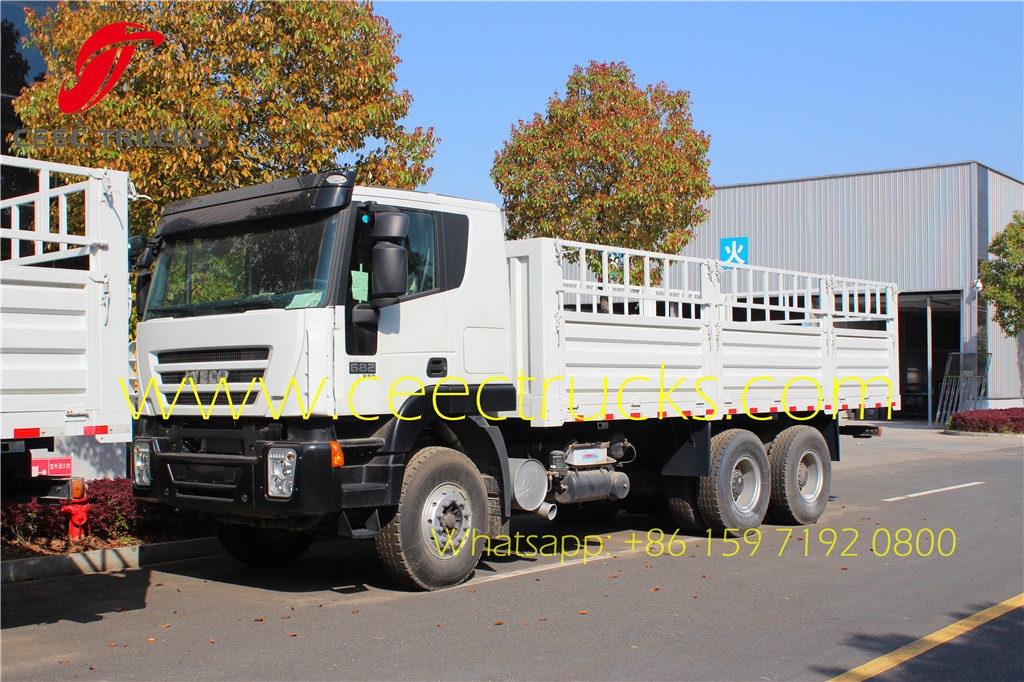

IVECO cargo truck manufacturer

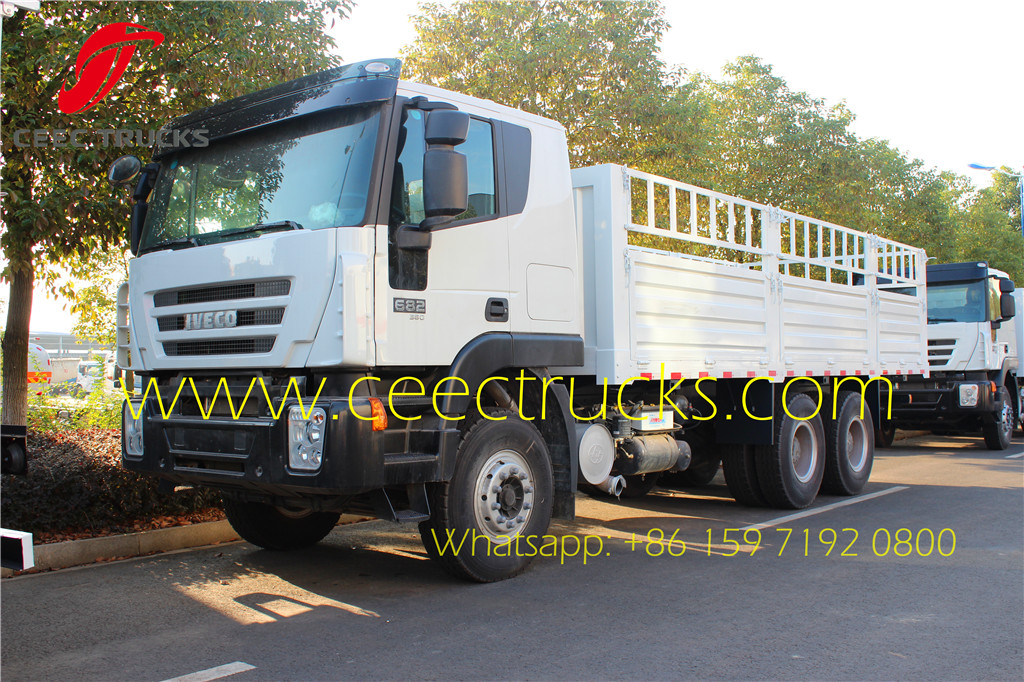

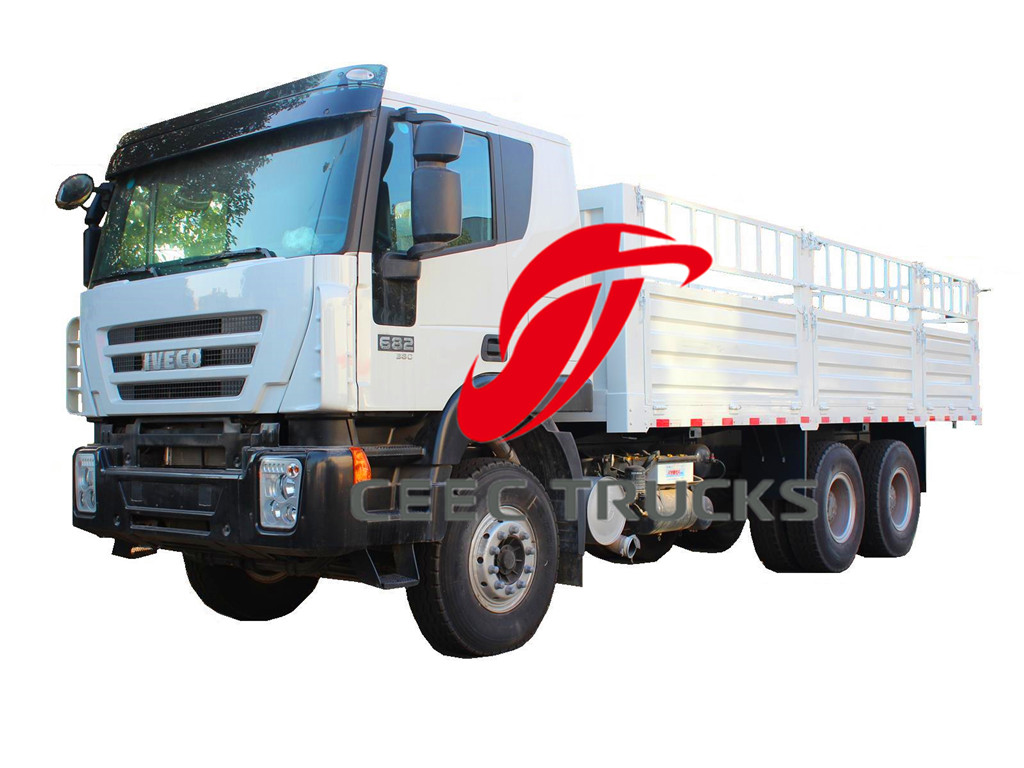

IVECO cargo truck manufacturer



IVECO cargo truck manufacturer



Similar Key Words: IVECO cargo truck supplier, IVECO offroad 6*6 soilder carrier, iveco 6*4 cargo tanker box, top quality cargo tanker truck for kenya.

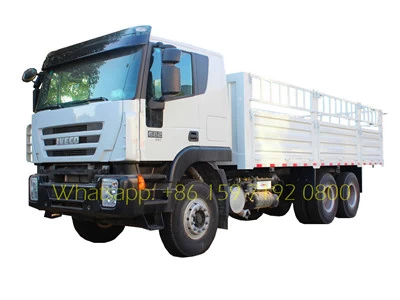

IVECO 340HP Cargo Truck exporter

Traction type

6x4

Driving type

Left Hand Driving

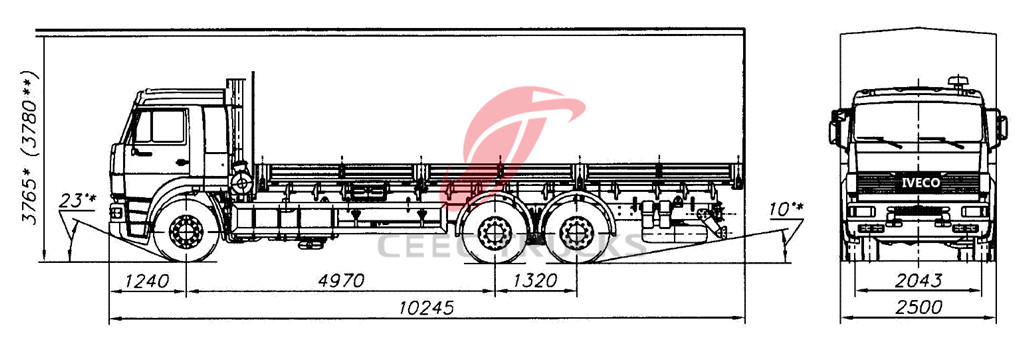

Overall Dimension(L*W*H)

8825x2500x3813mm

Bucket Dimension(L*W*H)

6250x2368x600 /800mm

Wheel base(mm)

5025+1350mm

Curb weight(kg)

10870

Front overhang/rear overhang (mm)

1435/2754

Front track/rear track(mm)

2006/1805

Approach angle/Departure angle

19/12,27/12

Cursor Engine, made in China

CURSOR C9 340HP

Diesel, 4-stoke Direct injection,6-cylinder in

 line, radiator, turbo-charging, water-cooling, EGR(Exhausted Gas Recycling)

Displacement(L)

9.726

Bore X stroke (mm)

117mm/135mm

Max power(kw/rpm)

340HP/254kW

Max torque(Nm/rpm)

1300NM@1000~1800

Min rate of consuming fuel

(g/(kw.h))

196g/kW.h

Emission

Euro3

Max speed(km/h)

92

Fuel tanker(L)

400L fuel tanker

Clutch

Model

D430 diaphragm type

Gearbox

Brand

Fuller (Fast)

Model

12JS160TA

Shift mode

12 forward speeds;

2 reverse speeds

Steering system

Model

ZF technology

Frame

865/280 8+5mm

Front axle

6.5ton front non-driving steering axle

Middle and Rear axle

13ton double reduction driving axle



Ratio:4.11

Tyre

11.00R20 Radial Tire

Number of tyre

12+1 spare

Suspension

Leaf spring type

Color

White,Red,Black

Electrical

Battery

12V/165Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

Flat cabin with single sleeper and air-conditioner

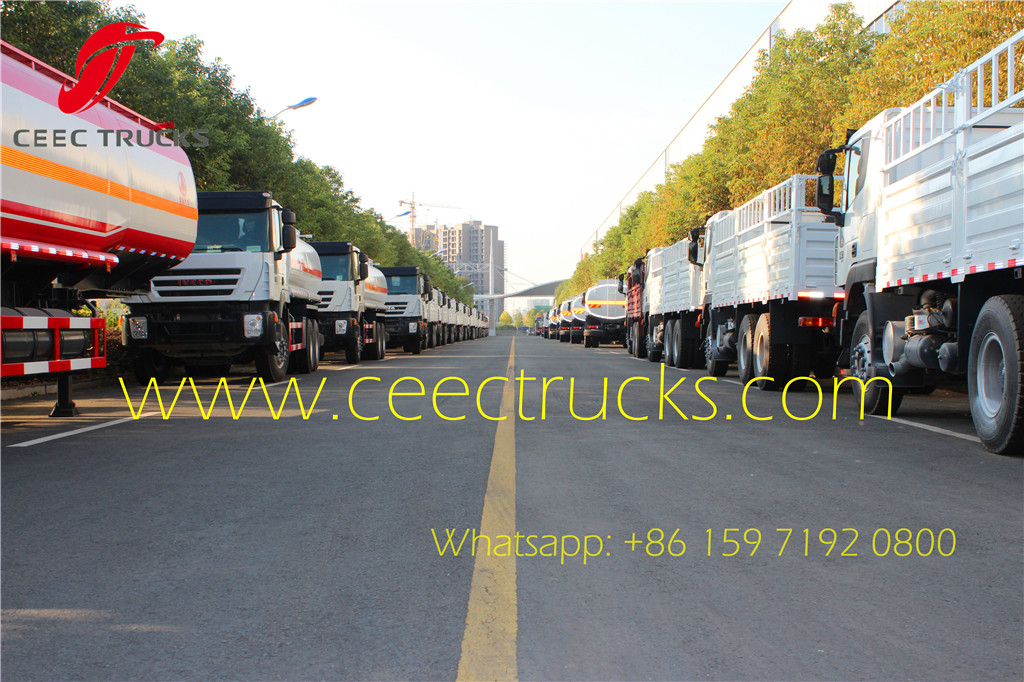

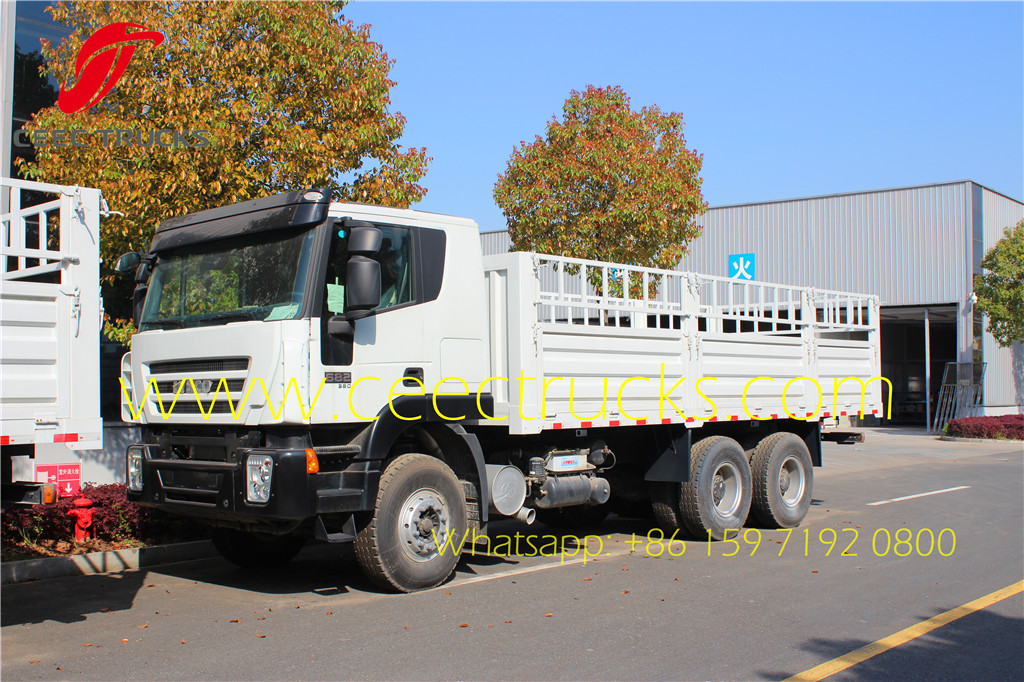

IVECO cargo truck manufacturer
