FEATURES

1 Simple connection to the host system by RS232 or USB(optional). The baud rate is 9600bps(default).
2 Only +5VDC  power  source  is  required to  operate  the module.
3 Characters are provided with a 5×7 dot matrix with comma and decimal point.

FICATION FOR APPROVAL：

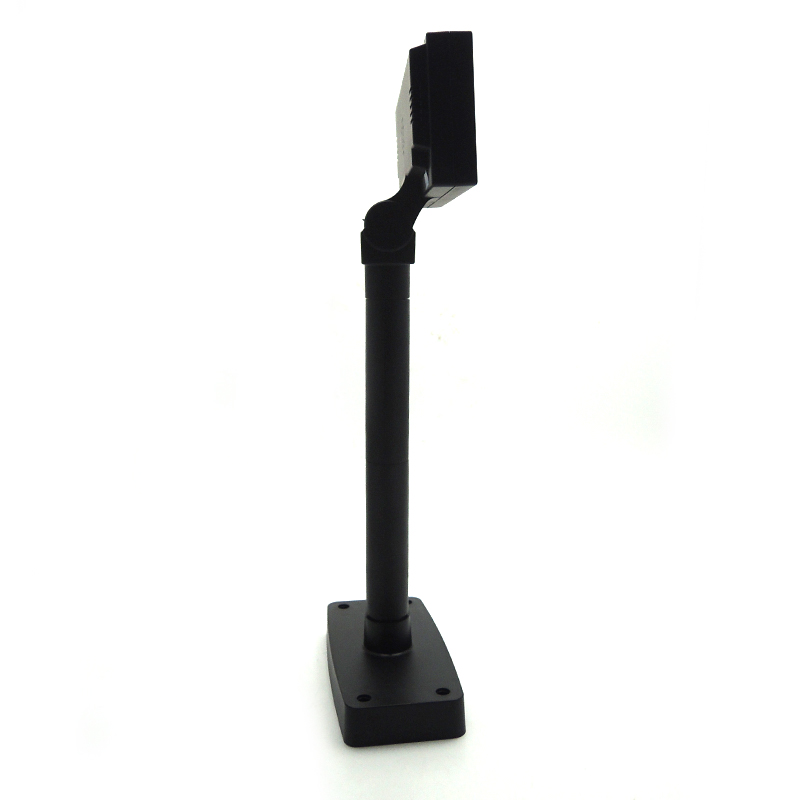

IVFD01

General

Display method

Vacuum Fluorescent Display Blue Green

Number of Characters

20 x 2 for 5 x 7 dot matrix

Brightness

350~700 cd/m2

Character Font

95 Alphanumeric & 32 International Characters

Interface

RS232/USB

Character Size

5.25(W) x 9.3(H)

Dot Size(X*Y)

0.85* 1.05  mm

Dimension

200*72*24

Power

5VDC

Command

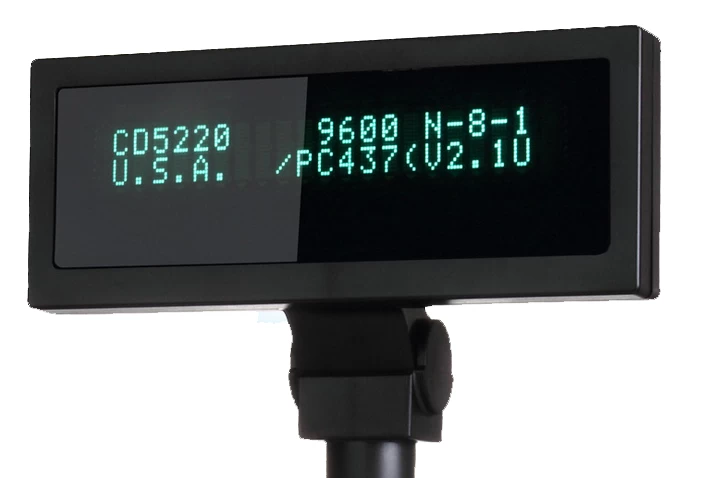

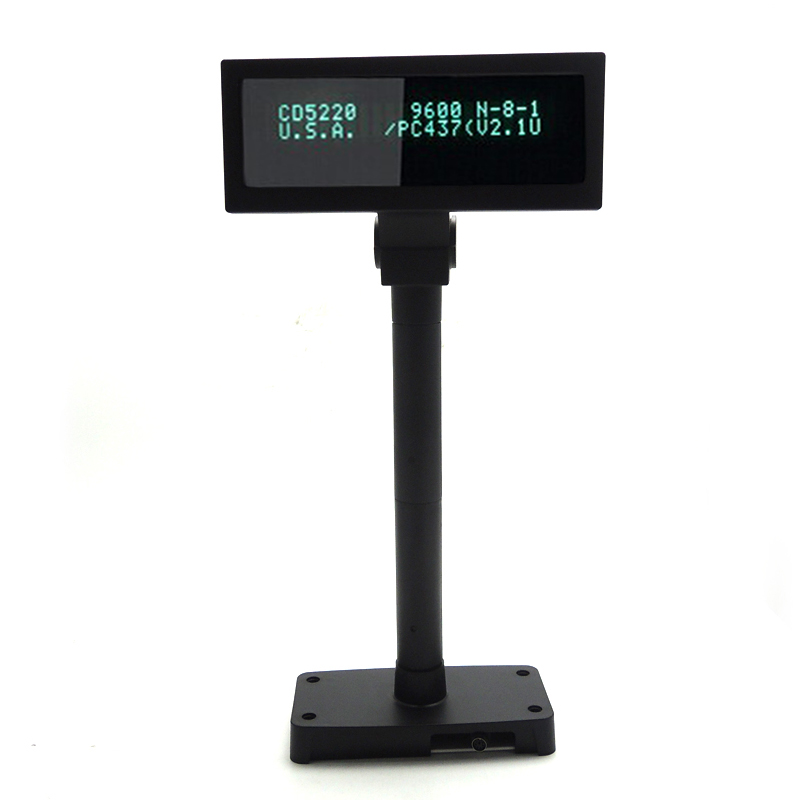

CD5220,  EPSON POS,  Aedex,  UTC/S,  UTC/E, ADM788,  DSP800,  EMAX,  LOGIC, CONTROL

Language
(0x20-0x7F)

U.S.A,FRANCE,   GERMANY,   U.K,  DENMARKI,DENMARKII,SWEDEN,   ITALY, SPAIN, JAPAN,NORWAY, SLAVONIC, RUSSIA

Language
(0x80-0xFF)

PC437,U.S.A. (Standard European)

PC850,Multilingual

PC858,Euro symbol

PC860,Portuguese

PC864,Arabic

PC866,Russia

PC865,Nordic

PC852,Slavonic

Katakana for Japan

Greek (Optional)

Czech (Optional)

Turkish (Optional)

Baltic (Optional)

Canadian French (Optional)
