CPU

ARM Dual core, CortexA9,1.5GHZ

Resolution

9.7"1024*768   7"1024x600

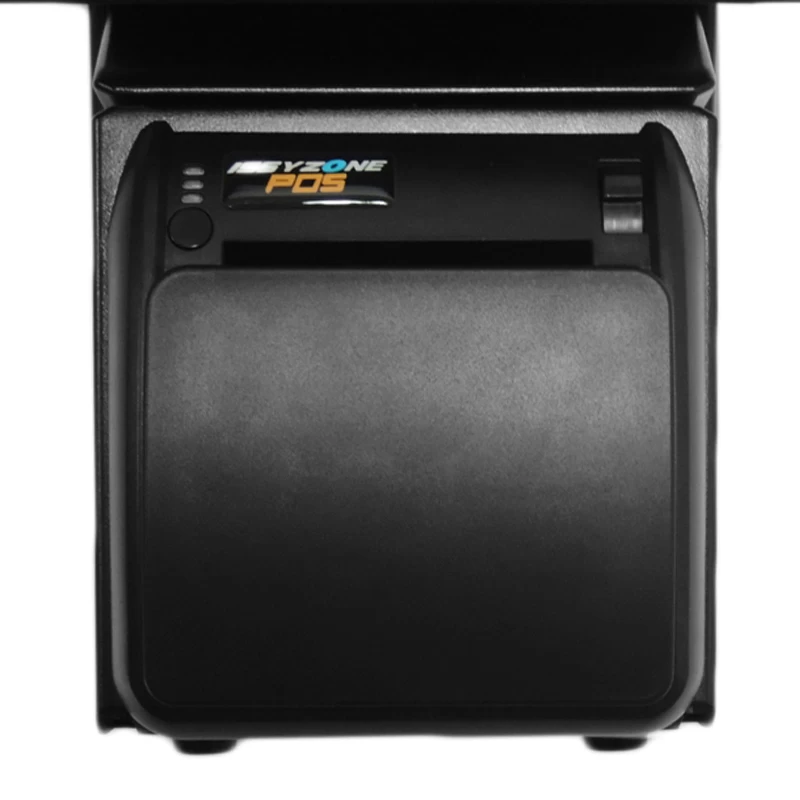

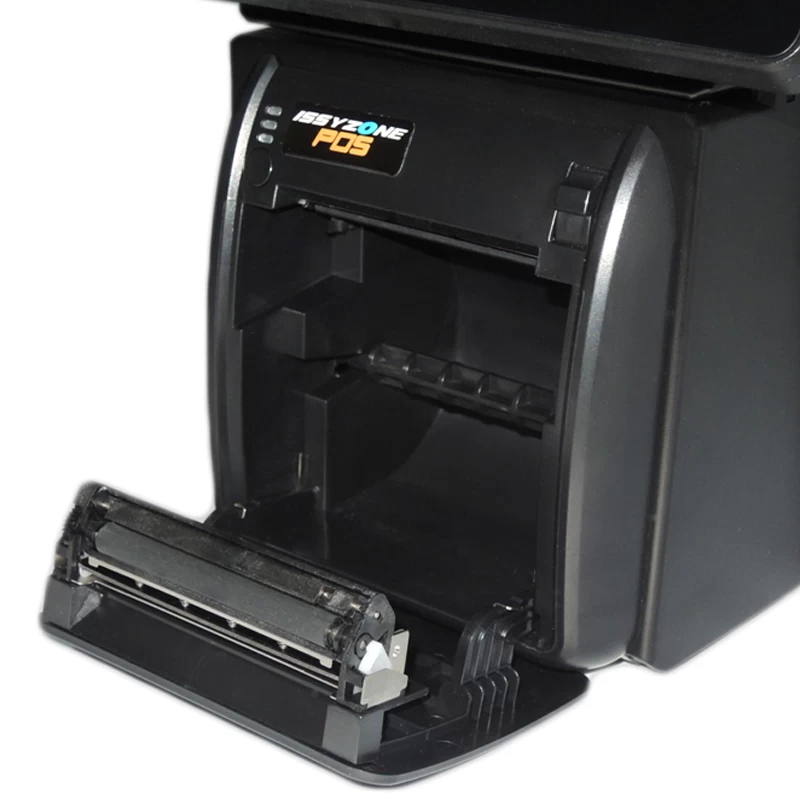

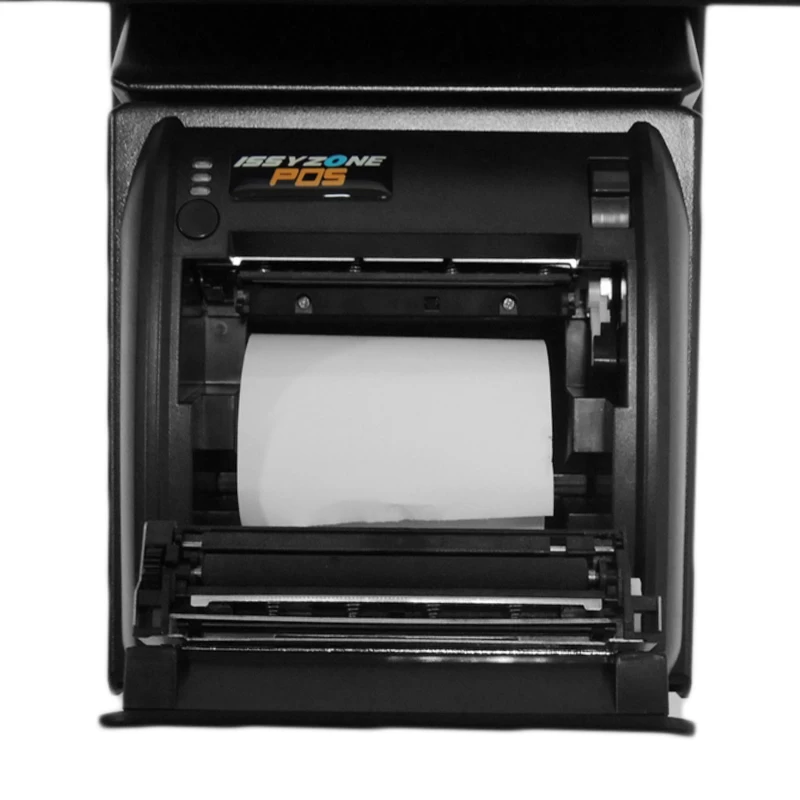

Printer

80mm

Contrast

600:1

Color

16.7M

Response time

8ms

WIFI

Wi-Fi802.11/b/g/n

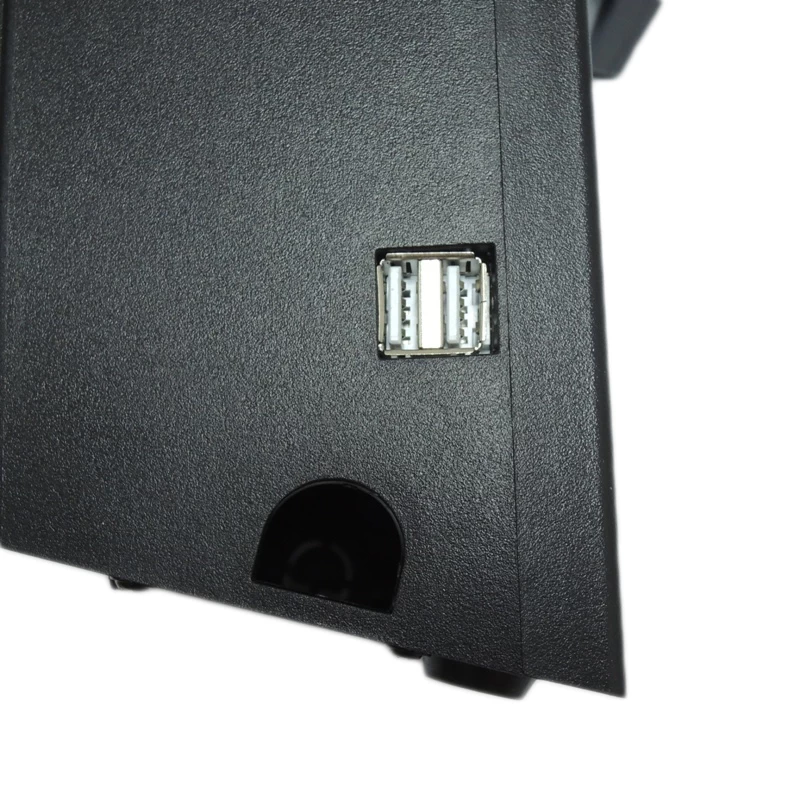

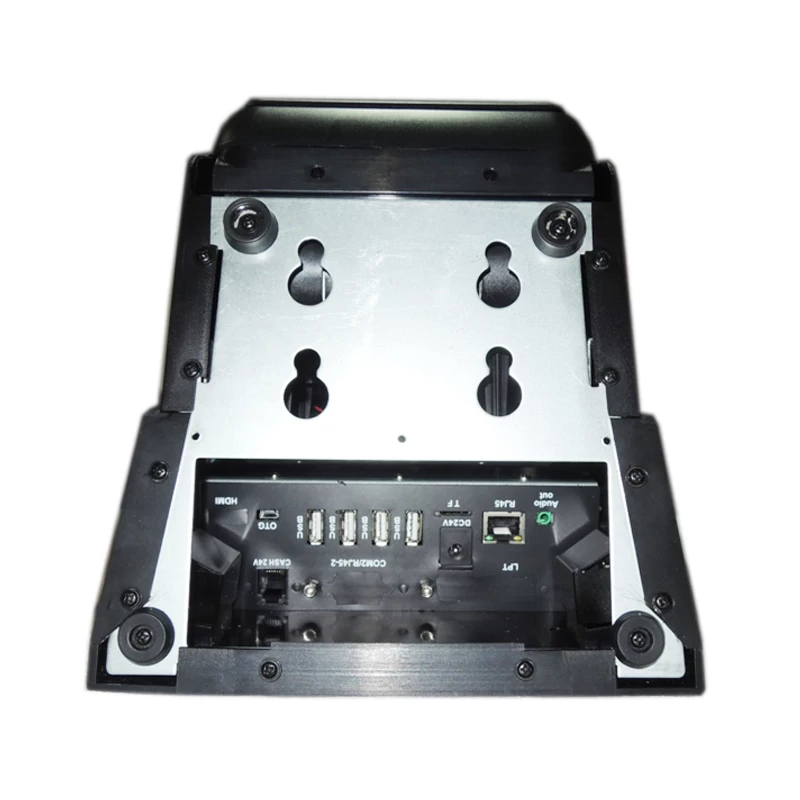

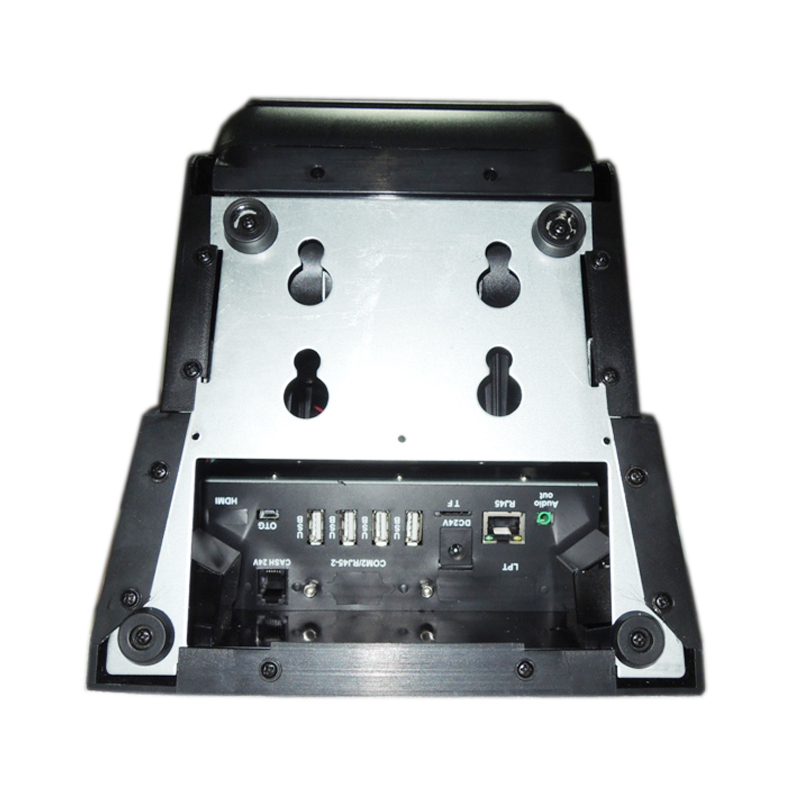

9.7"Interface

4xUSB2.0 ,1x10/100M self-adaption RJ45 interface ,1xUSB2.0 OTG, 1xaudio port

7"Interface

4xUSB2.0

OS

Android 4.2.2/Android4.4.2

TF Card

Support

1080P/ 3D video output

Support

Built-in (optional)

2xUSB2.0, POE power supply, keyboard port, 4xI/O ports, 1xI2C, LVDS port

Audio format

MP3,WMA,3GP,AAC,FLAC,WAV.OGG

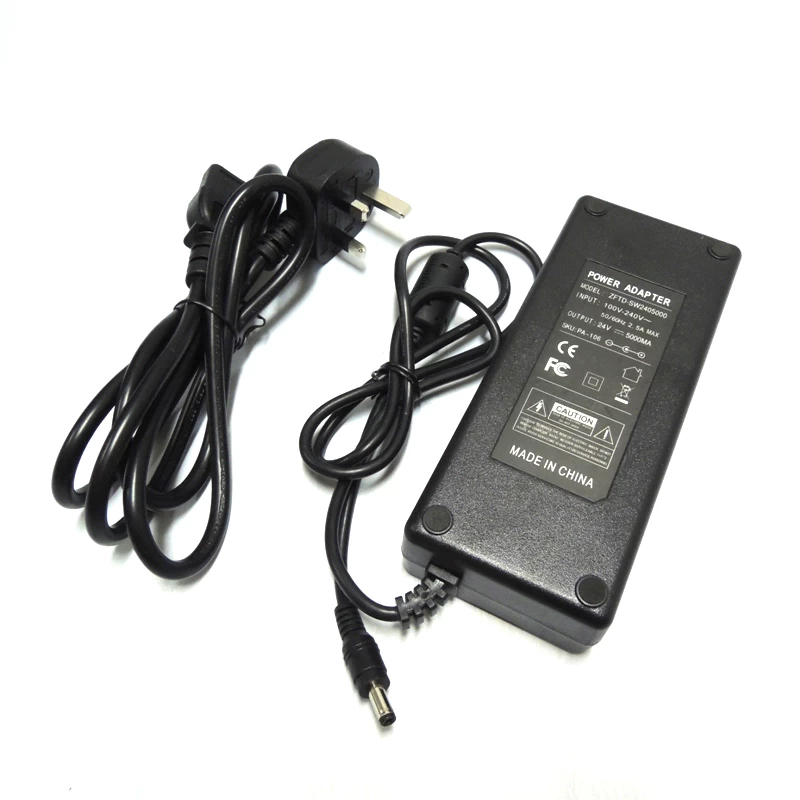

Fittings

Signal Line Power Adapter Audio Line

Power

External 12V/1.5A

POE POWER

Optional

Ibutton

Optional

3G+WIFI

Optional

RFid MSR+cpu card

Optional

Base

Plastic/ Metal base(optional)

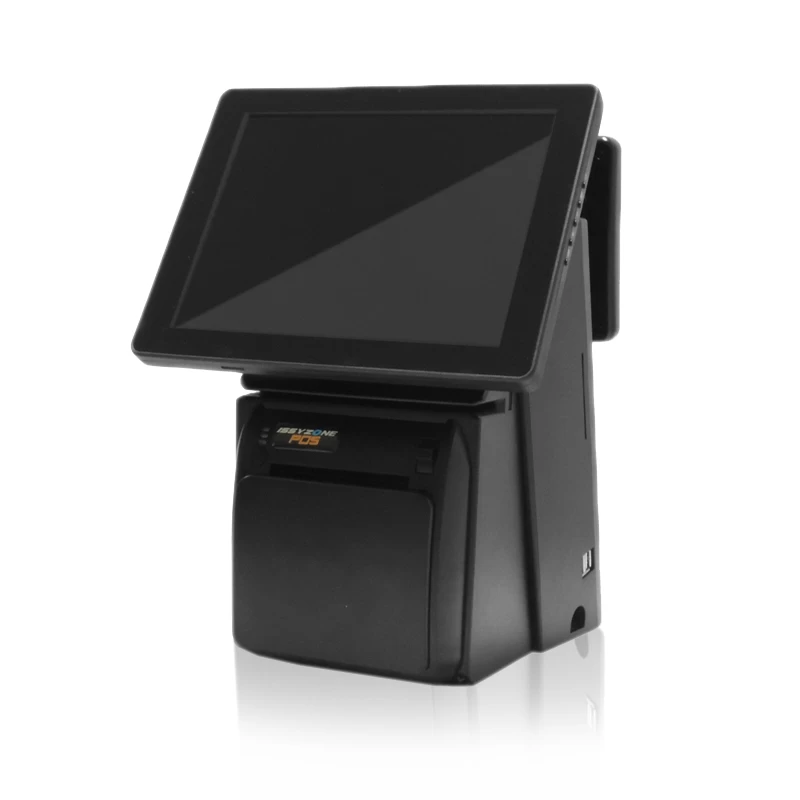

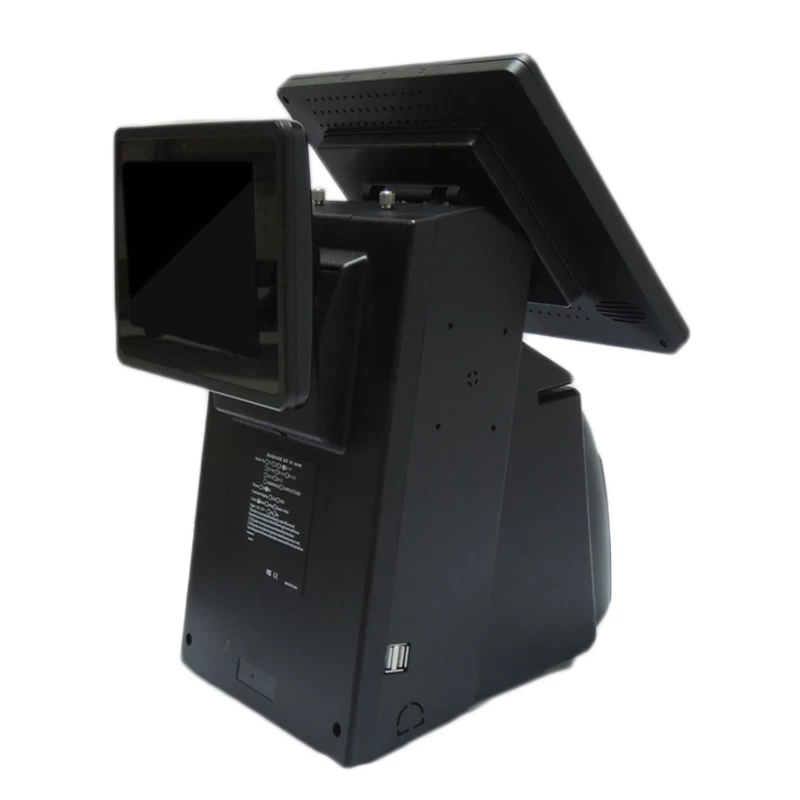

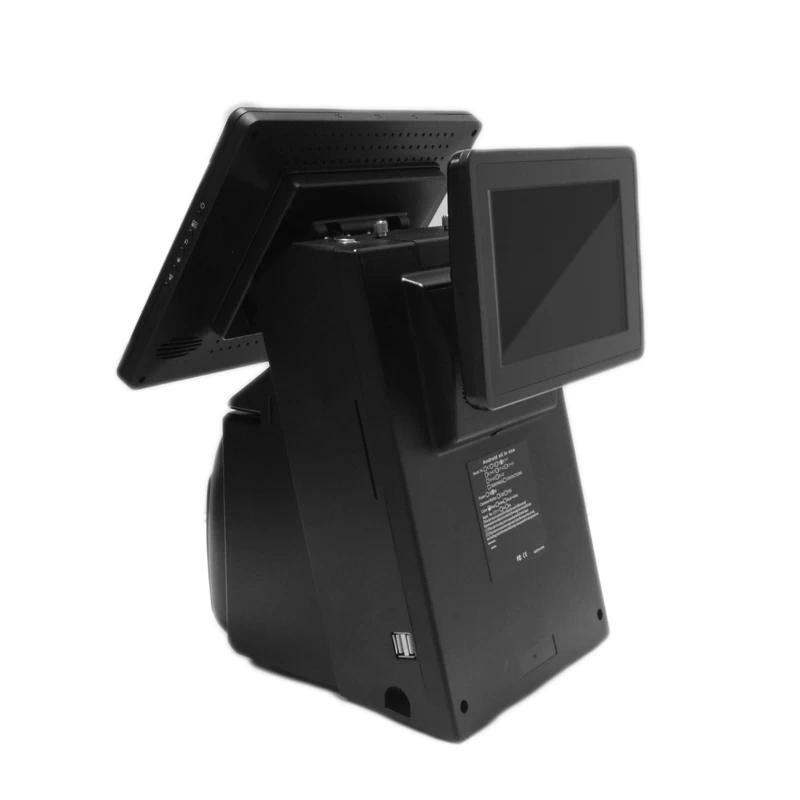

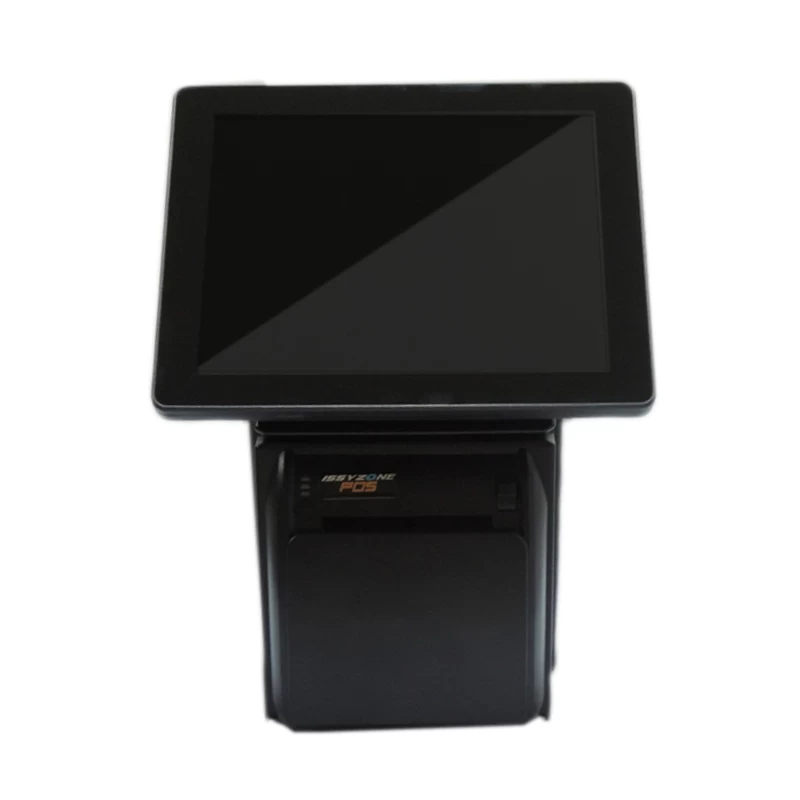

Screen Size

9.7" and 7"

Brightness

300nit(9.7")      /    200nit(7")

Microphone

Built-in

Active Area (mm)

9.7" 0.240 X 0.240  / 7"  0.05x0.15

Viewing angle

9.7"180°(H) 180°(V)    7"170°(H) 160°(V)

RAM/ Internal storage

DDR3 1GB/ 4GB

Bluetooth

Yes

Touch screen

High quality capacitive touch screen

Touch screen

High quality capacitive touch screen

Frequency

Built-in 2W loudspeaker

Power

≤7W

Weight

4.6KG

EPA VESA

ON,OFF,SUSPEND, STAND BY, 75*75mm, 100*100mm

Video format(1080P)

WMV,MKV,MOV,AVI,RM/RMVB,MPEG-2/4.

Camera

Optional

Rfid write/ reader module

Optional

Card reader

Optional

Serial ports

Optional (MOQ 100)

Camera

Optional (MOQ 100)

Audio Out

0.5W(MAX) (optional)

3G  WCDMA

Optional
