Applications:

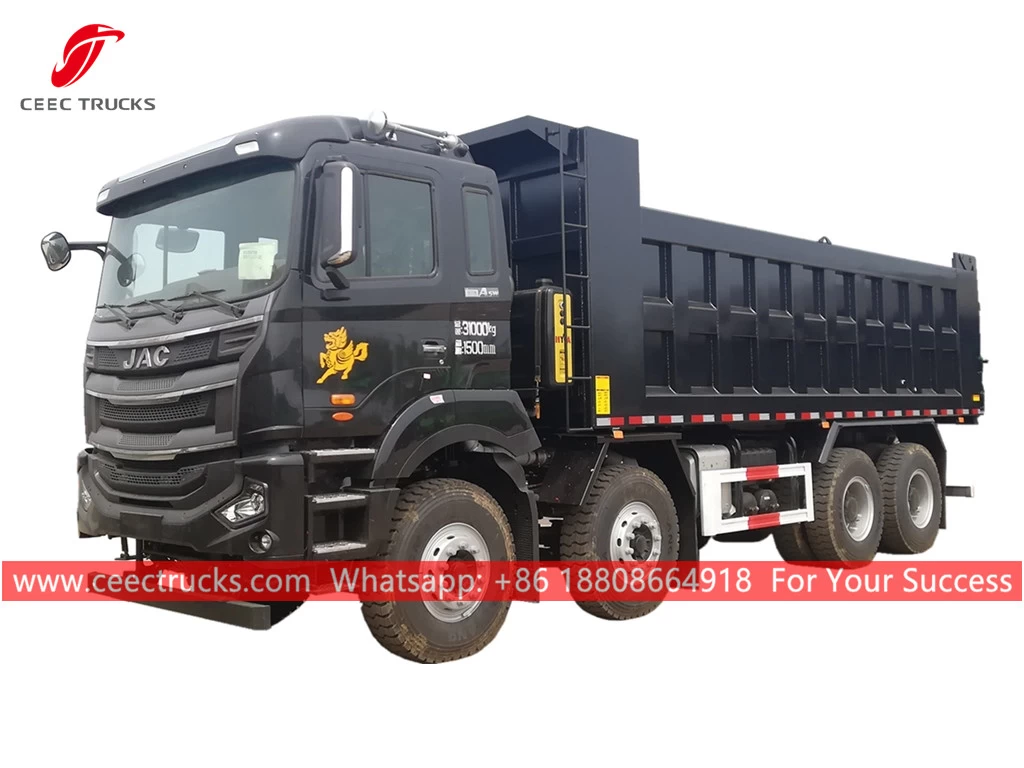

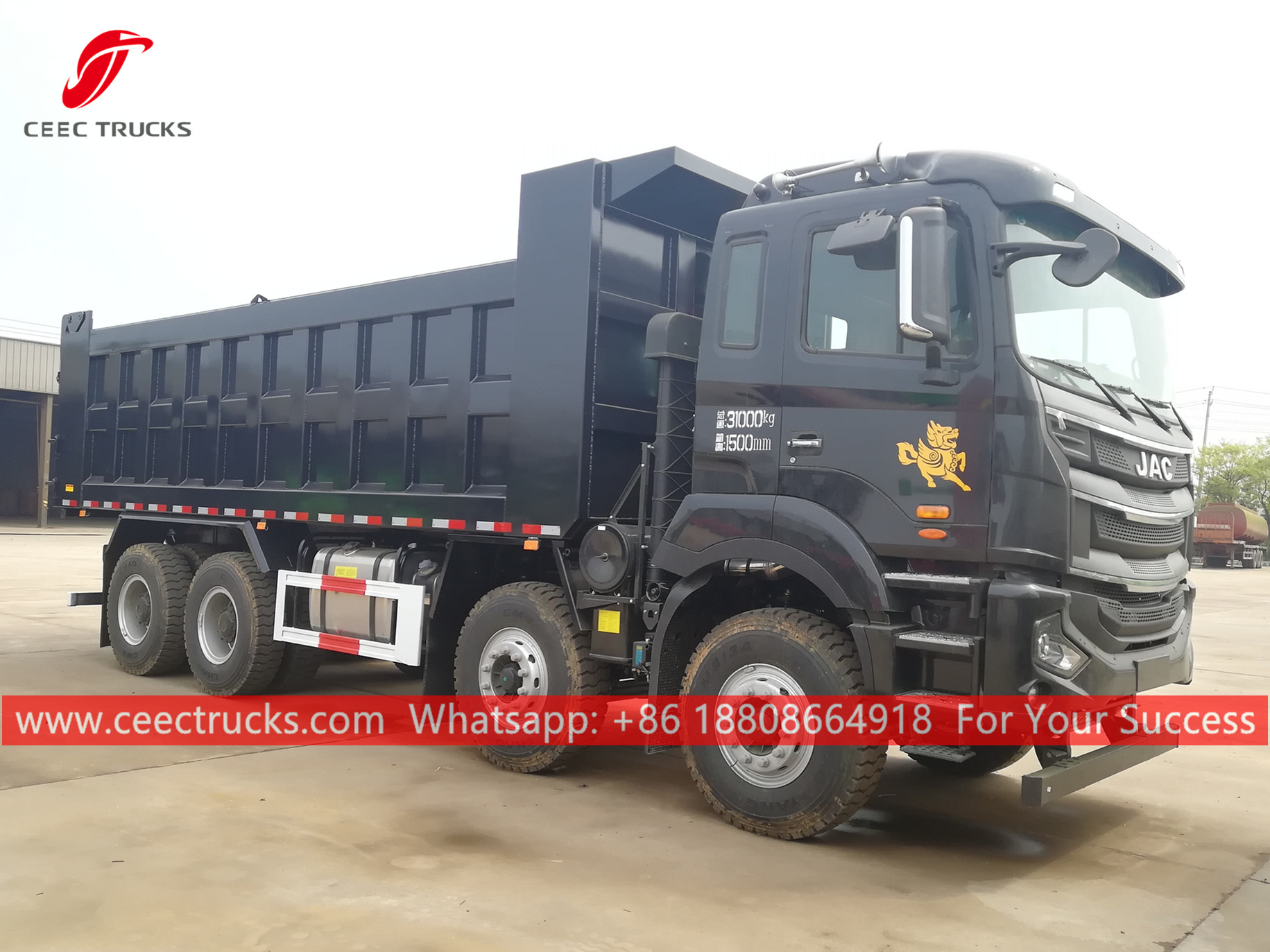

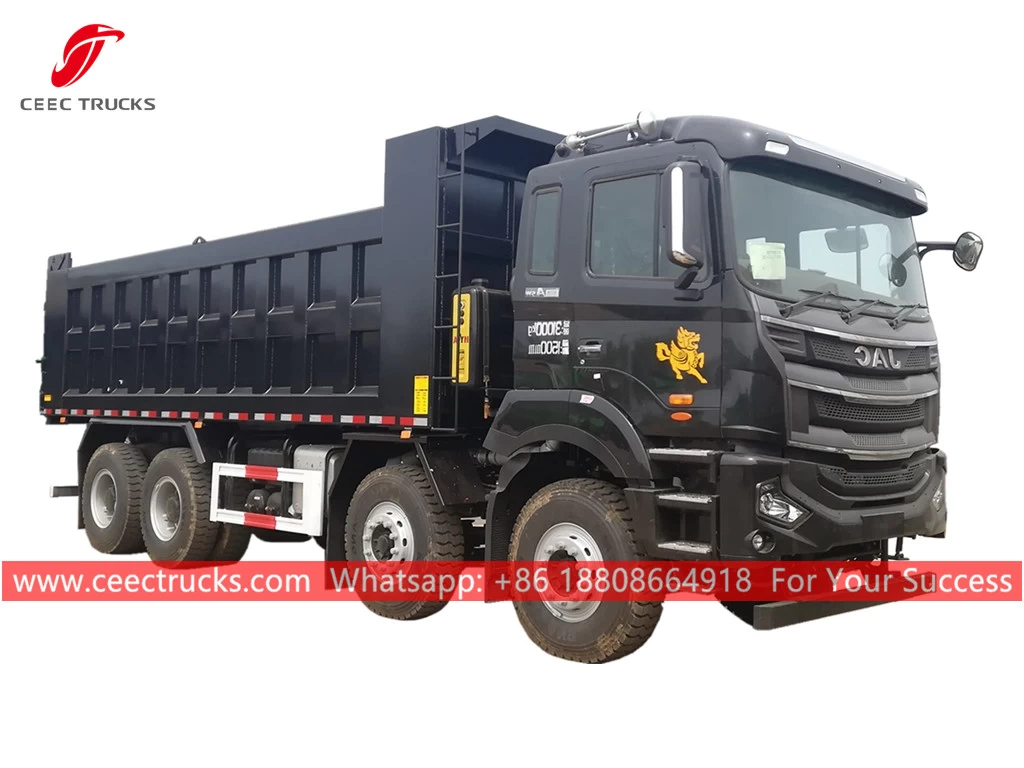

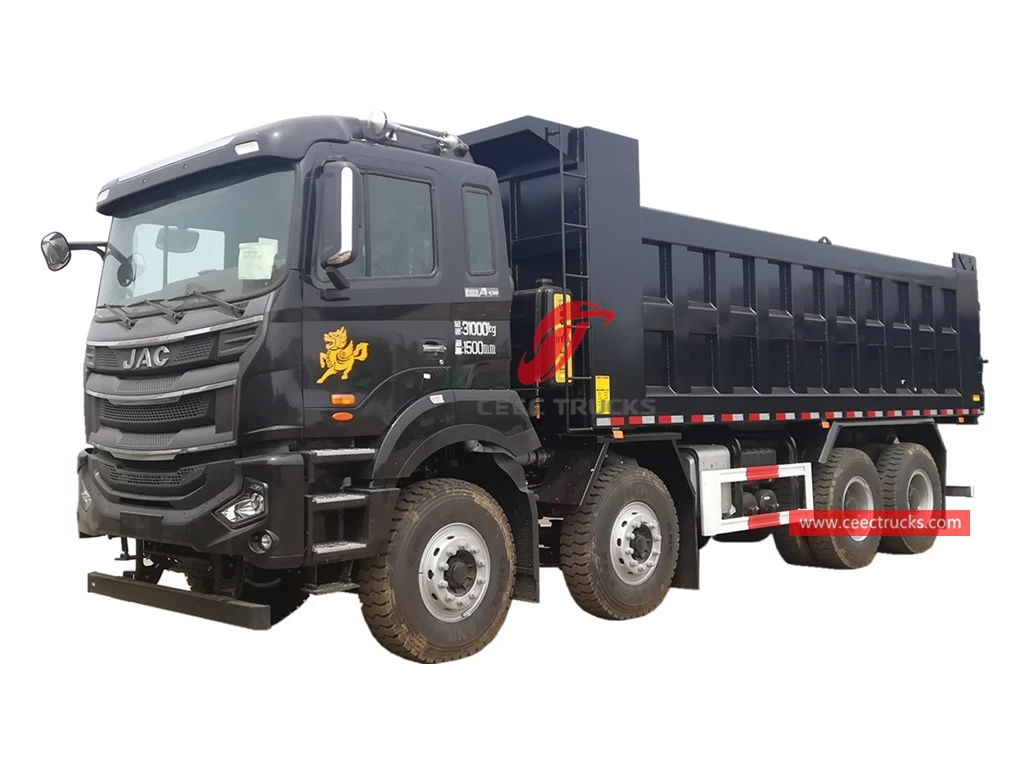

JAC 8x4 Dump truck (also called JAC heavy-duty dump truck, JAC 12-wheel tipper truck, 60tons
tipping trucks JAC, JAC Hyva front lifting dumper truck,
heavy duty dump truck, Sand tipper truck, JAC tipper lorry, JAC tipper) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.
CEEC Trucks dump
truck is manufactured using the cutting-edge technology and components
in the world such as WABCO double-cylinder air compressor, brake valve,

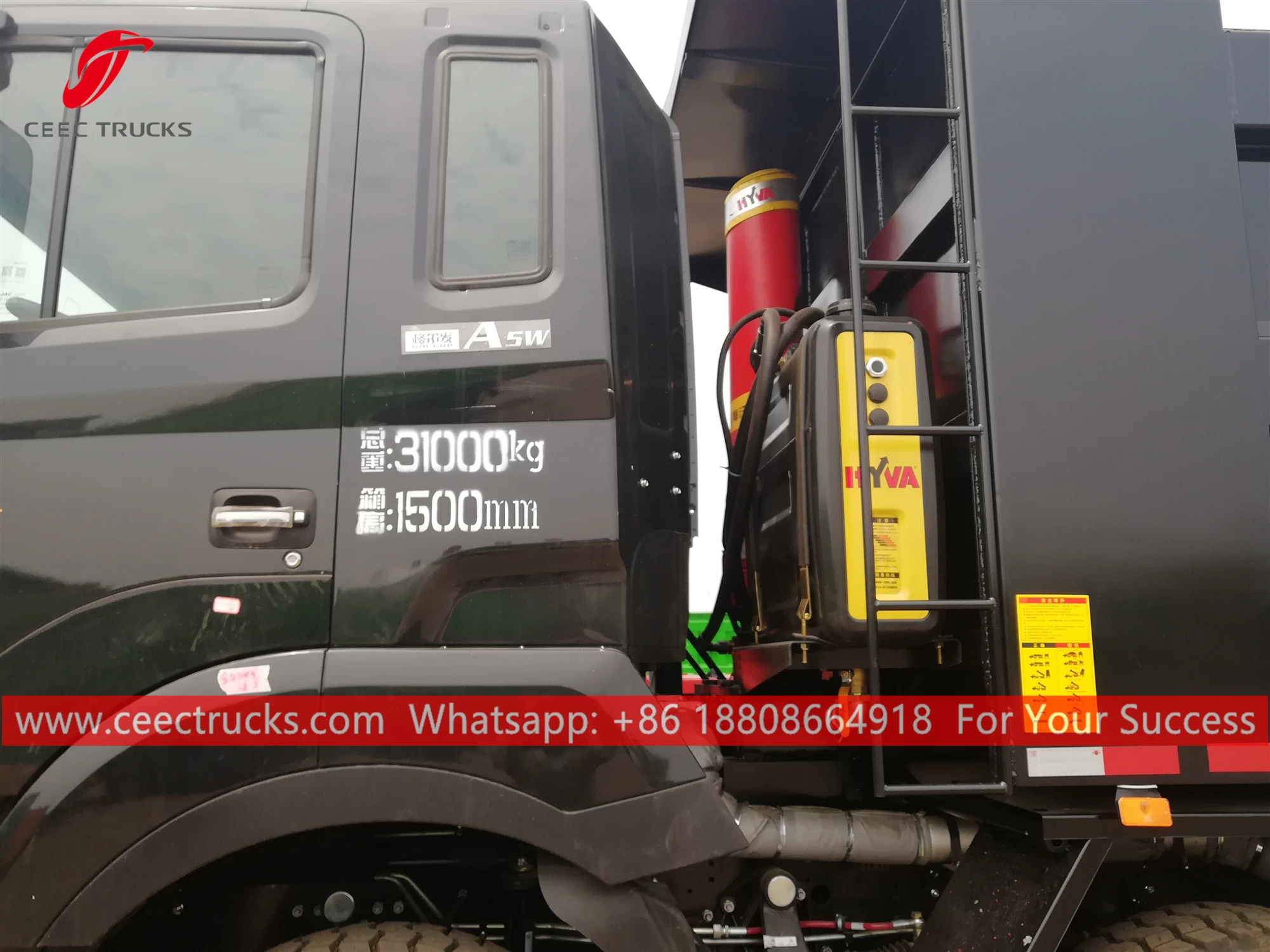

HYVA front hydraulic system, etc.
Key Features:
---- JAC heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|

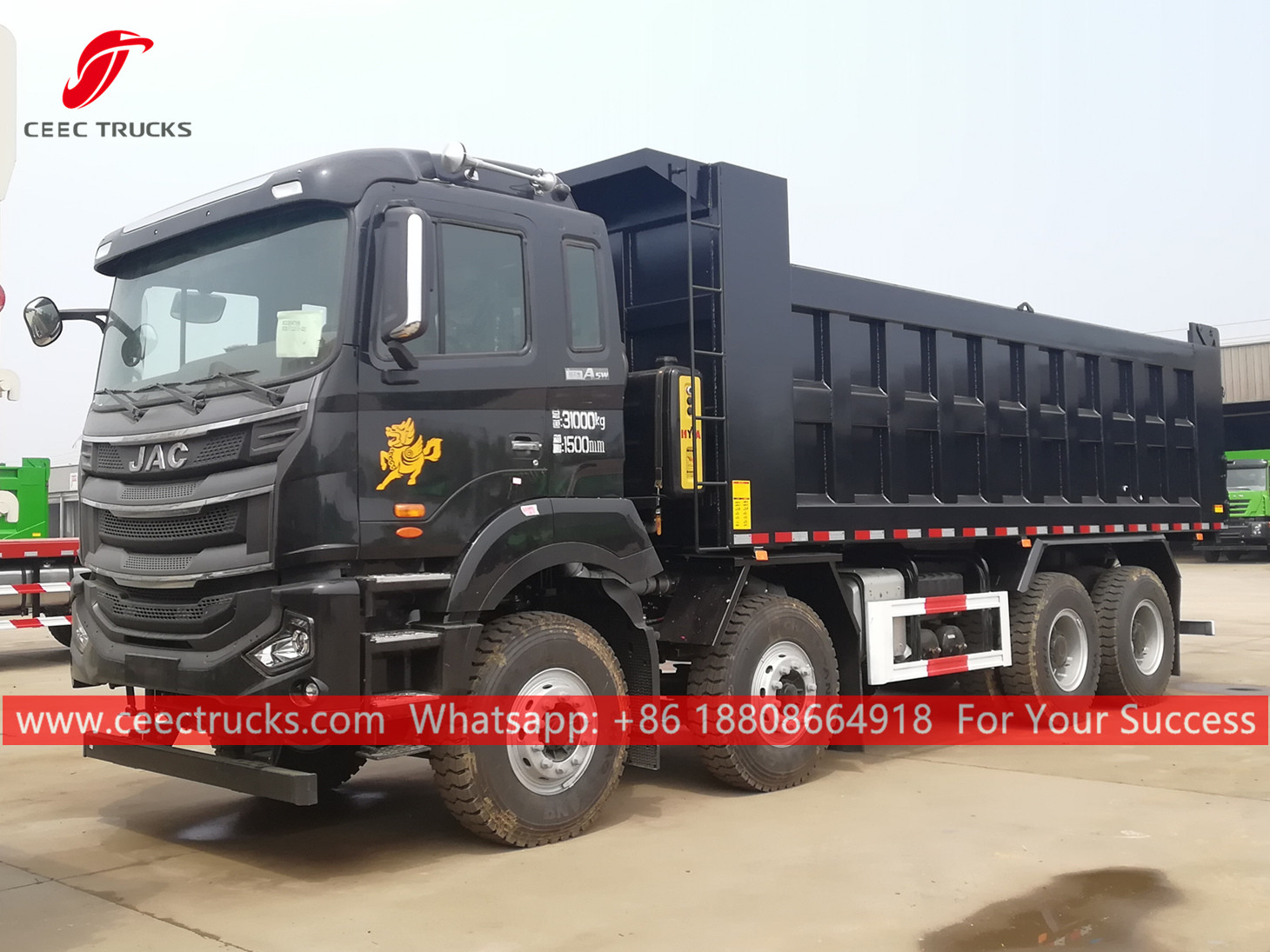

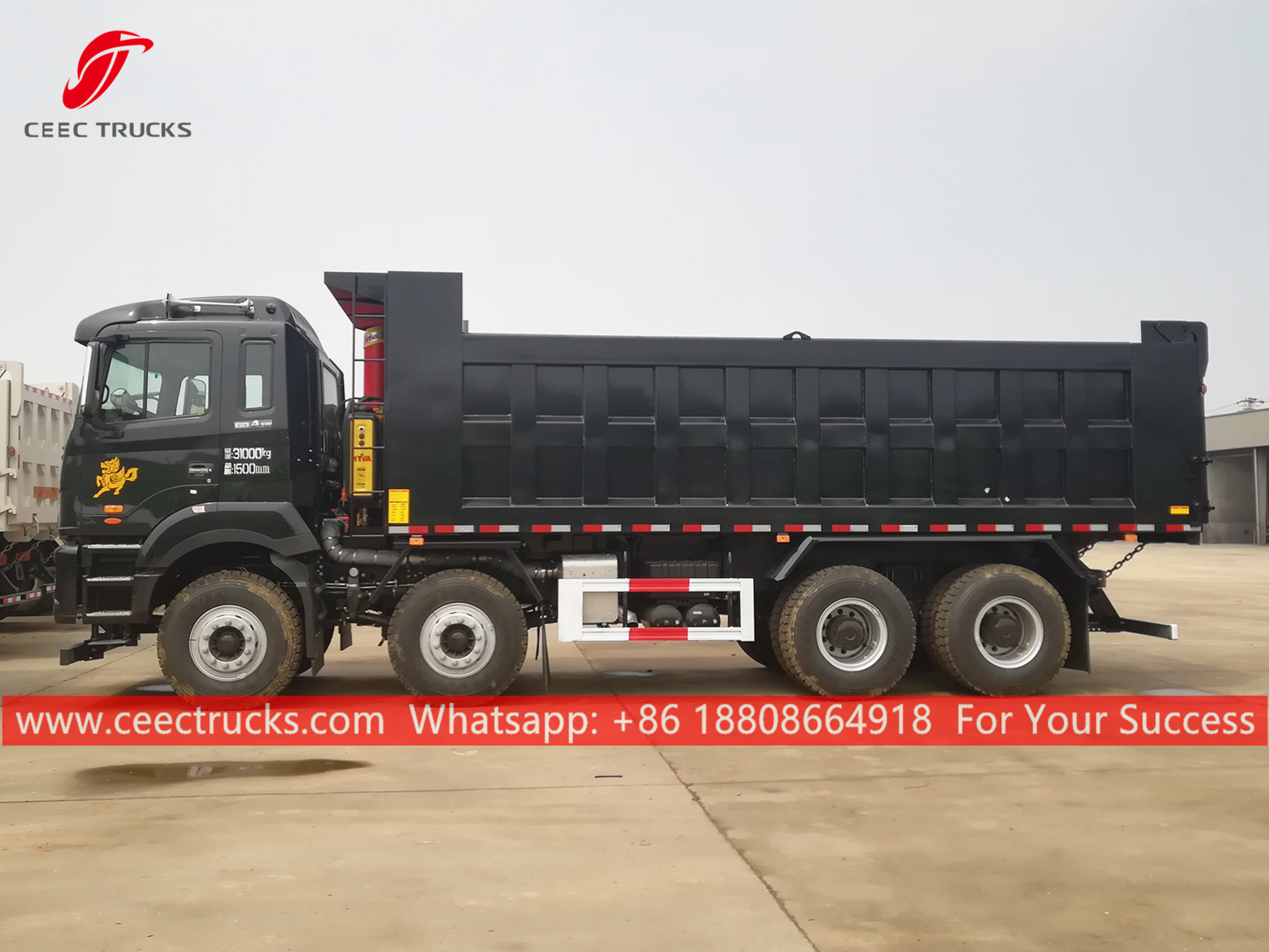

JAC 8*4 Heavy-duty Tipper truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
JAC
|
|
Overall Dimension
|
10545 * 2500 * 3500 mm
|
|
GVW / Kerb Weight
|
31,000kg / 15,450kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI diesel engine
|
|
Power
|
310 HP (228 KW)
|
|
Displacement
|
9726 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
8X4 (LHD or RHD)
|
|
Transmission
|
FAST 10 speed levers with 2
reverse
|
|
Wheelbase/No. of axle
|
1800+3800+1350 mm / 4
|
|
Tire Specification
|
12.00R20
|
|
Tire Number
|
12 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
60 Tons
|
|
Cargo body
|
7600*2300*1500
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|
Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|
Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
According to wish
|
|

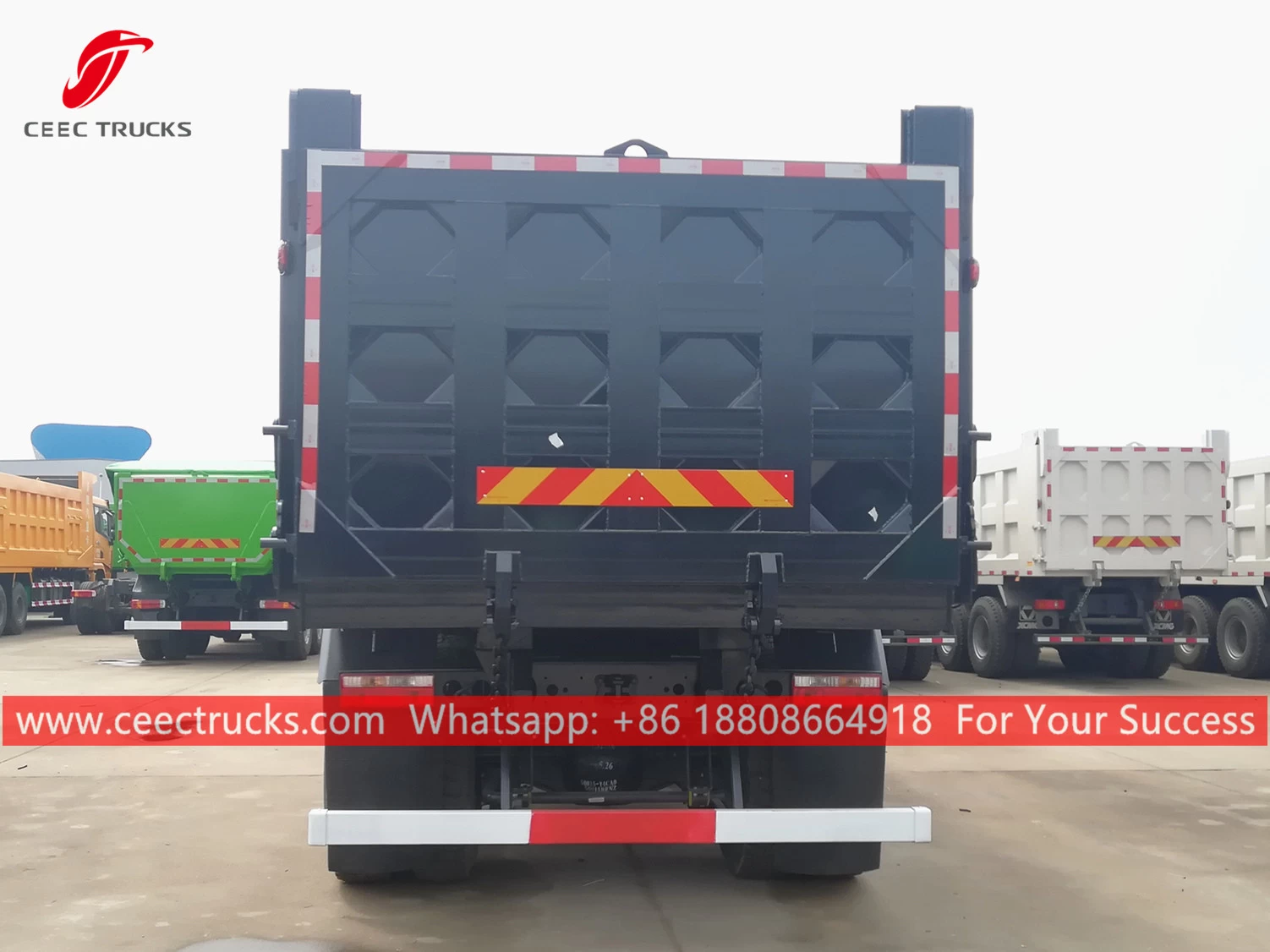

All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
