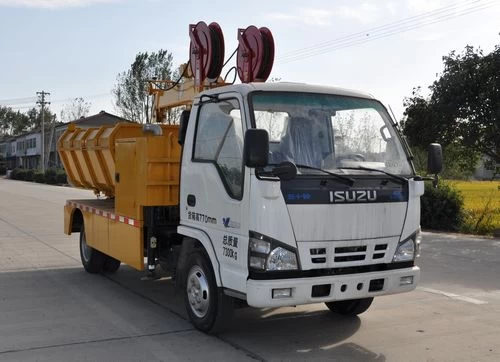

Japanese Isuzu Sewage Dredging Equipment Sewer Jetting Trucks
Product Note:
1.ISUZU 4*2 chassis,95hp
2 Factory direct sale, low price
3 Professional technology
4 Clean cellar well, load 5 ton
Main parameter of 4*2 ISUZU Scenting Well Dredging Truck 5ton
Main Technical Parameter
|
Product Name
|
ISUZU Scenting Well Dredging Truck
|
Product Brand
|
ISUZU
|
Overall Dimension(mm)
|
5970×1980×2670
|
Related Payload(kg)
|
5000
|
Cargo Dimension(mm)
(L*W *H)
|
3000*1980*600
|
Curb Weight (kg)
|
3740
|
Wheelbase (mm)
|
3360
|
Number of Axles
|
2
|
F/R Suspension(mm)
|
1032/1638
|
Max Speed(km/h)
|
90
|
Cab Allowed Persons
|
3
|
Cab type
|
One and half row cab
|
Chassis Technical Parameter
|
Chassis Model
|
NKR77
|
Chassis Manufacturer
|
ISUZU
|
Gear Box
|
5 speed forward and 1 reverse
|
Transmission type
|
Manual
|
Steering Type
|
LHD
|
Brake System
|
Air brake
|
Leaf Spring No.
|
8/9+5,6/8+4
|
Number of Tire
|
6 and a spare
|
Drive Type
|
4x 2
|
Tire Spec.
|
7.00-16
|
Engine Technical Parameter
|
Engine Model
|
4KH1-TC
|
Engine Brand
|
ISUZU
|
Fuel Type
|
Diesel
|
Emission Standard
|
Euro 3
|
Displacement ( ml )
|
2999
|
Power (KW)
|
88(120hp)
|
Superstructure equipment and Parameter
|
1. Equipped with front outrigger, one Grapples or grapnel, one carbon cargo box
|
2 It can catch stone, rock, Silt, etc in the Cellar well, Reduce labor intensity, save human resources
|
3. Don’t remain any stains in the working place, reduce secondary pollution
|
Production Feature
|
high efficiency, safe, environmentally friendly
|
Warranty
|
12 months, from the date of supply
|
