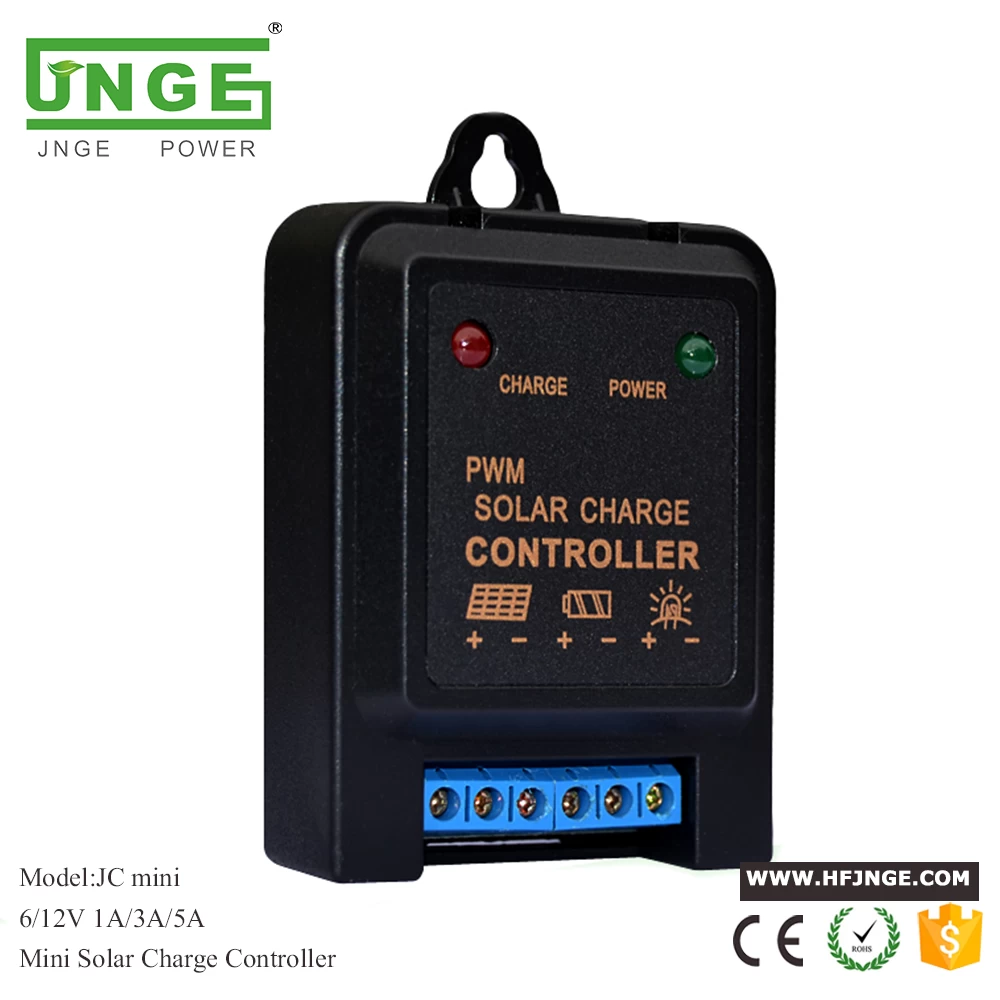

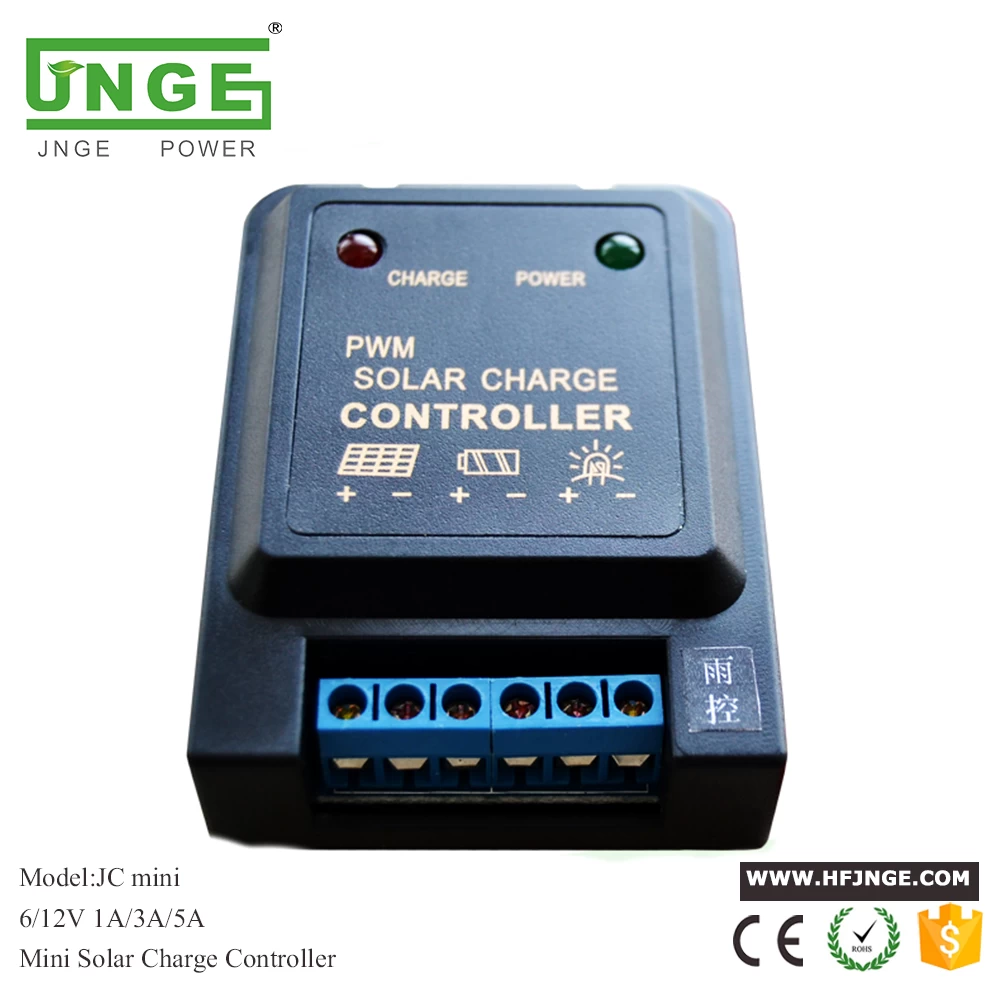

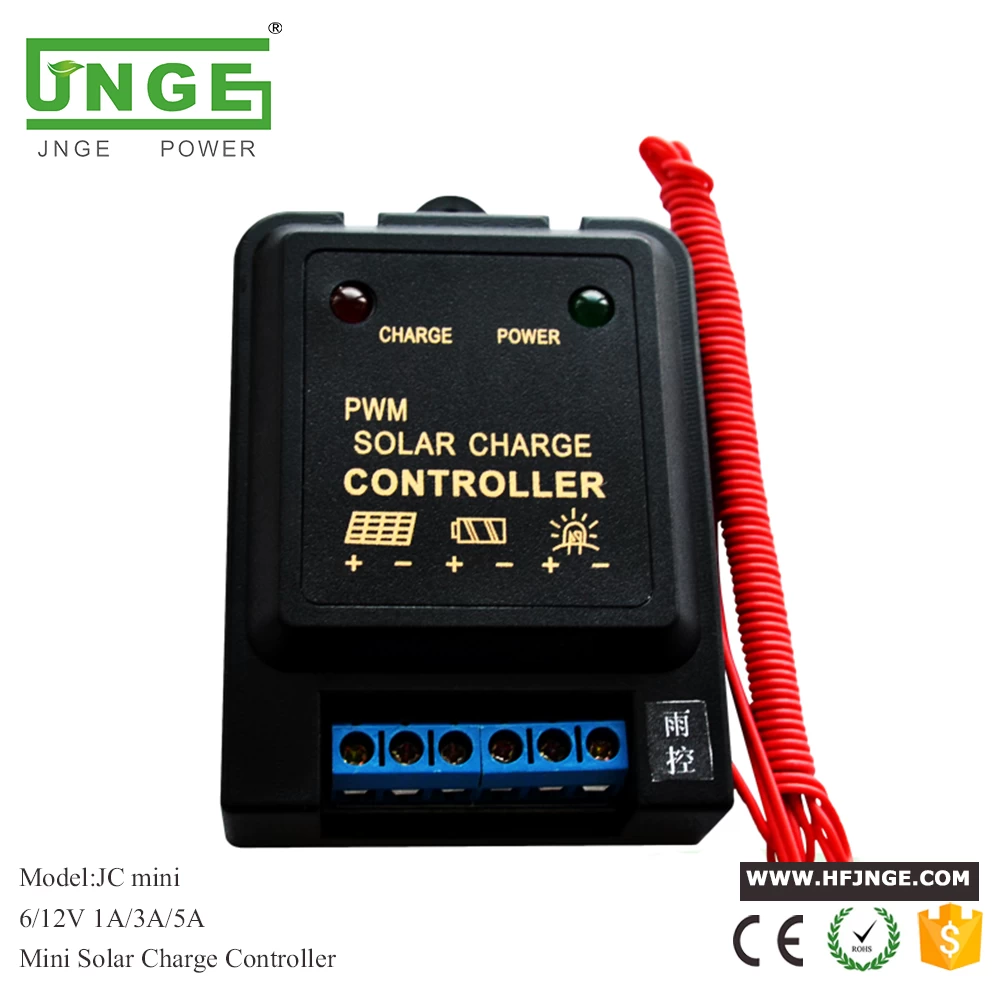

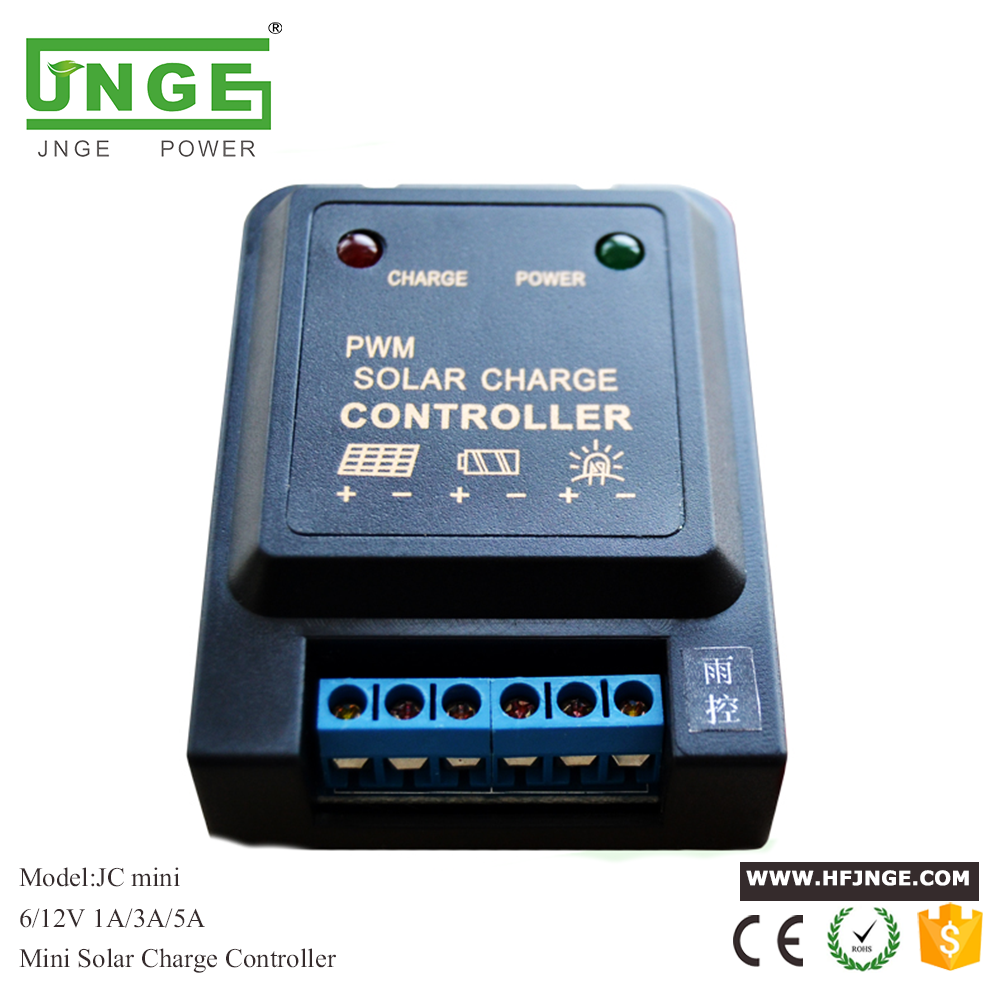

JC Mini Solar Insecticidal lamp Controller PWM 6V 12V 1A 3A 5A

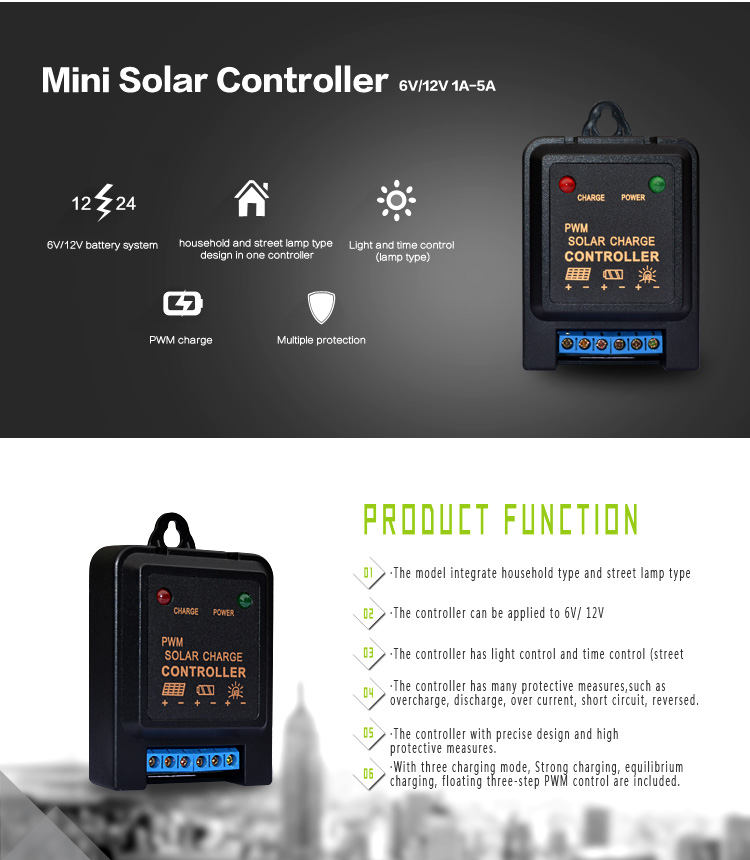

This JC Mini Solar Insecticidal lamp Controller is a new generation intelligent controller integrate with charge and discharge function, it has strong stability and long lifetime. This series with battery voltage automatic identification function, PWM charging mode and comprehensive protection function,such as overcharge, over-discharge, over-current, short-circuit, reversed.



JC mini Series Solar Controller



Specifications

Model

JC

Rated Voltage

6V/12V

Strong charging pressure

7.4/14.8V

Equilibrium charging

7.25/14.5V

Float charging pressure

6.85/13.7V

Under voltage

5.4V/10.8V

Under recover voltage

6.5/13V

Non –load current

≤6mA

Charging circuit voltage drop

≤0.2V

Discharge circuit voltage drop

≤0.1V

Maximum charging current

1A 3A 5A

Maximum load current

1A 3A 5A

Controller protection

overcharge, over-discharge, over-current, short-circuit, reversed

Charging Mode

PWM Charging Mode

Using  elevation

≤5500m(more than 2000m should be used in lower power

Working temperature

20℃55℃

Gross Weight (KG)

0.05KG

Net Weight (KG)

0.035KG

Product size(Length*Width*Height)

79.5mm*52mm*21.5mm

Protection level

IP22
