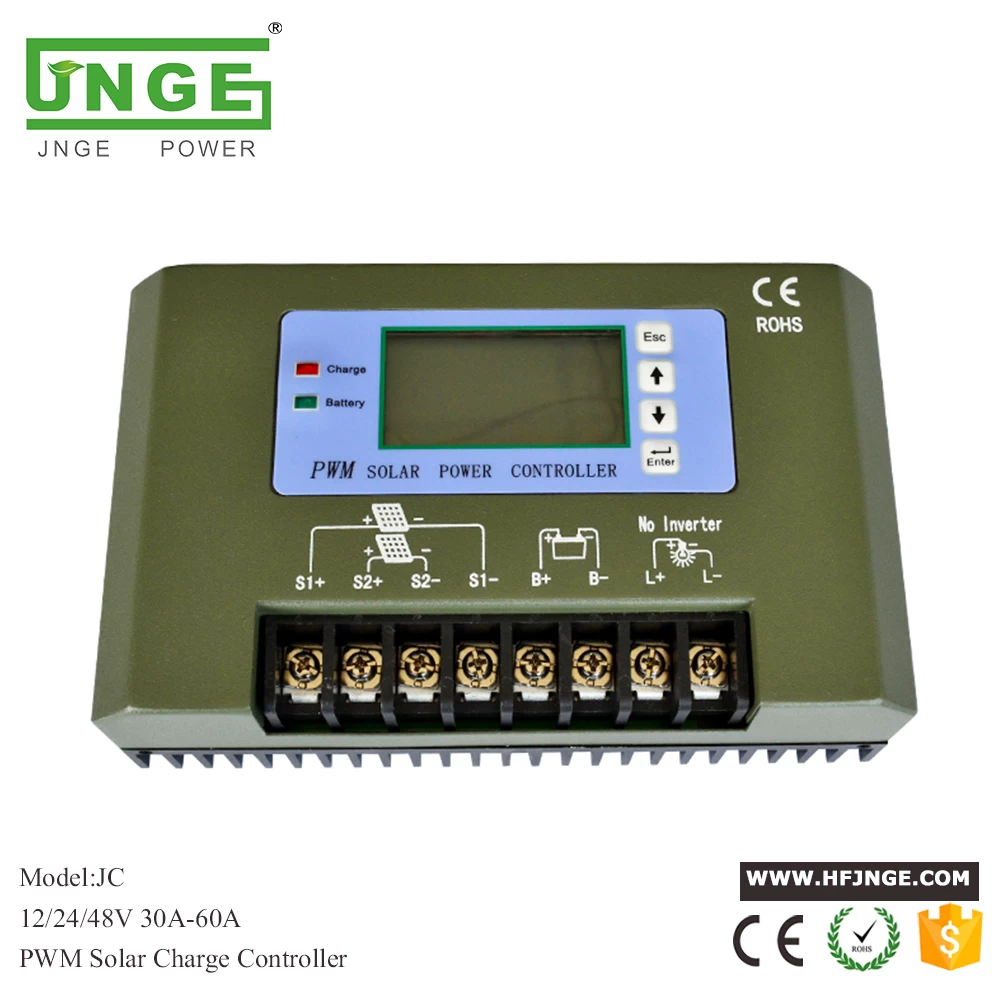

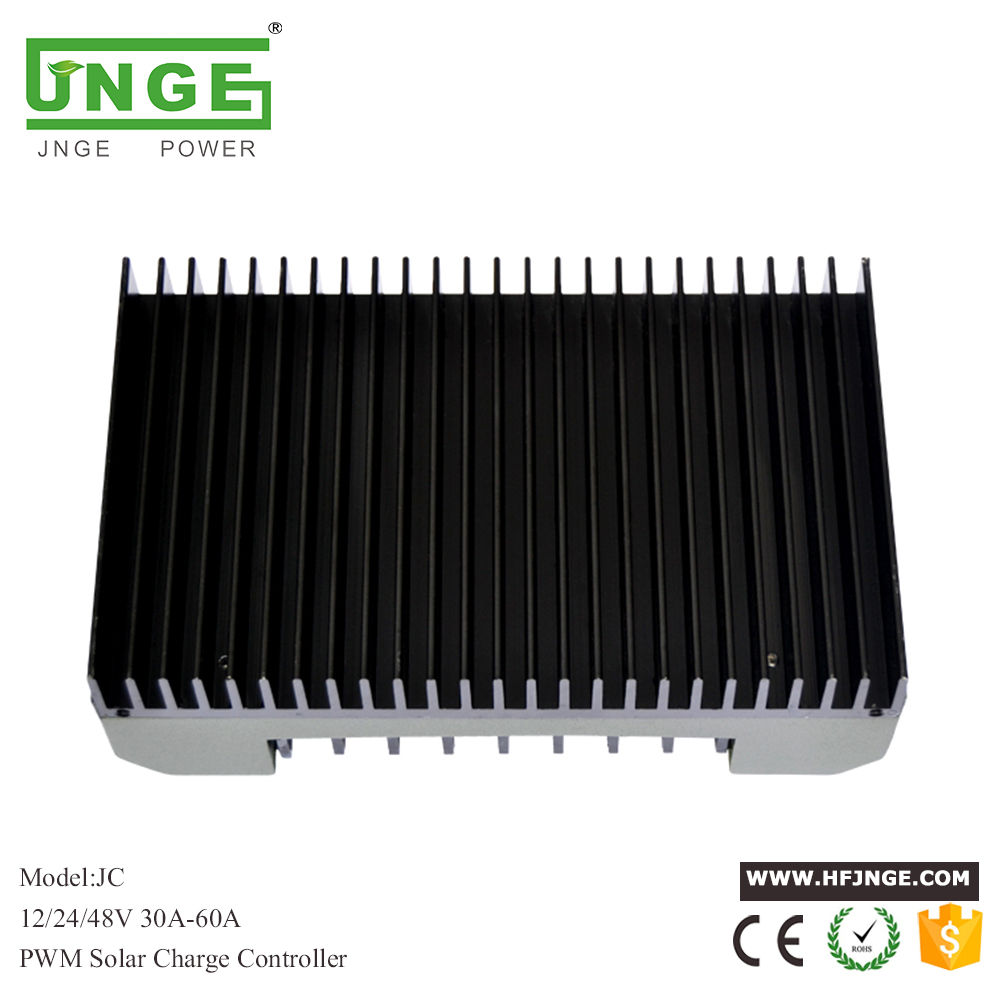

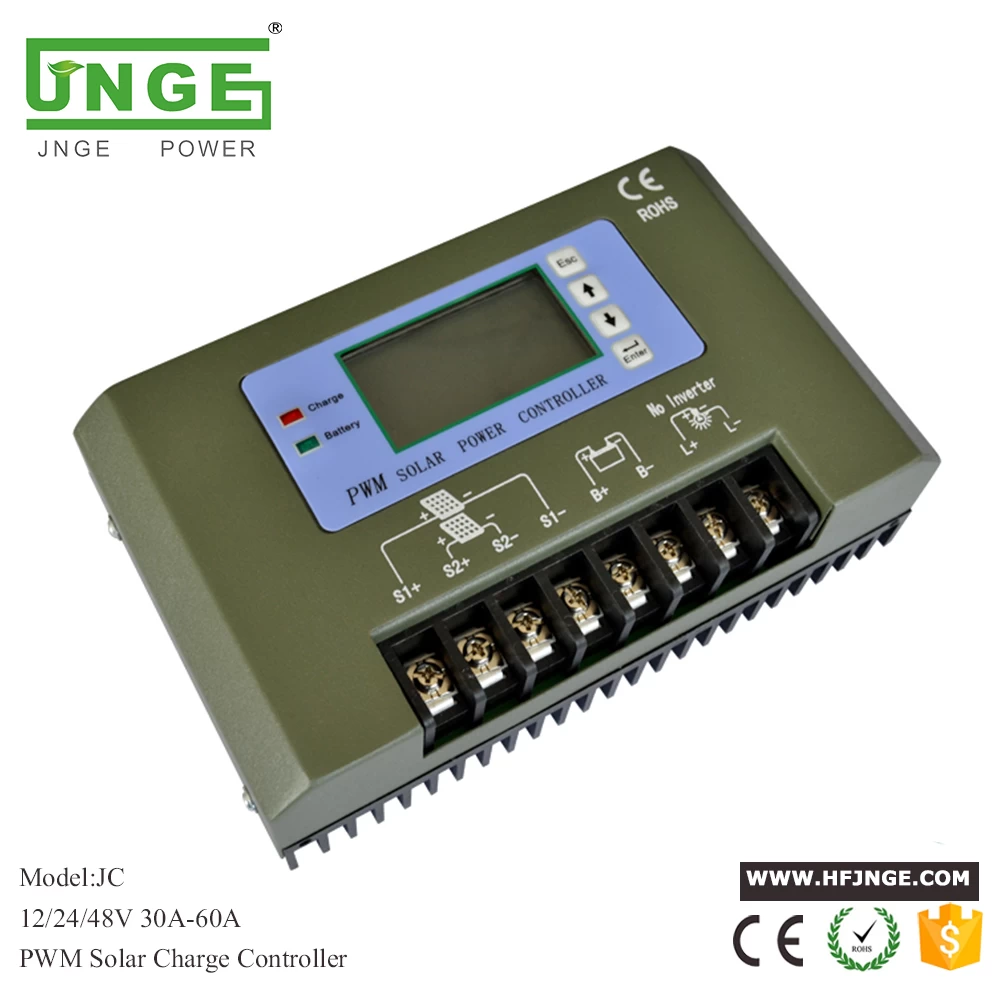

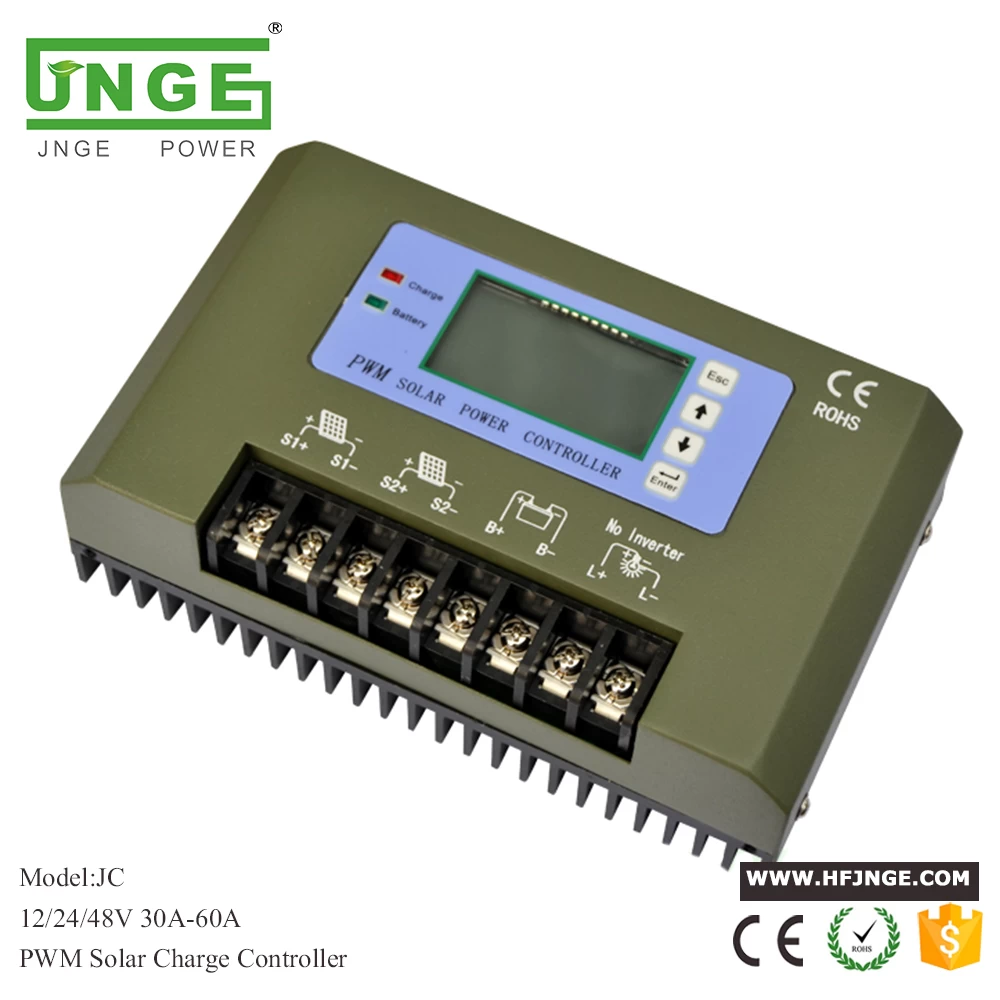

JC-S PWM solar charge controller 30A/40A/50A/60A with Lcd display
Protection Function:
Battery Overcharge and charge protection;
Battery open-circuited protection;
Load over-voltage protection;
Reversed charge protection at night;
Solar Cells reversed protection;
Battery reversed protection.
Specifications
|
Model
|
JC1230
|
JC2430
|
JC1230
|
|
System rated voltage
|
48V
|
24V
|
12V
|
|
MAX. Input power
|
1500W
|
750W
|
360W
|
|
Current
|
Charge
|
30A
|
30A
|
30A
|
|
Discharge
|
30A
|
30A
|
30A
|
|
Charge
|
Average charge
|
57.6V±1%
|
28.8V±1%
|
14.4V±1%
|
|
Recover
|
53.2V±1%
|
26.6V±1%
|
13.3V±1%
|
|
Float charge
|
(54.0-55.2V)±1%
|
(27.0-27.6V)±1%
|
(13.5-13.8V)±1%
|
|
Temperature compensator
|
-72mV/℃
|
-36mV/℃
|
-18mV/℃
|
|
Start voltage
|
49.2±1%
|
24.6V±1%
|
12.3±1%
|
|
Over discharge
|
Switching off
|
44.4V±1%
|
22.2V±1%
|
11.1V±1%
|
|
Recover
|
52.8V±1%
|
26.4V±1%
|
13.2V±1%
|
|
Over voltage
|
Switching off
|
66V±1%
|
33V±1%
|
16.5V±1%
|
|
Recover
|
60V±1%
|
30V±1%
|
15V±1%
|
|
No-load current
|
≤10mA
|
≤10mA
|
≤10mA
|
|
Solar control open voltage
|
≤8V±1%
|
≤4V ±1%
|
≤2V±1%
|
|
Solar control shut voltage
|
≥28V±1%
|
≥14V±1%
|
≥7V±1%
|
|
Max open circuit voltage
|
100V
|
50V
|
25V
|
|
Display
|
LCD+LED
|
|
Work temperature
|
-25℃~+55℃
|
|
Using altitude
|
≤5500m(above 2000m need reduced the power)
|
|
Size and weight
|
180mmx107mmx55mm 0.95Kg
|
