Brief introduction:

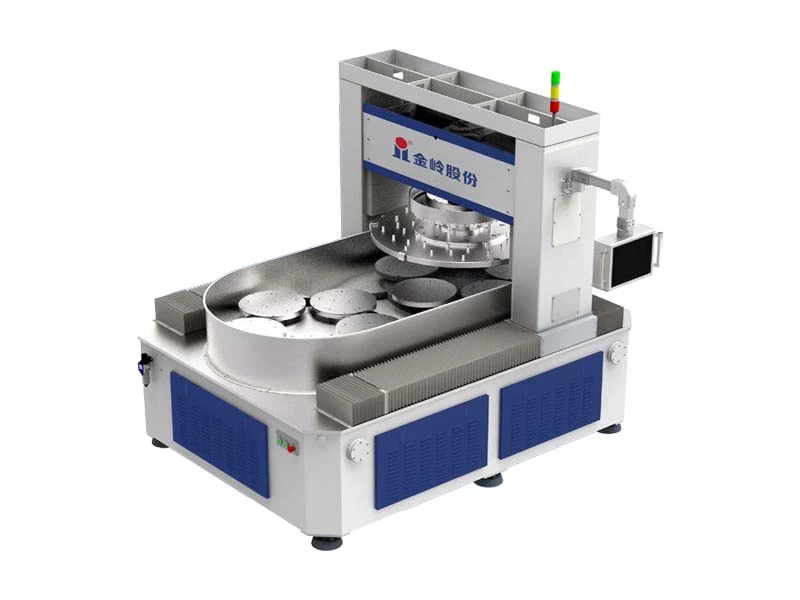

This machine is mainly used in mobile phones of non-metallic materials such as glass and ceramics. 2.5D, 3D cover polishing. And also for metal material back cover such as aluminum alloy.
Detailed specification:
|
Model
|
Unit
|
JL-P1140
|
Workpiece plate(Outer dia. × thickness)
|
mm
|
φ408×14（High strength aluminum alloy）
|
polishing plate (Outer dia.)
|
mm
|
φ1140
|
Number of polishing heads
|
Pieces
|
5
|
Workpiece plate rotation speed
|
rpm
|
2 ～ 45±2
|
Workpiece plate revolution speed
|
rpm
|
1 ～ 12
|
Polishing plate speed
|
rpm
|
2 ～ 90±2
|
Polishingplatelifting stroke
|
mm
|
350
|
Machine dimension (L×W×H)
|
mm
|
1900×1500×2800
|
Machine weight
|
Kg
|
3000
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Agents Wanted:
We have partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. Wherever you are from, we are looking forward to explore new market with you.
