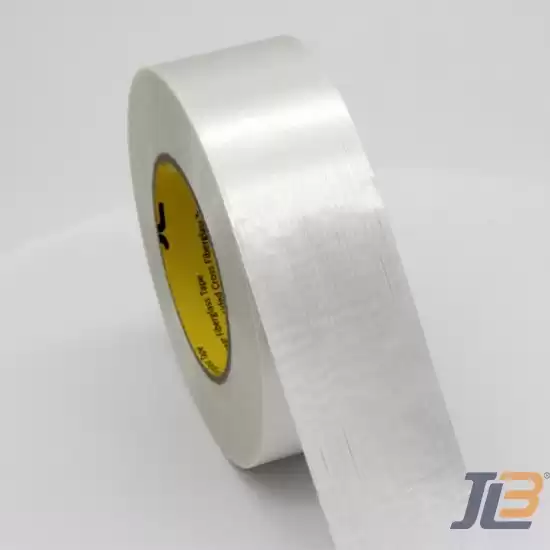

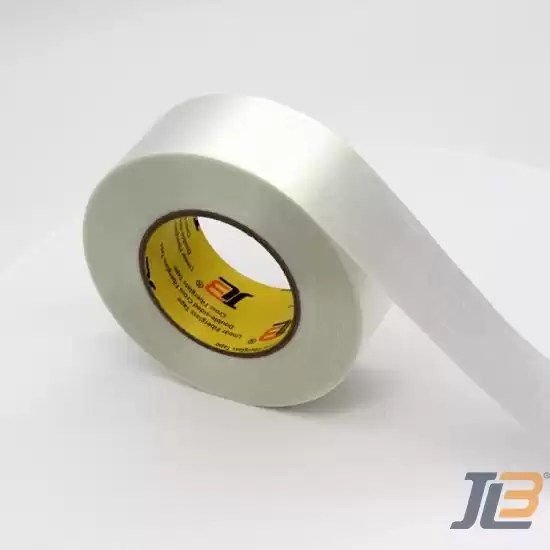

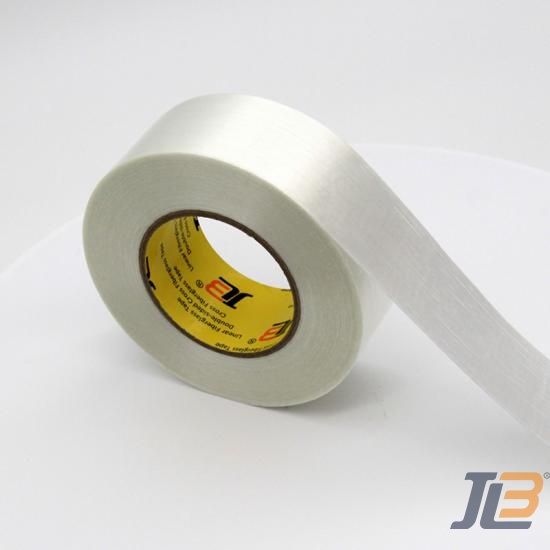

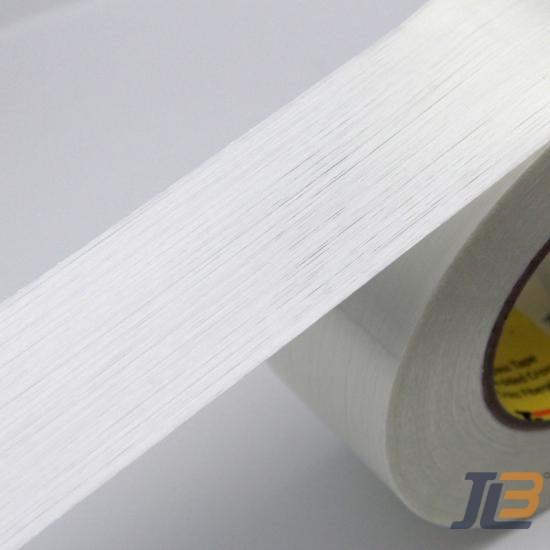

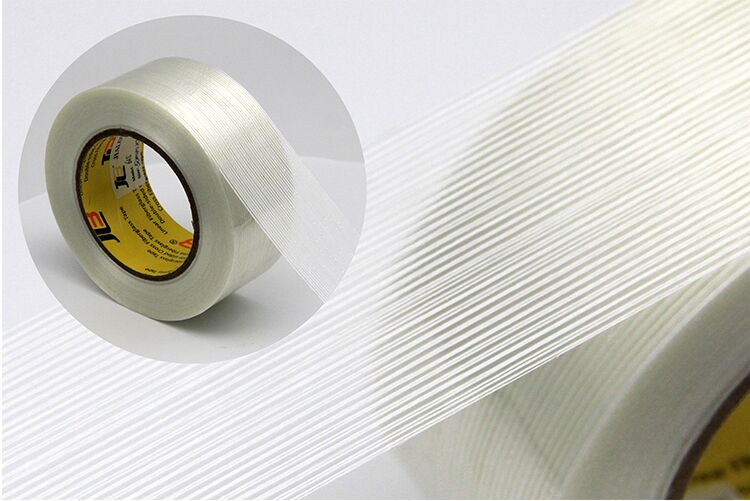

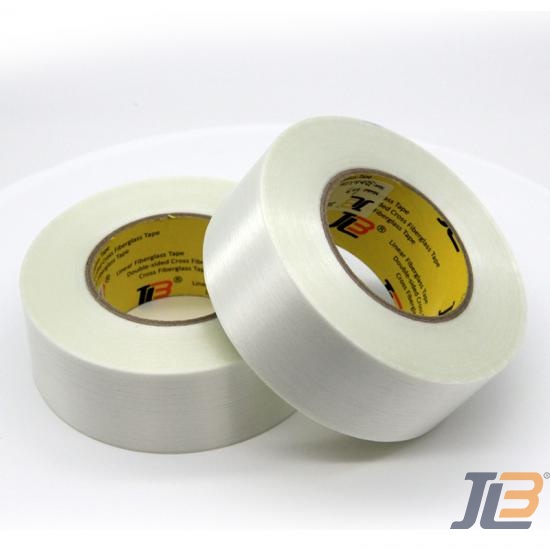

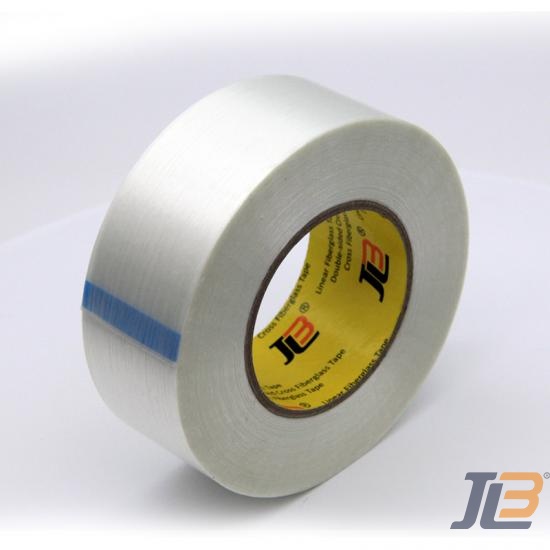

JLT-609 Cohesive Mono Filament Tape

Transparent Reinforced Filament Tape. Also Known as Heavy Duty Two Sided Tape, Reinforced Clear Tape, in Bopp or Pet Film, Adding Glass Fiber or Chemical Fiber Reinforcementm, Can Make The Tape Have Higher Tensile Resistance, and The Improved Synthetic Rubber Adhesive Has Stronger Adhesion, High Wear Resistance and Impact Resistance and High Retention.


  • ColorTransparent
  • AdhesiveSynthetic Rubber
  • Backing PET
  • Reinforcement Fiberglass

Product Features




JLT-609 is a transparent and super high strength filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers stronger adhesion; good adhesion to the surface slightly stained by oil and without residue left; high resistance to abrasion; impact resistance and high holding power.


TDS


Physical Properties Standard     Metric Test Method
Reinforcement Fiberglass
Adhesive Synthetic Rubber
Backing PET
Color Transparent
Total Thickness 7.8 mils 0.20 mm ASTM D-3652 GB/T7125
Peel Adhesion 90°  72 oz/in  20 N/25mm  ASTM D-3330  GB/T2792
Holding Power ≥48 h ≥48 h ASTM D-3654  GB/T4851
Tensile strength 337 lbs/in 1500 N/25mm ASTM D-3759 GB/T7753
Elongation at break 5-7% 5-7% ASTM D-3759  GB/T7753
Service Tem. - Mini 14℉ -10 BC/BD-220SE BC/BD-220SE
Service Tem. - Max  176 80 DHG-9055A DHG-9055A


Product Application

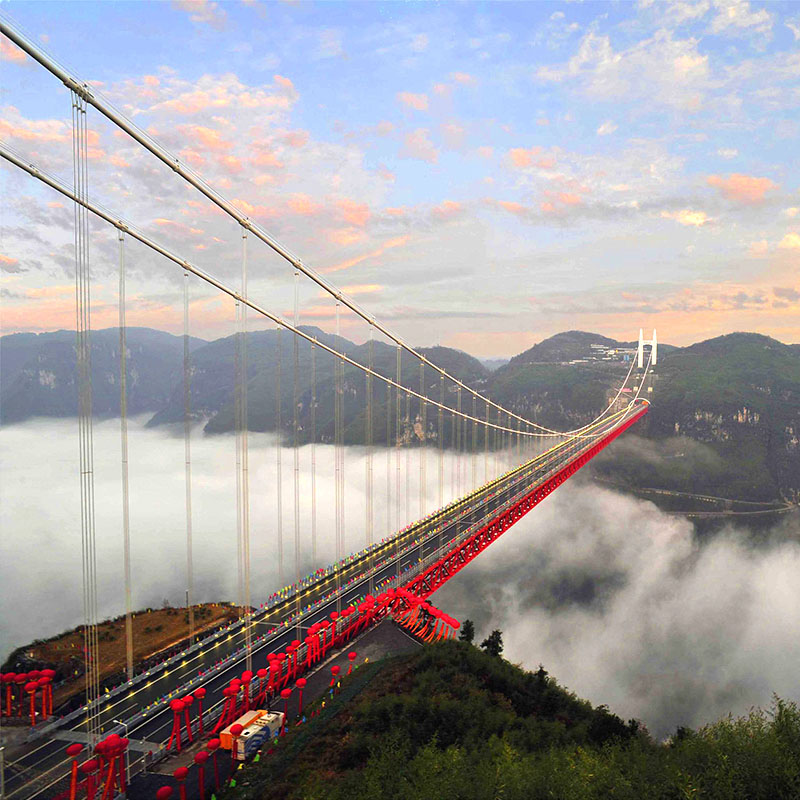

Suitable for bundling of wire rope of bridge, bundling of steel cable and fixing, super high tensile. strength.

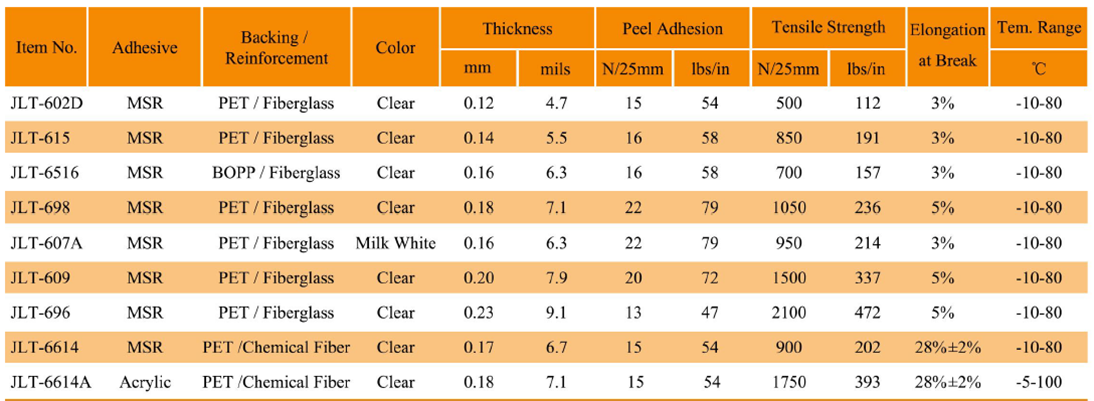

Other Related Products




· JLT-602D: Metal, rubber products, household appliance and furniture securing and stabilizing; Uility.
· JLT-615, JLT-6516: Metal, rubber products, household appliance and furniture securing and stabilizing; Medium strength.
· JLT-698, JLT-607A: Glass, metal, rubber products, household appliance and furniture securing and stabilizing; High strength.
· JLT-609, JLT-696: Bundling of the steel wire rope of the bridge, glass products, fixing of steel rolls; High strength.
· JLT-6614, JLT-6614A: Bundling of the steel wire rope of the bridge, and other occasions where high elongation at break is required; High strength.
