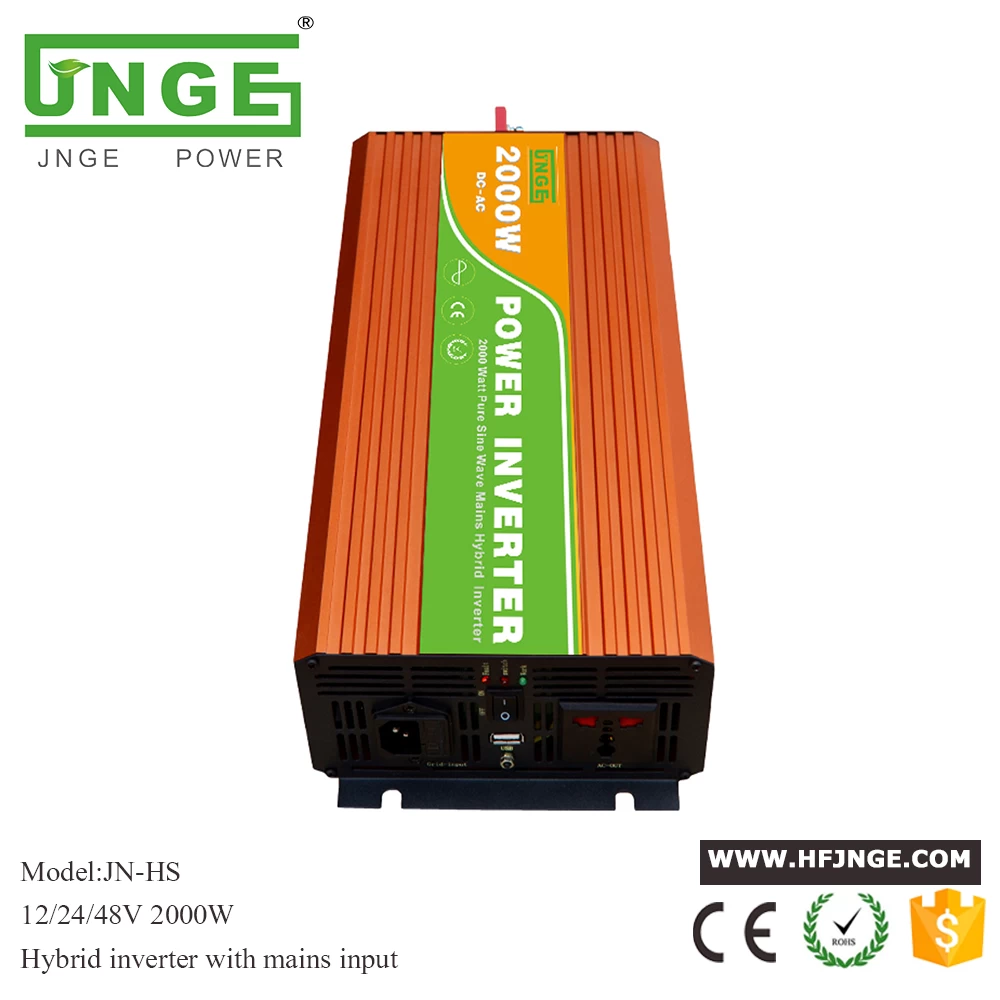

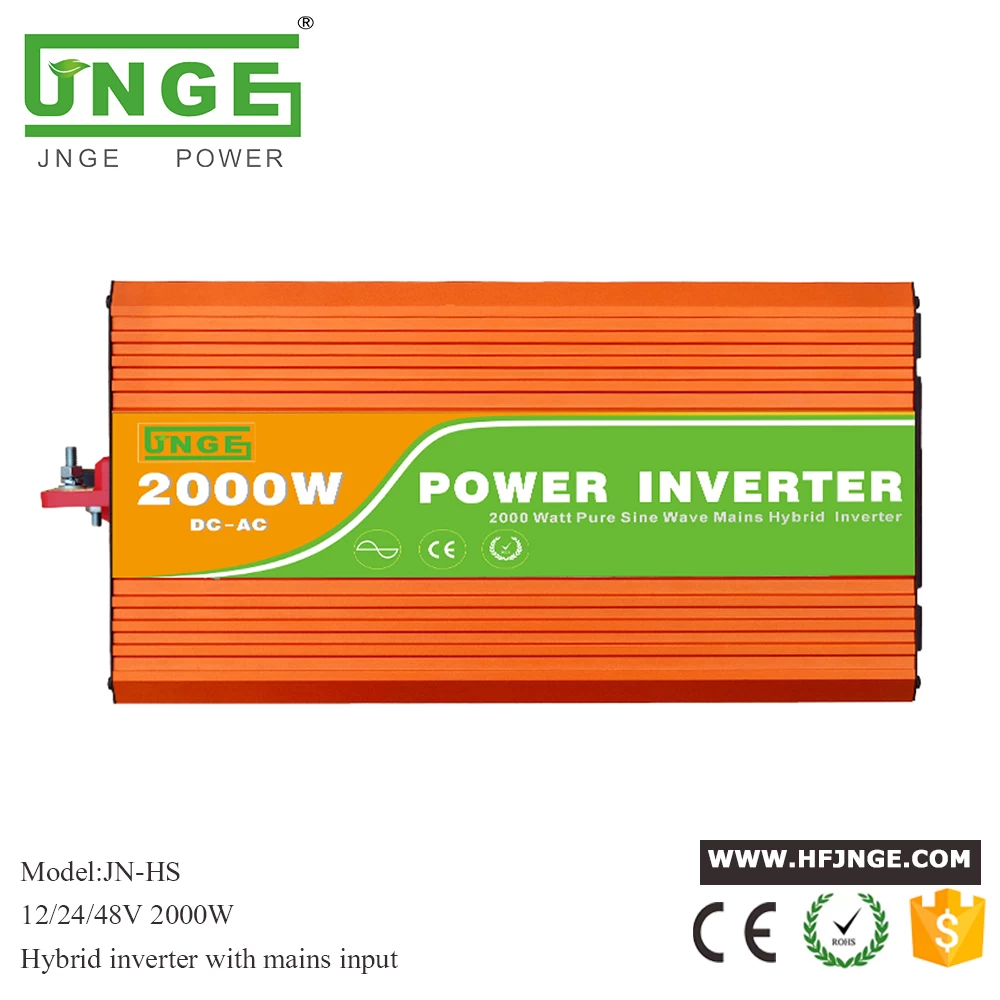

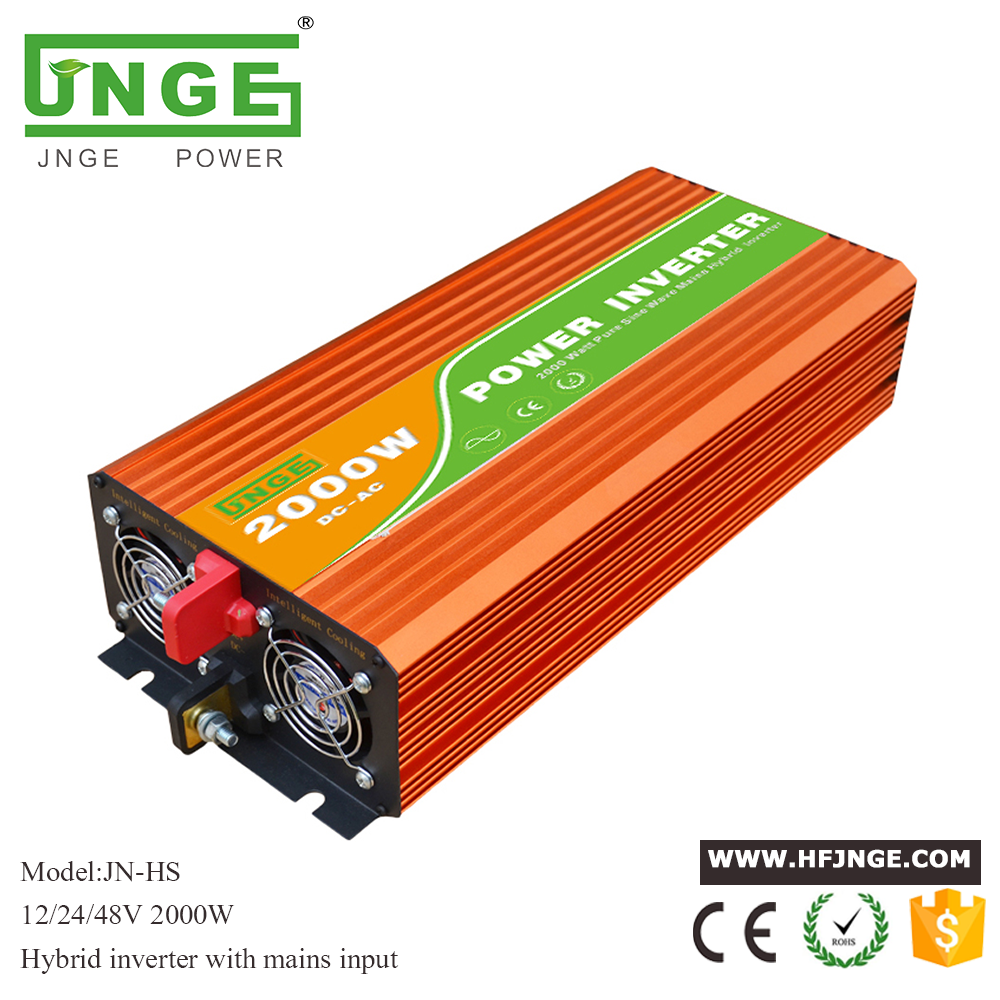

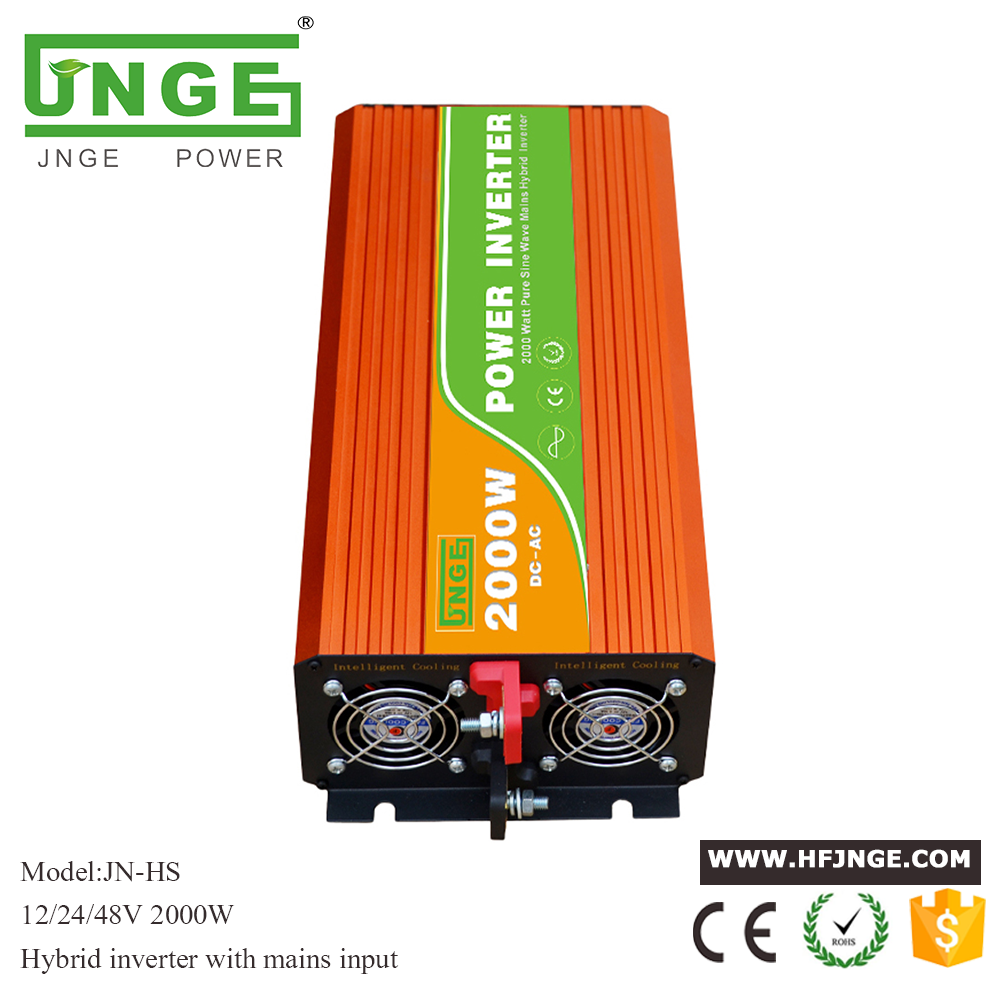

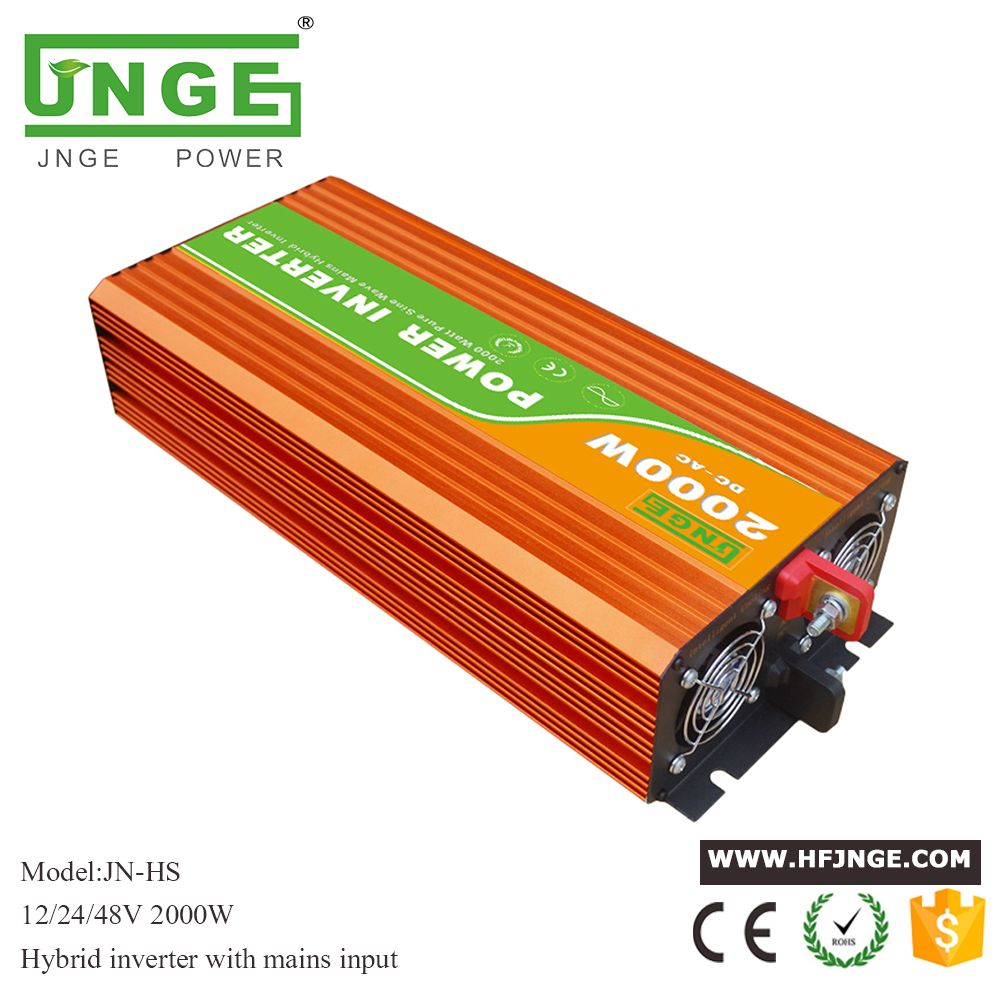

JN-HS 2000w AC grid hybrid power inverter

·Small, light and artistic, benefited from adopting the SMD pastern technology.
·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.



This is a 2000W 12V 24V 48V 96V (optional) pure sine wave power inverter hybrid type which can generate 2000W of continuous power and up to 4000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads


Parameter

SWITCH  Battery working in priority or AC mains working in prioroty can be set as your desire.
OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 2000W
SURGE POWER 4000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <12W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC          21-30VDC        40-60VDC
PROTECTION WORKING INPUT

12VDC               24VDC              48VDC

FUSE 35A                     20A                     15A
Low battery alarm 10.5±0.3V           21+0.5V             42+0.5V
Low battery shut down 10±0.5V              20+0.5N              40+0.5V
Over voltage shut down 15.5±0.5V           30.5+0.5V            60+0.5V
Over load shut down 2400W over 10 seconds
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  390*180*90mm
INNER BOX DIMENSION  430*223*160mm
CARTON DIMENSION   540*530*210mm
NET WEIGHT 5.0±0.2KG
GROSS WEIGHT 12±1KG
PACKING 2PCS/CTN
