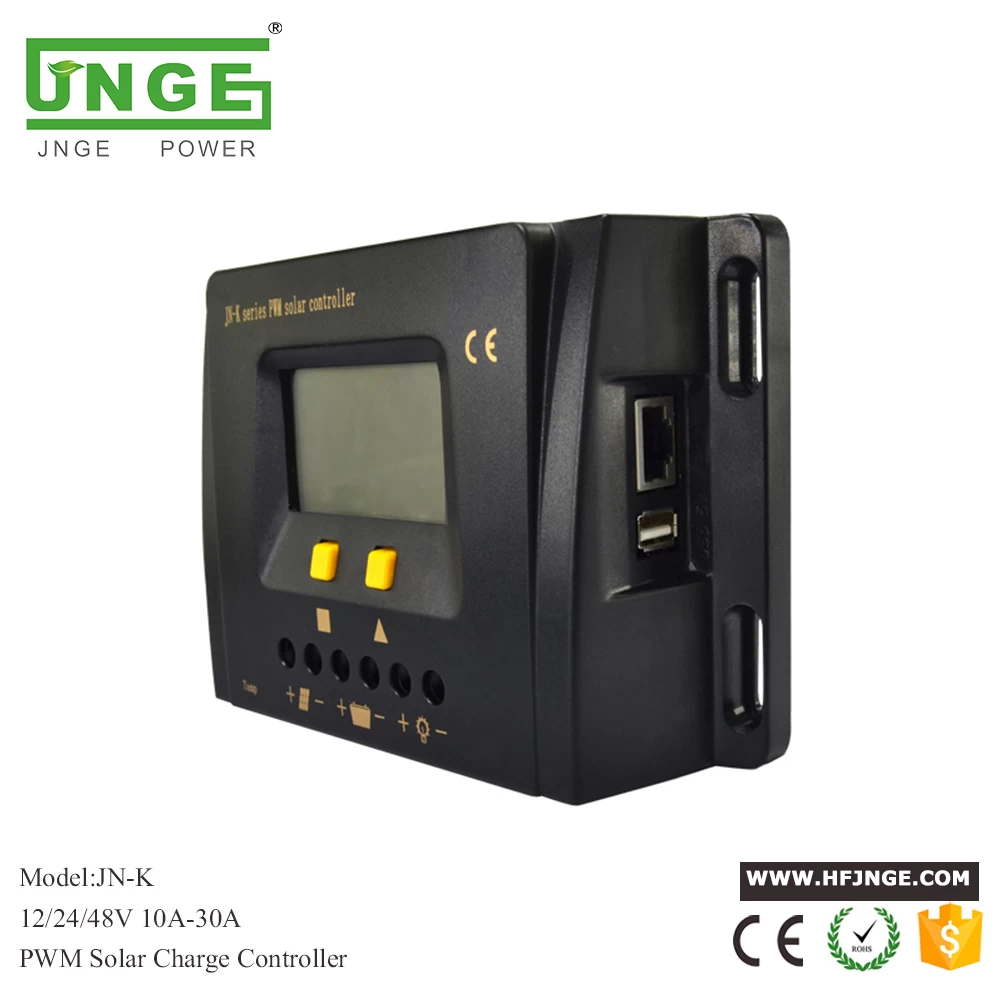

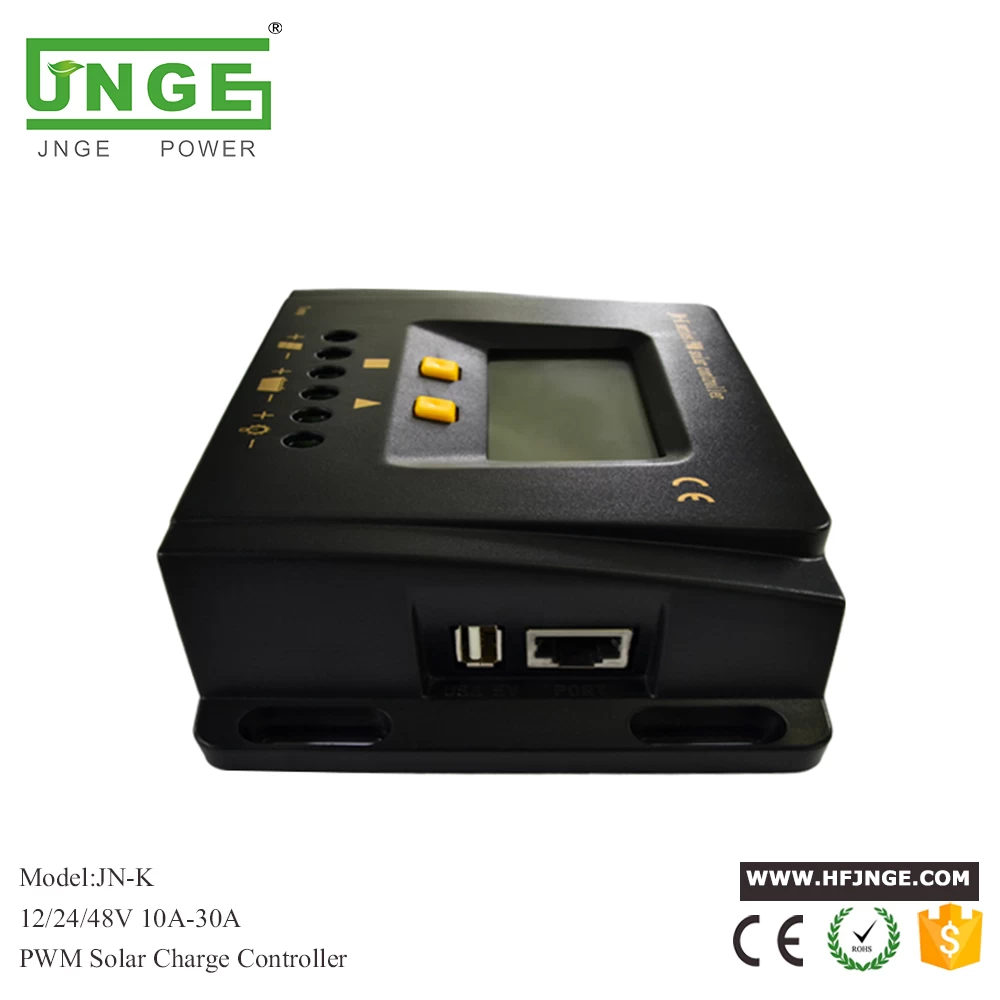

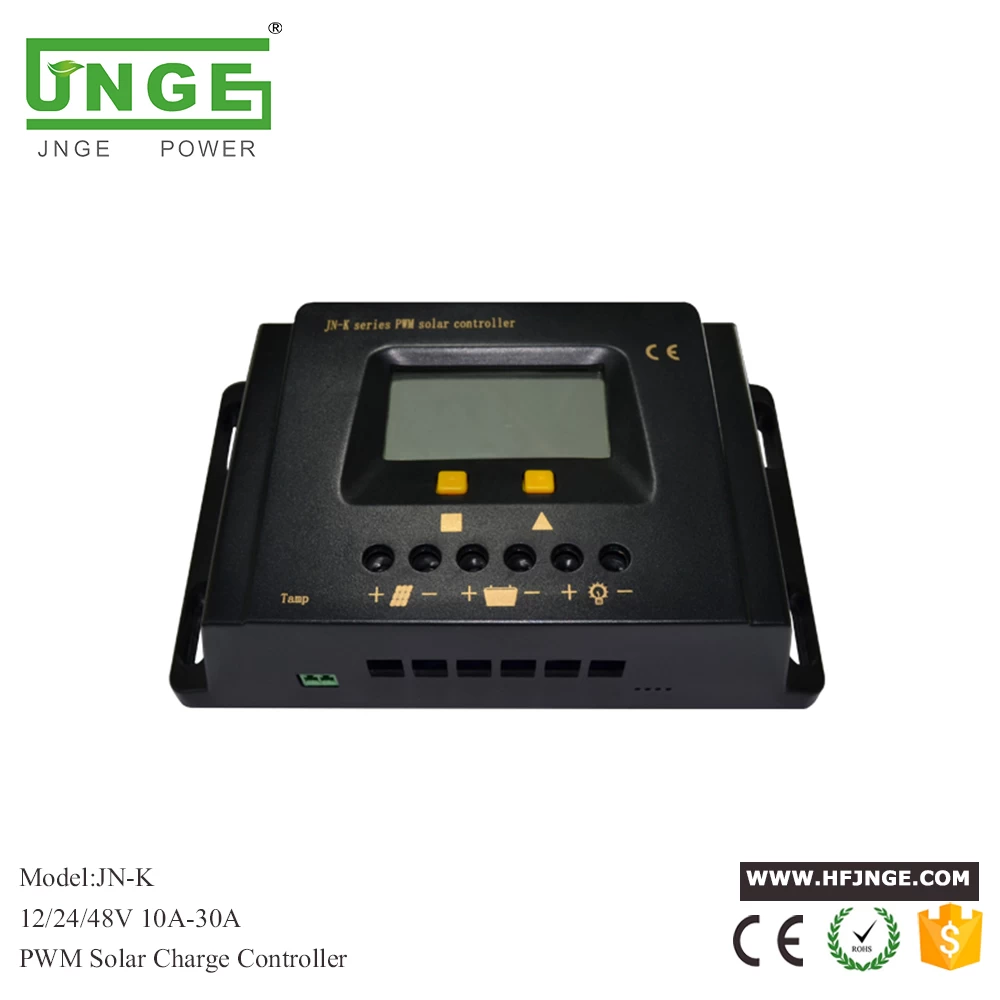

JN-K DC 12V 24V 48V automatic recognition smart pwm solar charge controller 10A 20A 30A
The controller is suitable for the automatic
control of charging and discharging process in the off-grid solar system
(independent system). The battery charging and discharging process of the
controller is optimized, which can prolong the life of the battery and improve
the performance of the system. The comprehensive function of self testing and
electronic protection function can avoid the installation errors and system
failures which can cause the controller damage.
-
Use CPU processor superior speed performance
-
Common cathode circuit design makes the system more stable and reliable.
-
The high precision A/D sampling to ensure the accuracy of sampling
-
12V/24V automatic identification system voltage or 48V battery voltage
-
Imported MOSFET as power switch, low loss, high reliability
-

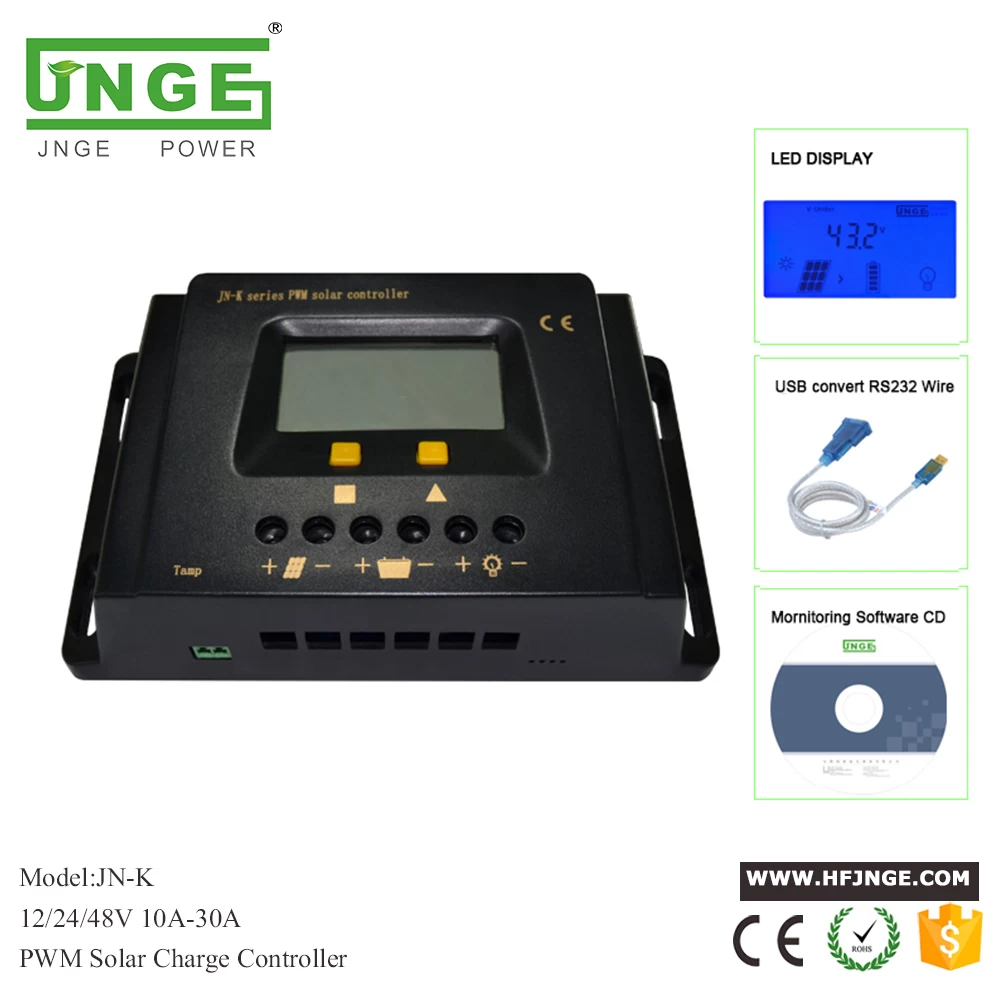

LCD display and keypad interface, complete menu display and operation
-

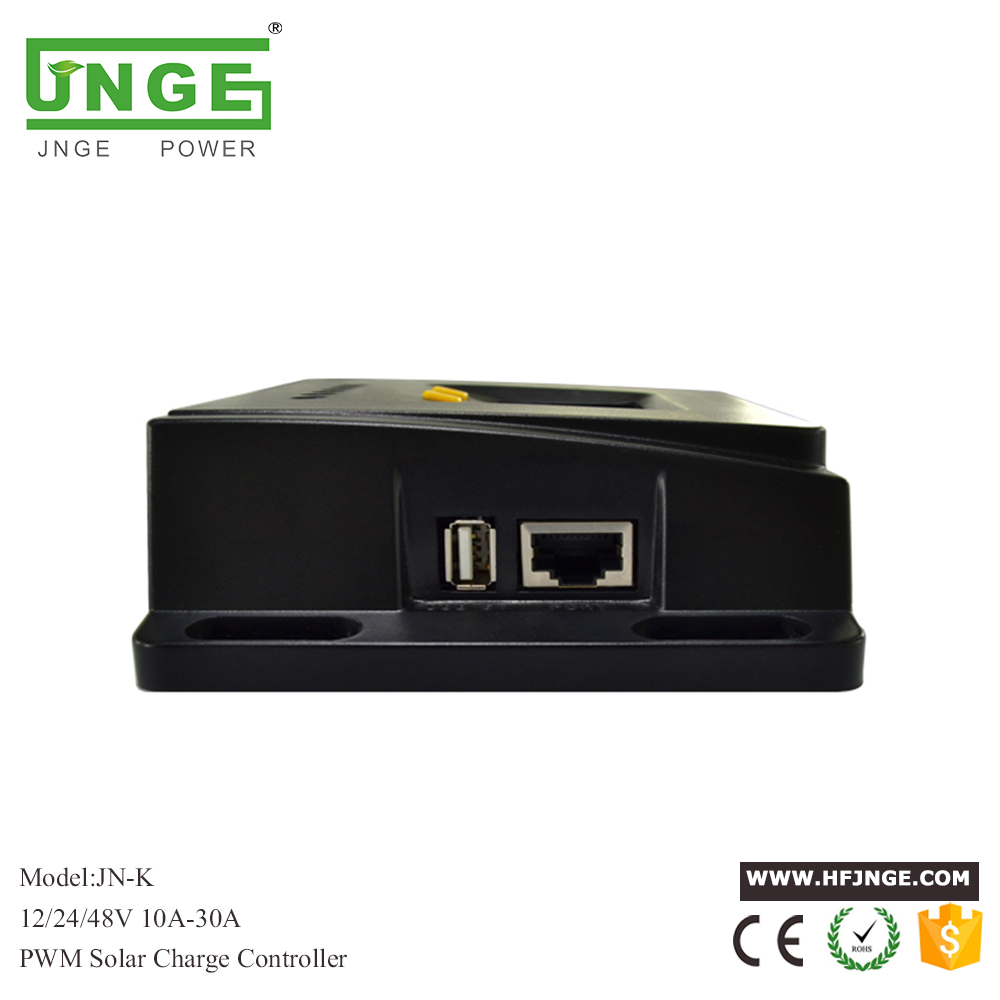

Use of RS-232 communication, the communication speed and communication protocol compatibility are very well
-
The controller with over temperature, over discharge, overload, short circuit protection function
-
The photovoltaic array and reverse battery protection function
-
The 5V DC output, can supply power for the mobile phone or digital products
Product Parameters:
|
Electrical parameter
|
|
Item
|
JN-K(12V/24V/48V)
|
JN-R(12V/24V/48V)
|
|
Rated voltage
|
12V/24Vauto，48V
|
|
Battery max voltage
|
15V/30V/60V
|
|
Solar panel max
voltage
|
22V/44V/88V
|
|
Rated charging
current
|
10A
|
20A
|
30A
|
40A
|
50A
|
60A
|
|
Charging line voltage
drop
|
≤0.7V
|
|
Discharging line voltage drop
|
≤0.2V
|
|
Static loss
|
0.2W
|
|
communication
|
RS232/RJ45 Interface
|
|
USB output
|
0.5A/5V
|
|
Over-temperature
protection
|
Below 75℃ full
current，75℃-90℃ half current， above 90℃ off charge
|
|
Working environment
parameters
|
|
LCD display
temperature
|
-20℃-75℃
|
|
Working environment
temperature
|
-20℃-50℃
|
|
Storage temperature
|
-30℃-70℃
|
|
Protection level
|
IP30
|
|
Mechanical parameters
|
|
Wire terminal（㎜²)
|
2.5
|
6
|
10
|
10
|
16
|
16
|
|
Size L*W*H（mm)
|
153*94*46.5
|
207.5*129*69.5
|
|
Net weight（kg）
|
0.35
|
0.38
|
0.40
|
1.30
|
1.35
|
1.40
|
|
Battery voltage parameters
（Battery voltage parameters are based on 25℃/12V system，24V system X2，48V systemX4）
|
|
Battery parameters
Battery type
|
Colloid lead acid battery
|
Sealed lead acid battery
|
Lithium iron
phosphate battery
|
Manganate
lithium battery
|
User
definition
|
|
Over-charge
disconnect voltage (V)
|
15.5
|
15.5
|
13.2
|
14.4
|
13-16
|
|
Overvoltage recovery
voltage (V)
|
14.8
|
15.0
|
12.6
|
14.0
|
13-16
|
|
Equilibrium charge voltage (V)
|
14.6
|
14.6
|
12.4
|
13.8
|
13-15
|
|
Enhance charge
voltage(V)
|
14.2
|
14.4
|
12.2
|
13.6
|
13-15
|
|
Floating charge voltage(V)
|
13.6
|
13.8
|
12.0
|
13.2
|
12-14
|
|
Under-voltage
recovery voltage(V)
|
12.6
|
12.8
|
11.5
|
12.6
|
11-13
|
|
Under-voltage shut
down voltage(V)
|
10.8
|
10.8
|
9.6
|
10.5
|
9-11
|
|
Equilibrium charge duration(min)
|
——
|
120
|
120
|
120
|
60-180
|
|
Enhance charge
duration(min)
|
120
|
120
|
120
|
120
|
60-180
|
|
Light control
voltage parameters
|
|
Light control turn on
voltage
|
Max
|
10V
|
|
Min
|
6V
|
|
Default
|
8V
|
|
Light control turn
off voltage
|
Max
|
8V
|
|
Min
|
2V
|
|
Default
|
4V
|
|
Battery temperature compensation parameters
|
|
Temperature compensation parameters
|
Max
|
0mV∕℃∕2V
|
|
Min
|
-8mV∕℃∕2V
|
|
Default
|
-4mV ∕ ℃ ∕2V （based on 25℃）
|
|
Equilibrium, enhance, floating, enhance recovery voltage, low
voltage disconnect recovery voltage, under voltage alarm recovery voltage,
under voltage alarm voltage, low voltage disconnect voltage‘s temperature
compensation parameters are the same
|
