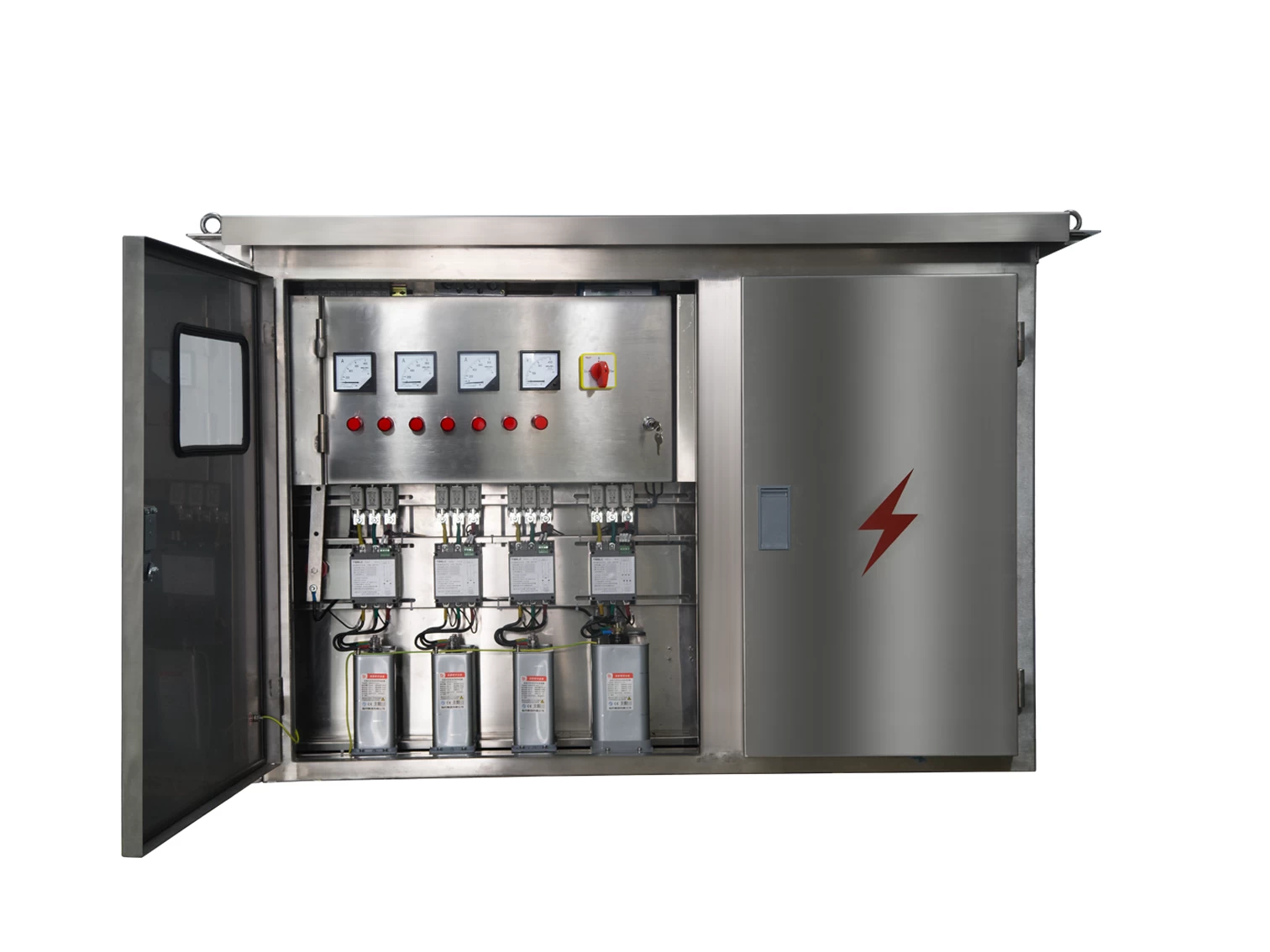

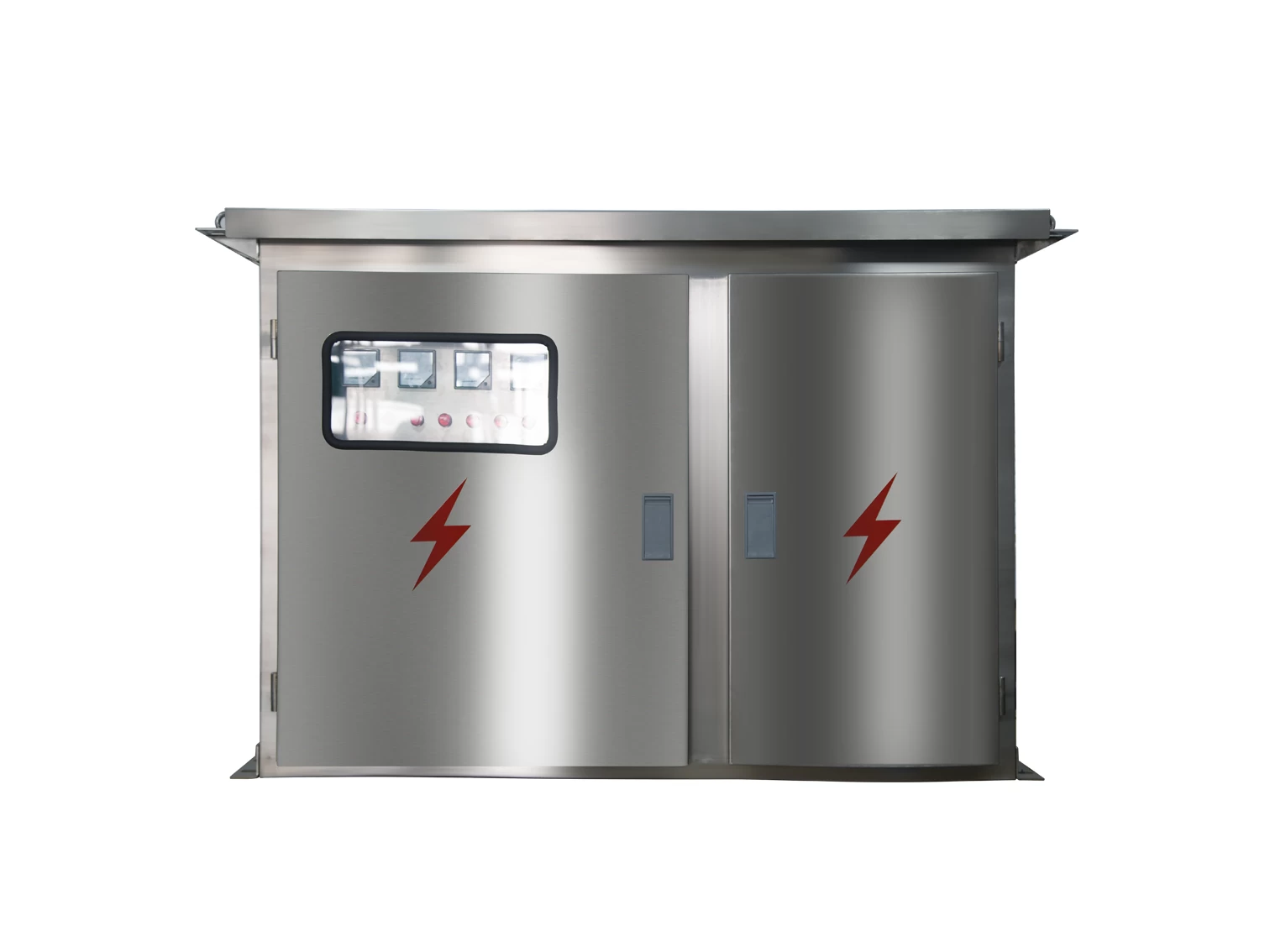

Topscomm low voltage distribution panel is widely applied in the applications like substations, industrial and mining enterprises, large-scale power plants, petrochemical enterprises, large-scale steel mills, and other high-rise buildings which are required power distribution, reactive power compensation and energy metering.
Rated Voltage
|
0.4kV
|
Rated Current
|
≤800A（Based on the rated current of Transformer)
|
Branch
|
1~3 (Optional)
|
Compensation Capacity
|
30-120kVAr
|
Compensation Mode
|
Three-phase compensation, Split-phase compensation or Hybrid compensation
|
Capacitor banks
|
1~ 13 banks
|
Installation
|
Grounding or lifting installation
|
Operating Temperature
|
-25℃~+40℃
|
Humidity
|
≤100%
|
Dimension
|
≤1600mm*1200mm*600mm
|
