Description:

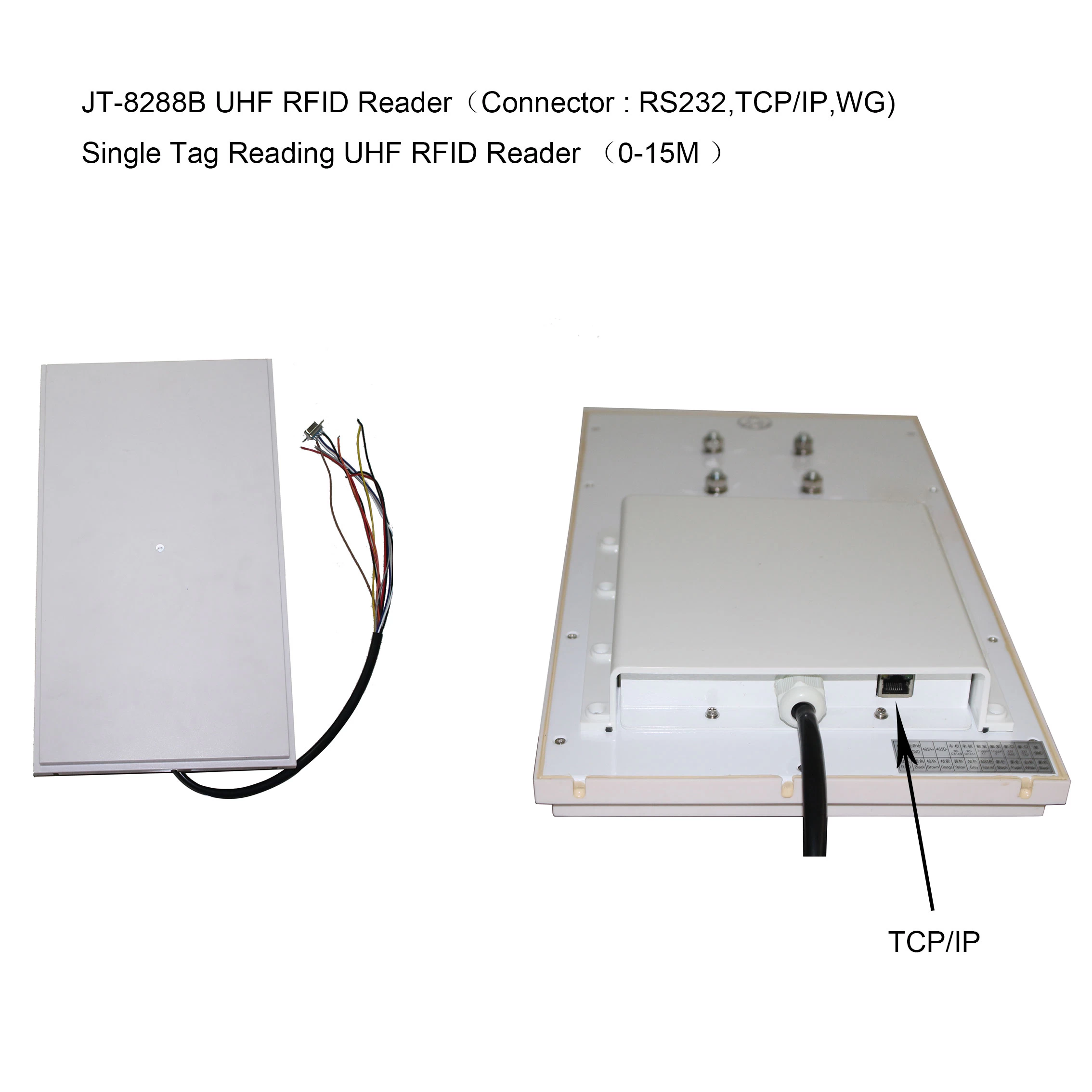

RFID middle range reader JT-8288B could be applied in various harsh working environment for multiple protocol
compatible and reading fast. Full support the tag of ISO-18000-6C or
ISO-18000-6B. Its stable reading distance is 15m(related to the tag and
environment), it has a beautiful shape.
Feature:

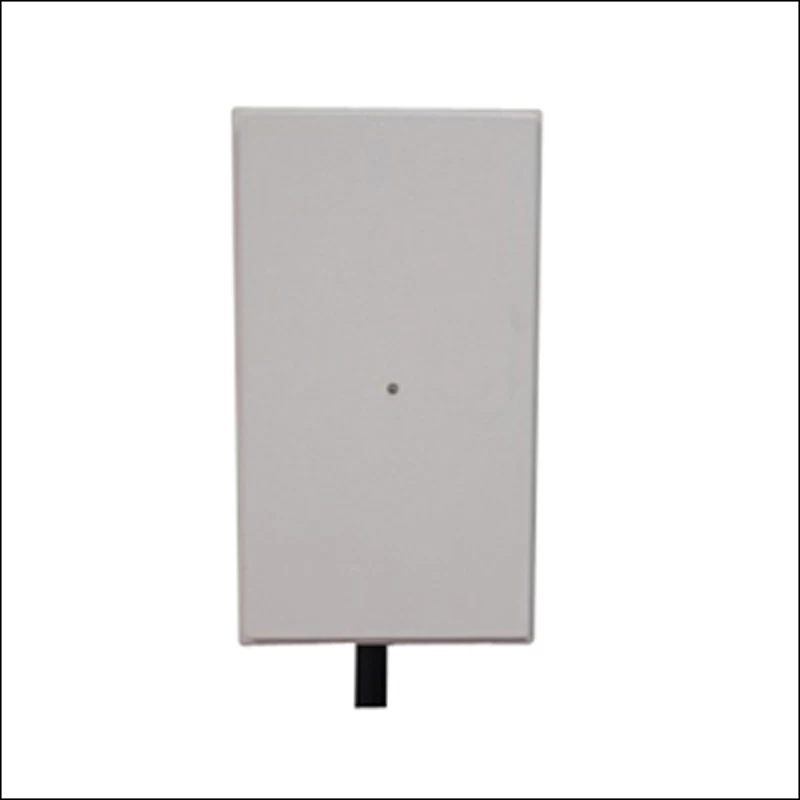

◆A shape of linear, the LED will light when read a tag
◆Could used in some very cold area, such as northeast and
northwest, because its ability of lighting-resisting and lower temperature
protection.
◆The output power is 30dbm,Support
multi work modes (auto, command, triggering)
◆

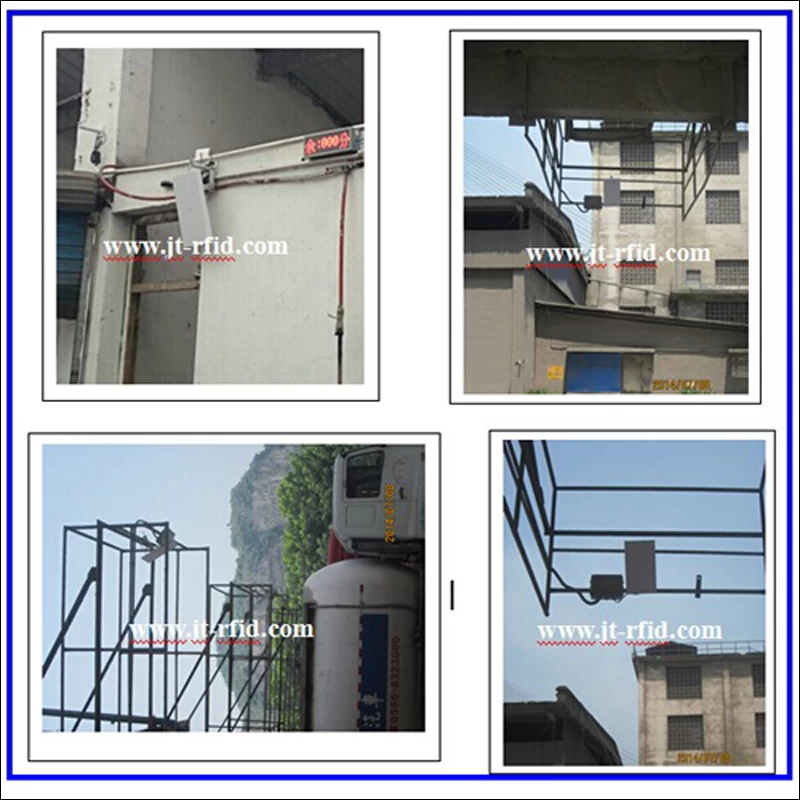

Applied in various application: vehicle and entrance guard, electronic free
collection, logistic management and production automatic.
Specification:
|
Item No.
|
|
JT-8288B
|
RS232,TCP/IP,Wiegand
|
|
JT-8288A
|
RS232,RS485,Wiegand
|
|
JT-8288W
|
RS232,WIFI,Wiegand
|
|
JT-8288G
|
RS232,GPRS,Wiegand
|
|
Performance
parameters
|
|
Working Frequency
|
902~928 MHz or
865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
RF power
|
0～30dBm(Adjustable)
|
|
Software &
SDK
|
DEMO and C#, VC,
VB, Java, DELPH, etc.,
|
|
Encryption
|
Can be directly
encrypted, copy prevention.
|
|
Reading range
|
stable reading
range 12~15M(Depends on tag & environment)
|
|
Industrial
lightning protection
|
6000V
|
|
Low temperature
protection
|
Northeast,
Northwest extremely cold region, low temperature protection
|
|
Frequency
modulation
|
hopping or fixed
frequency
|
|
Input/output
port
|
Two-way relay
output(customized), one-way trigger input
|
|
Antenna gain
|
10dBi
polarization
|
|
Working way
|
Buzzer & LED
|
|
Power
|
12V/3A Adaptor
|
|
Physical
parameters:
|
|
|
Item size
|
420x240x50mm
|
|
Package size
|
600x310x110mm
|
|
Net weight
|
4KG
|
|
Shell material
|
ABS
|
|
Working
temperature
|
-20℃~+65℃
|
|
Storage
temperature
|
-45℃~+95℃
|
