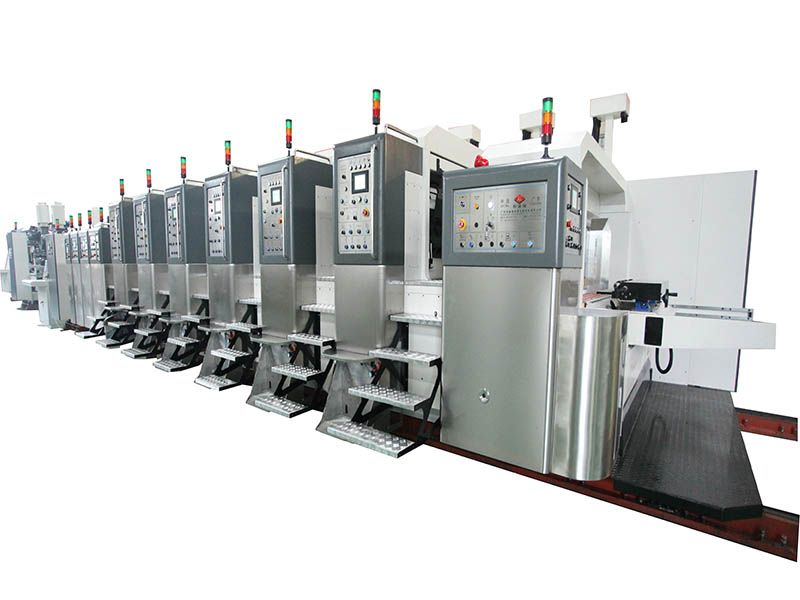

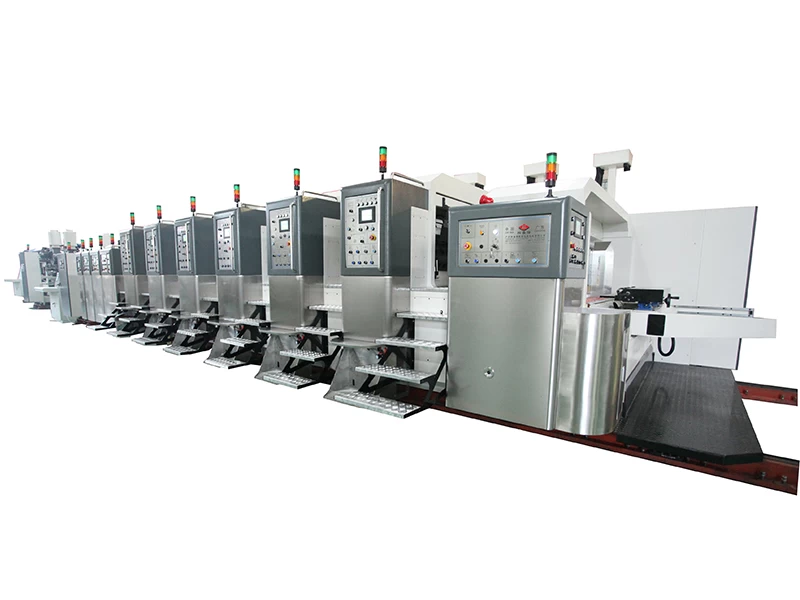

K8 4 Color Flexographic Printing Machine

The advantage of using our automatic flexo printing machine for your packaging is that the print is applied directly to the surface of the corrugated carton board and which is an ideal way for effective printing.



 K8 4 Color Flexographic Printing Machine


4 Colour Flexographic Printing Machine Features:

·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Vacuum transfer system used in all printing sections.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to shift order of the idle Printing Section under production.

·Able to facilitate the production management.


Electric Flexographic Printing Machine Specification:

Data/Model 900x2000 900x2400 1200x2000 1200x2400
Printing Speed(m/min) 200 200 200 200
Max Machine Speed(pcs/min) 350 300 250 250
Max Feeding Size(mm) 880x2000 880x2400 1180x2000 1180x2400
Min Feeding Size(mm) 280x640 280x640 320x700 320x700
Skip Feeding(mm) 1100x2000 1100x2400 1500x2000 1500x2400
Max Printing Area(mm) 800x2000 800x2400 1150x2000 1150x2400
Thickness of Printing Plate(mm) 7.2 7.2
7.2 7.2
Min Panel(mm) Slot Type L. 240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
Max Slotting Depth(mm) 250 250 320 320
Max Thickness of Sheet(mm) 8 8 12 12

Dimension(LxWxH)

T

F

T:14374x5770x3200

F:15674x5770x3200

T:14374x6170x3200

F:15674x6170x3200


T:15732x5870x3500

F:17232x5870x3500


T:15732x6270x3500

F:17232x6270x3500



Easy Operated Corrugated Carton Box Flexographic Printing Machine Details:

Condition:New

Plate Type:Letterpress

Colors Unit:1~7 colors

Automatic Grade:Automatic

Certification:CE Certificate, ISO9001

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months
