KC Standard dual output 60V 12V switching power supply 200W for medical equipments

KC Standard dual output 48V 12V switching power supply 200W for medical equipments from China factory.



Dual 60V 12V Switching power supply 200W for beauty products


Description:
100-240VAC input switching power supply 200W for beauty products open frame dual output 60V 12V,it is designed for one of our customers,at present it is very popular among the market.



Features:
1, dual power supply 60V 12V is high efficiency, low temperature rise;
2, open frame 200W power supply;
3, 200W switching power supply open with short circuit, overload, overvoltage,over-temp protection.

Parameter
            Item NO

K18N-UP200D60+12

Output

Output Voltage

CH1:+60VDC;      CH2:+12VDC

Rated Current

CH1:3A;                CH2:2A

Current Range

CH1:0.1-3A           CH2:0.1-2A

Rated Power

204W

Ripple & Noise

CH1:600mVp-p;    CH2:150mVp-p

Adjustable Output Range

CH1:+/-10%

Output Accuracy

CH1:±1%              CH2:+/-8%

Line Regulation

CH1:±0.5%            CH2:+/-2%

Load Regulation

CH1:±0.5%            CH2: +/-6%

Set up,Rise,Keep up time

500ms, 50ms, 20ms

Input

Input Voltage Range

90~264VAC

Input Current

2.4A/115V,1.2A/230V

Input Frequency

47~63Hz

Efficiency

>88%@230V

Power Factor

95%@230VAC,99%@115VAC

Inrush Current

Cool start 30A/230VAC,15A@115VAC

Leakage Current

<0.35mA@240V

Protection

Over Load Protection

110~200%,Hiccup protection,automatic recovery

Short Circuit Protection

Hiccup protection,automatic recevery.

Output over-voltage protection

CH1:55-60V

Over-temperature protection

>105 ℃ protection, automatic recovery

Environment


Working Temp.,Humidity

-20~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943,EN60950-1,EN60601

Withstand Voltage

I/P-O/P:3KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC

Insulation Resistance

I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms

EMC Standards

EN55022 CLASSB,EN61000-3-2

Others Dimension

127*82*45mm(L*W*H)

Weight 0.4kg
MTBF

>50hrs

Fan Supply YES
Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 20cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

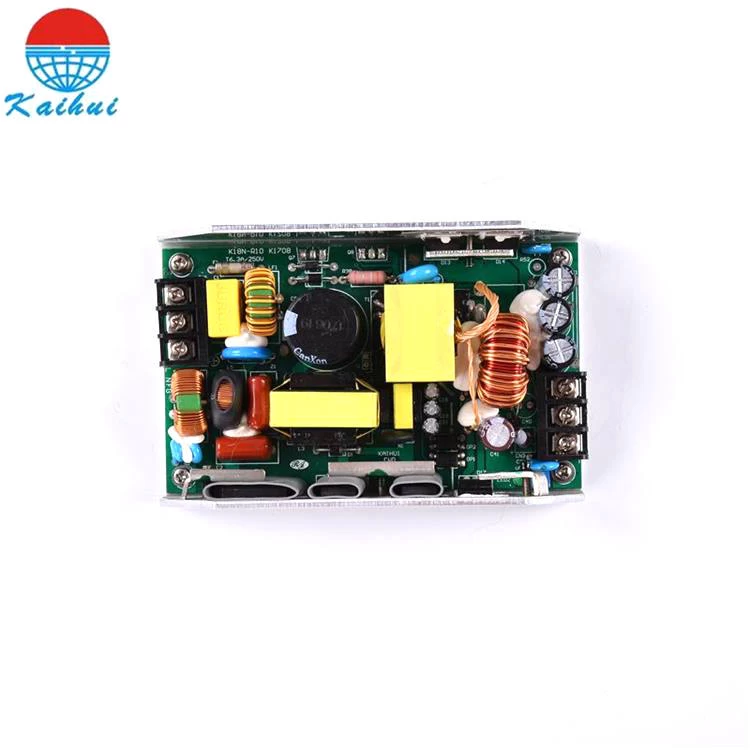

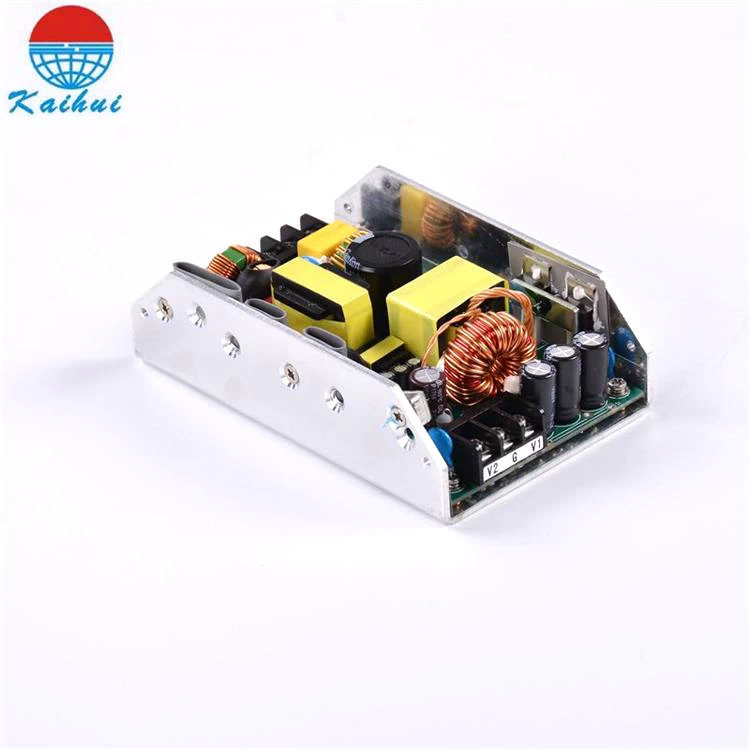

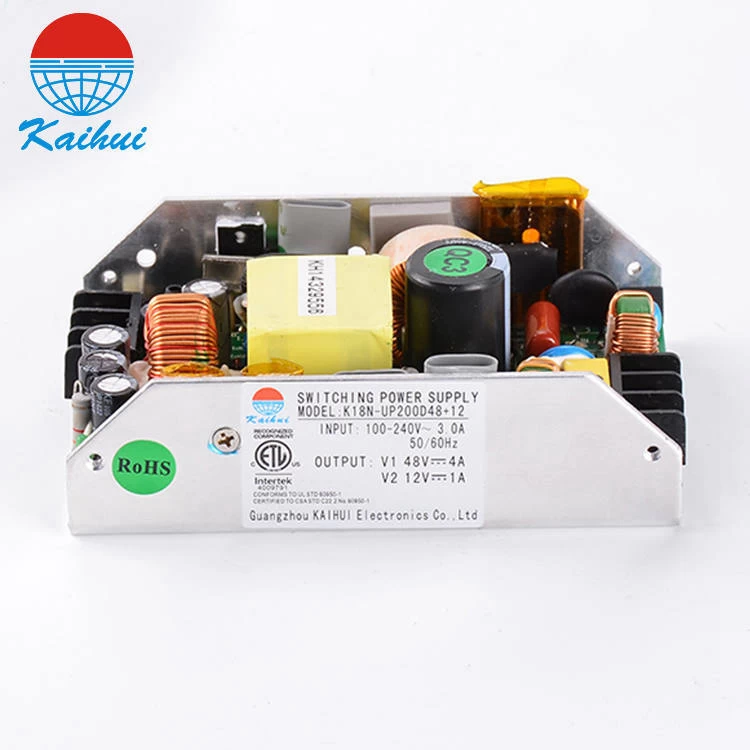

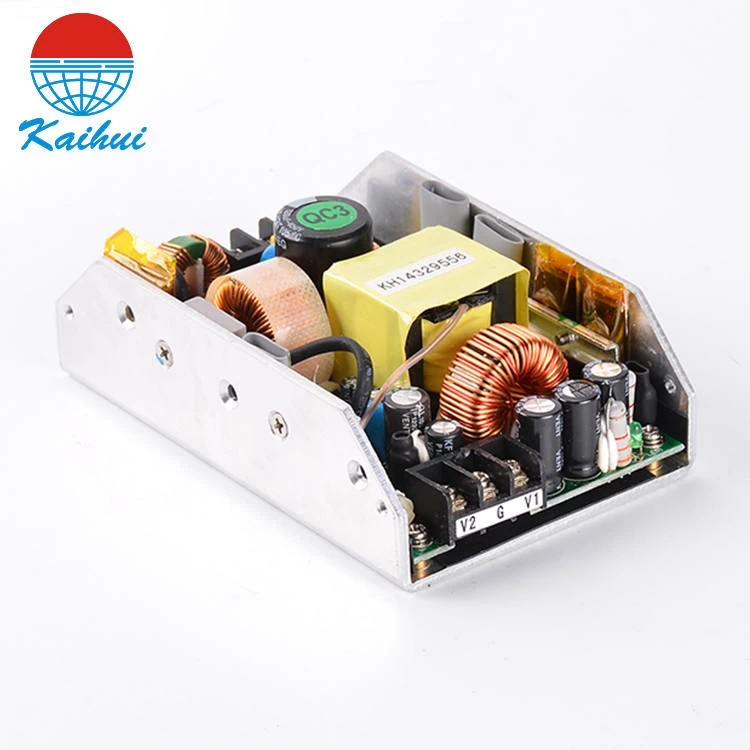

Product picture:

constant voltage power supply 200W







dual power supply 48V 12V
