Overview
Brand Name : Ericsson
Model Number : TCU 02 01
Part Number: KDU 137 739/1 R1G

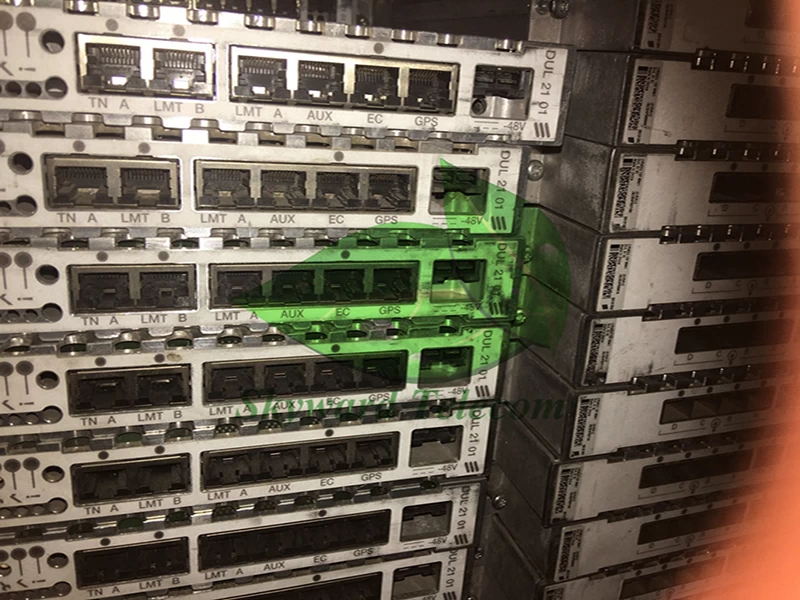

Discription: DUL 21 01- DIGITAL UNITS FOR LTE AND GSM； DUL contains the baseband, control and exchange, and for LET RBS S1 and the Mub interface.
› LTE
› IP connectivity
› 2.5 Gbps CPRI
› 20 MHz bandwidth per antenna (2x2 MIMO)
› 10 MHz bandwidth per antenna (4x4 MIMO)
Related Product Introduction
|
DUL21 01
|
KDU 137 834/1
|
KDU 137 834/1 R1C
|
DUL contains the baseband, control and exchange, and for LET RBS S1 and the Mub interface.
|
|
TCU 02 01
|
KDU 137 739/1
|
KDU 137 739/1 R1G
|
|
|
MU
|
SVB 154 600/23
|
SVB 154 600/23 R1C
|
The main control unit, can be placed in the two block of DUG20.
|
|
SUP 6601
|
BFL 901 009/1
|
BFL 901 009/1 R3B
BFL 901 009/1 R3C
|
MU shell power and alarm system, to provide power for the DUG.
|
|
RRUS 01 B0
|
KRC 118 72/1
|
KRC 118 72/1 R1A
KRC 118 72/1 R1F
KRC 118 72/1 R2A
KRC 118 72/1 R2E
KRC 118 72/1 R3A
|
Output power: 4X15W/ 900M 4 carrier / receiving sensitivity: -113dBm
|
|
RRUS 01 B1
|
KRC 118 76/1
|
KRC 118 76/1 R2C
|
4 carriers,Output power of 4X15W or 4X20W (IPM),Input voltage: -48 VDC or AC.
|
|
RRUS 01 B3
|
KRC 118 73/2
|
KRC 118 73/2 R1F
KRC 118 73/2 R2D
KRC 118 73/2 R3A
|
Output power: 4X15W/ 1800M 4 carrier / receiving sensitivity: -113dBm
|
|
RRUS 02 B0
|
KRC 161 264/1
|
KRC 161 264/1 A1G
KRC 161 264/1 R1G
KRC 161 264/1 R1K
|
24 carriers 25MHz(900MHz),MU: -48V RRU: -48V/AC,Only for RBS6000.
|
|
RRUS 12 B3
|
KRC 161 282/2
|
KRC 161 282/2 R1E
KRC 161 282/2 R1F
KRC 161 282/2 R1H
KRC 161 282/2 R1J
|
8 carriers,Output power of 4X15W or 4X20W (IPM),Input voltage: -48 VDC or AC
|
|
ACCU
|
BMG 907 040/1
|
BMG 907 040/1 R1B
|
|
|
PSU AC 02
|
BML 901 250/1
|
BML 901 250/1 R1D
|
RBS6601 RRU outdoor AC power module
|
