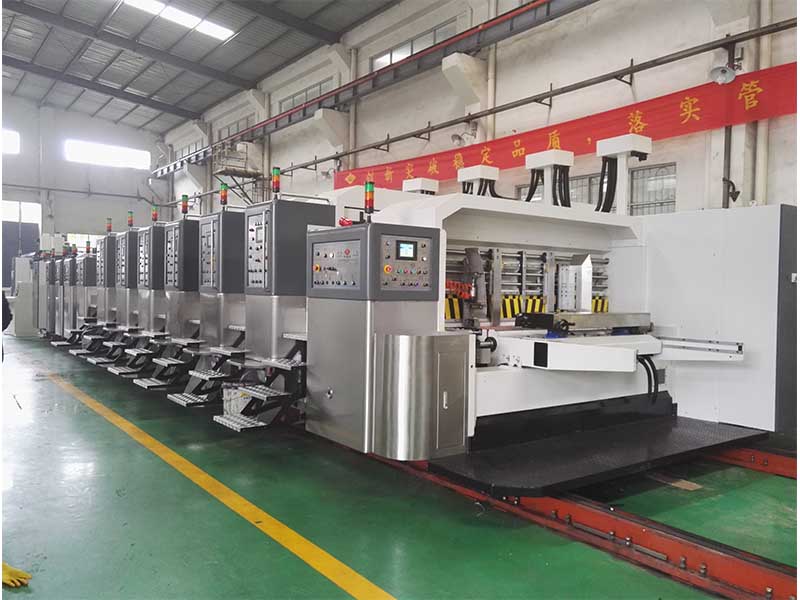

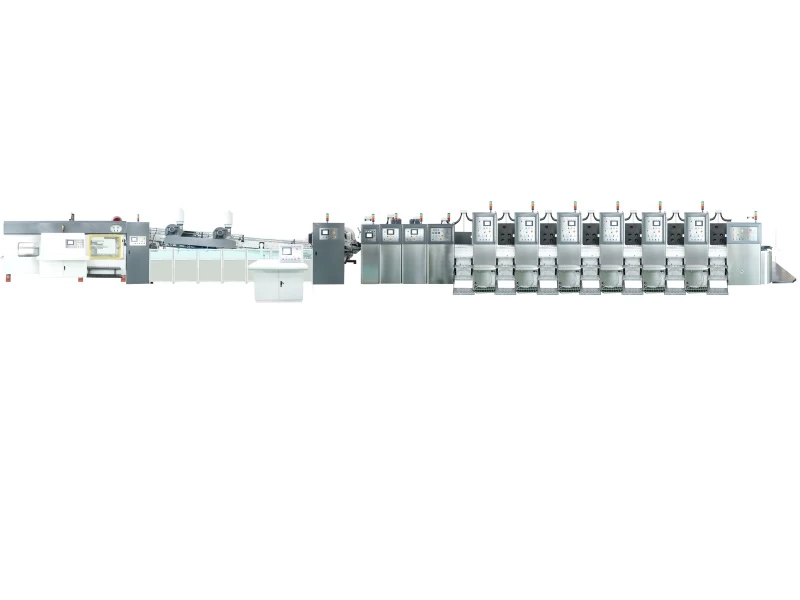

Keshenglong KL Automatic Corrugated Carton Box Making Printing Machine
Automatic Carton Box Making Machine Features：
·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Computerized control,order setting in touch screen.
·The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality.
·The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.
·The correction device in the Countering Section can conquer the fish-tail,makes the carton even.
·The quantity of bundle come out from the Counter Ejector can be set in touch screen.
·Able to shift order of the idle Printing Section under production.
·All electronic and pneumatic components are with European standards.
Box Making Machine Mould Specification：
Data/Model
|
900x2000
|
900x2400
|
1200x2000
|
1200x2400
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
Max Machine Speed(pcs/min)
|
350
|
300
|
250
|
250
|
Max Feeding Size(mm)
|
880x2000
|
880x2400
|
1180x2000
|
1180x2400
|
Min Feeding Size(mm)
|
280x640
|
280x640
|
320x700
|
320x700
|
Skip Feeding(mm)
|
1100x2000
|
1100x2400
|
1500x2000
|
1500x2400
|
Max Printing Area(mm)
|
800x2000
|
800x2400
|
1150x2000
|
1500x2400
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
Min Panel(mm) Slot Type L.
|
240x80x240x80
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
Max Slotting Depth(mm)
|
250
|
250
|
320
|
320
|
|
Min Folding Size(mm)
|
280x760
|
280x760
|
320x800
|
320x800
|
Max Thickness of Sheet(mm)
|
8
|
8
|
12
|
12
|
Dimension(LxWxH)
T
F
|
T:18832x4750x2800
F:19552x4750x2800
|
T:18832x5150x2800
F:19550x5150x2800
|
T:20255x4870x2800
F:20975x4870x2800
|
T:20255x5270x2800
F:20975x5270x2800
|
Our Company:
Guangzhou Keshenglong Carton Packing Machine Co.,Ltd., is one of the leading manufacturers in China, specialized in manufacturing of carton printing and packaging machinery. And our products have been exported to more than 70 countries.
