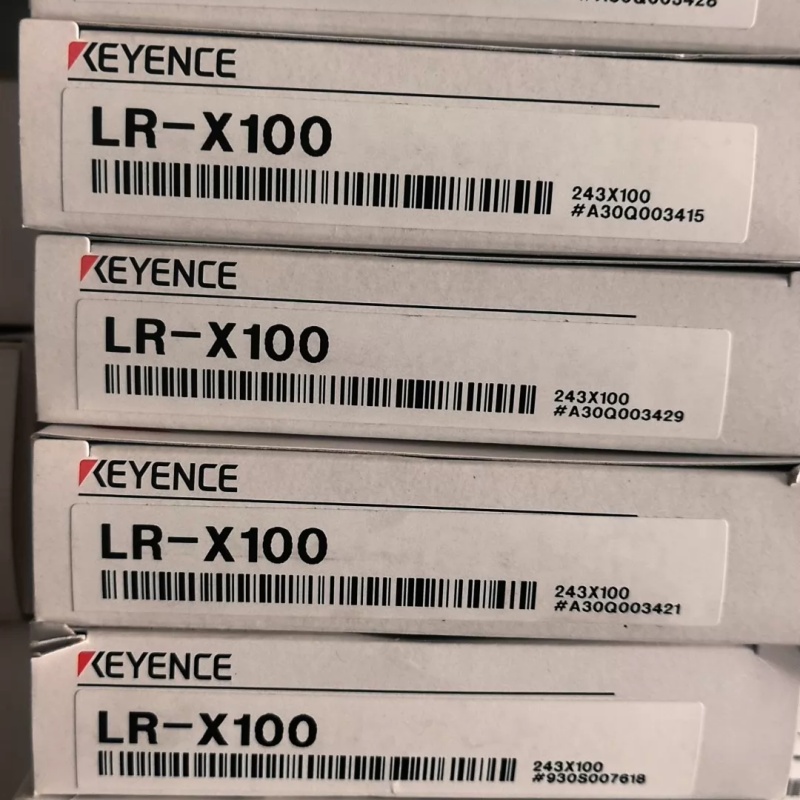

KEYENCE LR-X100 Standard Model, Cable Type, 100mm range

Core Features

• ✓  Detection Principle and Distance: Employs a new triangulation system, determining the presence of a workpiece by detecting its distance (rather than the amount of light received). The standard detection distance is 25.0 to 100.0 mm.
• ✓  High-Precision Recognition: Standard detection step difference as low as 1.0 mm, with a display resolution of 0.1 mm, easily detecting thin workpieces or those with minute step differences.
• ✓  Strong Anti-Interference Capability: Possesses a high-definition dynamic range of up to 3 million times, achieving stable detection of highly reflective metals, curved surfaces, black rubber, and workpieces with uneven coloring.
• ✓  Light Source and Spot Size: Utilizes a 505 nm green laser (Class 1 laser product, safe and harmless), with a spot size of approximately 0.3 mm × 2 mm at a detection distance of 100 mm.
•

Q: How effective is the innovative orientation monitoring function of this product?

A: The LR-X100 has a built-in orientation sensor. When the sensor rotates or becomes misaligned due to external forces such as collisions, it can actively report the anomaly, effectively reducing the risk of production line failures caused by sensor displacement.

Q: How environmentally resistant is the LR-X100?

A: Its enclosure protection rating reaches IP65/IP67, allowing it to operate stably in ambient temperatures ranging from -10℃ to +50℃, and it possesses excellent vibration and shock resistance.

Q: How are the communication and output functions of the LR-X100?

A: It supports IO-Link (Specification v1.1 / COM2) communication. The control output is NPN/PNP open-collector switching and features multiple protection circuits, including power reverse connection and output overcurrent protection.
