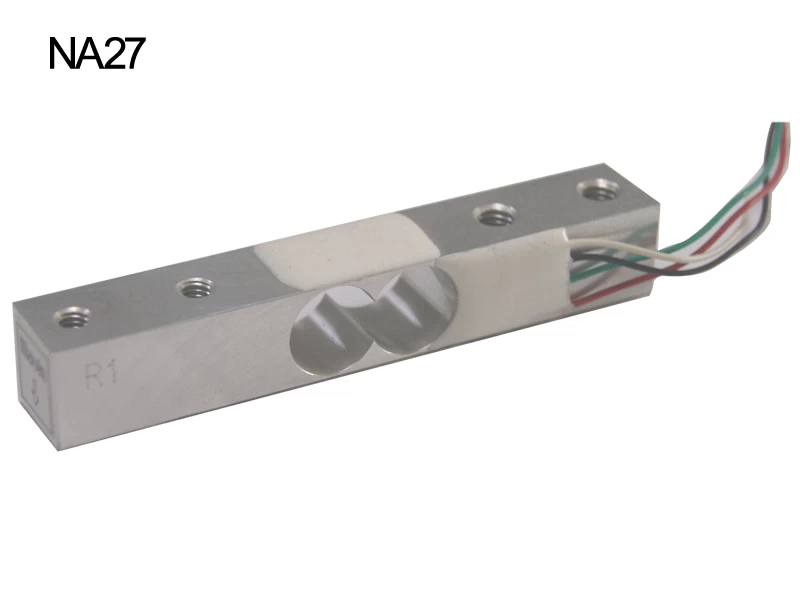

Kitchen scale Load Cell NA27
The
NA27 is a low capacity electronic scale load cell and can be used individually in kitchen
scales and portable scales. The moment insensitive design allows for simple
installations.
Key Features：
Low
profile and capacity
Aluminum
construction
Capacity: 0.6-6kg
Accuracy:0.03%R.O.
Usage & Applications：
Kitchen
scales
Portable
scales
Balance
Jewelry
scales
Electronic
scales

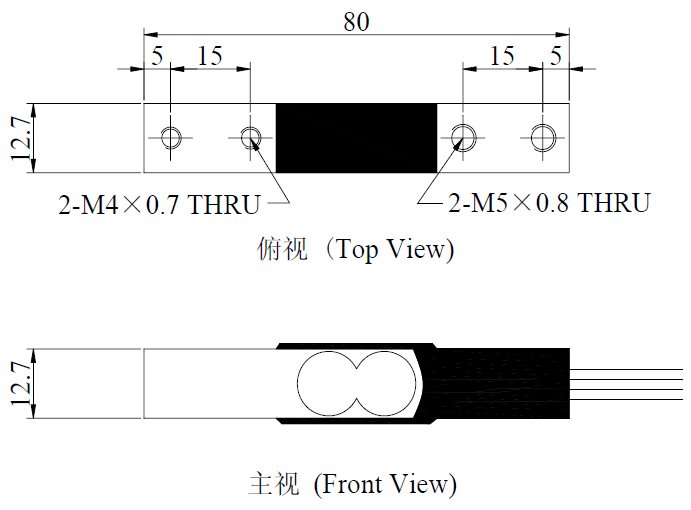

Dimension：
NA27 Specification：
|
Rated Capacities
|
0.6，1，2，3，5，6，10（kg）
|
|
Rated Output
|
1.0 ±0.15mV/V
|
|
Zero Balance
|
±0.1000 mV/V
|
|
Non-linearity
|
0.03 %R.O.
|
|
Hysteresis
|
0.03 %R.O.
|
|
Repeatability
|
0.03 %R.O.
|
|
30mins Creep
|
0.03 %R.O.
|
|
30mins Return
|
0.03 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.01 %R.O./℃
|
|
Temperature Effect On Zero
|
0.05 %R.O./℃
|
|
Input Impedance
|
1115±10%Ω
|
|
Output Impedance
|
1000±10% Ω
|
|
Insulation Impedance
|
≥2000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP65
|
|
Cable
|
φ0.8×0.25m
|
|
Recommended Platform Size
|
150×150 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
