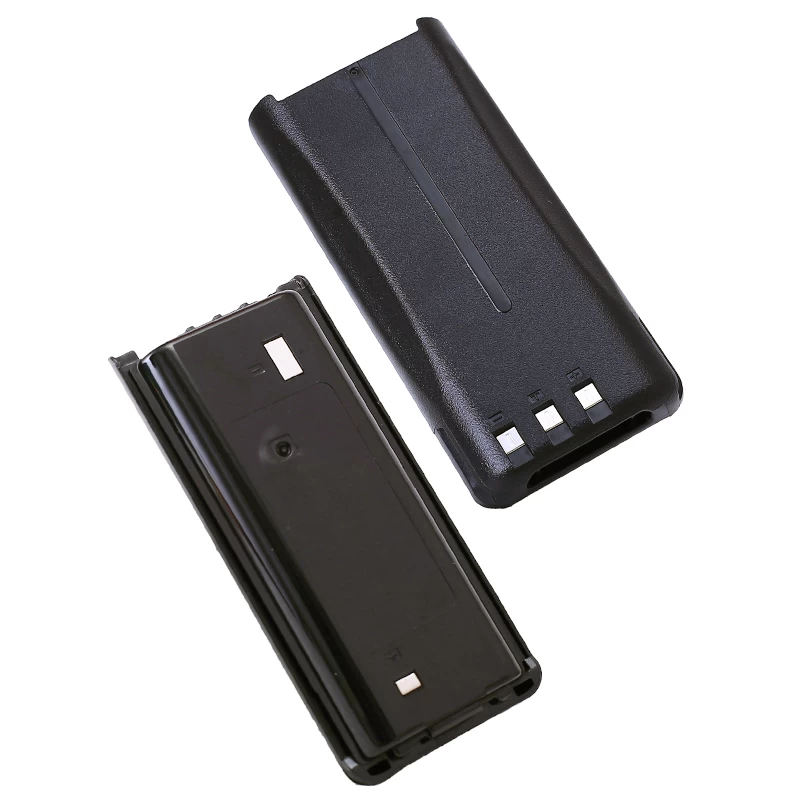

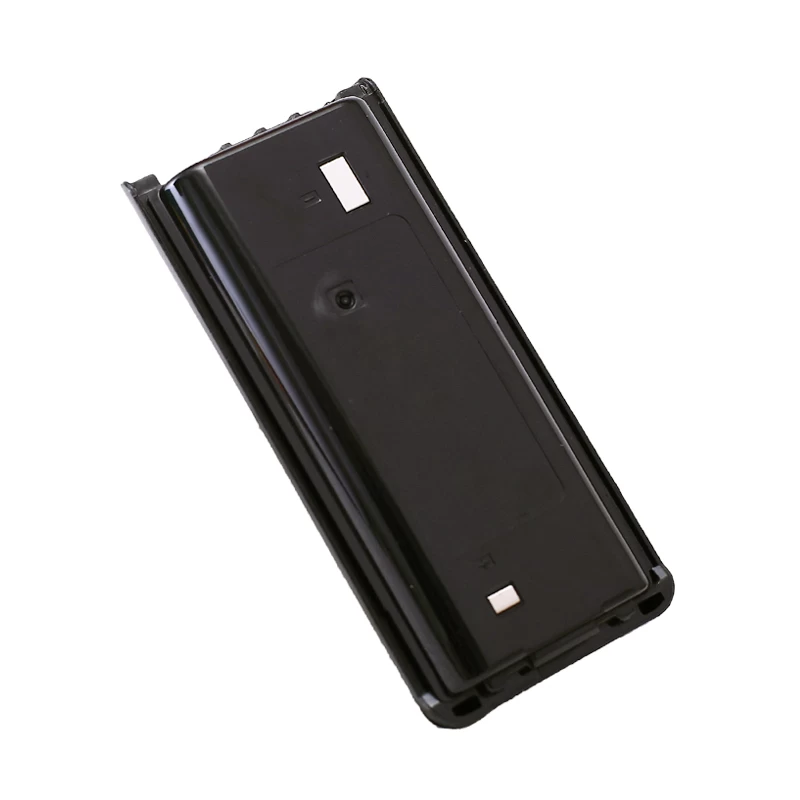

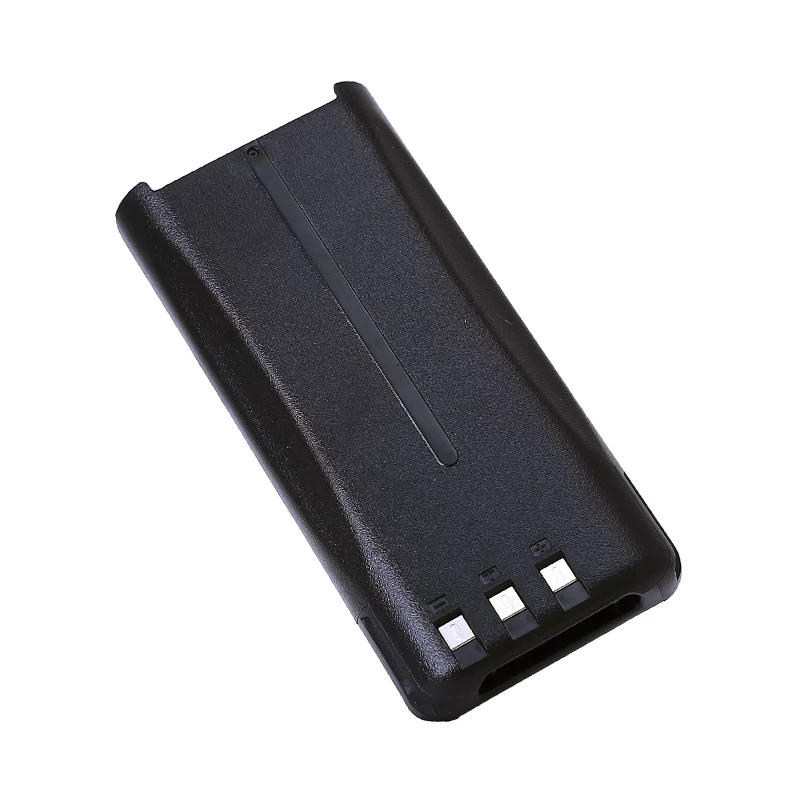

The battery of KNB-69L 2000/2600mAh LI-ION for Kenwood TK2200 TK2200L
TK2200LP TK2202 TK2202E TK2206 TK2206M TK2207 TK2207G TK2212L TK2212M
TK2300VP TK2302E TK2302T TK2306M TK2307M TK3200 TK3200L TK3200P
TK3200LP TK3202 TK3202E TK3206 TK3206M TK3207 TK3207G TK3212L TK3212M
TK3300UP TK3301E TK3301T TK3302E TK3302E3 TK3302T series radio.
Similar product recommendation:
KNB-45L LI-ION 1800mAh.
|
General Specifications
|
|
Original Model No.
|
KNB-69L
|
|
Compatible Radio Models
|
TK2200 TK2202 TK2206 TK2207 TK2212 TK2230 TK2302 TK2306 TK2307 TK3200 TK3202 TK3206 TK3207 TK3212 TK3300
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
7.4V LI-ION
|
|
Capacity
|
2000/2600mAh
|
|
Dimensions (mm)
|
122(W)*54(D)*39.4(H)
|
|
Compatible Charger Models
|
KSC-35S
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japanese cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
Silver-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into 34*34*34cm carton, 100PCS each carton
|
