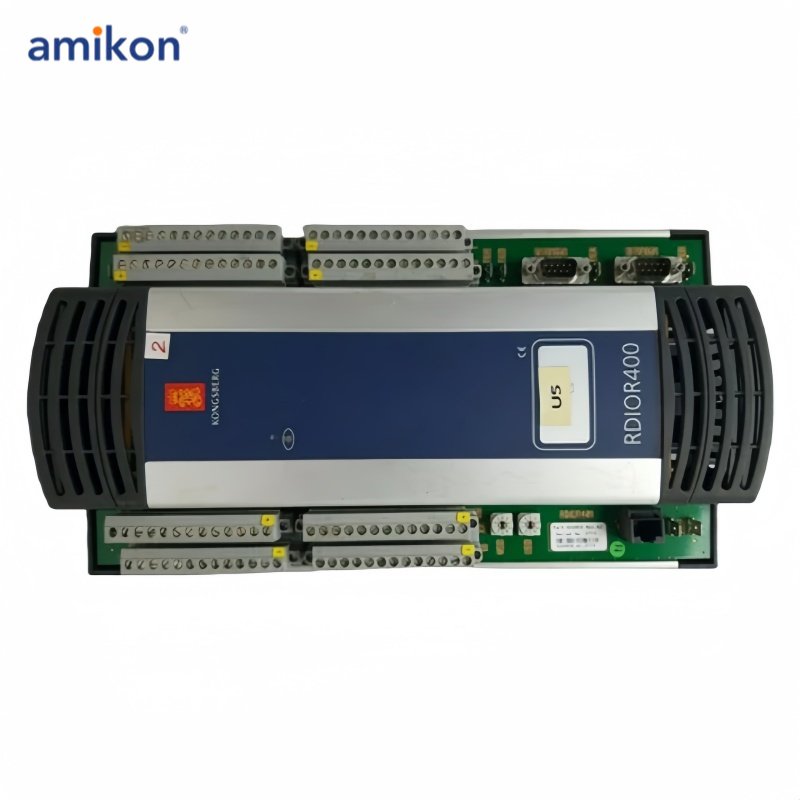

Kongsberg RDIOR400 | Remote Digital Input and Output

Brand:  Kongsberg

Part Number: RDIOR400

Model: Remote Digital Input and Output

Description:

The RDIOR400 is a Remote Digital Input and Output base on a real-time single board computer (SBC) specially designed for process control purposes. It is software compatable with both the RDIOR400 controller unit and the SBC 500 single board computer.

The RDIOR400 is a single unit computer specically designed for process control purposes.
Typical applications are:
• Dynamic Positioning Systems
• Vessel Control Systems
• Process Control Systems
• Safety Systems

Features:
• Power PC processor 8245, 400 MHz capable of running AIM and DP applications, 32 MB SDRAM memory and 16 MB Flash memory
• Built-in Self Test (BIST) facilities and error reporting system (via Operator Stations)
• Watchdog with a system status output
• Four general purpose digital input channels
• Four general purpose digital output channels
• Twelve general purpose RS-232/RS-422/RS-485 serial line interfaces
• Four isolated general purpose RS-232/RS-422/ RS-485 serial lines
• Dual CAN bus interfaces (1 Mbps)
