Korean household anti-freezing instant small electric water heater with flow valve led disapaly
Product detail
|
Model
|
CH-66
|
|

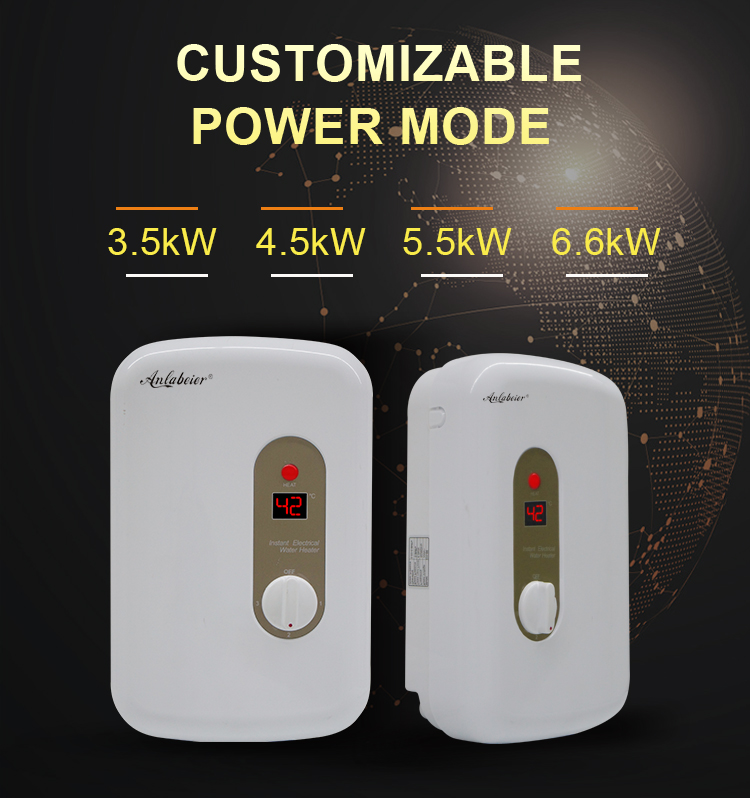

Power
|
3.5kW
|
5.5kW
|
6.6kW
|
|
Voltage
|
220-240V
|
|
Rated Current(A)
|
15.9
|
25
|
30
|
|
Copper Core(mm2)
|
≥1.5
|
≥2.5
|
≥4
|
|
Heating Water Pressure
|
0.02-0.6Mpa
|
|
Air Switch(A)
|
≥25
|
≥25
|
≥32
|
|
Heating Temperature Setting
|
25°C-55°C
|
|
Inlet/Outlet
|
G1/2”
|
|
Material
|
ABS Plastic
|
|
Warranty
|
1 year
|
|
Heating Element
|
Red Copper Heating Element
|
|
Product Size(mm)
|
340*195*107
|
|
Inner Box Size(mm)
|
370*320*130
|
|
Shipping Detail
|
20GP
|
2000pcs
|
|
40GP
|
3000pcs
|
Main product lines
1. Instant electric water heater/ boiler/geyser;
2. Thermostat water heater/boiler/geyser;
3. Electric water tap/faucet
Suitable for
Commercial and Industrial applications or anywhere hot water is needed.
House, Apartments, Condominiums, Cottages,Beauty Salons, Hotel, Hospitals, Laboratories, Offices, Schools, Restaurants, Barber Shops, Warehouses ,Boats, Campers

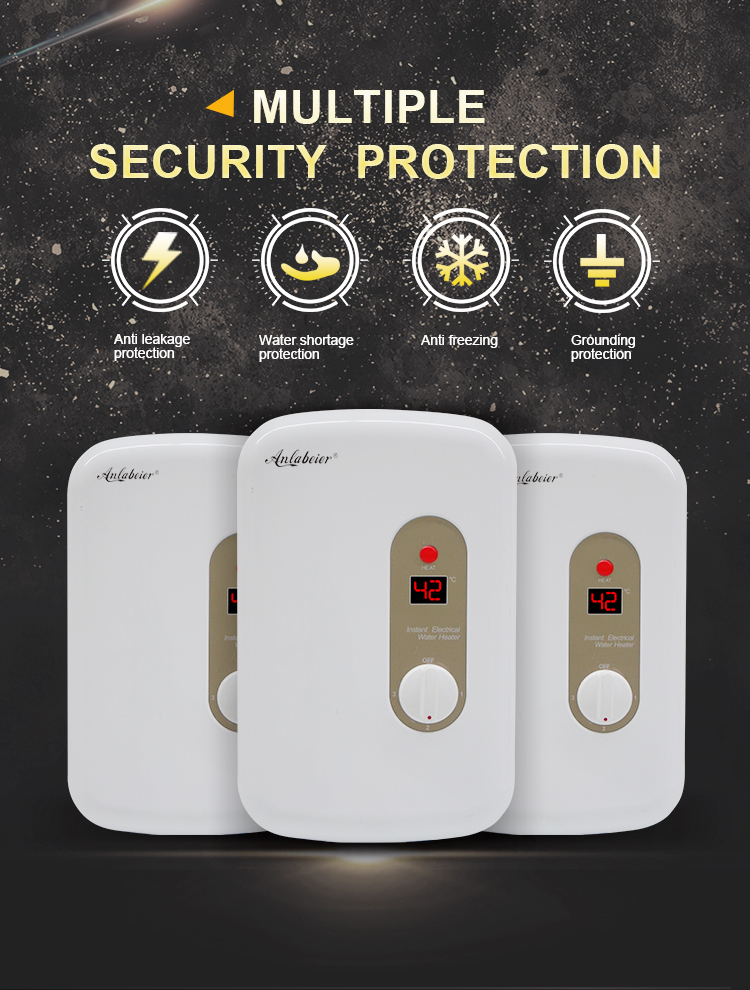

Safe & Secure
85°C dry heating protection; 55°C over temperature protection; when water flow rate is lower than the minimum operating volume, the water heater will stop heating to avoid dry burning and damage to the heater.
Grounding protection;
Red copper heating element system, Chip leakage protection; unique patented plate heater, with setup of the water and electricity isolation wall;
IPX4 waterproof degree;
Using ABS panel material is with the functions of insulation.
Water and electricity separation;
Mechanical manual reset two dry-heating protection
Easy To Control
Multi-function knob switch design, easy to control.
25-55 Celsius hot water temperature suitable different season to use.
Temperature showed by LED, it was red while heating, and would turn green after heating.
LED dynamic display of digital color;
3 temperature settings
Fault code display prompts
Available as a shower, a sink or a combination
Environmental
Getting hot water by using electricity not gas;
Highly efficient tubular heating element
No scale, few corrosion.
Use of clean electrical energy, will not impact on human health
More for You
Best supplement for the solar energy water heater.
No preheating, waiting, save more time, allowing you enjoy the happy of “Bath”
Temperature showed by LED

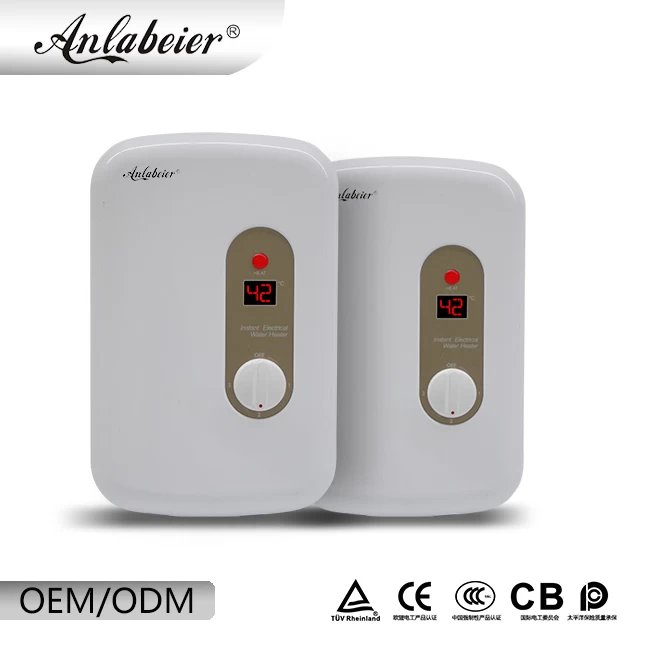

OEM ODM accepted
Trading Conditions：1) Payment: T/T, L/C, Western Union Etc.
2)Production lead time: small order 15-30days, bulk order 30-45days, according to your quantity.
3) Samples can be delivered within 3-5 days after receiving your payment.
4) MOQ: 100 Units
5) Discounts are offered based on the quantities.
