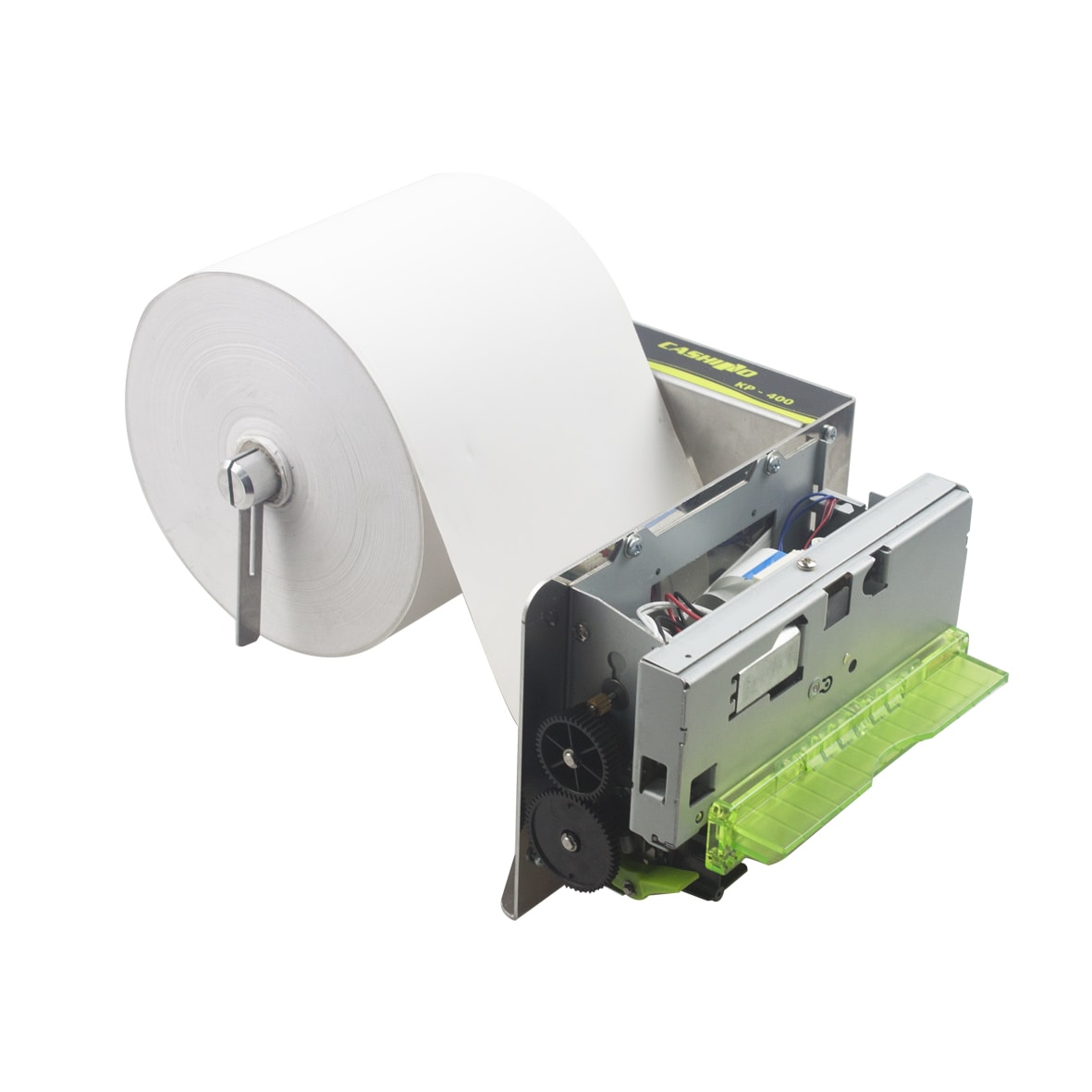

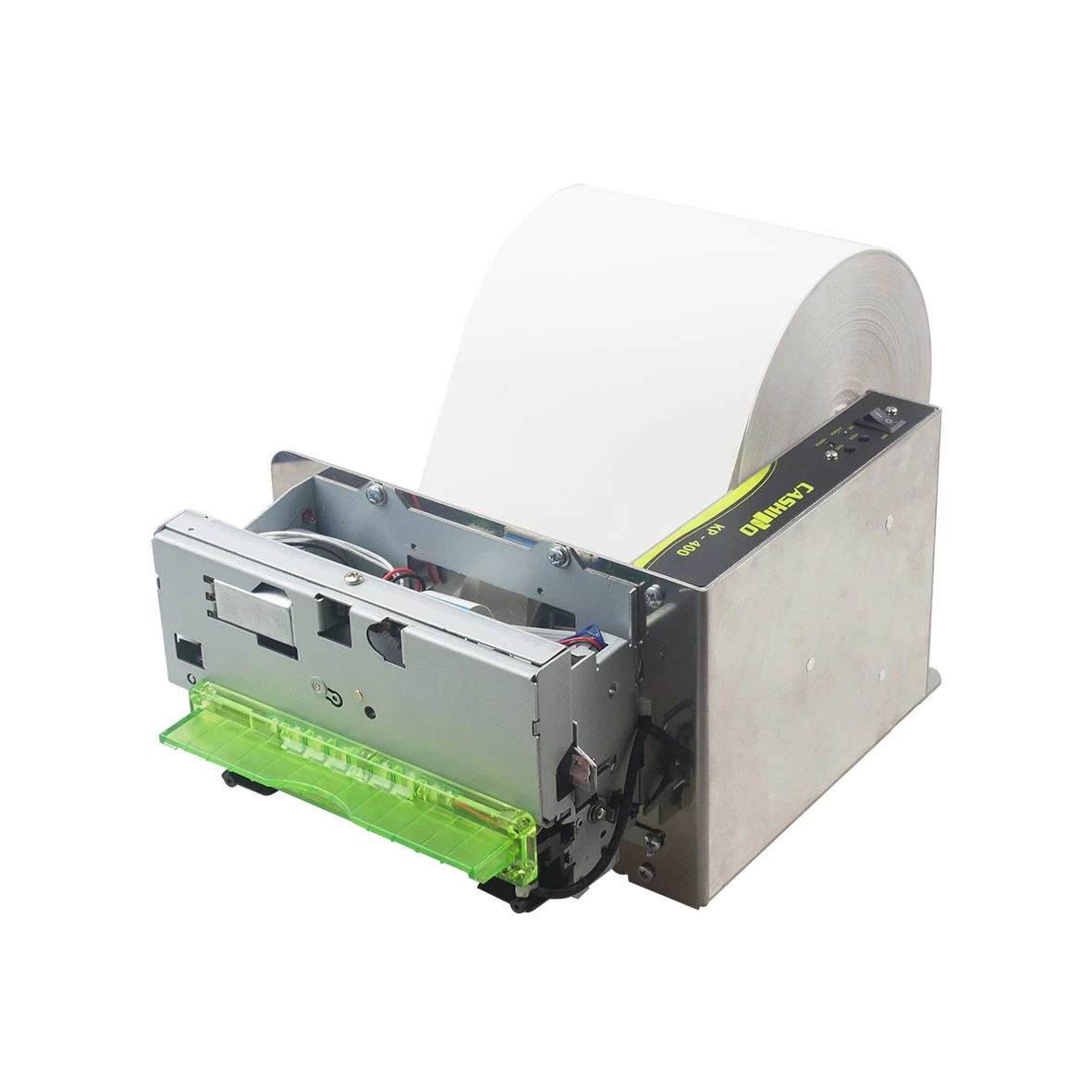

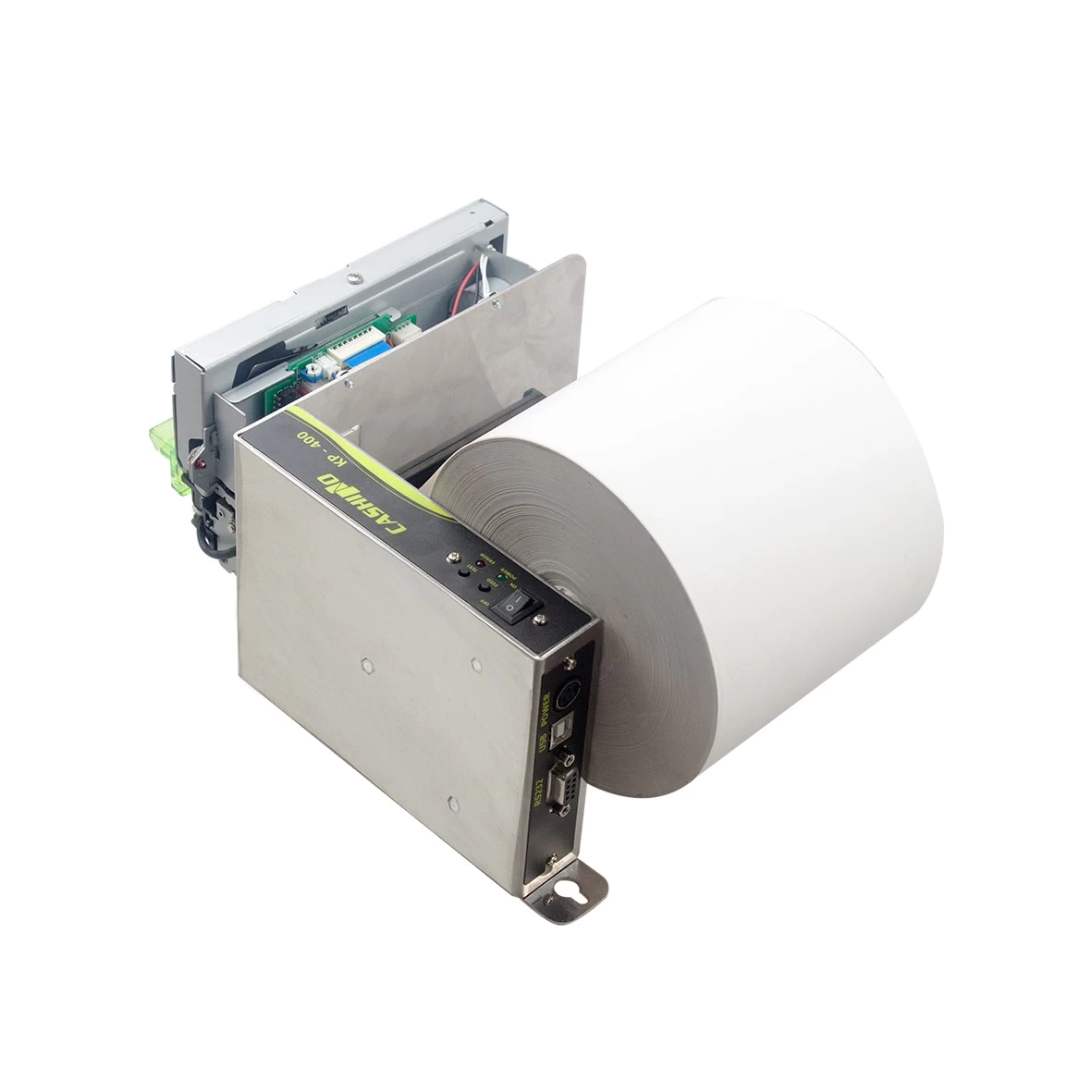

KP-400 4inch width Thermal Kiosk Printer
Basis information:
The KP-400 is 4 inch thermal kiosk printer provides dependable printing with a quick speed up to 150mm/sec and high printing resolution up to 203 dpi. Additional options include large paper roll holder.
Feature:
1. High print quality (203DPI)
2. 118MM (4 inch) kiosk ticket printer module
3. Auto
feeding/easy-paper loading
4. With auto cutter: full or partial cutter
5. Support
paper end and paper near end detection
6. Support
take out paper detection
Specification:
| Model No.
|
KP-400
|
Print
|
print mode
print width max.
print resolution
print speed max.
|
Thermal line printing
104mm
203 dpi
150mm/s(max.)
|
| Character
|
Character set
|
GBK(24x24);
ASCII: 9x17,9x24,16x18,12x24
|
| Font
|
Font A(12x24):32;
Font B(9x17):42; GBK:16
|
| Paper spec.
|
Paper Type
|
Thermal paper
|
| Paper Diameter
|
180mm(Max.)
|
| Paper Thickness
|
0.055-0.20mm
|
| Paper Width
|
117.5±0.5mm
|
| Roll Core Inner Diameter
|
18mm(min)
|
| Paper supply method
|
Automatic feed (straight in & out)
|
| Reliability
|
TPH
|
100km
|
| Cutter
|
1,000,000 cuts or more
|
| Detection
|
No paper detection
Paper near end detection
Take out paper detection
|
| Barcode
|
1D
|
EAN-13, EAN-8, CODE39, CODE93,
CODE128, CODEBAR, ITF, UPC A, UPC-E
|
| 2D
|
QR CODE
|
| Text and graphic support
|
Figure, symbol, graph, curve,
icon, multi-languages
|
| Command
|
Compatible with ESC/POS command set
|
| Driver/SDK
|
Windows Driver, Linux Driver, Android SDK, Windows SDK
|
| Interface
|
RS232+USB
|
| Power
|
24VDC , 2A
|
| Temperature
|
Operating:-10°C~50°C
Storage:-20°C ~ 60°C
|
| Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH
|
| Profile Size
|
175(W)x226(D)x118.5(H)mm
|
Applications:
1. Gas pumps
2. Lottery/gaming
3. ATMS
4. Bus/rail tickets
5. Airline e-ticket/boarding passes
6. Internet access terminals
7. Maps/direction kiosks
FAQ:
Q: Can I get samples for testing?
A: Yes, samples are available.
Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.
Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.
Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.
