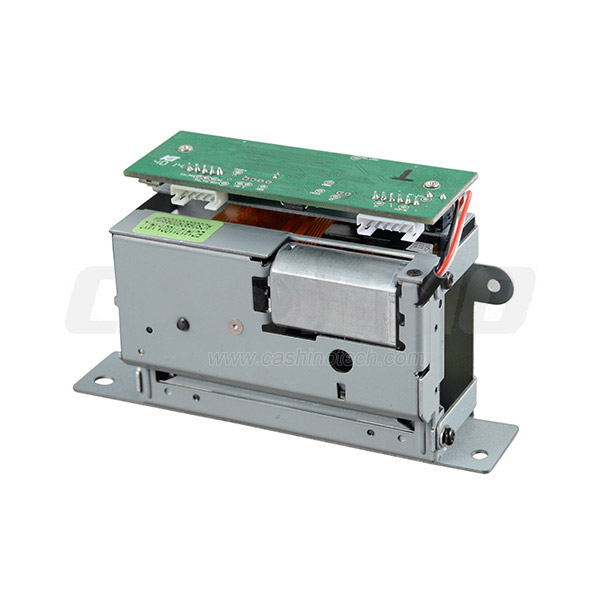

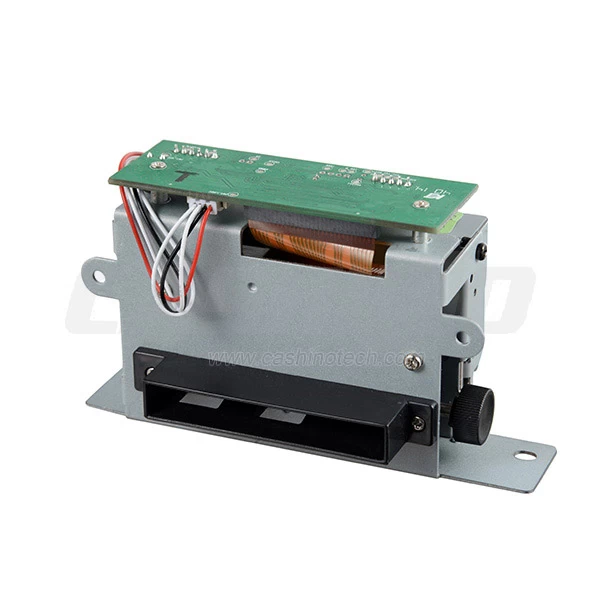

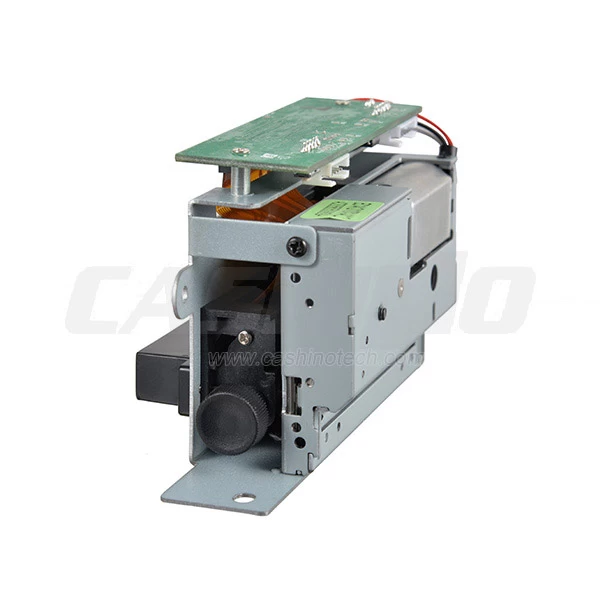

KP-628D 58mm auto cutter kiosk thermal printer

RS232,TTL,USB interface

Full or partial cutter

DC5-9V/12V



KP-628D 58mm auto cutter kiosk thermal printer
Feature:
RS232,TTLUSB interface
Full or partial cutter
DC5-9V/12V
Specification:

Item

KP-628D



Printing method

Thermal-line dot method



Dot structure

384 dots/line



Resolution

8 dots/mm



Paper feed

Auto pape loading



Dot pitch

0.125 mm (8 dots/mm)



Effective printing area

48 mm



Number of columns

ANK 32 columns/line (maximum 12 x 24 dot font)



Paper width

57.5±0.5mm



Dimensions

82.5×52×36mm (W×D×H)



Paper thickness

60 to 100μ m (some paper in this range may not be used because of paper characteristics)



Power supply

For print head

4.2 - 8.5 VDC ,0.87A(average)



For motor

4.2 - 8.5 VDC



For cutter motor

5-9 VDC,Max. 1A



For logic

2.7 - 5.25 VDC,Max 0.1A



For Module

5V-8VDC,Max. 5A, Rated Voltage:7.4V.



Weight

Module

0.22KG



Life

Head

100million pulses or more(print ratio=12.5%)



50km or more



Cutter

1,000,000 cuts



Operating environment

Operating temperature

0° C to 50° C



Operating humidity

20 to 85% RH (no condensation)



Storage temperature

-25° C to 70° C



Storage humidity

5 to 95% RH (no condensation)



Detection function

Head temperature detection

Via thermistor




Head-up detection

Via photo interrupter



Out-off-paper detection

Via photo interrupter



FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
