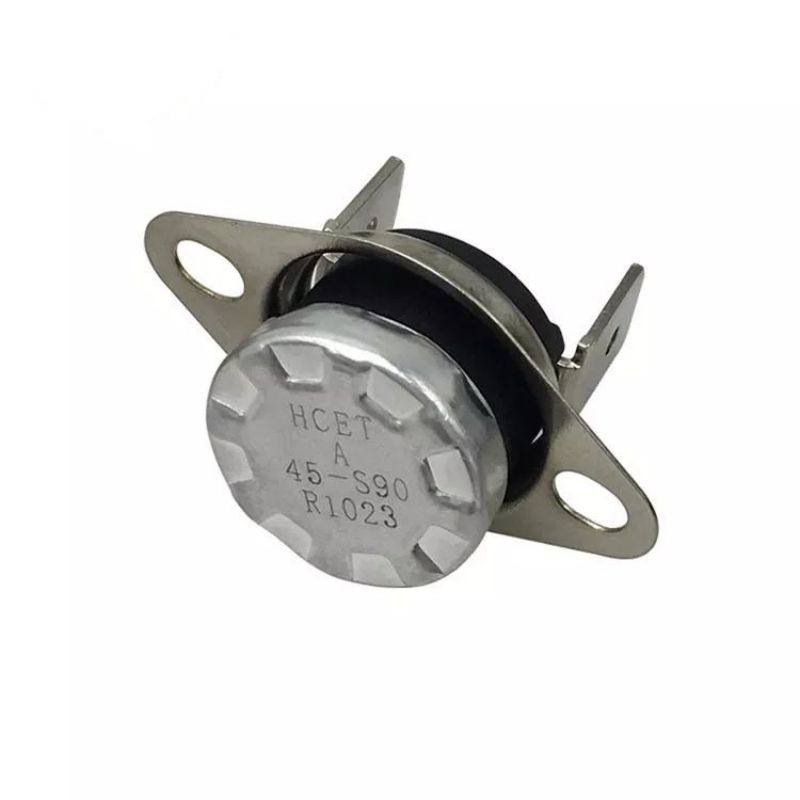

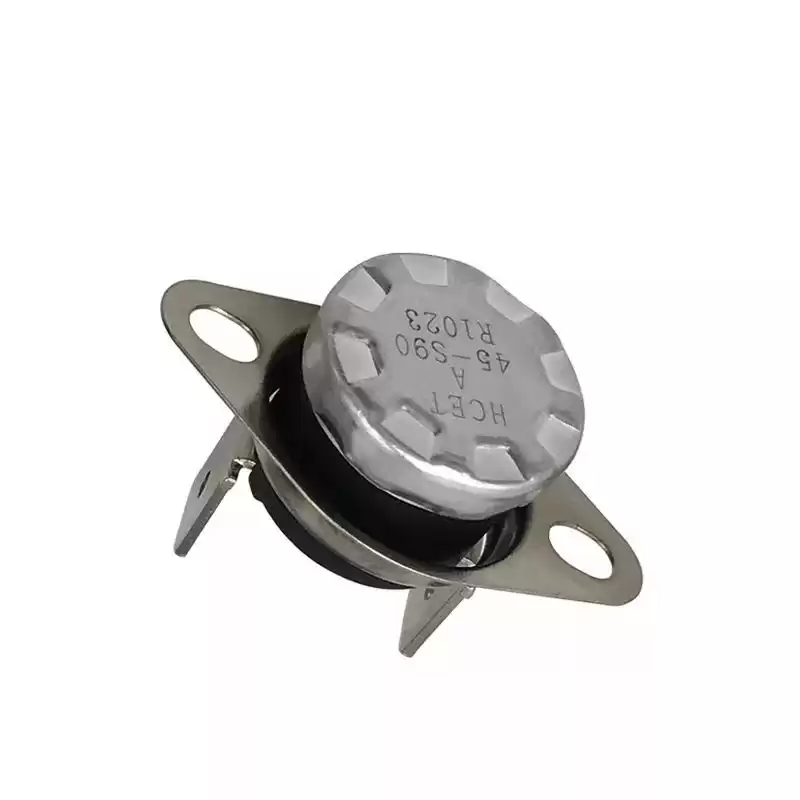

KSD301 thermostat switch widely used in household appliances
KSD301 series product is a thermostat switch that uses bimetallic sheet as the temperature sensing component. When the electrical appliance is working normally, the bimetallic sheet is in a free state, and the contact is in a closed/disconnected state.When the temperature reaches the operating temperature, the bimetallic sheet is heated to generate internal stress and act quickly, opening/closing the contacts, and cutting/connecting the circuit, thus playing a role in temperature control. When the appliance cools down to the reset temperature, the contacts close/open automatically, returning to normal operation.
KSD301 thermal protector is widely used in water dispensers, water heaters, bread machines, dishwashers, microwave ovens, kettles, rice cookers and other household appliances.
Features
Small size for easy installation.
Meets stringent specifications in AC and DC circuits.
Terminals are optional and customized.
Contact type: B-Normally open, K-Normally closed.
Automatic reset and manual reset.
Specifications
|
Item No.
|
KSD301/HC301
|
|
Electrical specifications
|
12VDC/24VDC: 10A-15A
|
|
125VAC / 250VAC: 10A-16A
|
|
Operating temperature range
|
-10°C-300°C
|
|
Temperature tolerance
|
± 3°C, ± 5°C
|
|
Housing material
|
Aluminum alloy&Ceramics
|
|
Terminals
|
Optional and customized
|
Applications
 |
 |
 |
 |

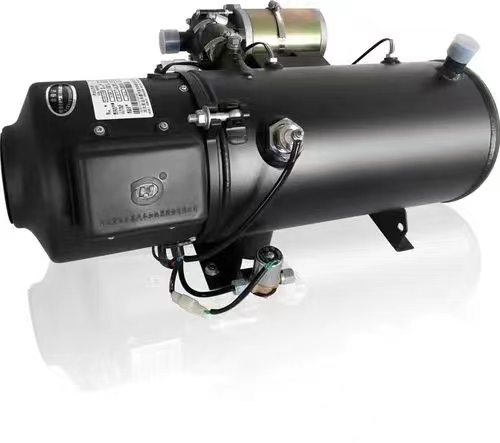

| Car preheaters |

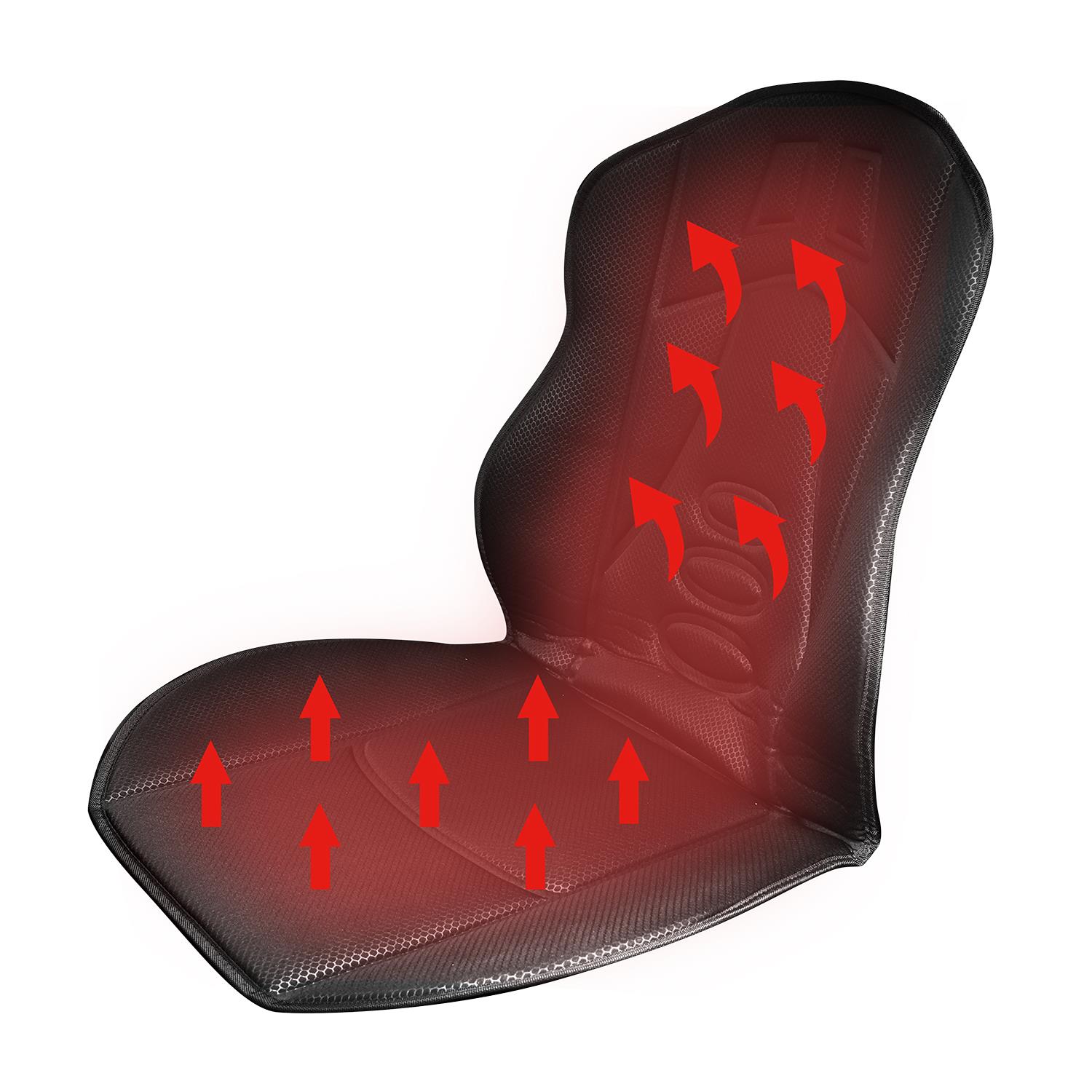

Car seat heating |

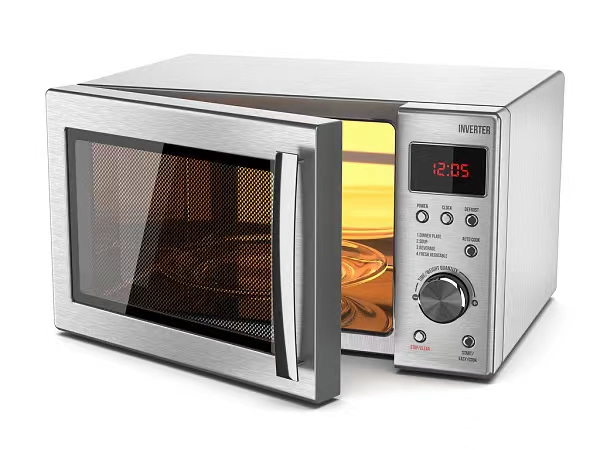

Micro-wave ovens |

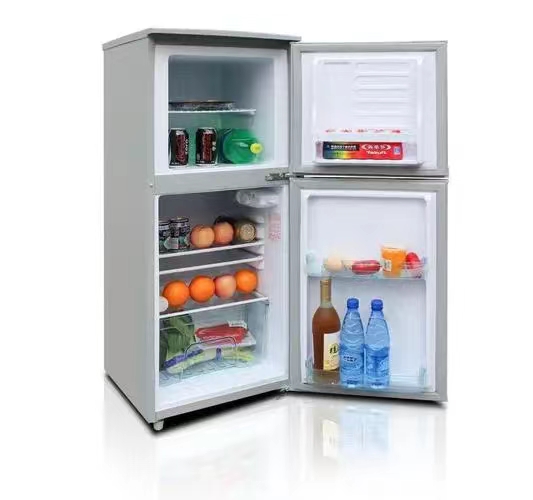

Refrigerators |
 |
 |
 |
 |

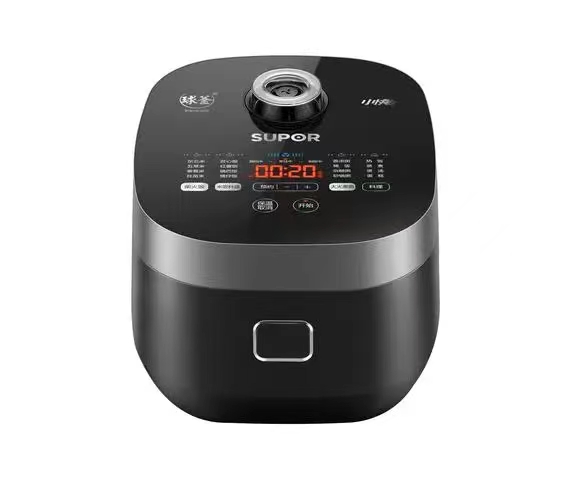

| Rice cookers |

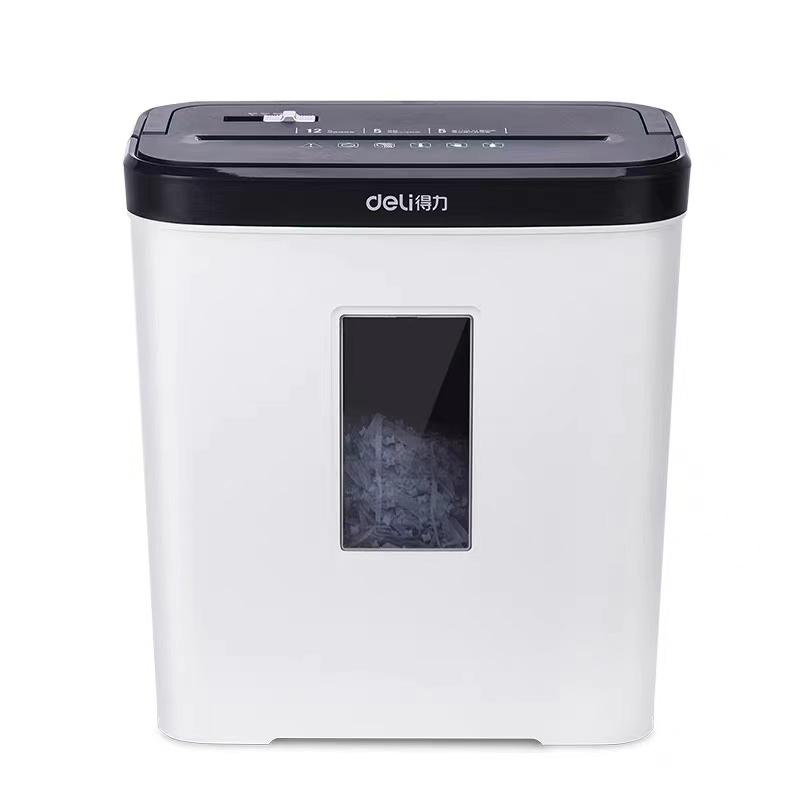

Shredders |

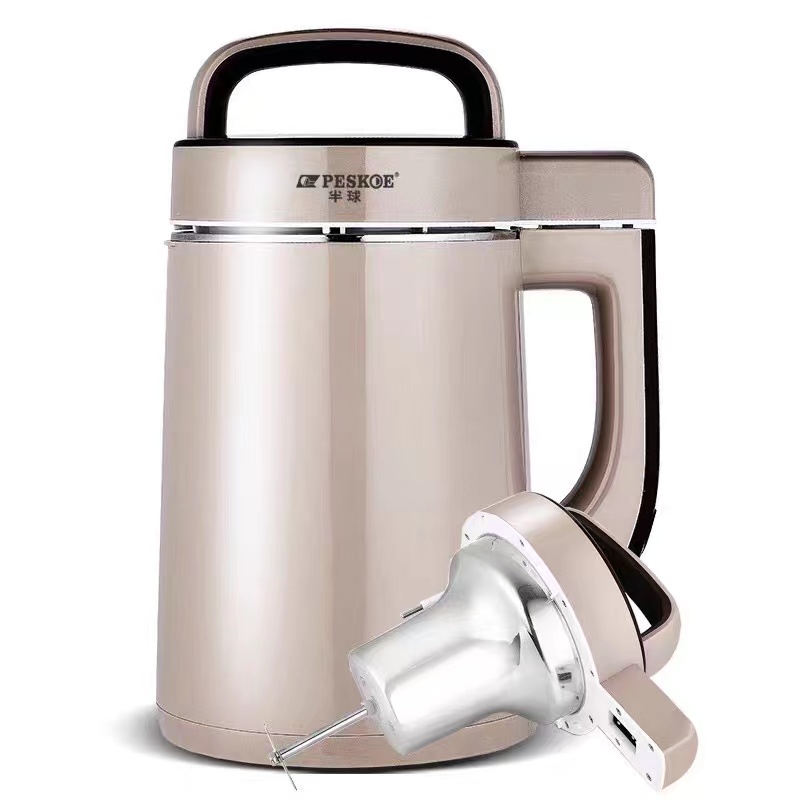

Soybean milk machines |

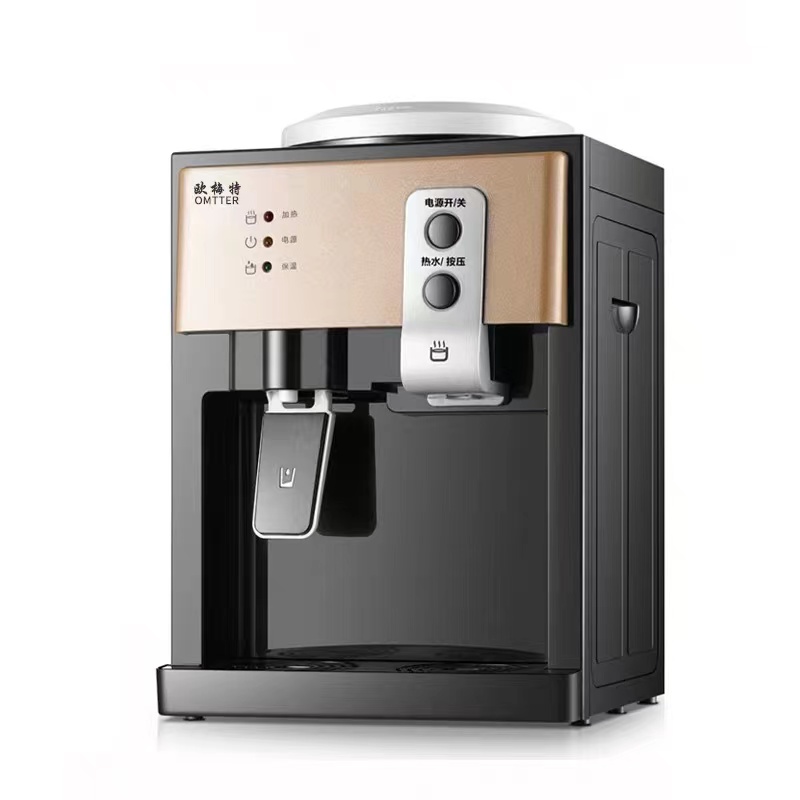

Water dispensers |

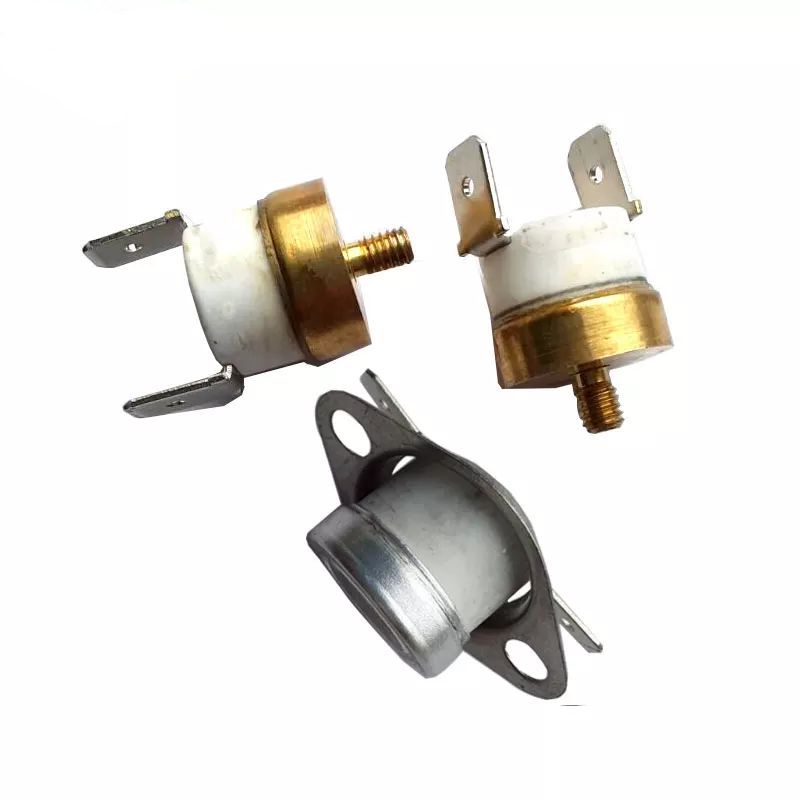

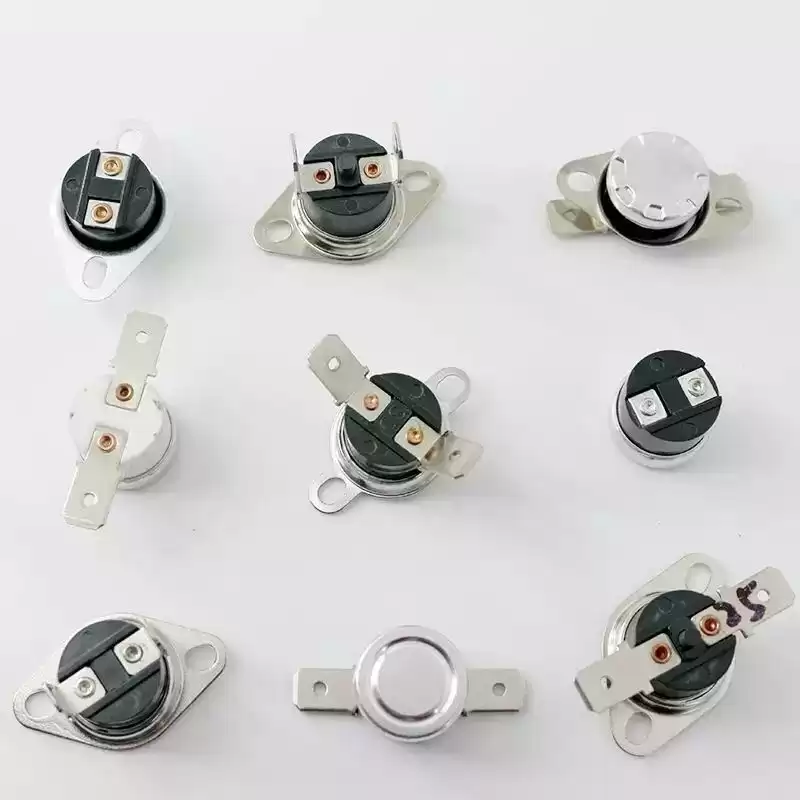

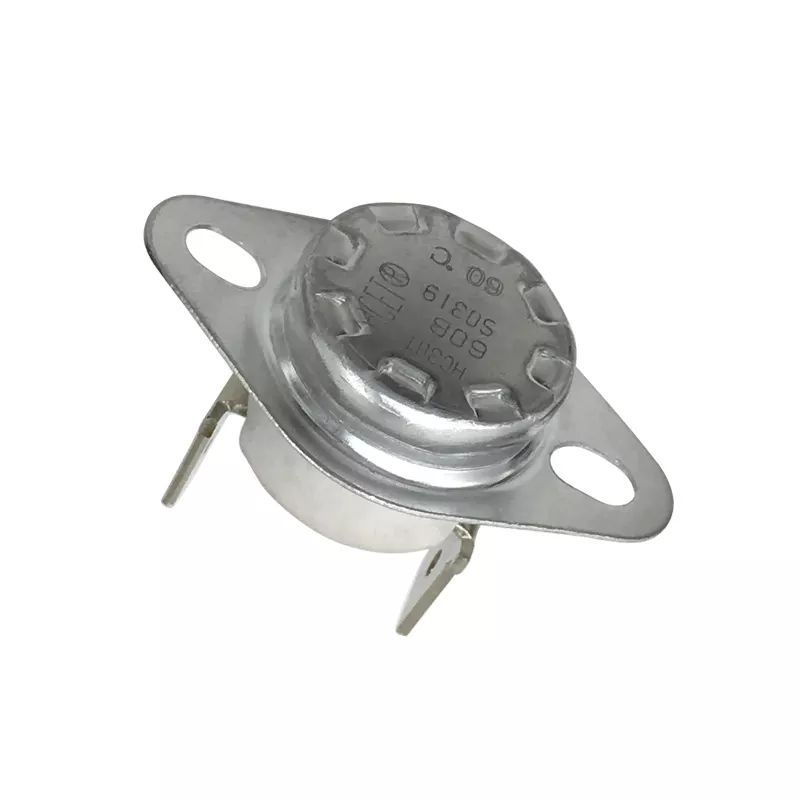

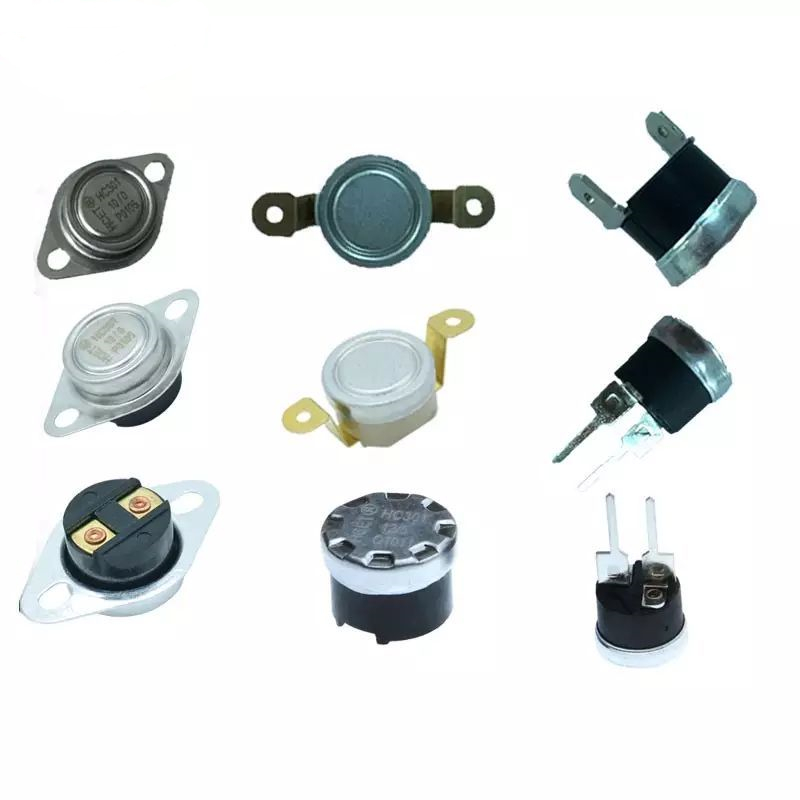

Product display

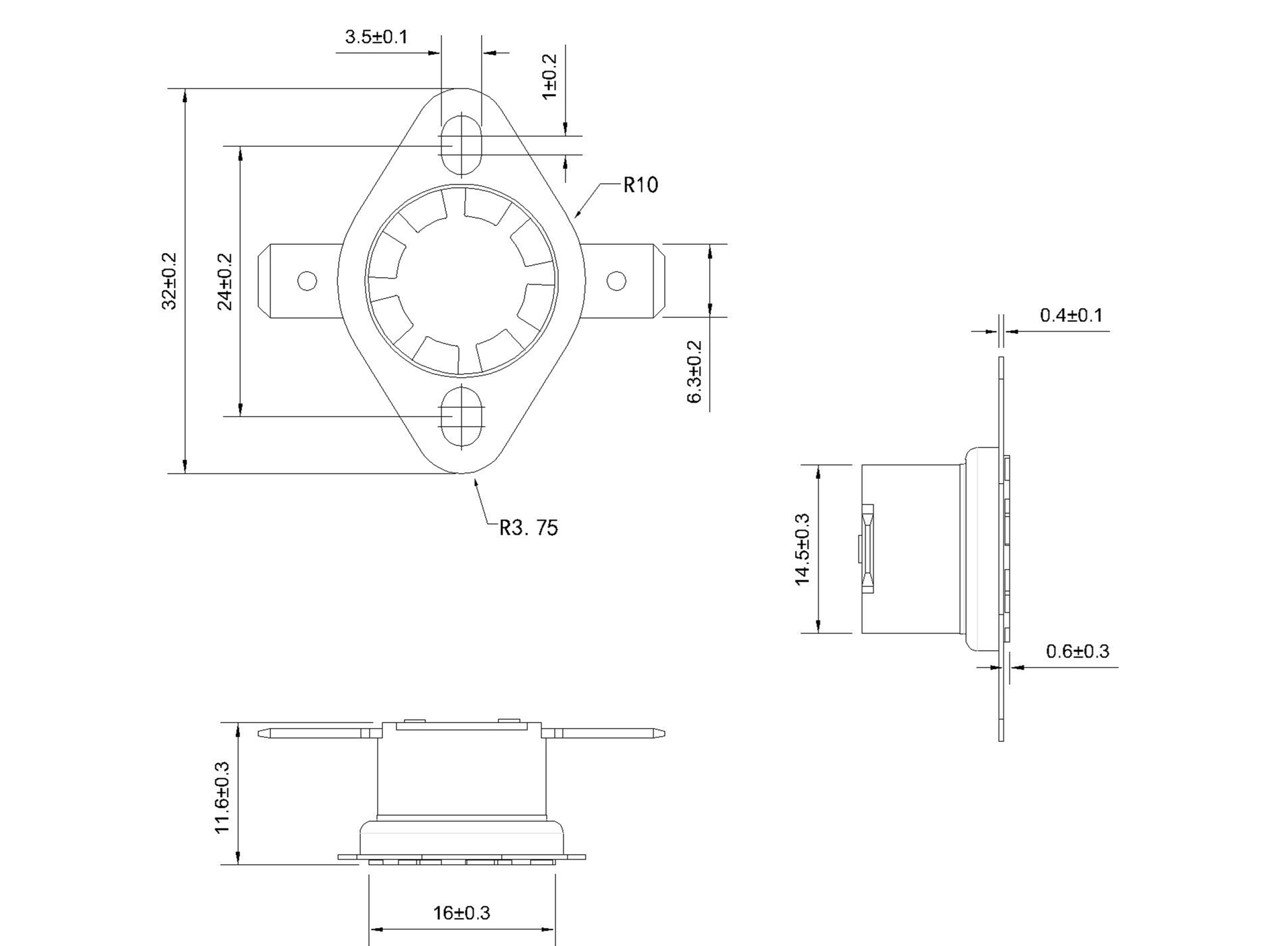

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
FAQ
Q:Are you a product supplier or a factory?
A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.
Q:How can I get a free sample?
A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.
Q:What is the shipping term of bimetal thermal protector?
A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.
Q:What parameters should I provide when I want to buy a thermal protector?
A:If you want to buy a thermal protector, please prepare these parameters:
1. Rated voltage, rated current.
2. Operating temperature and rest temperature of thermal protectors.
3. Length of lead wire, color, type and temperature resistance.
4. Application of thermal protector.
5. Mounting requirements if needed, including dimensional requirements.
