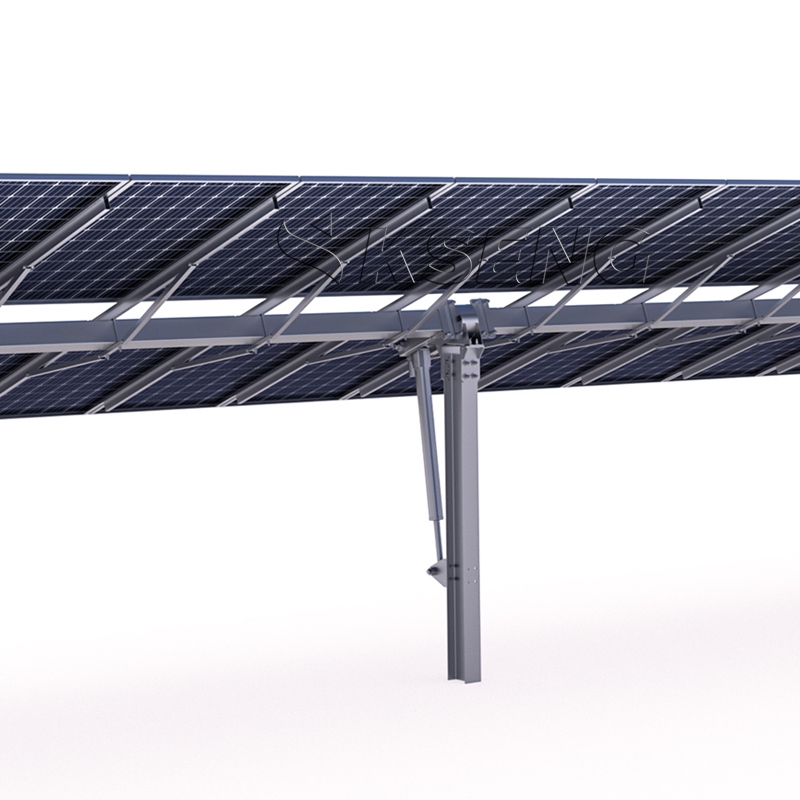

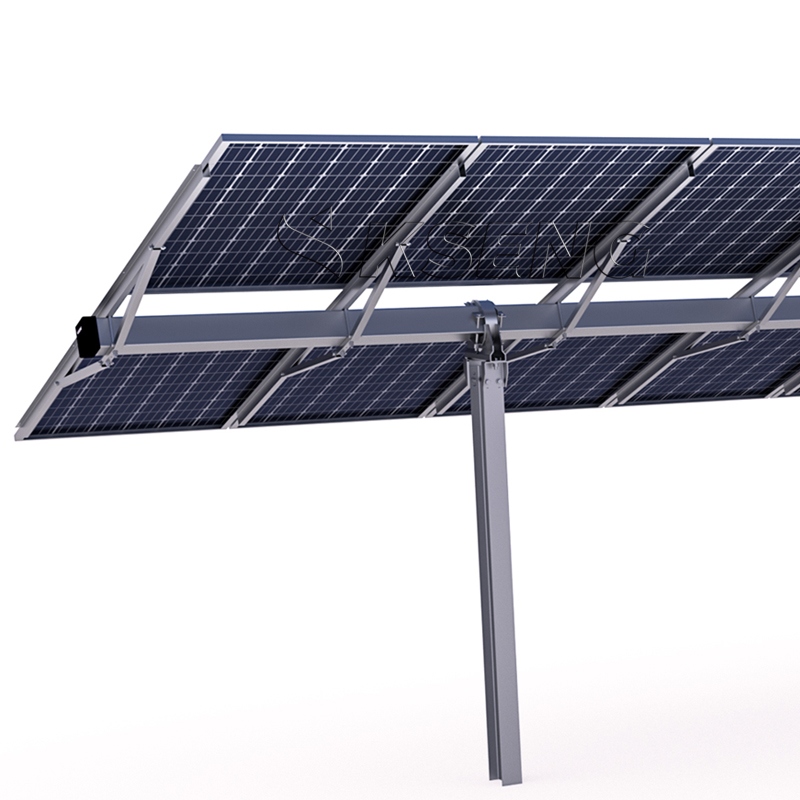

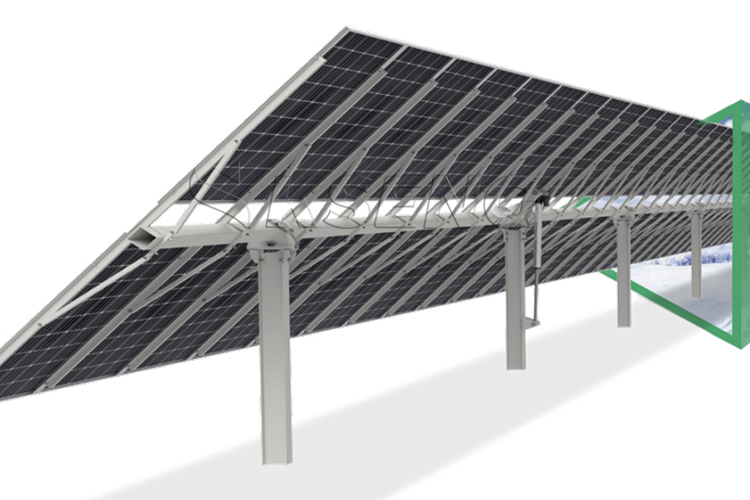

KSENG · KST-2PM Solar Tracker
KST-2PM adopt 3-4 actuator drive though transfer bar, stable and reliable, become most cost-effective bifacial solution.Kseng`s solar tracking systems adopt the spindle and column with large section specification are adopted to improve the stability and reliability of the system.Paten torque tube fastener,3 times faster installation speed than traditional one. Kseng solar panel mounting bracket is designed with a tracking mechanism that directs the panel towards the area of high sunlight intensity. It also has a method of concentrating the sunlight onto the photo receptors on the solar panel. All of these maximize the amount of solar energy collected from the sun within a specific time frame,thus, increasing the efficiency of the solar panel in absorbing solar energy by at least 15%.
Structure Parameters
|
System type
|
Multi-drive Double Portrait Horizontal single-axis tracking system
|
Maximum capacity per row
|
72KWp (Estimated with 600W PV -Modules)
|
PV-Modules quantity per row
|
2Px60, 2Px45
|
Tracking range
|
±60°
|
Tracking accuracy
|
±1°
|
|
Materials
|
HDG Steel, Al-Mg-Zn Coating
Steel
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|
Quantity of foundation/MW
|
125PCS/MW (Estimated with 600W PV-Modules)
|
Controller Parameters
|
Controller system
|
MCU
|
Tracking method
|
Astronomical
algorithm+closed-loop control (AI)
|

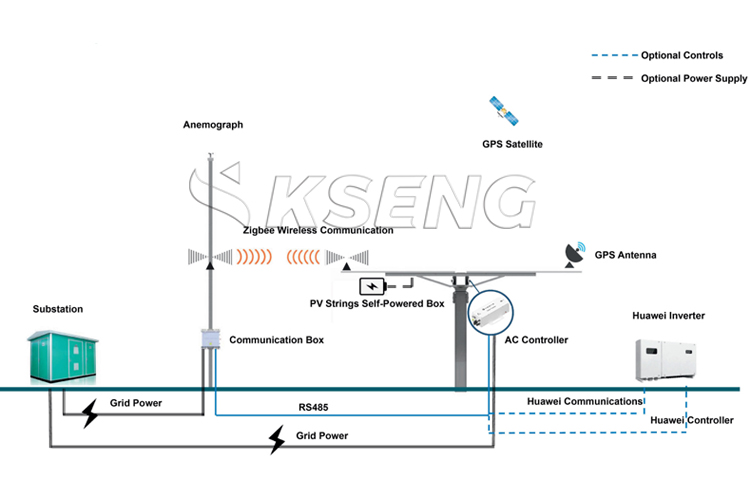

Signal transmission
|
Wire (RS485) or wireless (Zig bee)
|
Drive method
|
Linear-actuator
|
Motor type
|
DC 24V
|
Power supply
|
AC-powered or self-powered
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|

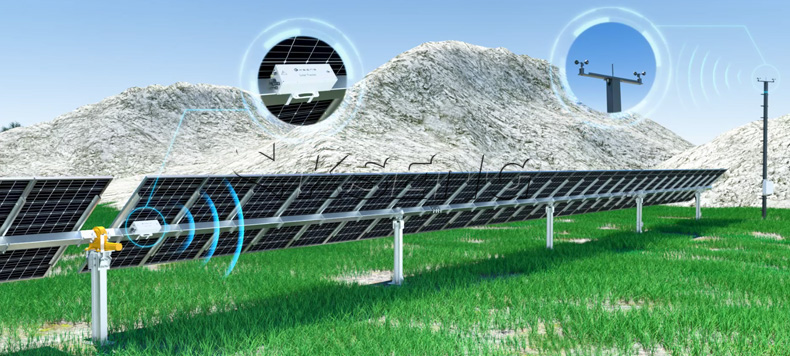

Advanced AI tracking algorithm
AI
self-learning algorithm to optimize the angular deviation caused by
terrain and bracket installation errors. Compared with the traditional
tracking algorithm, the power generation of the power station can be
increased by 2%-3%.
Kseng KST-2PM Features

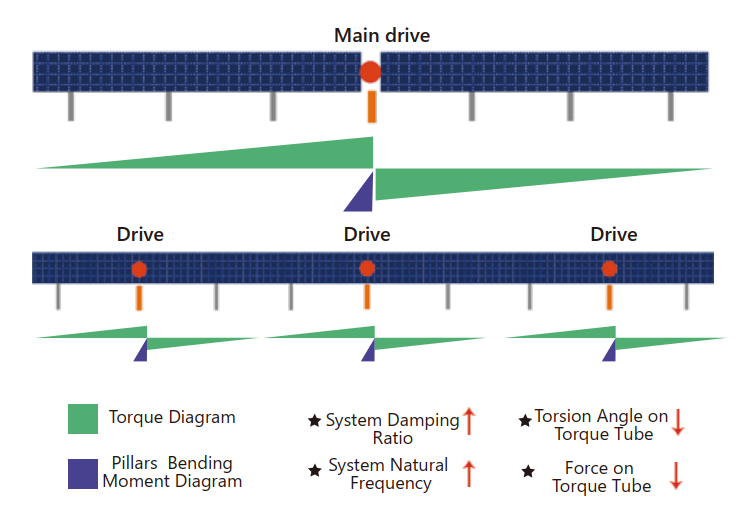

1: Multi-point linear-actuator drive system
2: Suitable for the high wind load areas
3：Fully fit for 210 module
4：Al algorithm to maximize power generation
5：Adapt to various terrains allowing a north-south slope up to 20%
6：Easy installation & maintenance
Terrain adaptability：
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
